CE Certified High Accuracy 3 Axis 4 Axis CNC Vertical Machine Center
- Category: CNC Controller >>>
- Supplier: Dongguan Chansin Hardware Machinery Co. Ltd.
Share on (60775347866):
Product Overview
Description

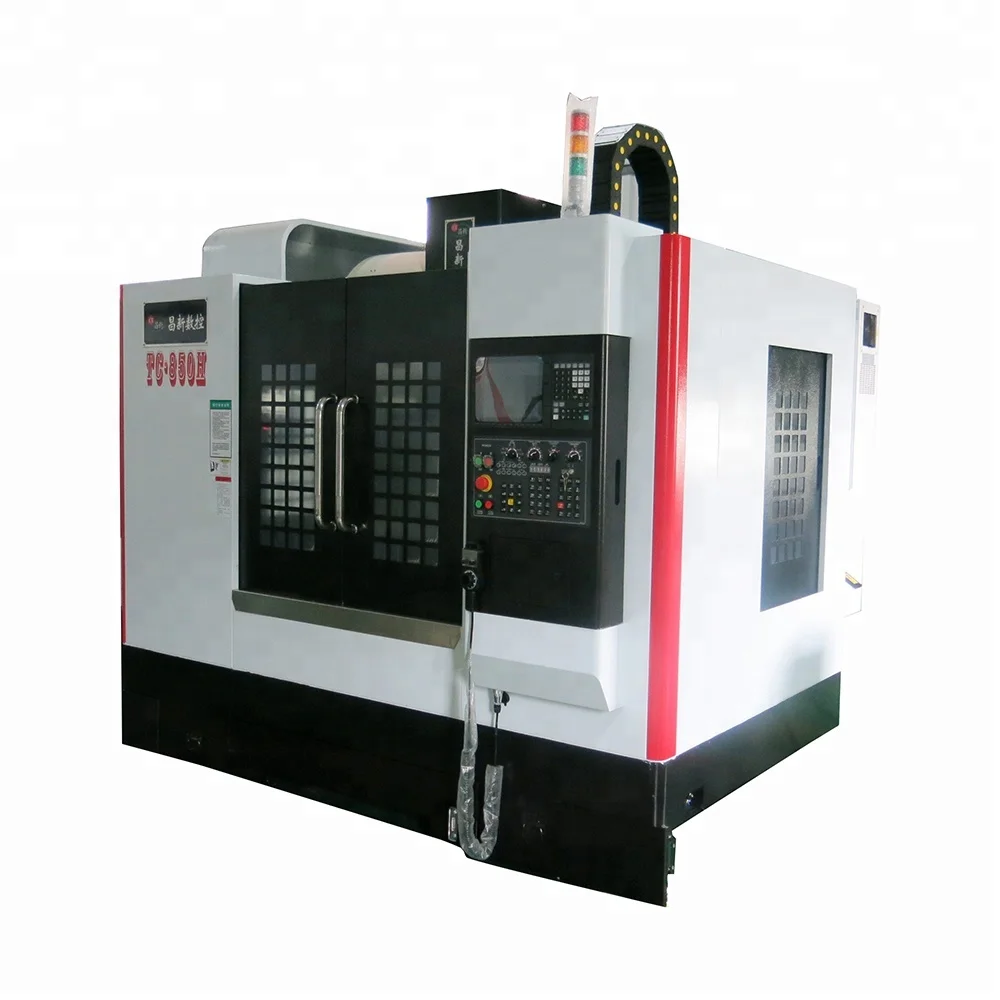

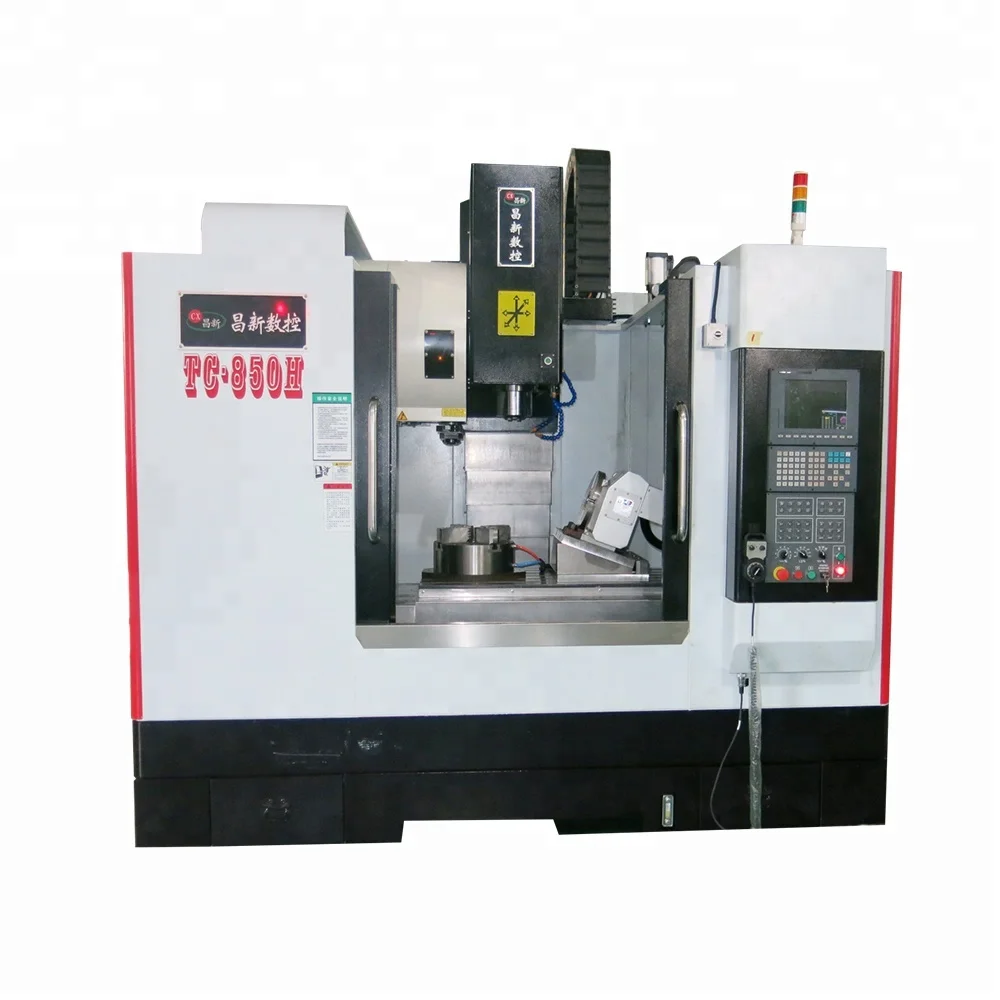

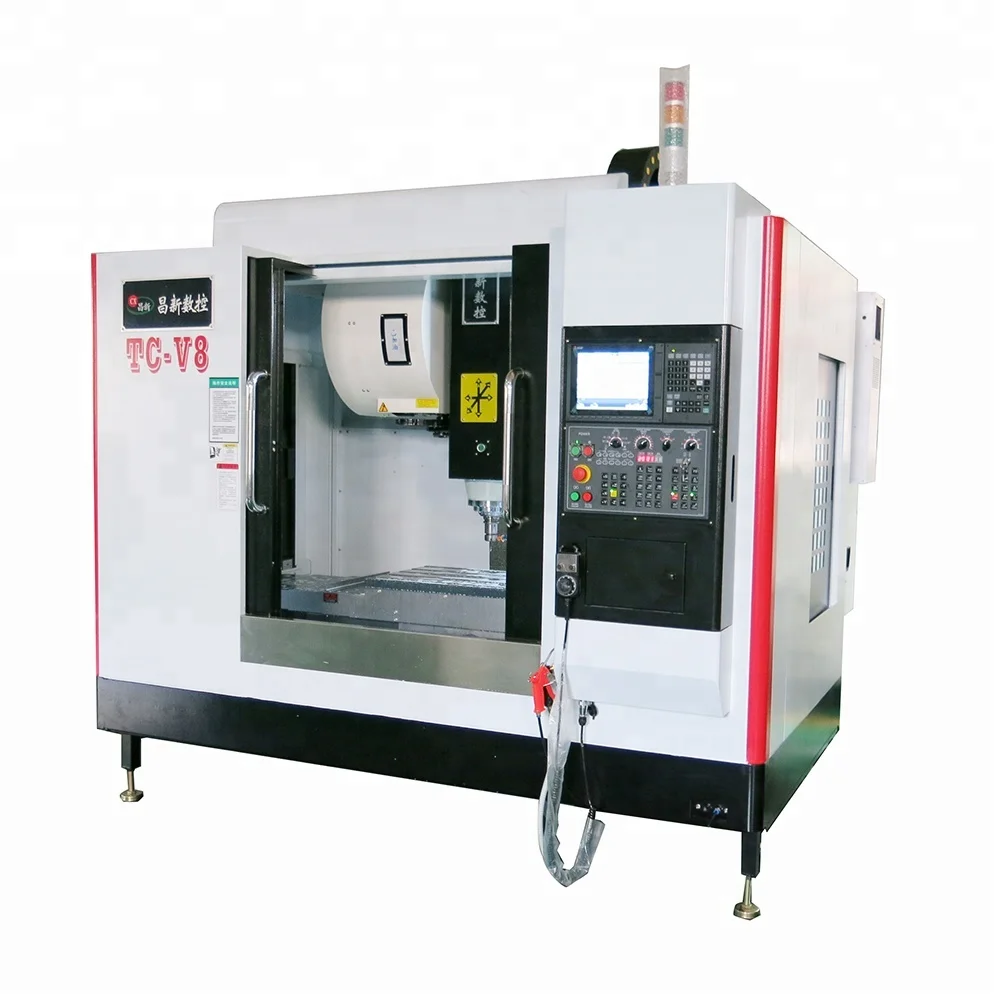

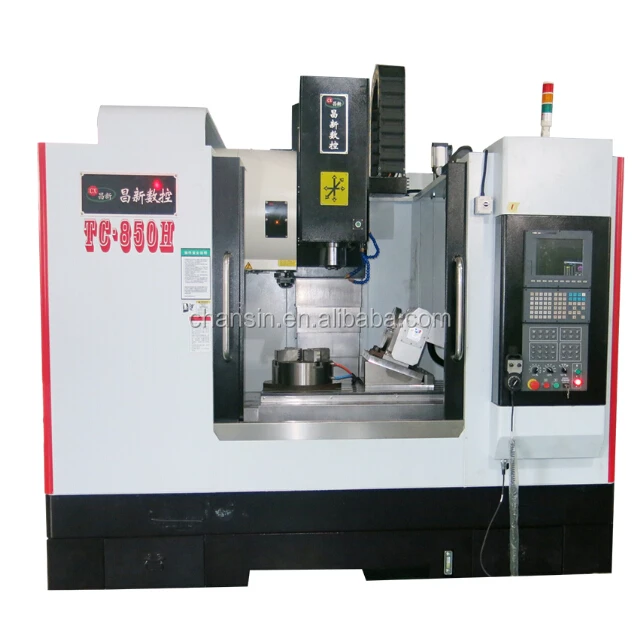

CE Certified High Accuracy 3 Axis 4 Axis CNC Vertical Machine Center
| System | Syntec/Mitsubishi/Fanuc/Siemens |
| Motor | Yaskawa/Mitsubishi/Siemens/Fanuc |
| Tool Magazine Capacity | Disc type tool magazine Tool Number:24 |
| Lubrication System | Automatic |
| Cooling System | Oil Cooling |
| X/Y/Z-axis Travel | 800mm/500mm/500mm |
| Distance from Spindle Nose to Table | 170mm-670mm |
| Distance from Spindle Center to Column Guide Rail | 580mm |
| Working Table Size | 920*500mm |
| Table Max Load | 600kg |
| T Slot | 5pcs,size:18T,space:100mm |
| Spindle Speed | standard:8000rpm;opt:10000/12000rpm |
| Spindle Motor Power | 7.5kw |
| X/Y/Z-axis Motor Power | 2.0kw/2.0kw/3.0kw |
| Rapid Traverse(X/Y/Z) | 48000/48000/48000mm/min |
| Cutting Speed | 12000mm/min |
| Spinldle Taper | BT40 |
| Positioning Accuracy | ±0.005mm |
| Repeat Positioning Accuracy | ±0.003mm |
| Line Rail Width | 35mm |
| Slider Quantity | 4 |
| Machine Size | 2700*2300*2600mm |
| Machine Weight | 4.5ton |
| Warranty | One Year |
| Main Component Brand | |
| System | Syntec/Mitsubishi/Siemens/Fanuc |
| Spindle | Weilong/Roaly/Danquan in Taiwan |
| Tool Magazine | Sanjie/Deta in Taiwan |
| Bearing | NSK in Japan or FAG in Germany |
| Lead screw/Linear Guideway | Hiwin/PMI in Taiwan |
| Coolant Tank | Taiwan Brand |
| The price is only for reference.For specific price,please contact us. | |

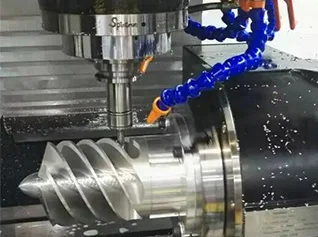

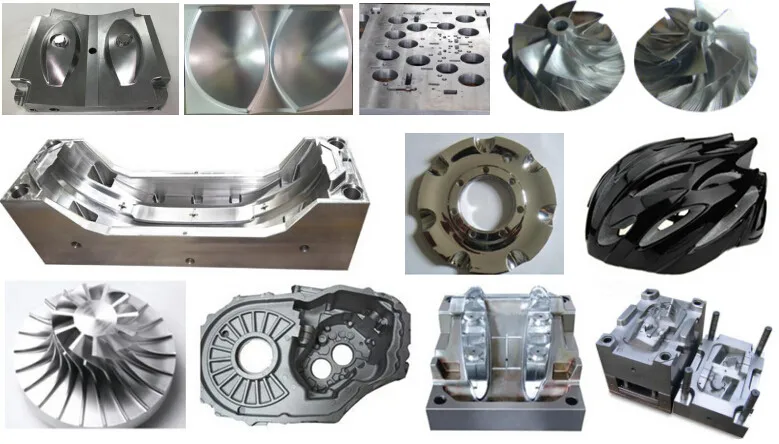

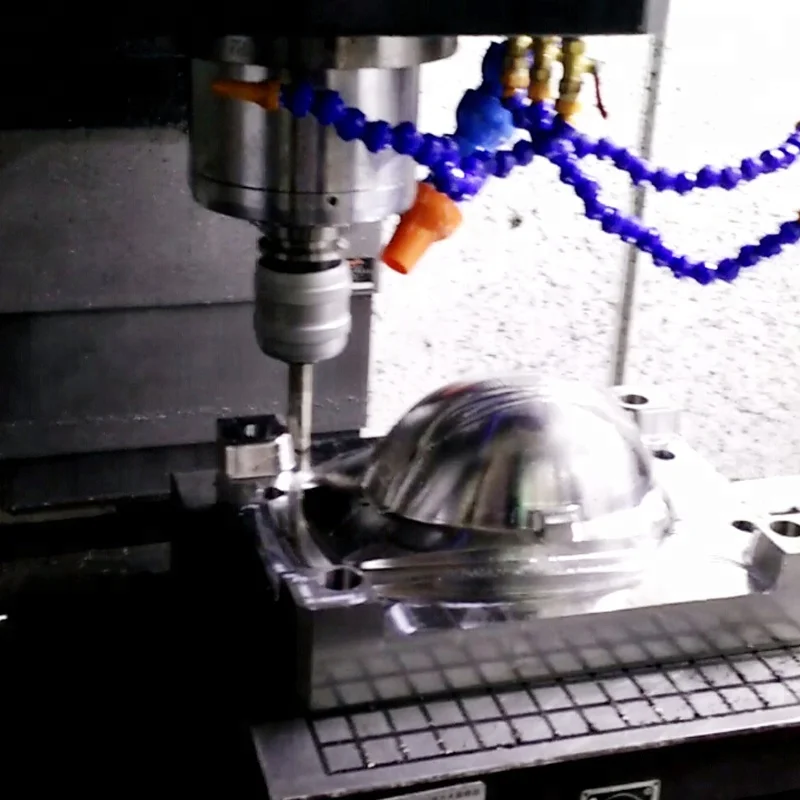

Work Piece Machined
Company information
Certifications
Our Customers
Packaging & Shipping
FAQ
Q1: Are you a factory?
A1: Yes,we are a professional factory that was founded in 1998.
Q2: Payment term
A2: After the contract is signed, you shall pay 40% deposit, then the contract comes into effect.
Q3:Arrange production
A3: Mass production is managed upon getting deposit . Usually, CNC milling machine is finished within 20 days, automatic drilling machine and automatic tapping machine within 15 days.
Q4:Check the acceptance
A4: When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any problem about machine, please take pictures and contact us immediately.
Q5:Warranty time
A5: 1) One year warranty. We can send you the machines' components for free in the first one year if it is not be damaged on purpose. And we offer life-long maintenance. After warranty time, customers shall pay money for component and express fee.We can provide debugging on site and training for customers, but customers need to pay expense. In this case, the customer will pay for air tickets between China and buyer's destination and free provide accommodation and meals. 2)12 months warranty begins from the day when the machine arrives. If it can’t work normally, my company will send engineers to your factory within 24 hours after receiving your notice. We still support maintenance for machine even warranty expires. Each cnc machine leaving the factory will be along with related English instructions including maintenance manual and operation manual.
Q6:OEM Service
A6: We accept purchase orders with customers' brand or trade mark.
