HM ZD350E Automatic gluing and Spotter Machine
- Category: Packaging Forming Machines >>>
- Supplier: Guangdong Hongming Intelligent Joint Stock Co. Ltd.
Share on (60775394158):
Product Overview
Description

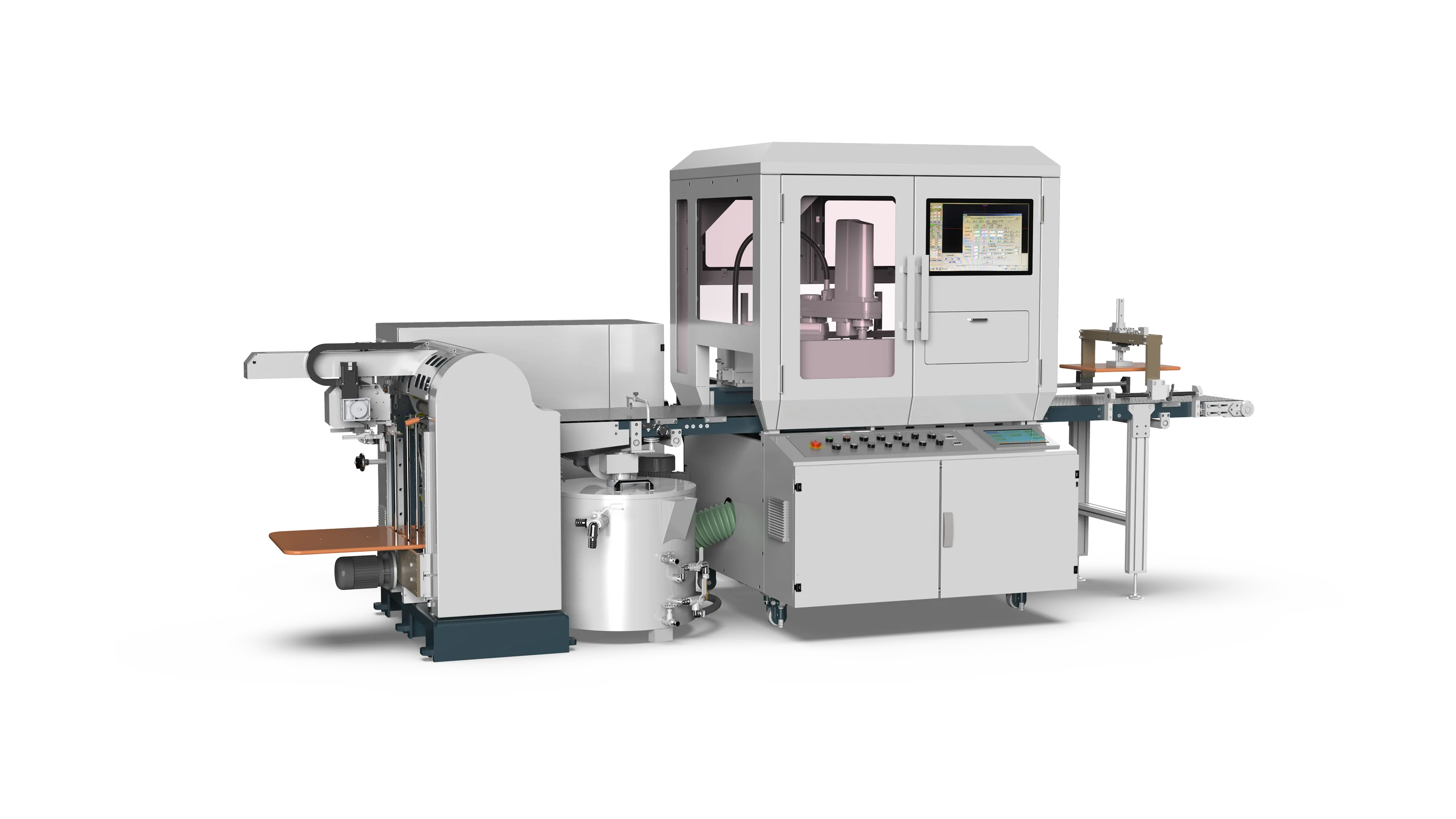

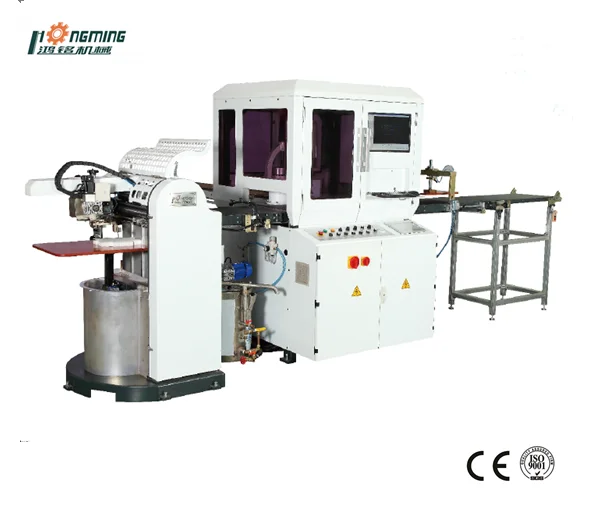

HM-ZD350E Automatic Gluing and Spotter Machine
Discription:
HM-ZD350E Automatic Gluing and Spotter Machine is an automatic equipment with multifunction for high- precision positioning of small-sized premium boxes and hard cover.
HM-ZD350E is a high-precision positioning for small-sized premium box, It's suitable to all kinds of paper and box shells positioning processes.

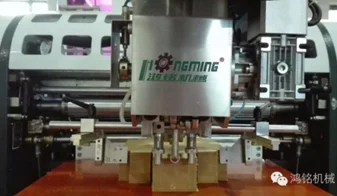

This machine adopts PLC , man-machine control and CCD positioning system, which enable the machine to feed paper, gluing and spotter the box automatically and fluently. The feeder, the gluer and the conveyor are driven by servo system which has continuously variable transmission and enjoys high accuracy, easy adjusting and high efficiency. The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard, enhancing the spotting accuracy to ±0.05mm, with even faster speed.
HM-ZD350E Automatic gluing and Spotter Machine's Main Characteristics
1. Suit to all kinds of paper and box shells positioning process;
2. Suit to all kinds of paper and cardboard positioning process(For HM-ZD350E only)
3. Parameter adopts computer digital setting
4. Auto error stop and display
5. Automatic feed paper
6. 24-hours control for glue pre-heating
7. Servo System for controling the whole machine.
8. CCD positioning system and robot arm for positioning the box shells.
9. Automatic control system of glue viscosity (optional)
HM-ZD350E Automatic Gluing and Spotter Machine's Technical Parameters:
Model | HM-ZD350E | |
Paper Size B=Length, A=Width | A(Max.) | 455mm |
A(Min.) | 45mm | |
B(Max.) | 600mm | |
B(Min.) | 110mm | |
Thickness | 80-160gsm | |
Finished Box Size | L(Max.) | 350mm |
L(Min.) | 45mm | |
W(Max.) | 250mm | |
W(Min.) | 35mm | |
H(Max.) | 80mm 120mm(when change the rod) | |
H(Min.) | 10mm | |
Paper Pile Height Max. |
| 600mm |
Greyboard Pile Height Max. |
| 850mm |
Glue tank Volume |
| 20L |
Air Supply |
| 480L/min, 0.8Mpa |
Speed | <25pcs/min | |
Power/Voltage | 21kW/AC380V | |
Net Weight | 3800kg | |
Machine Dimension | 5500 x 4500 x 2200mm | |
NOTE:
White glue tank is optional, Please specify when placing order.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(81.00%),Southeast Asia(6.00%),South Asia(5.00%),Central America(0.80%),Eastern Asia(0.80%),Mid East(0.80%),North America(0.80%),Northern Europe(0.45%),South America(0.27%),Southern Europe(0.15%),Oceania(0.01%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Rigid Box Machine,Packaging Machine,set-up boxes machines,case maker/hardcover making machines,luxury box making machines
4. why should you buy from us not from other suppliers?
Have own R&D Team, can customize machine according to customer's rigid box's requirements. In package machine industry for 21 years experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR, CIF ,EXW;
Accepted Payment Currency: USD ,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
