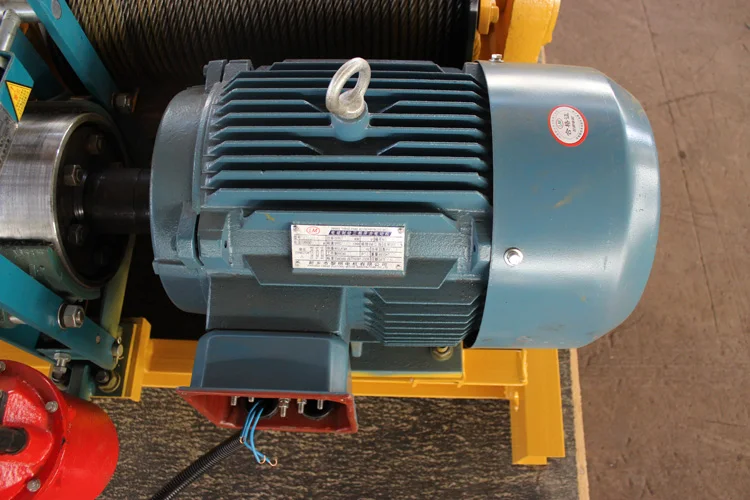

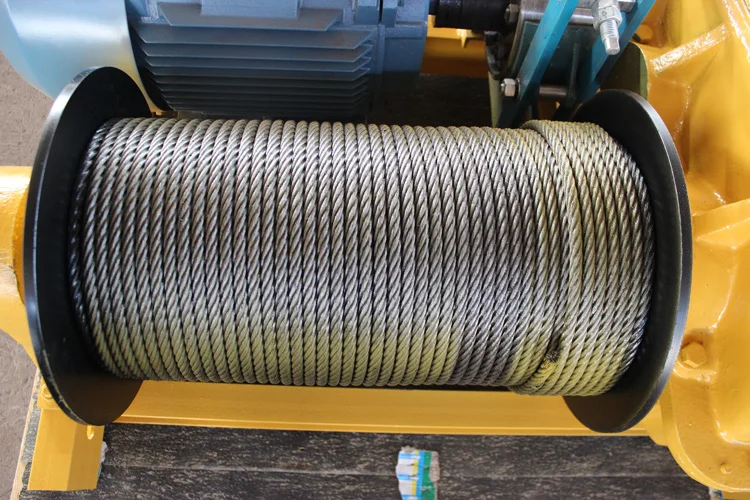

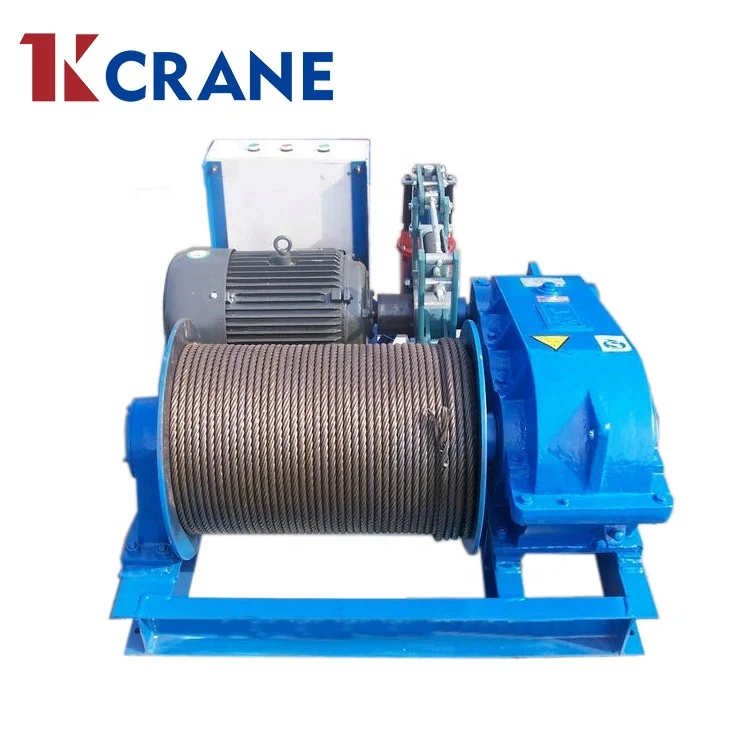

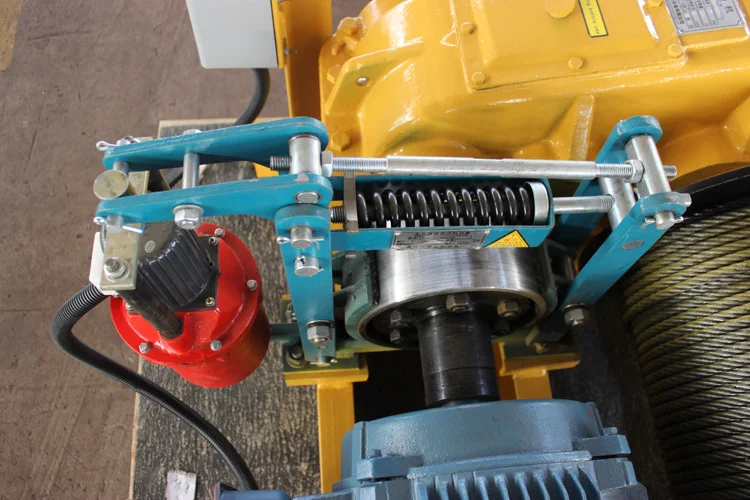

Hydraulic brake 65T JM electric winch 220V
- Category: >>>
- Supplier: Xinxiang Kehao Machinery Equipment Co. Ltd.
Share on (60775407274):
Product Overview
Description
PRODUCT OVERVIEW
DRAWING EXAMPLE
SPECIFICATION
Parameter of JM Electric Winch | ||||||||||||
Model | Rated Line Pull(KN) | Capacity of drum(m) | Wire rope | Motor | ||||||||
Diameter (mm) | lifting speed (m/min) | Motor model | Motor rating (KW) | |||||||||
JM1 | 10 | 100 | 9.3 | 15 | Y112M-6 | 3 | ||||||
JM2 | 20 | 150 | 13 | 16 | Y160M-6 | 7.5 | ||||||
JM3.2 | 32 | 200 | 15.5 | 12 | YZR160M-6 | 7.5 | ||||||
JM5 | 50 | 250 | 21.5 | 9.5 | YZR160L-6 | 11 | ||||||
JM8 | 80 | 250 | 26 | 8 | YZR180L-6 | 15 | ||||||
JM10 | 100 | 250 | 30 | 8 | YZR200L-6 | 22 | ||||||
JM12 | 120 | 300 | 32 | 8 | YZR225M-6 | 30 | ||||||
JM16 | 160 | 500 | 37 | 10 | YZR250M-8 | 37 | ||||||
JM20 | 200 | 600 | 42 | 10 | YZR280M-8 | 45 | ||||||
JM25 | 250 | 800 | 48 | 9 | YZR280S-8 | 55 | ||||||
JM32 | 320 | 700 | 50 | 9 | YZR315S-8 | 75 | ||||||
JM50 | 500 | 700 | 60 | 9 | YZR315M-8 | 90 | ||||||
Parameter of JK Electric Winch | ||||||||||||
Model | Rated Line Pull(KN) | Capacity of drum(m) | Wire rope | Motor | ||||||||
Diameter (mm) | lifting speed (m/min) | Motor model | Motor rating (KW) | |||||||||
JK1 | 10 | 80 | 9.3 | 22 | Y112M-4 | 4 | ||||||
JK2 | 20 | 110 | 13 | 24 | Y132M-4 | 7.5 | ||||||
JK3.2 | 32 | 250 | 15.5 | 30 | YZR180L-6 | 15 | ||||||
JK5 | 50 | 200 | 21.5 | 30 | YZR225M-6 | 30 | ||||||
JK8 | 80 | 250 | 26 | 30 | YZR280S-8 | 45 | ||||||
JK10 | 100 | 300 | 30 | 30 | YZR315S-8 | 55 | ||||||
PRODUCTS STOCK
PACKING & SHIPPING
COMPANY EXHIBITION
Xinxiang Kehao Machinery Equipment Co., Ltd. is the design, manufacture, sales, shipping, customs, service as one of the major integrated enterprises crane. The company has advanced machining equipment, with a variety of physical, electrical, hydraulic, chemical and other testing, testing methods, the establishment of a sound quality system. Supplying Services Content as below: R & D & Design & OEM, Overhead Crane, Gantry Crane, Port & Shipyard Crane, Electric Hoist, Jib crane, Erecting bridge crane, Electric flat car & Turntable, Winch, Crane Accessories.
1 .14 Months warranty when products leave the factory,or 12months warranty after installation and
commissioning in addition to the human damage factors.
2. Professional techincal staffs provide installation , commissioning and training services.
3. Delivery with English user manual ,parts manual,product certification and other relevant certificates.
4. Techical advisory for any time.
commissioning in addition to the human damage factors.
2. Professional techincal staffs provide installation , commissioning and training services.
3. Delivery with English user manual ,parts manual,product certification and other relevant certificates.
4. Techical advisory for any time.
RELATED PRODUCTS
PURCHASING GUIDE
1. The Max. pulling capacity?(Ton or KN)
2. Lifting speed?(m/min) (to confirm fast speed or low speed)
3. The Max. rope length?(m)
4. Diameter of wire rope?(or following our standard)
5. The power source standard?(380V, 50Hz, 3phase or others)
6. How to use the winch?(Lifting or horizontal pull?)
7. What type meterial will you to pull(lift)?
Please try to confirm the above information, if difficult to you, please see the specification table for your reference or
tell us your questions. We will choose a suitable products for you.
2. Lifting speed?(m/min) (to confirm fast speed or low speed)
3. The Max. rope length?(m)
4. Diameter of wire rope?(or following our standard)
5. The power source standard?(380V, 50Hz, 3phase or others)
6. How to use the winch?(Lifting or horizontal pull?)
7. What type meterial will you to pull(lift)?
Please try to confirm the above information, if difficult to you, please see the specification table for your reference or
tell us your questions. We will choose a suitable products for you.
