Product Overview
Description
Product Description
It offers a low cost solution for linear fiber optic links, which is packaged in a compact hermetic assembly for flexible integration into various transmitter configurations.
Product Detail
Features:
.Output power:1200mW
.Efficient quantum well structure
.Center Wavelength :830nm

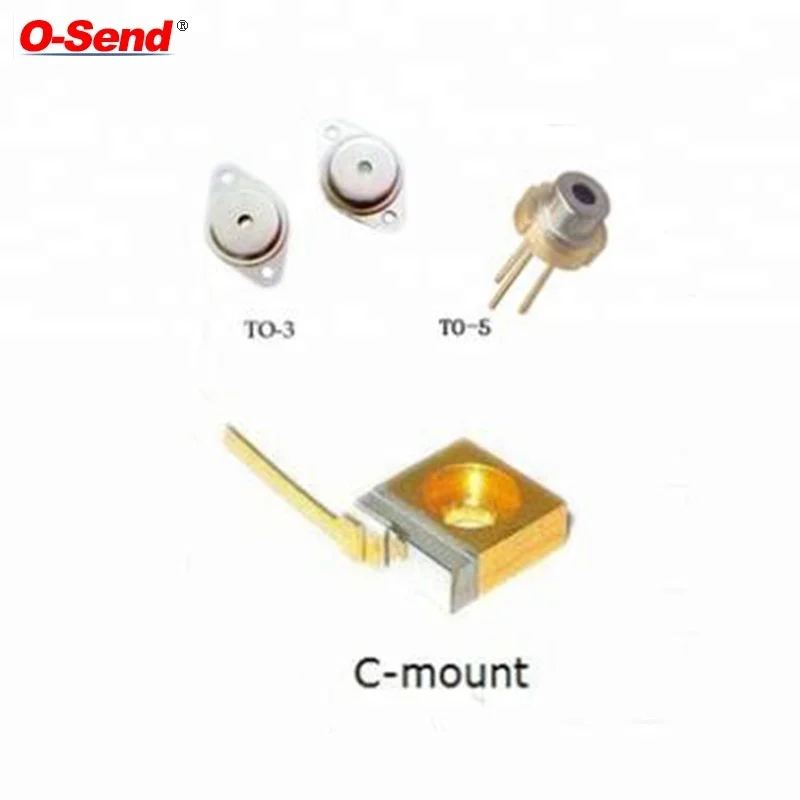

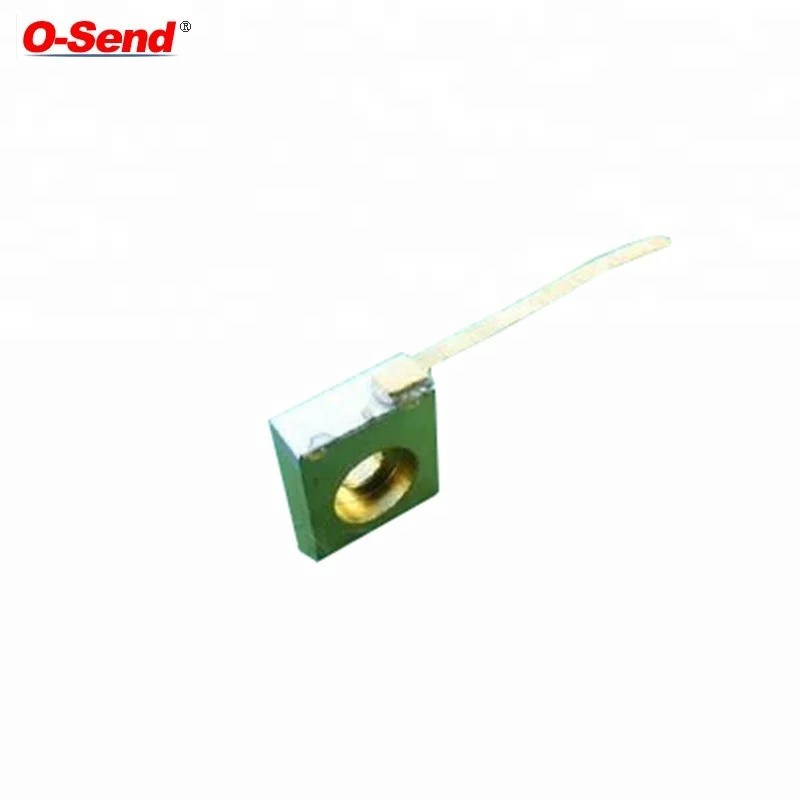

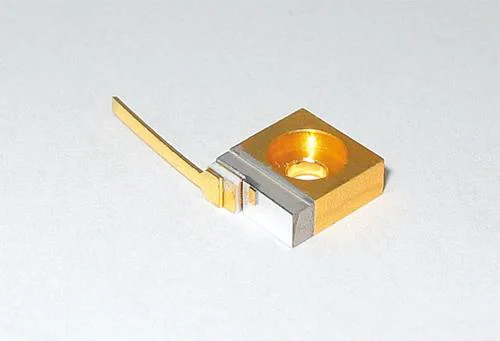

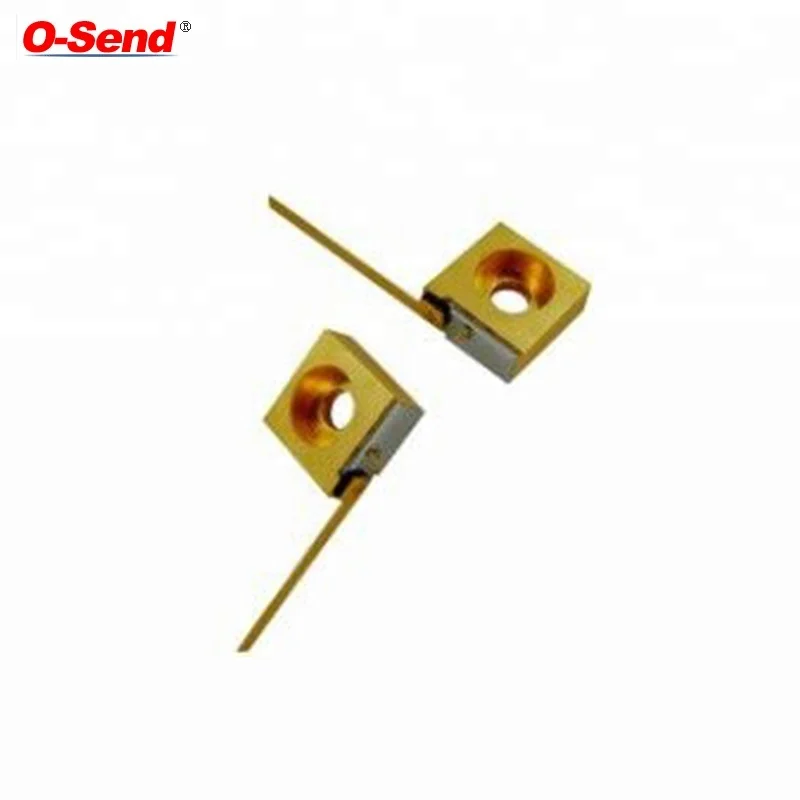

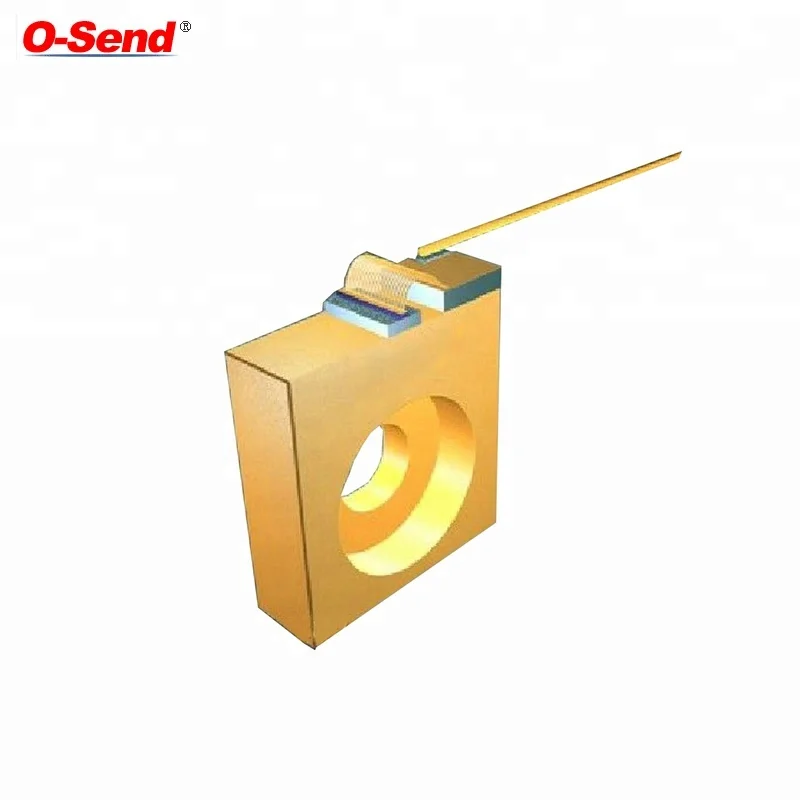

.Package :C-mount
.Light beam shaping
Absolute Maximum Ratings(T=25℃)
| Parameter | Symbol | Unit | Min | Max | Note |
| Reverse Voltage | Vr | V | - | 2 | - |
| Operating Temperature | To | ℃ | 10 | 30 | |
| Storage Temperature | Tstg | ℃ | 10 | 85 | |
| Solder Temperature | Stemp | ℃ | - | 260 | 10 seconds max |
Electro-Optical Characteristics(T=25℃)
| Optical Output power | Po | mW | 1200 | - | - | Iop=1400mA |
| Center wavelength | λc | nm | 822 | 832 | 842 | Po=1200mW |
| Spectral width | Δλ | nm | - | 3 | 4 | FWHM,Po=1200mW |
| Threshold current | lth | mA | - | 200 | 280 | |
| Operating current | Iop | mA | - | 1300 | 1400 | |
| Operating voltage | Vf | V | 1.6 | - | 2.2 | Po=1200mW |
| Slope Efficiency | η | W/A | - | 1 | - | |
| Beam divergence | θ⊥xθ⁄⁄ | . | - | 40X12 | - | FWHM |
Beam divergence (fast axis collimated) | θ⊥xθ⁄⁄ | . | - | 10X12 | - | FWHM |
Wavelength temperature coefficient | d/dT | nm/℃ | - | 0.3 | - | - |
| Emitting area | - | um | 50x1 | - | ||
| Polarization Ratio | - | - | TE | - | ||
