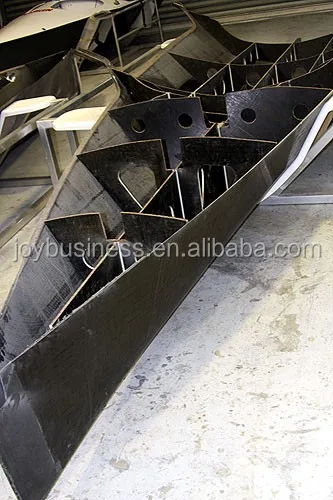

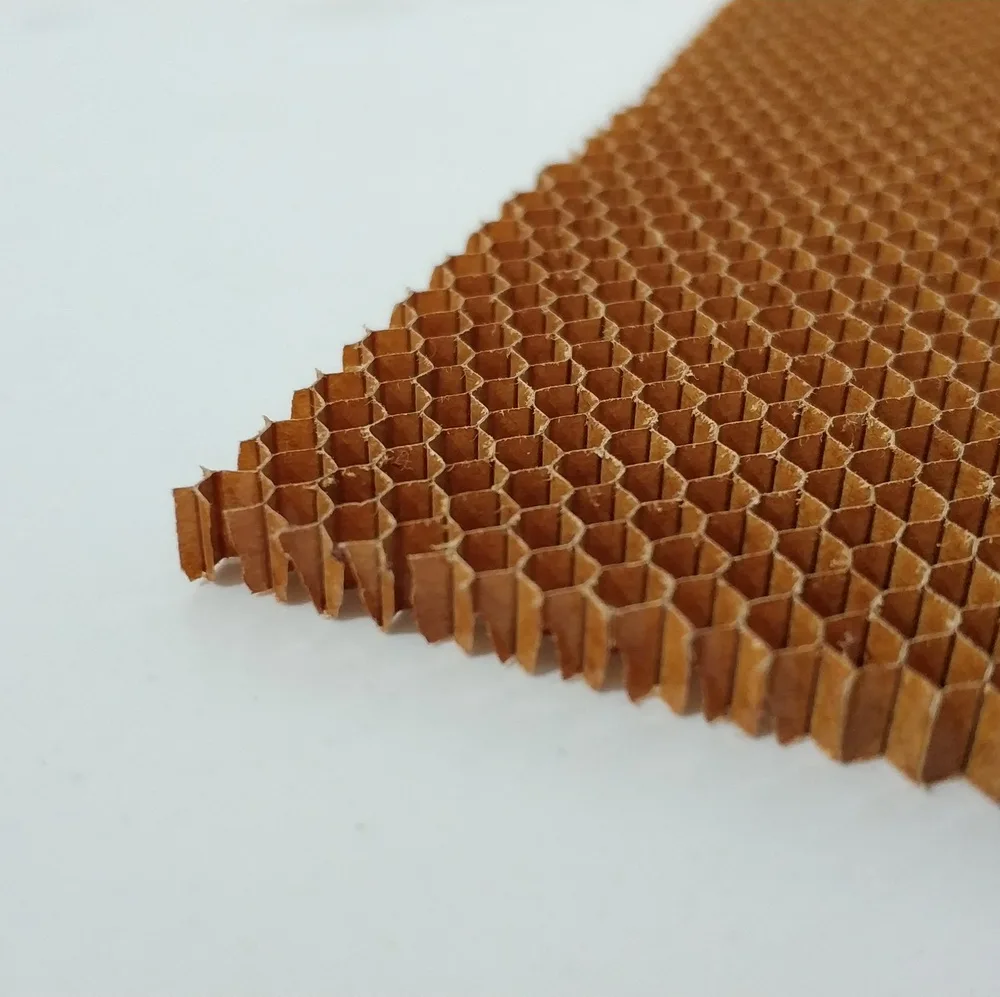

The nomex honeycomb core soaks the being flame-resistant by the nomex aramid processing and the process to be made.has the extremely high fatigue resistance to be able with anti-chemical etching ability,and has the fine dielectric properties and the radar conduction performance.the nomex honeycomb sandwich uses in domains and so on aircraft,high speed ship,very high-speed train,radar.
Nomex honeycomb is the standard for lightweight non-metallic composite construction. Commercial Grade honeycomb made with aramid fiber paper ( Nomex or equivalent) coated with heat resistant phenolic resin offers excellent resiliency, low density, lower pricing and high strength to weight ratio.
Nomex Honeycomb cores are one of the most preferred core materials for very strong and light composite panels. Our Nomex Honeycomb cores are made from Meta-Aramid papers impregnated with high modulus Phenolic resin.
Specification
Designaion
Compression strength
L-Shear
W-shear
Cell size
Density
N/m
N/mM2
N/mM2
Mm(hole size)
Kg/m3
3.2
48
1.9
1.16
0.62
3.2
64
3.1
1.48
0.82
3.2
80
4.7
1.95
1.05
3.2
96
6.6
2.45
1.42
3.2
128
11.3
2.95
1.78
3.2
144
13.2
3.05
1.9
4
29
0.6
0.45
0.26
4
80
5.1
1.9
0.98
4
144
13
3.6
2
4.8
32
0.9
0.58
0.36
4.8
48
2.6
0.98
0.56
4.8
64
3.4
1.7
0.92
4.8
80
6
1.95
1.1
4.8
96
7.3
2.26
1.32
4.8
123
9.3
3.4
1.86
6.4
24
0.54
0.34
0.18
6.4
32
0.8
0.54
0.3
6.4
48
2.05
1
0.56
6.4
64
3.4
1.54
0.79
9.6
24
0.52
0.32
0.16
9.6
32
0.68
0.56
0.29
9.6
48
9.6
1.15
0.66
12.8
32
12.8
0.46
0.26
12.8
64
12.8
1.6
0.88
19.2
24
19.2
0.5
0.22
19.2
32
19.2
0.6
0.32
Features:
High strength to weight ratio
Corrosion resistant
Excellent dielectric properties
Thermally insulating
High toughness
Excellent creep and fatigue performance
Good thermal stability

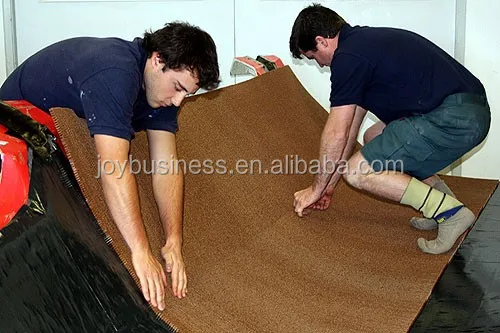

Over collapsed cell configuration suitable for forming simple curves
Compatible with most adhesives used in sandwich composites
Nomex honeycomb is the standard for lightweight non-metallic composite construction. Commercial Grade honeycomb made with aramid fiber paper (aramid or equivalent) coated with heat resistant phenolic resin offers excellent resiliency, low density, lower pricing and high strength to weight ratio.
Ultra lightweight, aramid honeycomb used in sandwich constructions. Unlike metals, Nomex provides galvanic corrosion resistance (also against corrosion of metal inserts) and allows the use of carbon skins. Other definite advantages are low thermal expansion and conductivity and high heat and fire resistance. Its superior mechanical properties and high dimensional stability under heat and moisture make it suitable for a large variety of high-end applications.

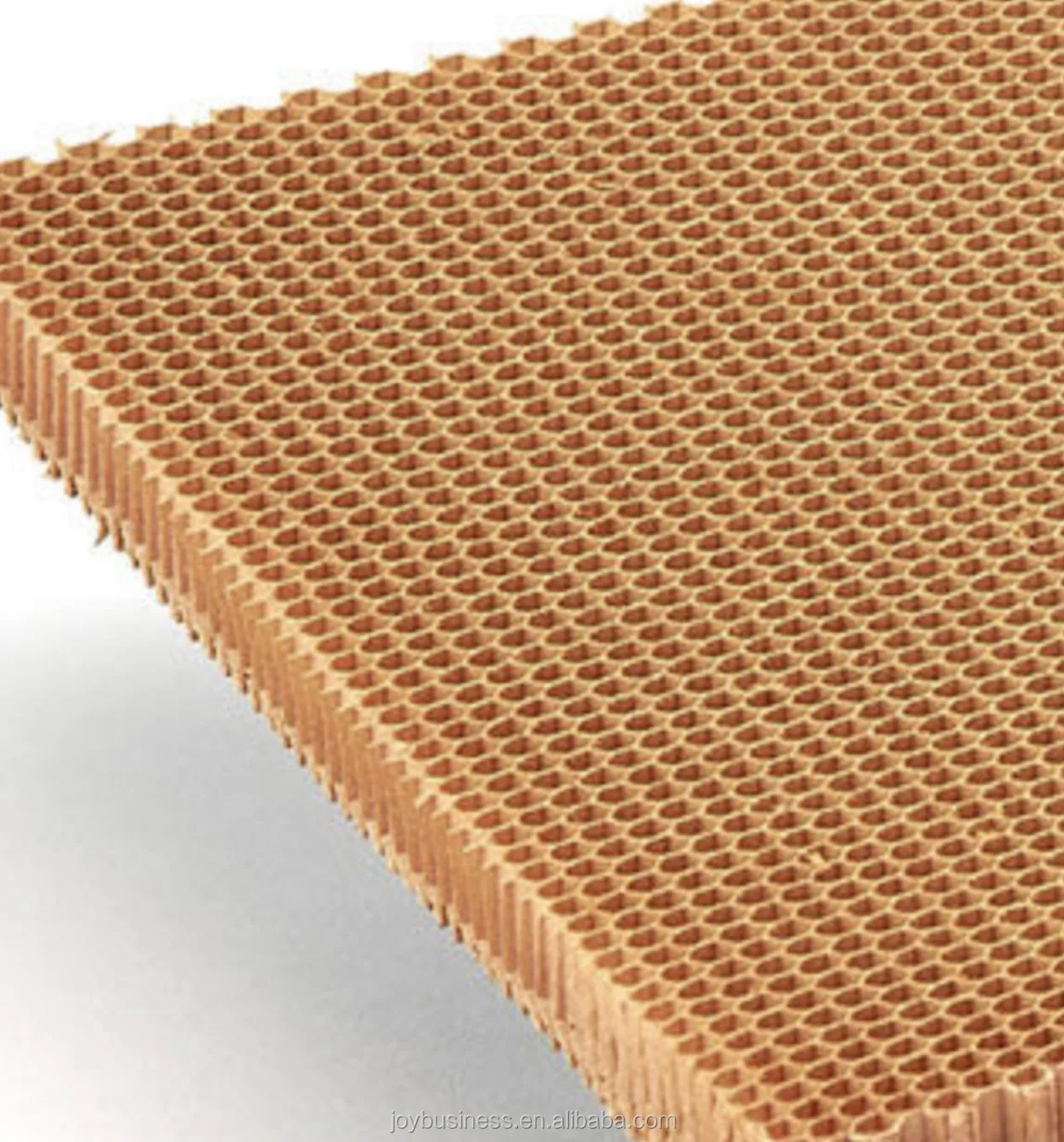

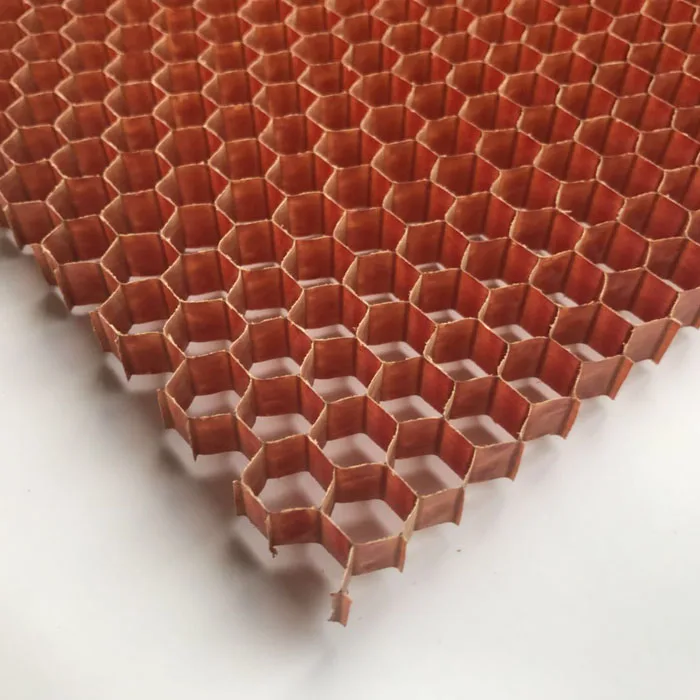

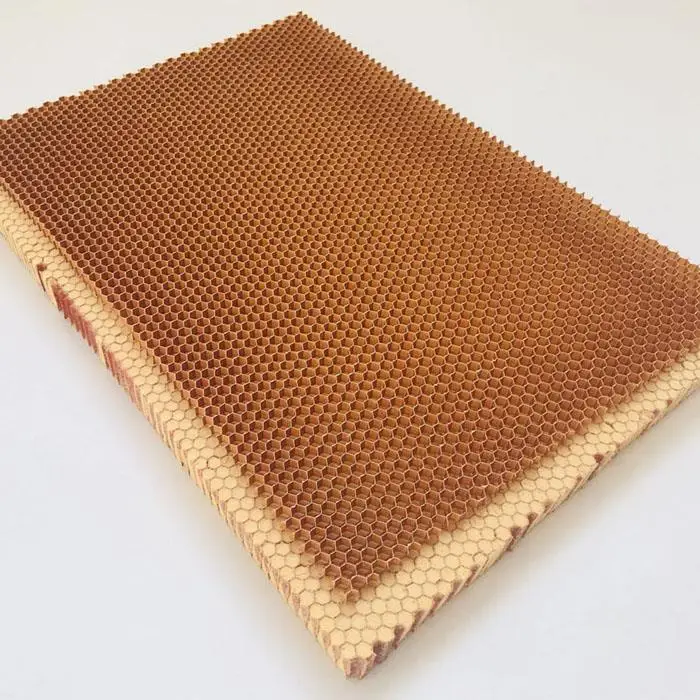

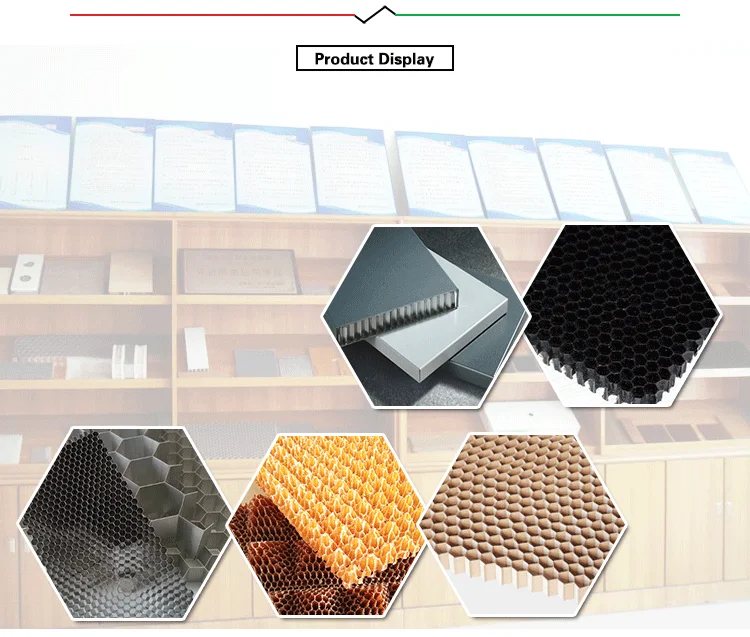

Product Display
Packaging & Shipping
Packaging Details:
Standard Plywood Cases
Need adjust loading method base on bag size
Delivery Detail: 15 days after down-payment

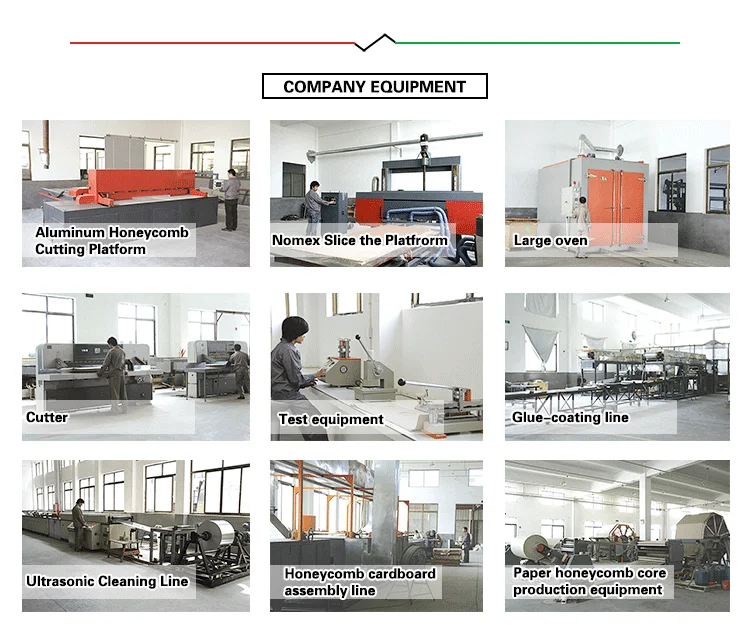

Company Equipment
Certificate Show
FAQ
1.Q: Do you offer sample? A:Yes,sample is offered and sent within 4 days after specification confirmed.Please inform our team to check if there are nomex honeycomb core or panel in stock to make sample.
2.Q: How long is the delivery time? A: with 15 working days, which depends on your order quantity and product item.
3.Q: What's your packing when shipping? A: Plywood box.
4.Q:Where are the main markets for Joy Business’ products?
A:We export 90 % of our nomex honeycomb core abroad, including West Europe 40%, Southeast Asia20.00% and North American40%
5 Q;What requirement should I raise to get an authentic quotation for Joy Business nomex honeycomb core?
A:We need information as follows:
--Thickness of nomex honeycomb core, Length of Side of Hexagon, Cell Size
--Density of nomex honeycomb
--unexpanded size
6 Q:Is it possible that we go to your factory and have a close look at your manufacture plant before purchase Joy Business’ products?
A:Yes, we’ll show you how we work and our products of high quality, and you’ll receive our best service.
7.How do you ship your orders? Depending on country of destination, for our orders we use TNT, UPS, Fedex,EMS. We notify you by e-mail upon shipping, and we send you tracking number if your order is 2.5 kg or more. Orders below 2.5 kg may be sent by regular post. Larger orders are sent by logistic companies and by road, sea or air.
if you are interested in nomex honeycomb core or panel,pls contact with us.
