Automatic labeler sleeve shrink applicator machine labeling machine with heat tunnel
- Category: >>>
- Supplier: Zhangjiagang Grandee Machinery Co. Ltd.
Share on (60775461016):
Product Overview
Description

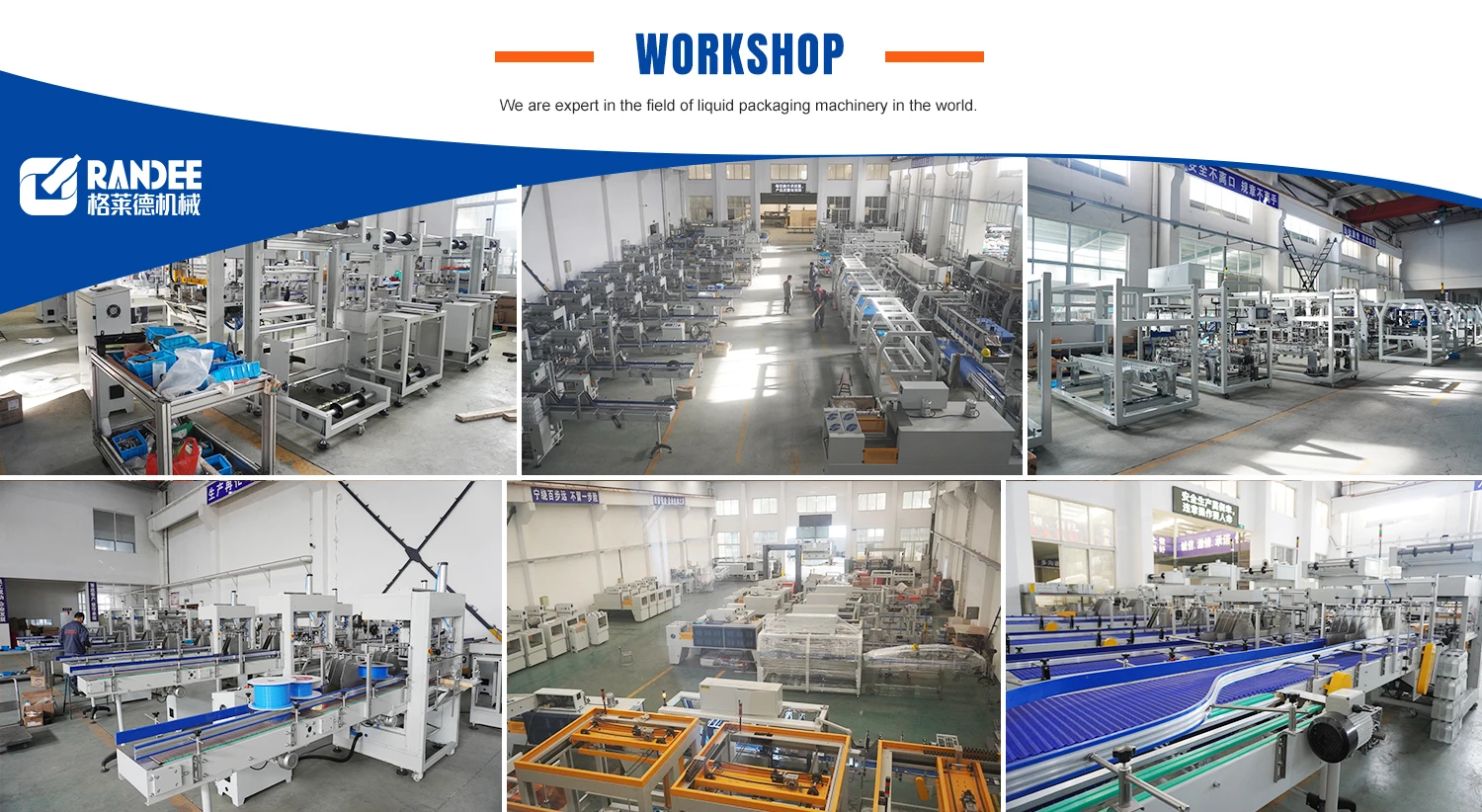

GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
Products Description

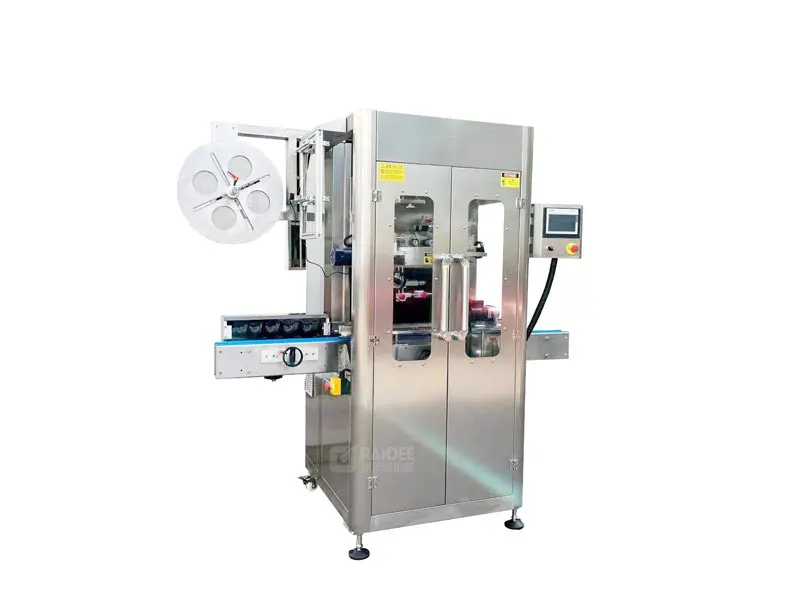

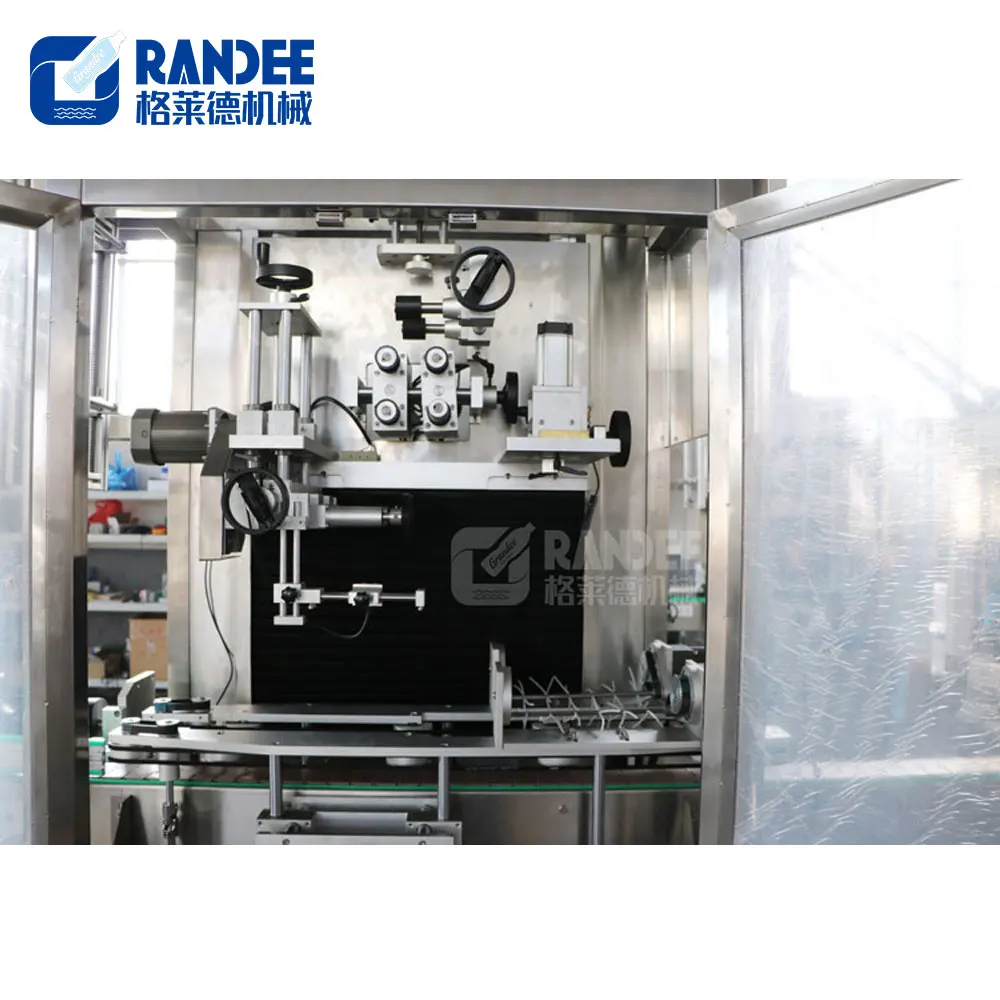

Automatic PVC PE Sleeve Shrink Labeling Machine

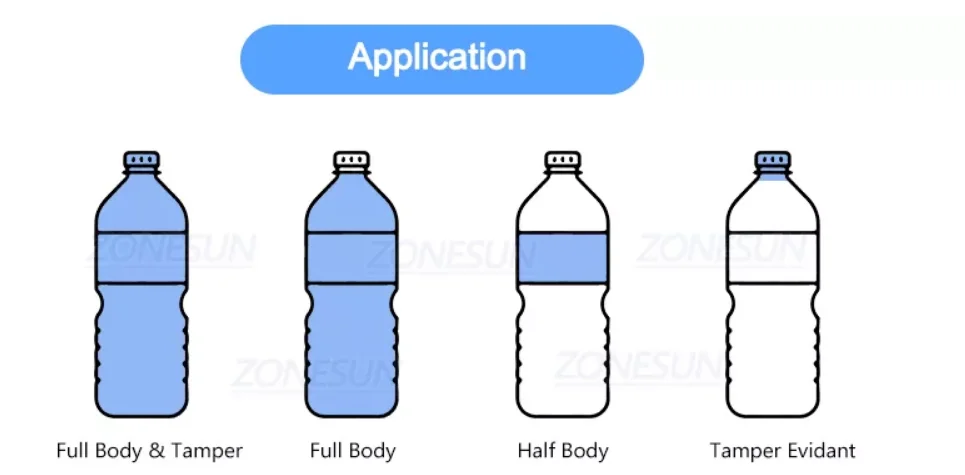

This fully automatic sleeve labeling machine is suitable for various kinds of bottles, like round bottles, square bottles, oval bottles, etc. This machine can automatically feed and cut film, and it can sleeve labels precisely, greatly saving labor and improving work efficiency. The machine can be widely used for beverage bottles, cosmetic bottles, shampoo bottles, etc.

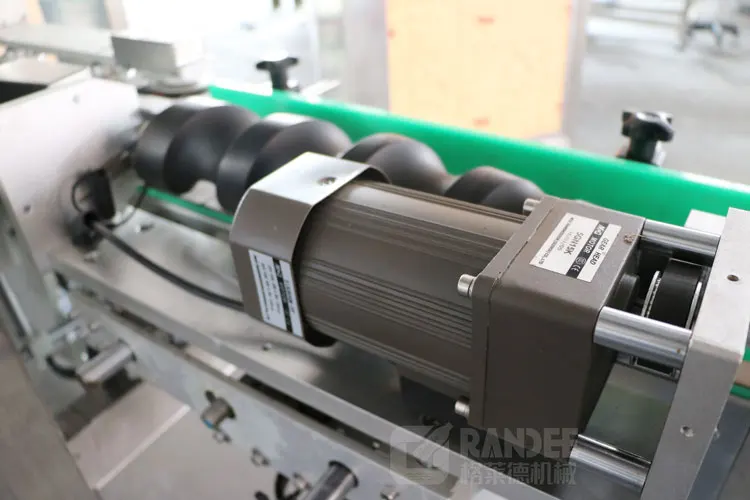

1.When your container is glass bottle or square bottle or irregular shape, so this screw bottle feeder will be included.

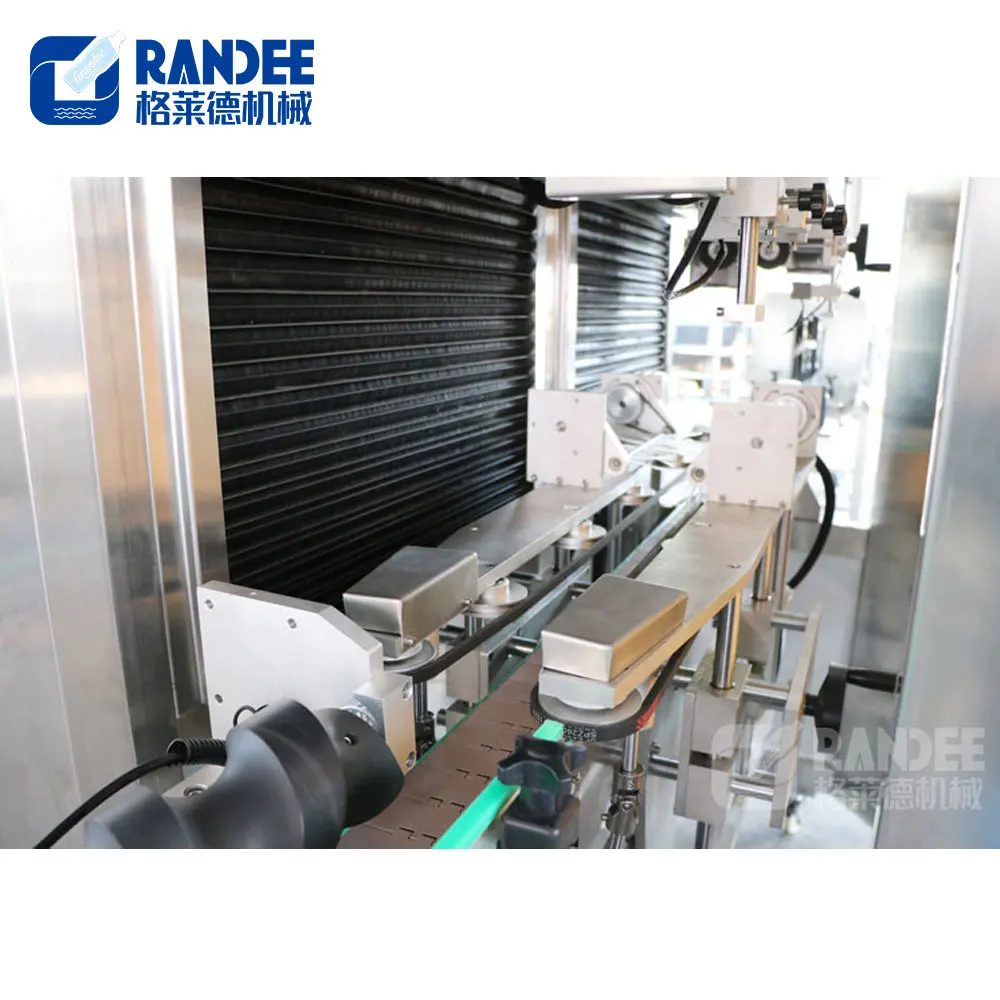

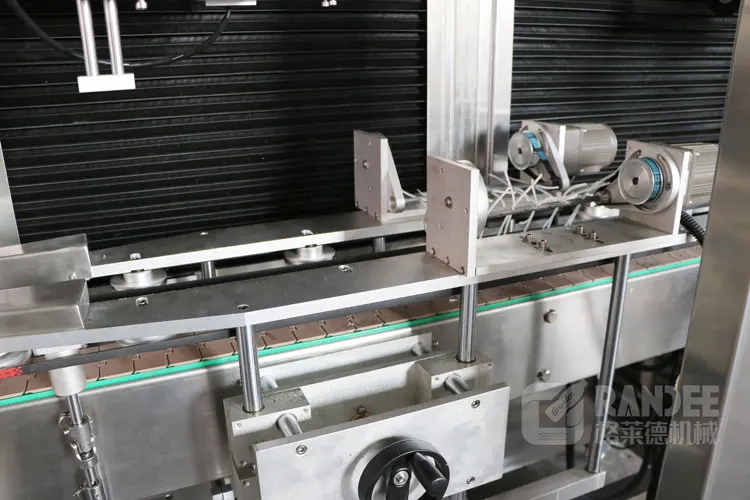

2. The bottle separating component can help to separate bottle and adjust bottles distance,ensure the bottle can be labeled in
order,improve the labeling effect.
2. The bottle separating component can help to separate bottle and adjust bottles distance,ensure the bottle can be labeled in
order,improve the labeling effect.
It is with soft brush which is used to improve the sleeving effect for the next film shrinking process.

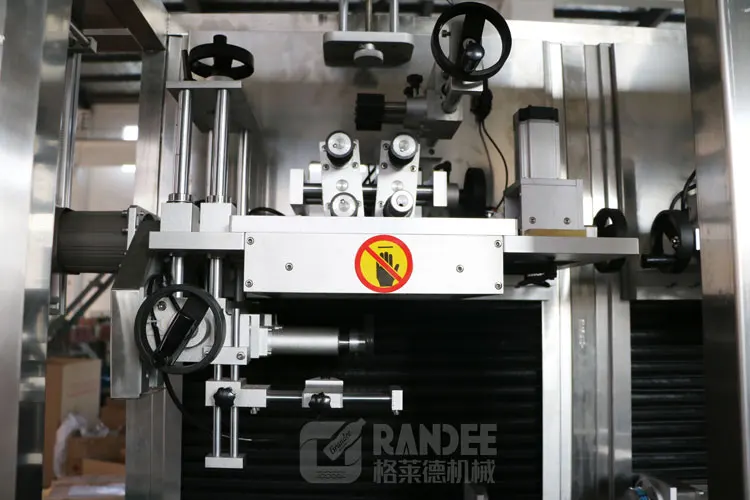

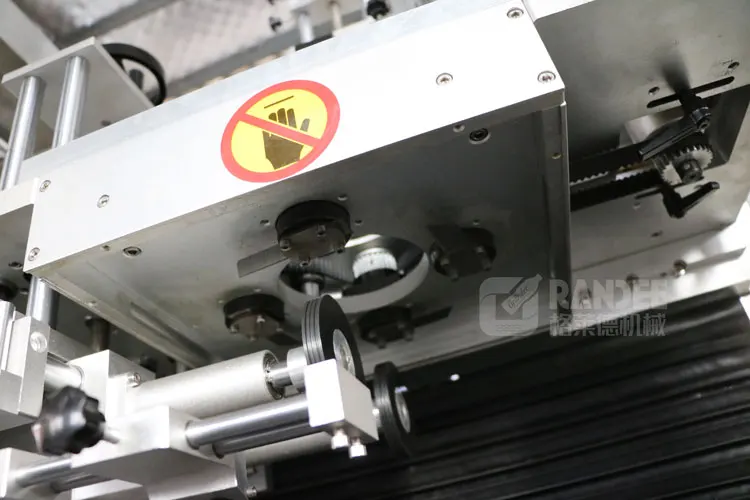

Suitable for different shapes of bottles the label feeding mechanism can automatically work once the system detect bottles.This
machine is suitable for 30mm~280mm height bottles,and we can customized the machine according to your needs.
machine is suitable for 30mm~280mm height bottles,and we can customized the machine according to your needs.

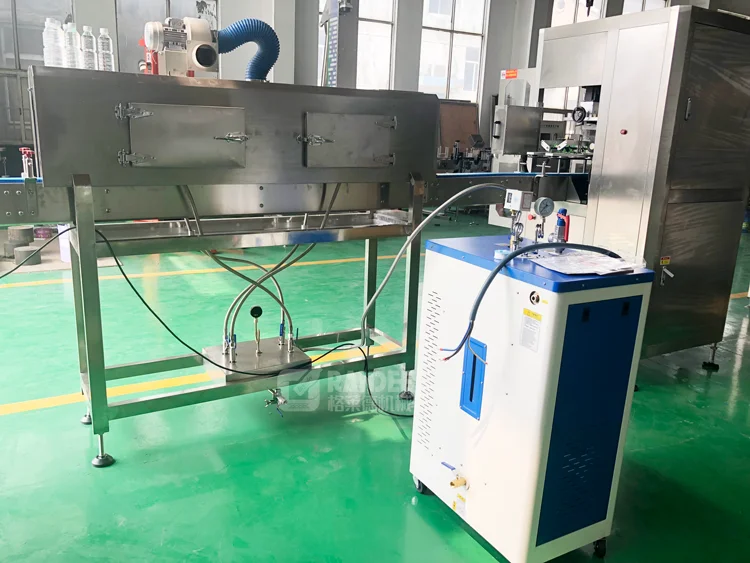

Shrink tunnel part
1.Belt Conveying: Conveying the film wrapped package to the oven.
2.Hot Air Circulation Device: Complete heat shrinkage function.
3.High Temperature Resistant Conveying Mechanism: Stable conveying of finished products under high temperature and heat shrinkage function.
2.Hot Air Circulation Device: Complete heat shrinkage function.
3.High Temperature Resistant Conveying Mechanism: Stable conveying of finished products under high temperature and heat shrinkage function.

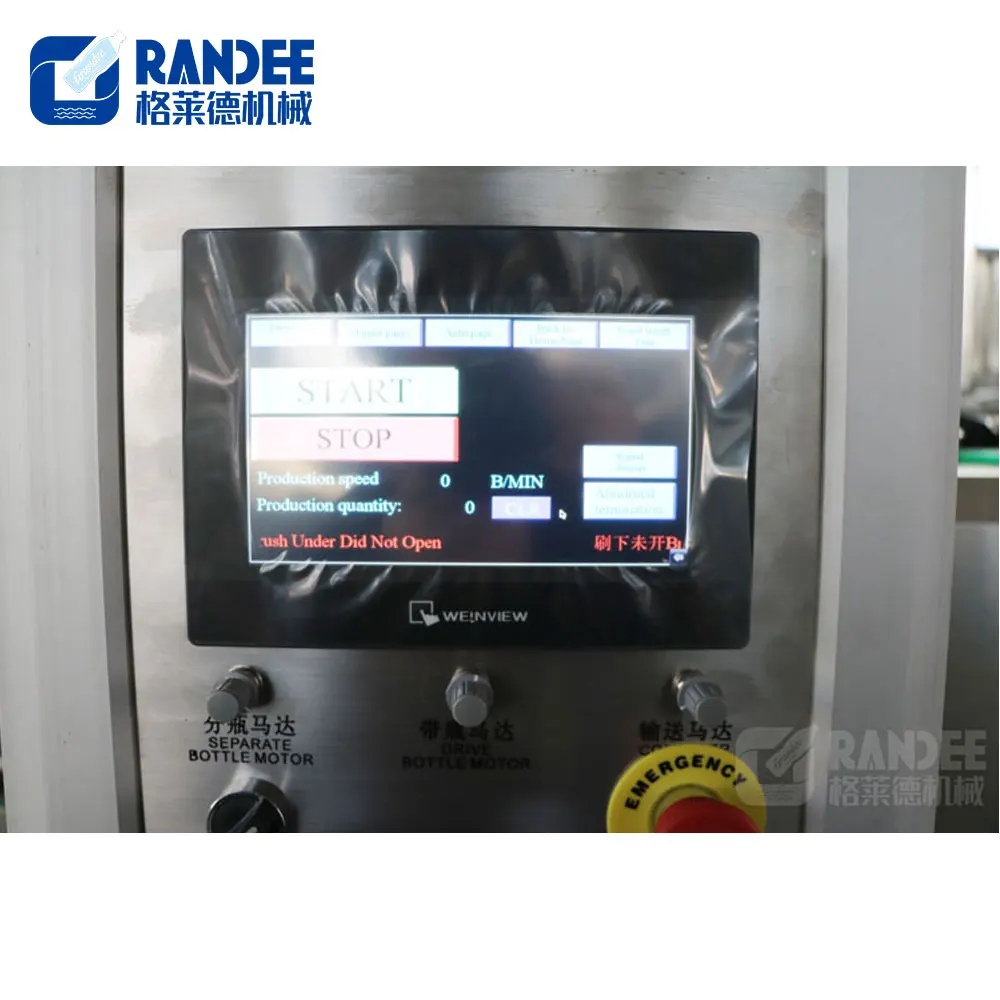

Panasonic servo frequency converter makes the working parameter is visual,the precise adjustment can be easily achieved according to operation,ensure the labeling effect,it helps save a lot of time.
Main technical parameter
Machine model | GD-S150 |
Bottle diameter range | φ28mm- φ125mm |
Bottle height | 30mm-280mm |
Label length | 30mm-250mm |
Label thickness | 0.03 mm - 0.13 mm (PVC, PET, OPS, materials are all available) |
Sleeve standard error | ±1.5mm |
Machine speed | 150 bottles/min |
Voltage | 220V single phase |
Power | 15kw ( mainly steam boiler) |
Conveyor | Standard 2M |
Machine size | 2950*1030*1870 mm (L*W*H) |
Machine weight | 500KGS |
For more information, please feel free to contact us to send an inquiry!

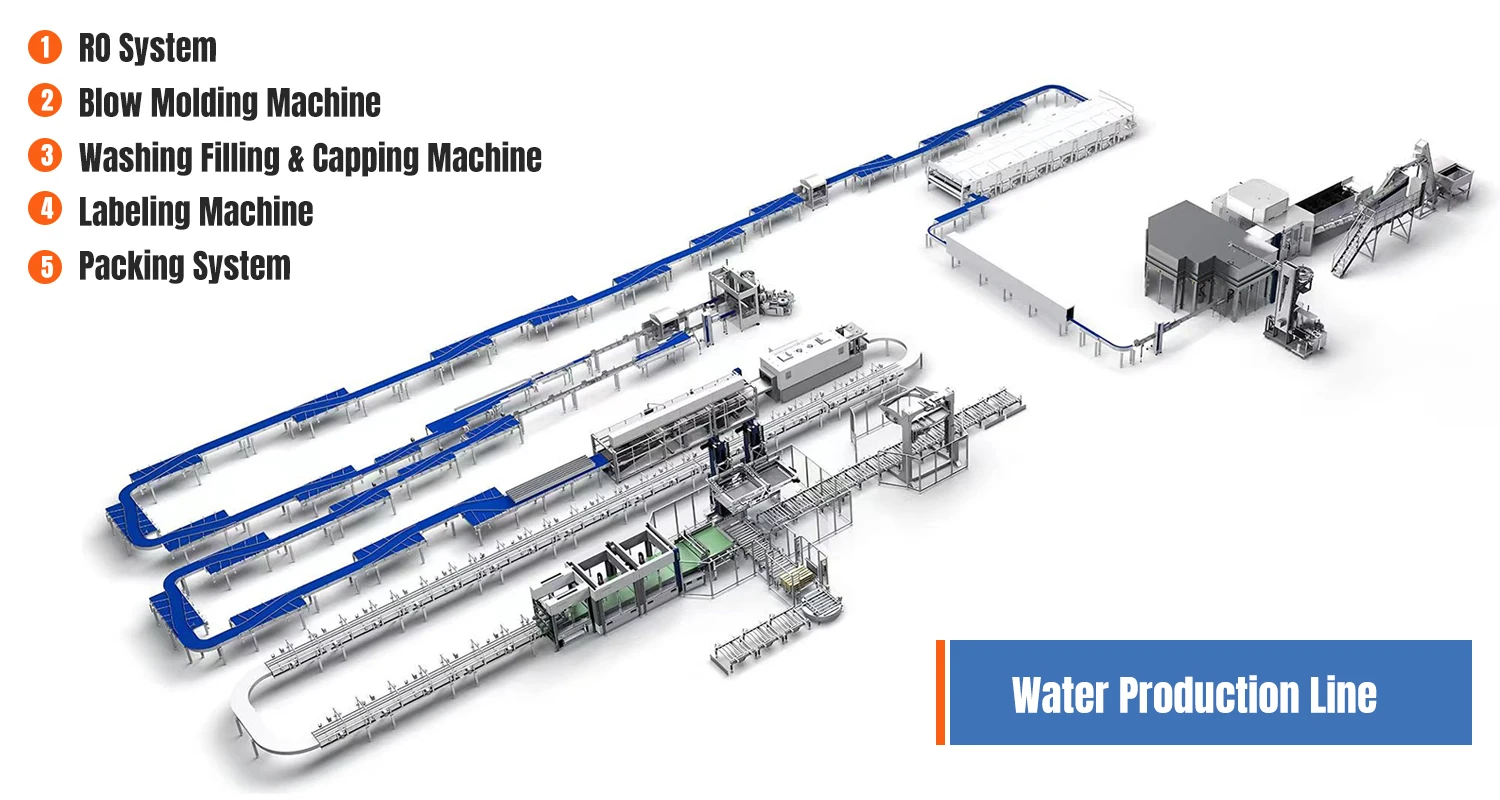

Turnkey Solution
1.RO system
This RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
2.Automatic blow molding machine for PET bottle:
Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity, etc from 2500BPH to 12000BPH for 500ml bottle.
3. Automatic OPP hot glue labeling machine:
Capacity: 100-350bottles/min can be chosen Label material: PVC PET OPS, etc
Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm
Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular
Label length: 30~250mm(max) Label thickness: 0.03~0.13mm
Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm
Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular
Label length: 30~250mm(max) Label thickness: 0.03~0.13mm
4. High speed automatic PE film shrink packing machine:
Film material: PE Shrink membrane thickness: 70~100um
Capacity: 20-25packages/ min can be chosen Conveyor belt max width: 600mm
Height : 1000～1100mm
Capacity: 20-25packages/ min can be chosen Conveyor belt max width: 600mm
Height : 1000～1100mm
