PG11 (5 10mm) metal cable glands

Product Overview

Description

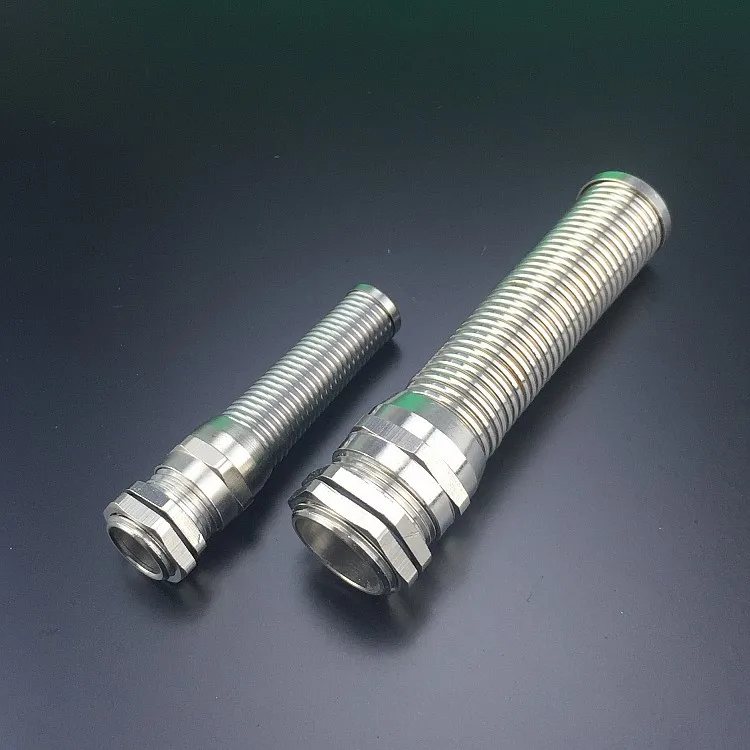

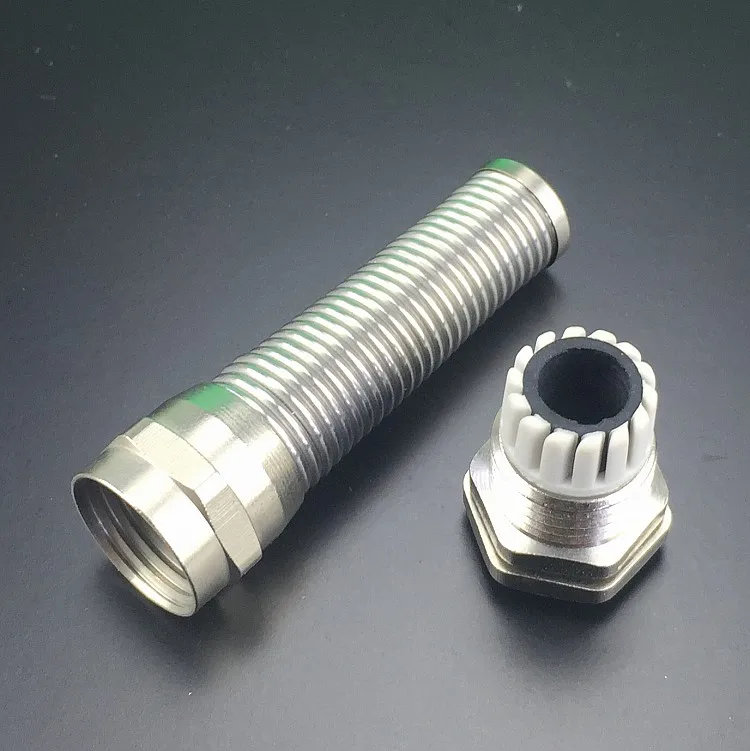

OUORO PG11 (5-10mm) waterproof metal cable glands

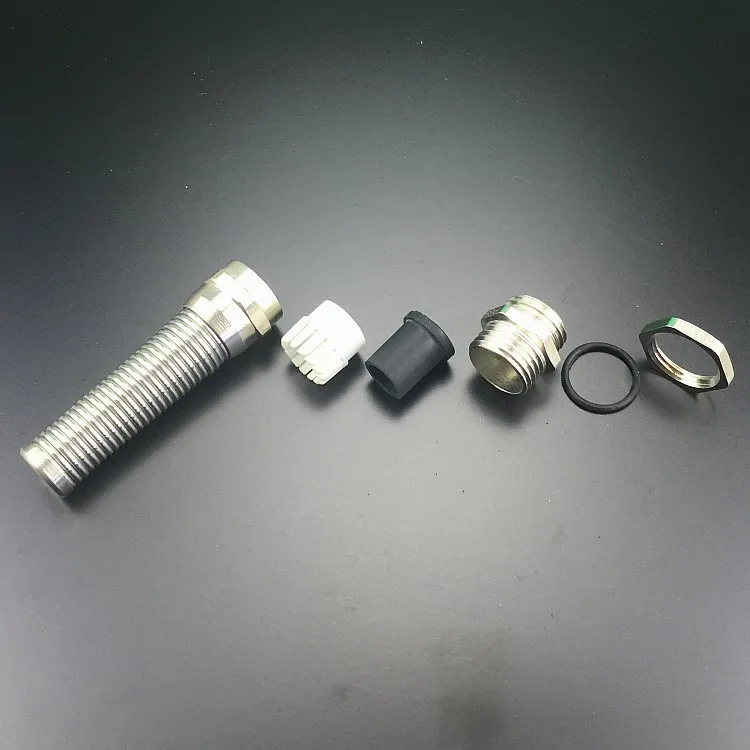

Material: Nickel plated brass
Prevent bending spring:stainless steel 1.4310/ASTM301/SUS301
Clamping part: Nylon PA, UL94-V2
Sealing element:NBR
Thread Type: PG according to DIN 40430
Test Standard: EN50262/EN62444
Protection class: IP68(O-ring and the wire/cable under the condition of clamping range )
Ambient temperature:-40℃ to +100℃
Function: used to protect the cable outlet to prevent excessive bending of metal cable gland.
suggestion: If you need other marterial of sealing element, such as Silicone, EPDM,etc.
Please feel free to contect us!

Series	Thread		GL	H		AG	Panel Mounting Hole	order NO.	Qty/bag
		mm	mm	mm	mm	mm	mm
PG F	PG7	3-6.5	5	53	14	12.5	12.5-12.8	T.P070506F	50
	PG7	2-5	5	53	14	12.5	12.5-12.8	T.P070505F	50
	PG9	4-8	6	66	17	15.2	15.2-15.5	T.P090608F	50
	PG9	2-6	6	66	17	15.2	15.2-15.5	T.P090606F	50
	PG11	5-10	6	77	20	18.6	18.6-18.9	T.P110610F	20
	PG11	3-7	6	77	20	18.6	18.6-18.9	T.P110607F	20
	PG13.5	6-12	6.5	88	22	20.4	20.4-20.7	T.P130712F	20
	PG13.5	5-9	6.5	88	22	20.4	20.4-20.7	T.P130709F	20
	PG16	10-14	6.5	98	24	22.5	22.5-22.8	T.P160714F	20
	PG16	7-12	6.5	98	24	22.5	22.5-22.8	T.P160712F	20
	PG21	13-18	7	111	30	28.3	28.3-28.6	T.P210718F	10
	PG21	9-16	7	111	30	28.3	28.3-28.6	T.P210716F	10



1.Q:Do you have your own factory?

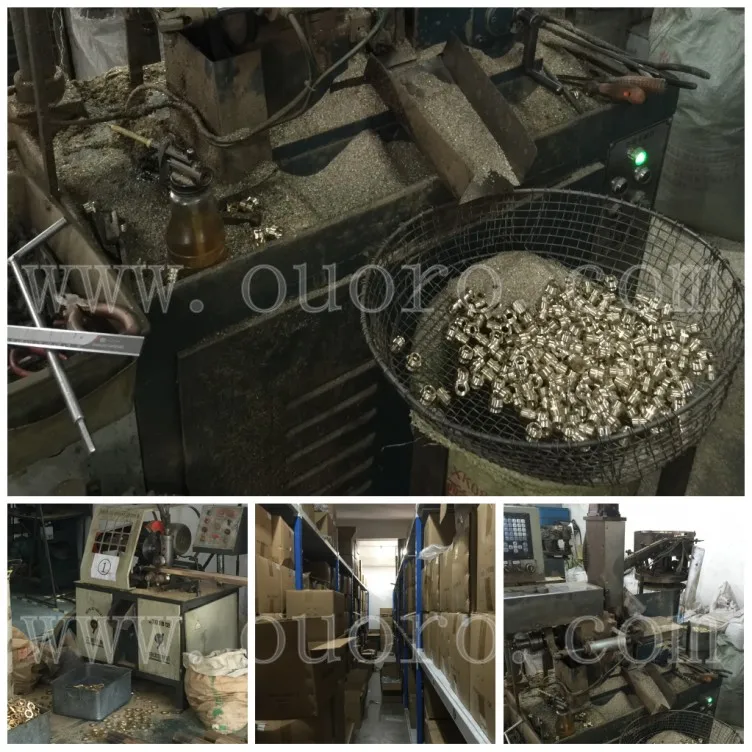

   A:Yes,H-V-S Company is  manufacturer in china for over 30 years, located in Yueqing City, capital of china electric.

2:Q: What is the Relation about OUORO & Yueqing City Liushi High Voltage Switch Factory(H-V-S)?

   A: All wiring accessories been made by H-V-S, will be sell by OUORO. H-V-S & OUORO in the same Building. Their chairmans relation is father and son. The OUORO chairman is largest shareholder for H-V-S company.

3.Q:How can I visit your factory?

   A:Before visit, please let us know your trip in advance. We will show you the way, or arrange time to pick up you if possible.

4.Q:Do you provide free sample?

   A:Yes, we always do, but first time you'd better pay the delivery charge.

5.Q:Could you print our company logo on nameplate and package?

   A:Yes,we can do that.

6.Q:Do you accept custom design on size?

   A:Yes, if the size is reasonable.

7.Q:What's your delivery time?

   A:H-V-S is factory, so we can efficiently control the production time.
