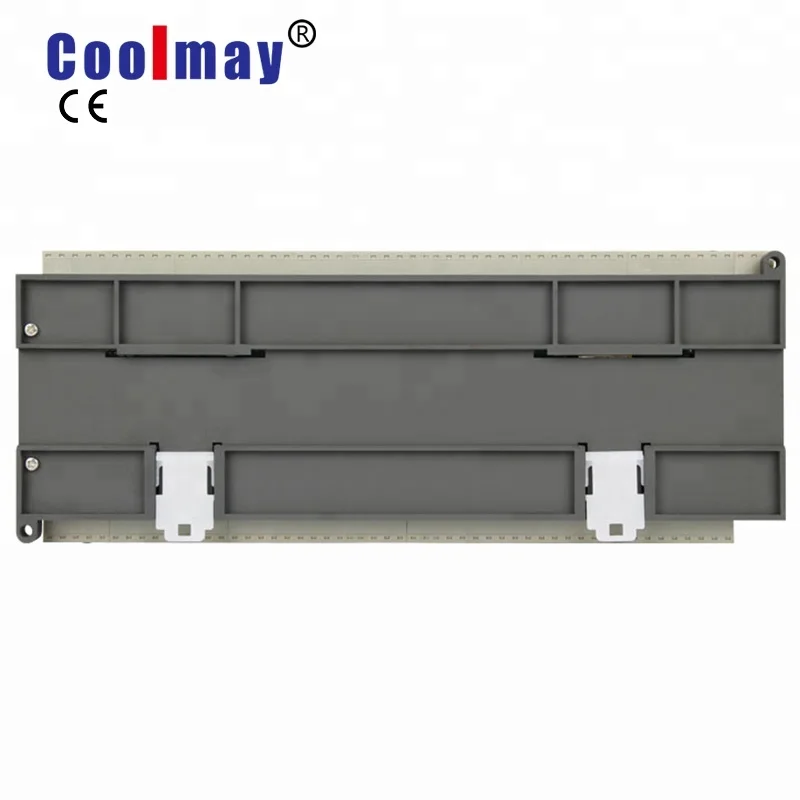

Coolmay CX3G 64M высокое качество производитель PLC 3 коммуникационный порт
- Category: >>>
- Supplier: Shenzhen Coolmay Technology Co. Ltd.
Share on (60775479082):
Product Overview
Description
Product Description
CX3G PLC
CX3G-34M(-12AD8DA-485/232) :18DI/16DO 12AD/8DA optional
CX3G-48M(-8AD4DA-485/232) :24DI/24DO 8AD/4DA optional
CX3G-64M(-16AD8DA-485/232): 32DI/32DO 16AD/8DA optional
CX3G-80M(-4AD4DA-485/232): 40DI/40DO 4AD/4DA optional
Product features:
CX3G-34M(-12AD8DA-485/232): 3 COM ports. Default 2 RS485, 1 CAN or customized to 1 RS485, 1 RS232, 1 CAN
CX3G-48M(-8AD4DA-485/232): 2 COM ports. Default 2 RS485 or customized to 1 RS485, 1 RS232 or customized to 1RS485, 1 CAN or customized to 1RS232, 1 CAN
High speed pulse normally 8 channels, Y0-Y3 is 100KHz Y4-Y7 is 10KHz
CX3G-64M /80M :3 COM ports. Default 2 RS485, 1 CAN or customized to 1 RS485,1 RS232,1 CAN
High speed pulse normally 8 channels, Y0-Y3 is 100KHz Y4-Y7 is 10KHz
Programming software: PLC GX8.86 or Works 2
Materials for reference: COOLMAY CX3G/FX3GC PLC Programming Manual
CX3G PLC User Manual
Article | CX3G-16M | CX3G-22M | CX3G-30M | CX3G-48M | CX3G-34M | CX3G-64M | CX3G-80M |
CX3G-24M | CX3G-32M | ||||||
Dimension | 85*90*36mm | 125*90*36mm | 195*90*36mm | 285*90*36mm | |||
Cutout size | 77*99mm | 117*99mm | 187*99mm | 277*99mm | |||
Installation | Fixed hole installation and DIN-Rail (35mm ) | ||||||
Digital I/O | 8DI/8DO | 10DI/12DO | 16DI/14DO | 24DI/24DO | 18DI/16DO | 32DI/32DO | 40DI/40DO |
12DI/12DO | 16DI/16DO | ||||||
I/O level | MT Output: NPN MR output: NO contact Input: Passive NPN, public terminal isolated | ||||||
Output type | Relay MR/Transistor MT/Both MRT Maximum load of transistor is 500mA;Maximum load of relay is 5A | ||||||
High speed counting | Normally 4 single-phase 60KHz+2 10KHz or 2-3 AB(Z) phases up to 60KHz; Can be specially customized 6 single phase 100KHz or 2 AB(Z) 60KHz+1 10KHz | ||||||
High speed pulse | Up to 8 channels. Y0-Y3 is 100KHz, Y4-Y7is 10KHz. Customizable 8 channels 10-100KHz; High-speed counting + high-speed pulse total output can not exceed 480KHz | ||||||
Analog I/O | AI:0-10V/4-20mA/0-20mA/PT100/PT1000/K type thermocouple /NTC10K/NTC50K/NTC100K etc. | ||||||
AO:0-10V/0-5V/0-20mA/4-20mA or mixed ones | |||||||
Null | 8AD/4DA | 2AD/2DA | 8AD/4DA | 12AD/8DA | 16AD/8DA | 4AD/4DA | |
6AD/4DA | 2DA | ||||||
COM port | Two programming port(1 Mini B type USB port,faster downloading speed;1 Rs232,Interface terminal is mouse female port with 8 holes) | ||||||
The total number of COM ports is 2. The default is 2 RS485; Or customized as 1 RS485, 1 RS232; Or customized as a RS485, 1 CAN; Or customized as a RS232, 1 CAN. | The total number of COM ports is 3. The default 2 RS485; Or customized as 1 RS485, 1 RS232; Optional CAN. | ||||||
Programming software | Compatible with WORKS 2/ GX Developer 8.86 | ||||||
Regular models:CX3G-16MT/MR/MRT(-485/232) CX3G-22MT/MR/MRT(-8AD4DA -485/232) CX3G-24MT/MR/MRT(-6AD4DA -485/232) CX3G-30MT/MR/MRT(-2AD2DA -485/232) CX3G-32MT/MR/MRT(-2AD -485/232) CX3G-34MT/MR/MRT(-12AD8DA -485/232) CX3G-48MT/MR/MRT(-8AD4DA -485/232) CX3G-64MT/MR/MRT(-16AD8DA -485/232) CX3G-80MT/MR/MRT(-4AD4DA -485/232) Detailed info. refer to:COOLMAY CX3G PLC Programming Manual Support interruption,linear and arc interpolated,PID and modify parameters automatically; with capacity of 32K step program, 32K holding register while power off. *CX3G-24M,if with 8AD,maximum digits are 10DI; *CX3G-32M,if with 2AD/2DA,maximum digits are 16DI/14DO. | |||||||
Company Information
Packaging & Shipping
All products are well packed in carton box.
Our partners
We have cooperated with Foxconn and BYD for many years, and have made many solutions for their auto-production lines.
FAQ
1) Are you a manufacture or trade company?
We are both factory and trade company, we have engineers for study& design and workers for produce and operate etc. we could you one-stop products and service.
2) Do you have a CE certificate?
Yes, for all products we exported, we could offer CE certificate.
3) How long about the delivery?
It depends on the order details. Usually, we could support delivery within 2 to 7 working days.
4) About Coolmay?
Coolmay was established in 2005, who have got great success with its professional team. We have been specialized in digital products for over 10 years, mainly about HMI, PLC and HMI/PLC all-in-one and other industrial control products.
Our Services
We can also provide OEM&ODM service. Pls feel free to contact us for your special demand.
