Remote Power Controller for PA system

Product Overview

Description

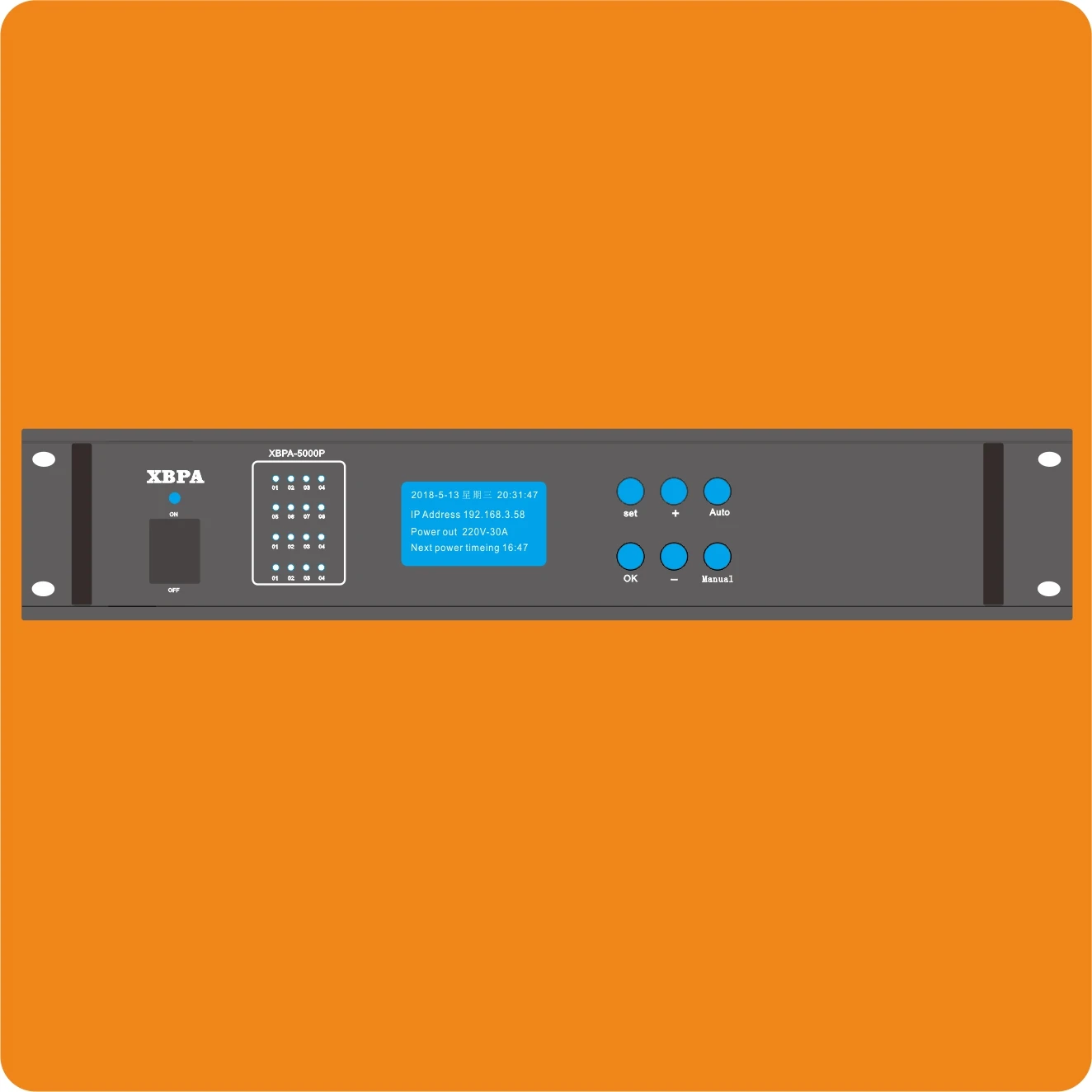

16 Channel power timing controllerXBPA-5000P

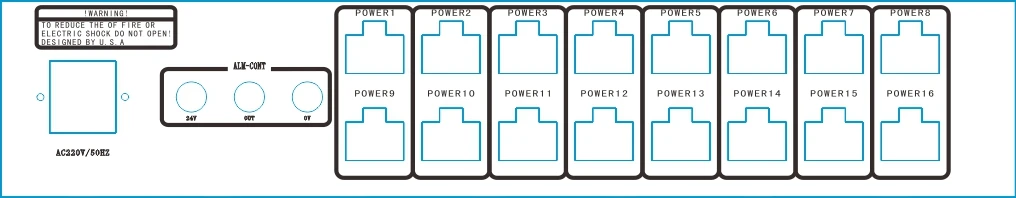

interface drawing

Advanced aluminum panel, using advanced titanium polishing process;
IP network unidirectional control terminal, built-in 16 power supply independent output, single output 220V/30A current;
The power output can be controlled by manual timing and upper computer software timing
Can be set independently 200 times a day, the output interface is American standard interface.
The terminal adopts ARM9 kernel control, light touch button operation, large screen LCD display all-chinese menu, graphical interface, multi-level menu operation mode.
With 16LED corresponding LCD display, there are automatic mode, manual mode and fire start mode respectively.
The terminal is equipped with 16 programmable timing power sources
Can be programmed 100 running procedures, each line can be energized, power off.
External power supply of CD, cassette holder, tuner, etc.
No one is on duty.
Can realize weekly cycle, power off not missing procedures, call recovery automatic operation.
With fire linkage alarm

Model	XBPA-5600
Power supply	~220 V/50 Hz
Power consumption	15W
Communication protocol	RS422
Communication interface	RJ45
Communication rate	4800bps
Size	484 x 303 x 88mm
Weight	4.20Kg
