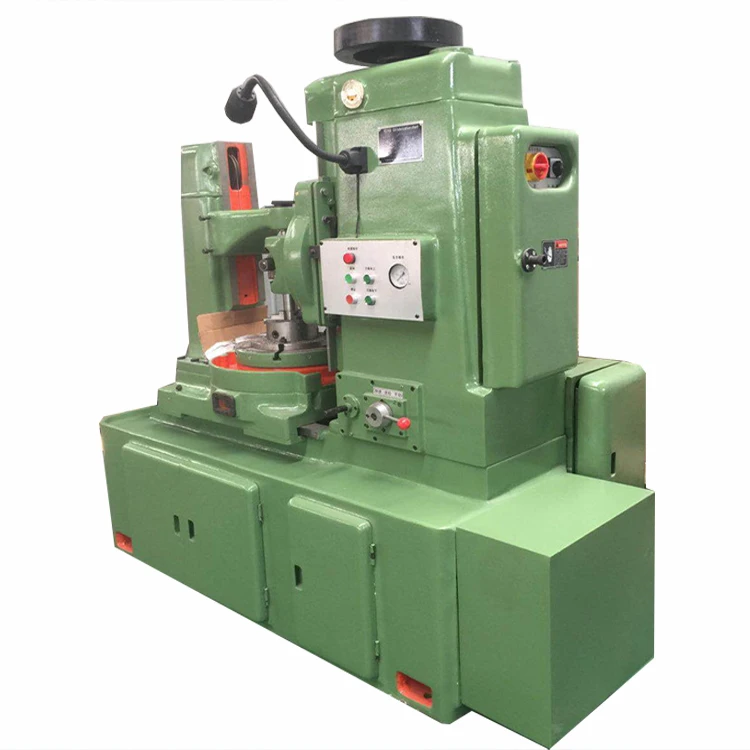

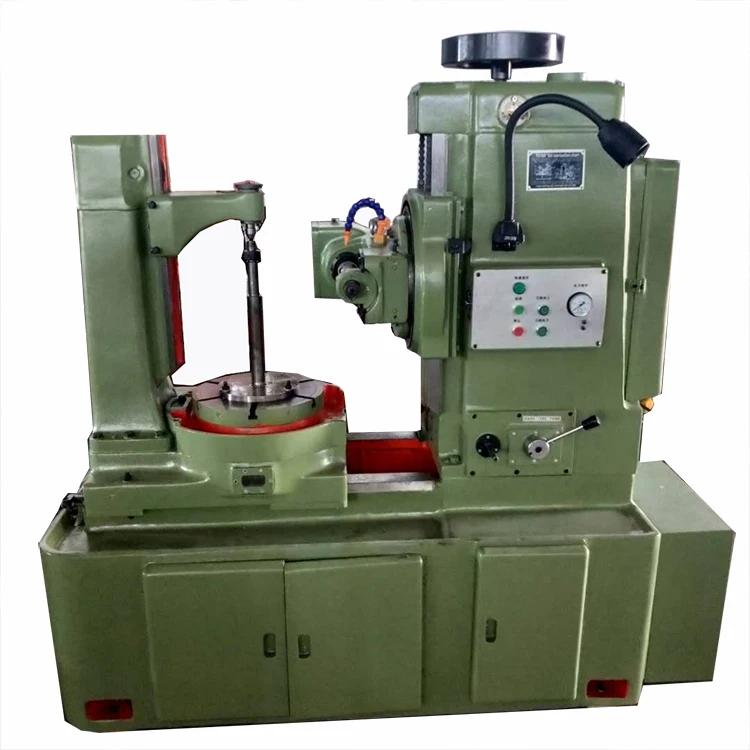

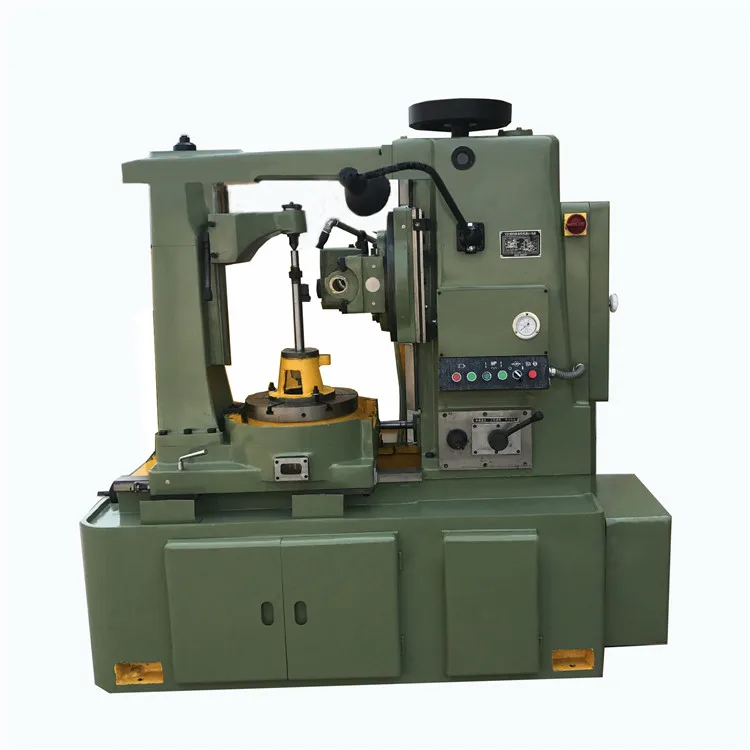

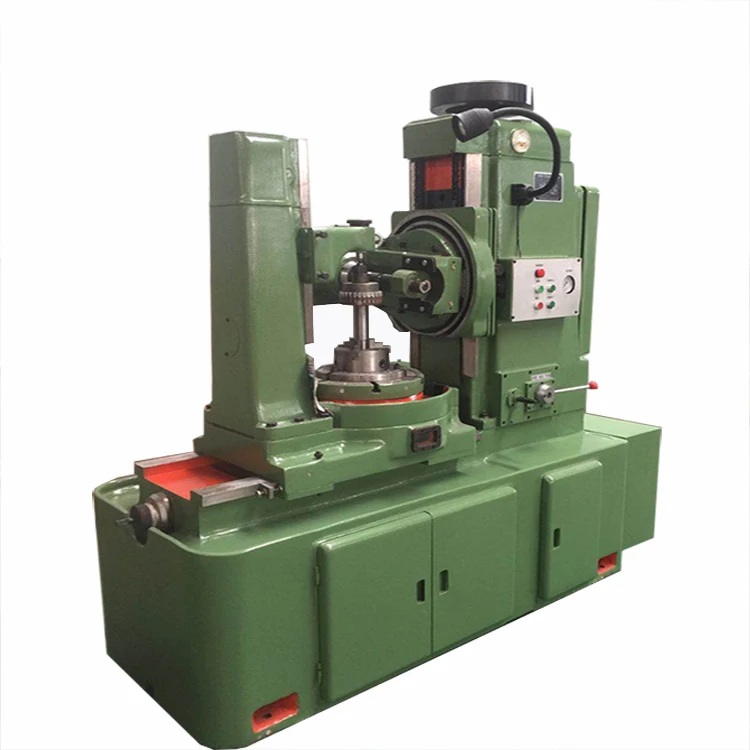

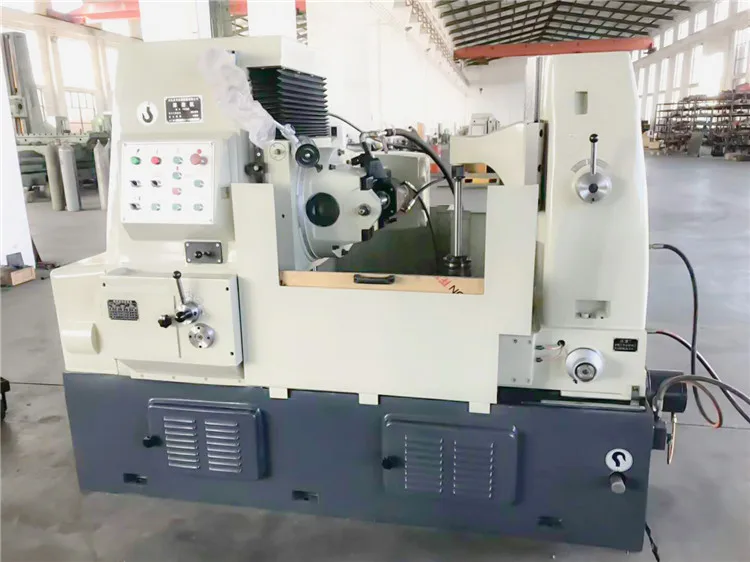

Y3150 automatic gear cutting machine/gear shaping machine/gear hobbing machine
Product Description

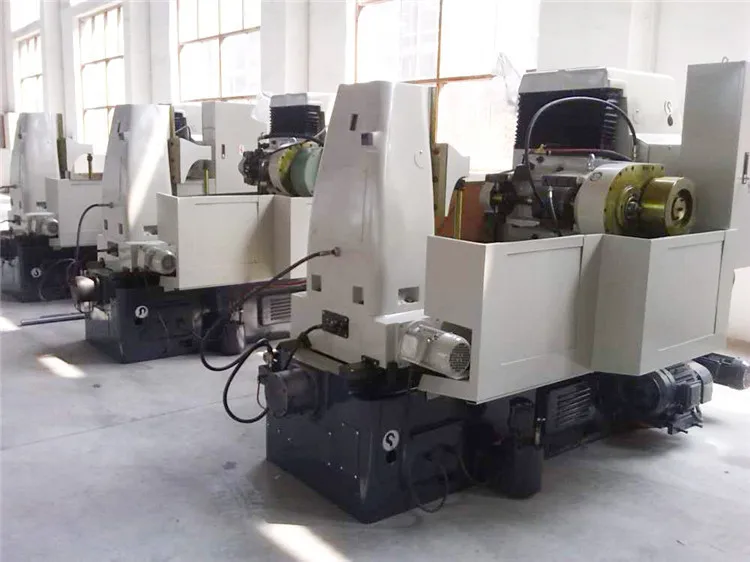

Introduction of hobbing Machine
gear hobbing machine is fixed by vertical column and adopts the traditional layout of horizontally moving working table, suitable for processing cylindrical gears, worm wheel and short spline shaft in bulk, in package, or in single workpiece.
The machine has the following characteristics:
1.Raised height for vertical column and increased stroke: The vertical column is made higher to enable processing of larger tooth width.
2.Service life of cutting tools is increased by electric tool leap. The longest stroke, such electric tool leap takes longer hob and greatly increases life the hob.
3.High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.
4.Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.
5.Backlash balancing cylinder is involved as the tool post moves in the axial direction, effectively reducing the space between lead screws and eliminating vibration.
6.Convenient hydraulic powered structure reduces the non-cutting time as well as the times to use the cutting tools.
1.Raised height for vertical column and increased stroke: The vertical column is made higher to enable processing of larger tooth width.
2.Service life of cutting tools is increased by electric tool leap. The longest stroke, such electric tool leap takes longer hob and greatly increases life the hob.
3.High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.
4.Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.
5.Backlash balancing cylinder is involved as the tool post moves in the axial direction, effectively reducing the space between lead screws and eliminating vibration.
6.Convenient hydraulic powered structure reduces the non-cutting time as well as the times to use the cutting tools.
Application of hobbing Machine
Specifications of hobbing Machine
Main technical parameters | Y3150 | |
Max working module | steel (mm) | 5 |
| Cast iron(mm) | 6 |
Max diameter cutting straight Spur gear | with column (mm) | 350 |
| without column (mm) | 500 |
Max diameter cutting Cylindrical helical gear | Rotation angle 30° | 370mm |
|
Rotation angle45° |
250mm |
Max vertical travel of hob (mm) | 260 | |
Max length of cutting (mm) | 240 | |
Distance from hob spindle to worktable surface (mm) | Max(mm) | 320 |
| Min(it is 30 mm when the distance from hob spindle to worktable surface less than 85mm) mm | 25 |
Minimum distance from worktable surface to hob spindle axis (mm) | 170 | |
The changeable Diameter of hob spindle(mm) | 22 27 32 | |
Max diameter of hob (mm) | 120 | |
Diameter of workingtable hole (mm) | 60 | |
Diameter of worktable mandrel (mm) | 30 | |
