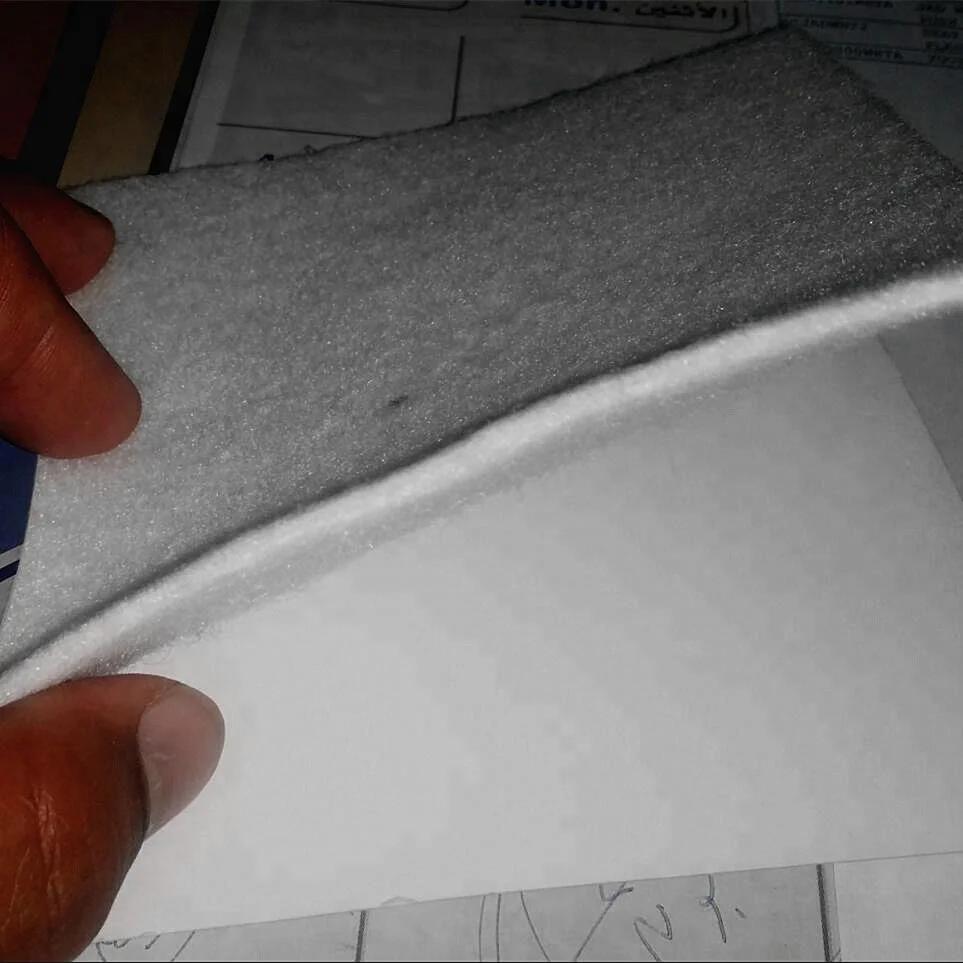

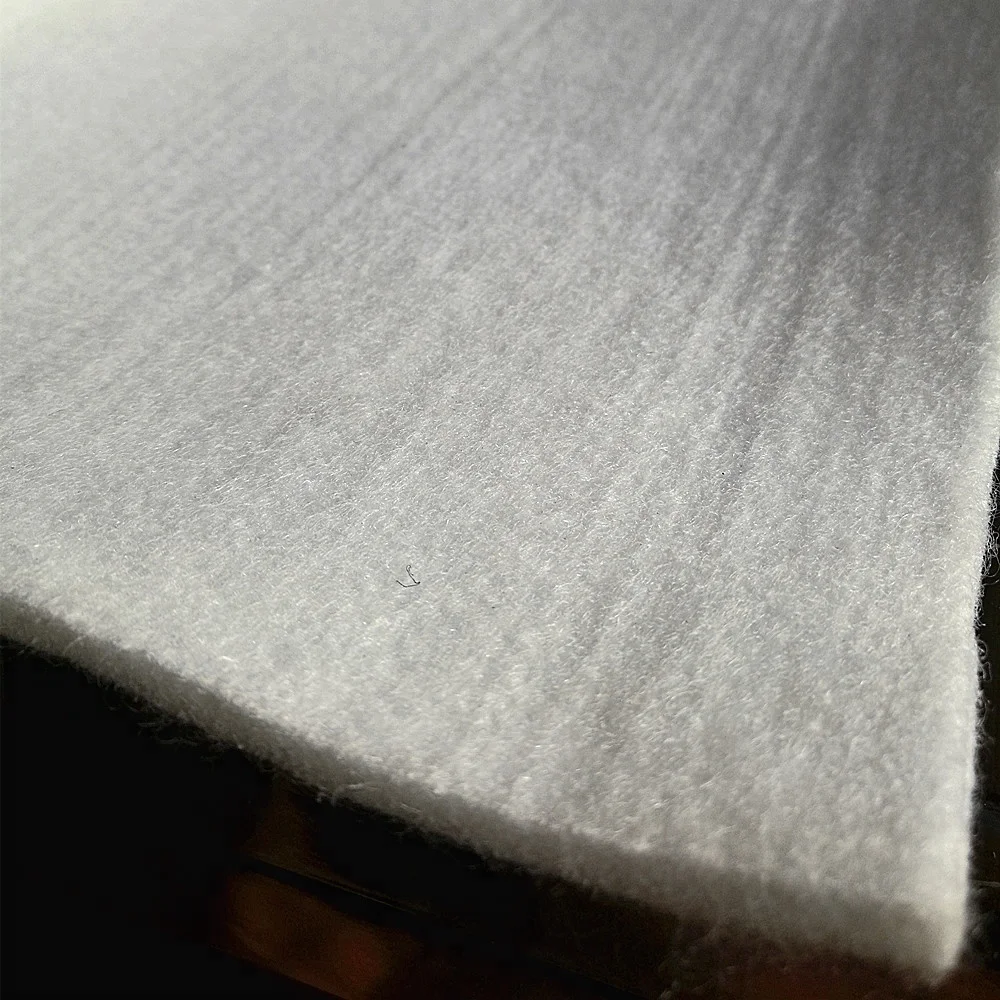

Polyester Non woven Geotextile Fabric

Product Overview

Description

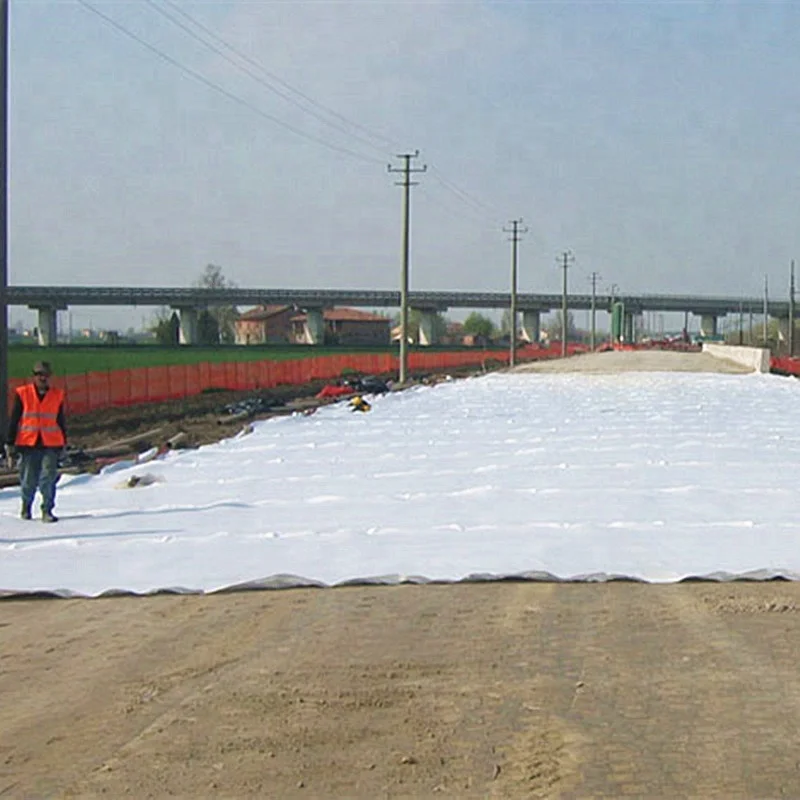

polyester non-woven geotextile fabric for road,filter.
type:needle punched
color:white
width:1m-6m
weight:100g-800g



we are manufacturer in china.

Our factory was founded in 1996, we in strict accordance with the ISO9001 international quality management system production management, product not only in China, many large engineering was adopted, but also exported to the world more than 20 countries and regions. We welcome general merchants to our company on-the-spot investigation the consultation.



Nonwoven geotextile technical datas



item	100	150	200	250	300	350	400	450	500	600	800
Unit weight tolerance %	-8	-8	-8	-8	-7	-7	-7	-7	-6	-6	-6
Thickness ≥mm	0.9	1.3	1.7	2.1	2.4	2.7	3.0	3.3	3.6	4.1	5.0
MD/CD break strength ≥kN/m	2.5	4.5	6.5	8.0	9.5	11.0	12.5	14.0	16.0	19.0	25.0
CBR burst strength ≥kN	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.2	4.0
MD/CD Tearing strength ≥kN	0.08	0.12	0.16	0.20	0.24	0.28	0.33	0.38	0.42	0.46	0.60
Width tolerance%	-0.5
MD/CD Elongation %	25-100
EOS O90, mm	0.07-0.2
Vertical permeability coefficient, cm/s	Kx(10-1-10-3)K=1.0-9.9
