modular plastic interlocking garage floor tiles

Product Overview

Description

modular plastic interlocking garage floor tiles:







Product features: Adopt 100% pure new raw materials, export grade quality, six colors are optional, manufacturers provide two years warranty.

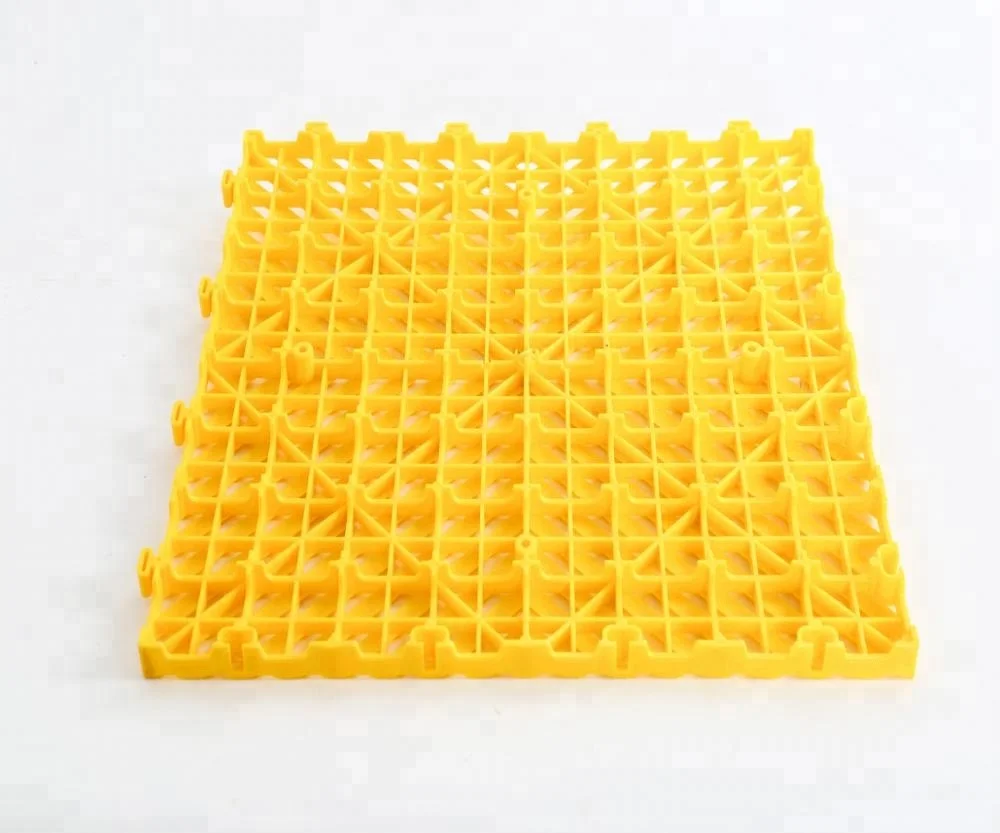

Multifunction modular plastic interlocking garage floor tiles are made up of mat,edge and corner.

The size of the mat is 400mm*400mm, the thickness is 20mm, the edge size is 400mm*70mm and it is a slope, The convex buckle is the female edge, and the plane side is male edge.



The available colors of edge are yellow and gray.



The corners are used as accessories. The use frequency is very low, and the available colors are yellow and gray.





Main part size:40*40*2cm

Edge size:  40*7cm





Product material: high polymer plastic materials (100%pp, first grade raw materials, eco-friendly and safe)



Place of origin:China



Mat colors:red, green, yellow, blue, black, gray,white



Edge colors:yellow, gray



corner colors: yellow,  gray



modular plastic interlocking garage floor tiles features: non-slip, oil resistance, corrosion resistance, high-load, self-draining, easy installation, easy dismantle, easy to clean, brilliant color and freedom of expression, nice appearance.





 Application scope of modular plastic interlocking garage floor tiles:

 carwash center, exhibitions , hotel hospitality venues, garage, around swimming pool, bath center, public toilet, balcony,etc.

It can be widely used as the floor construction of the solar film workshop, the body membrane workshop, the beauty shop and the 4S shop exhibition hall. At the same time, the floor tiles are also suitable for ground laying in temporary places such as exhibitions. In almost all places where water is available, modular floor tiles can be used.



5 core upgrades of modular plastic interlocking garage floor tiles as follows:

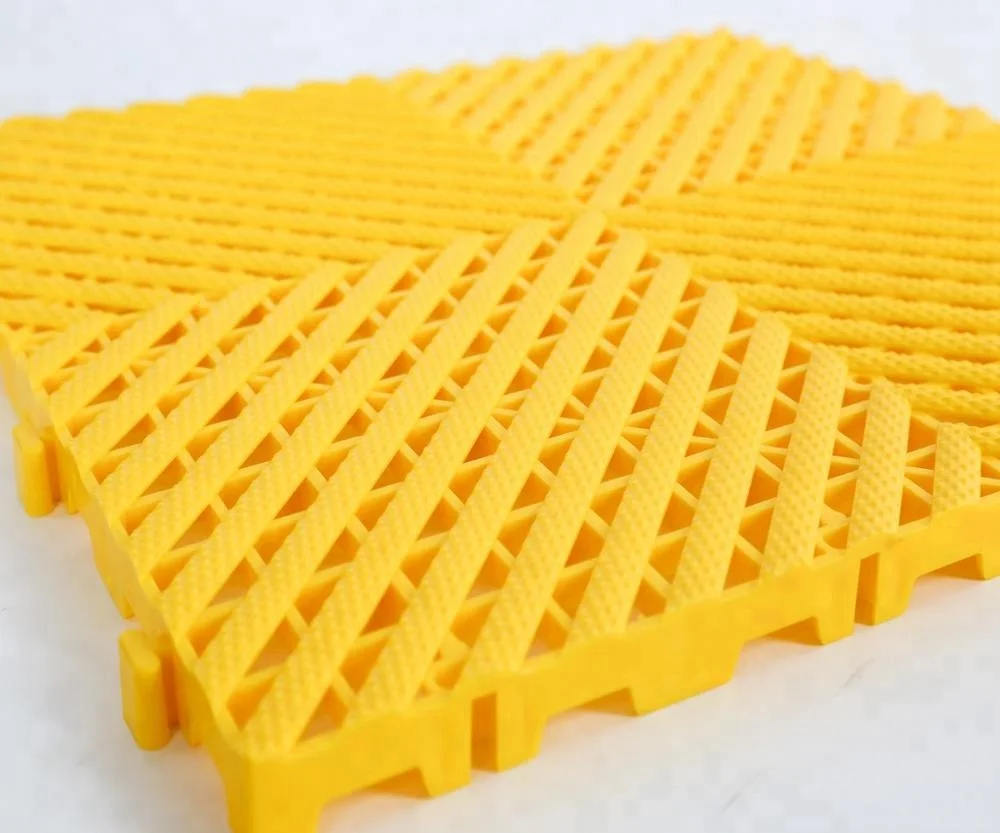

1, the surface plane structure, increase diamond rhombus texture, not only skid resistance, but also easy to clean up.

2. From the ring lock to the thickening of the embedded lock, the fastening is tighter and tighter.

3, from strip-type support to point support, drainage and sediment discharge is better.

4, add four fixed holes to facilitate the partial laying and fixing. If laying on surface of ceramic tile, it is also recommended fixation to avoid running and buckling due to vehicle impact.

5, the design of with leakage and sand leakage holes, and increase the edge hole fixing.





Understructure of each mat has more than 200 supporting points, which is perpendicular to the ground, to ensure drainage, also ensure that the product can withstand heavy pressure.Each square meter can bear more than 7 tons if the ground is flat. The car is generally 2-3 tons, so our product can bear car rolling back and forth.

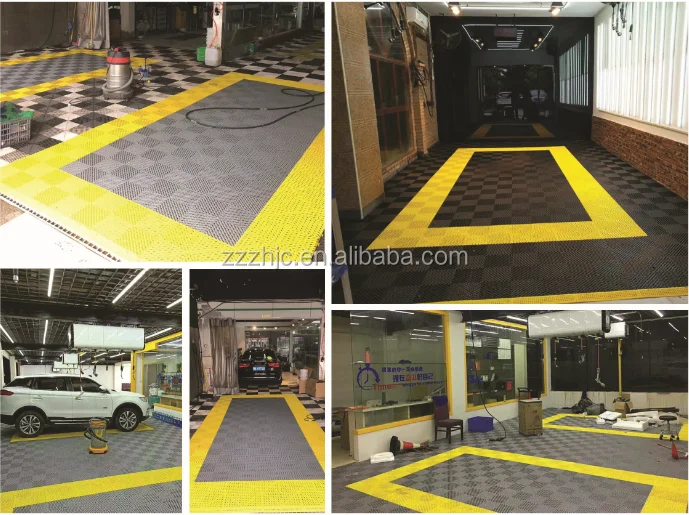

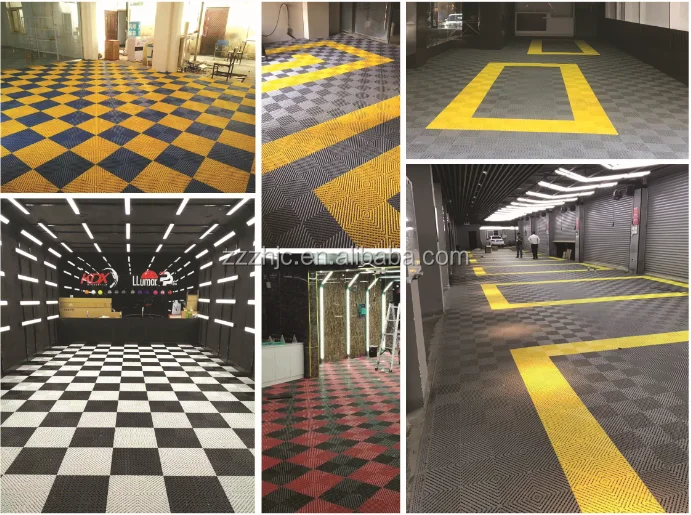

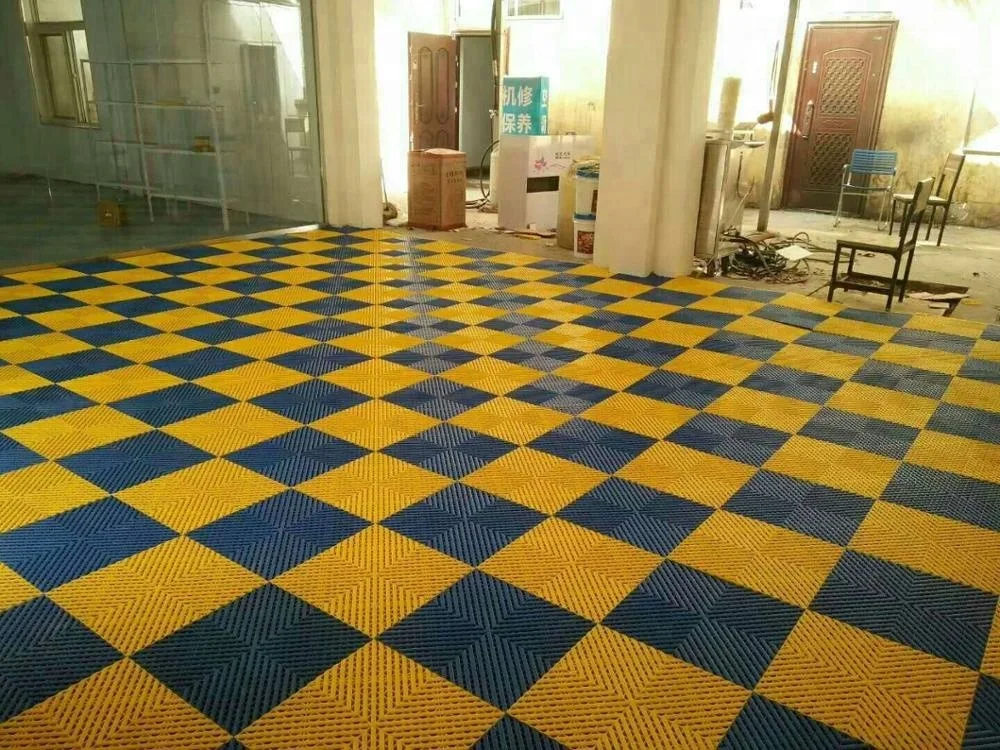

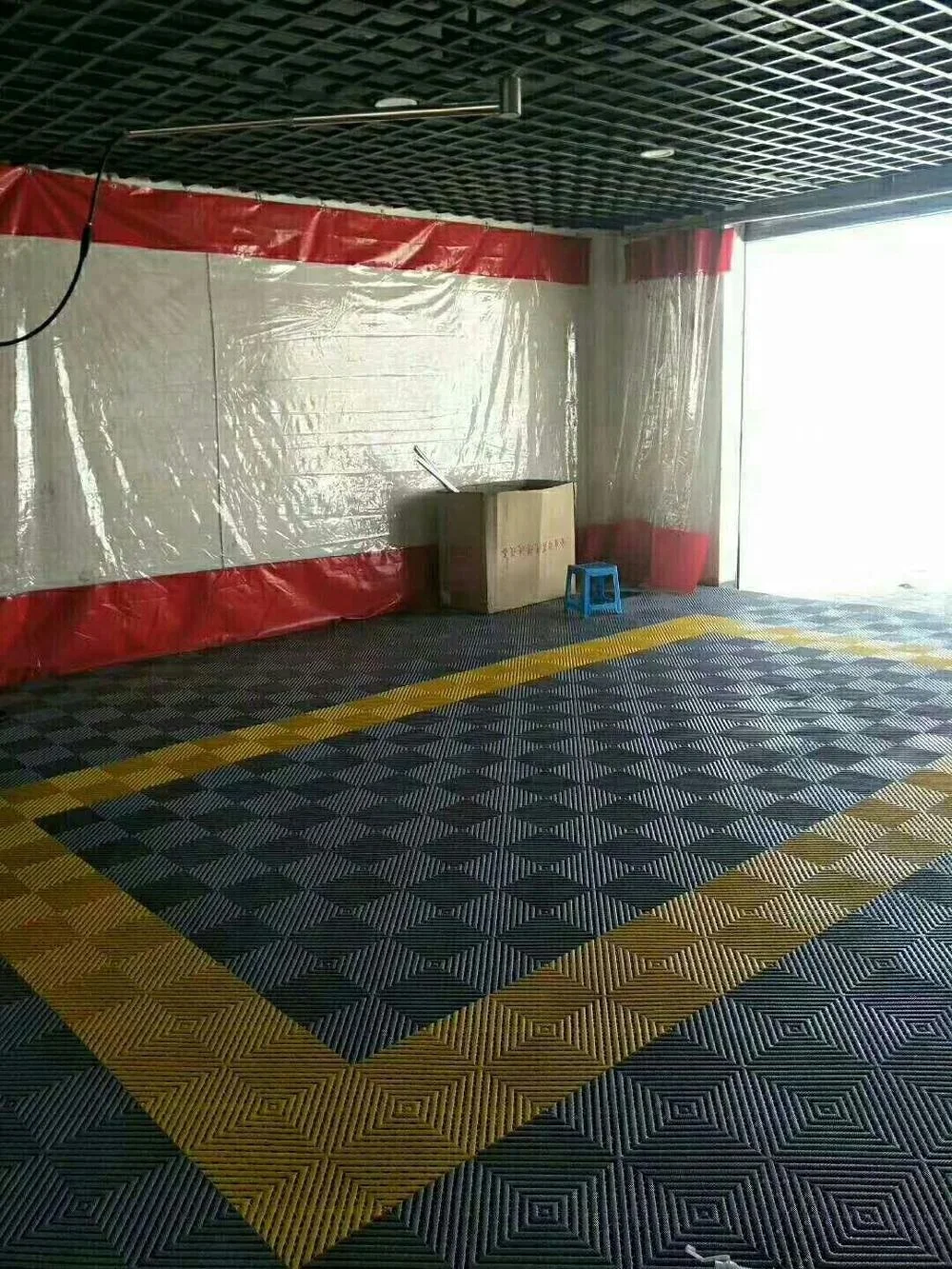

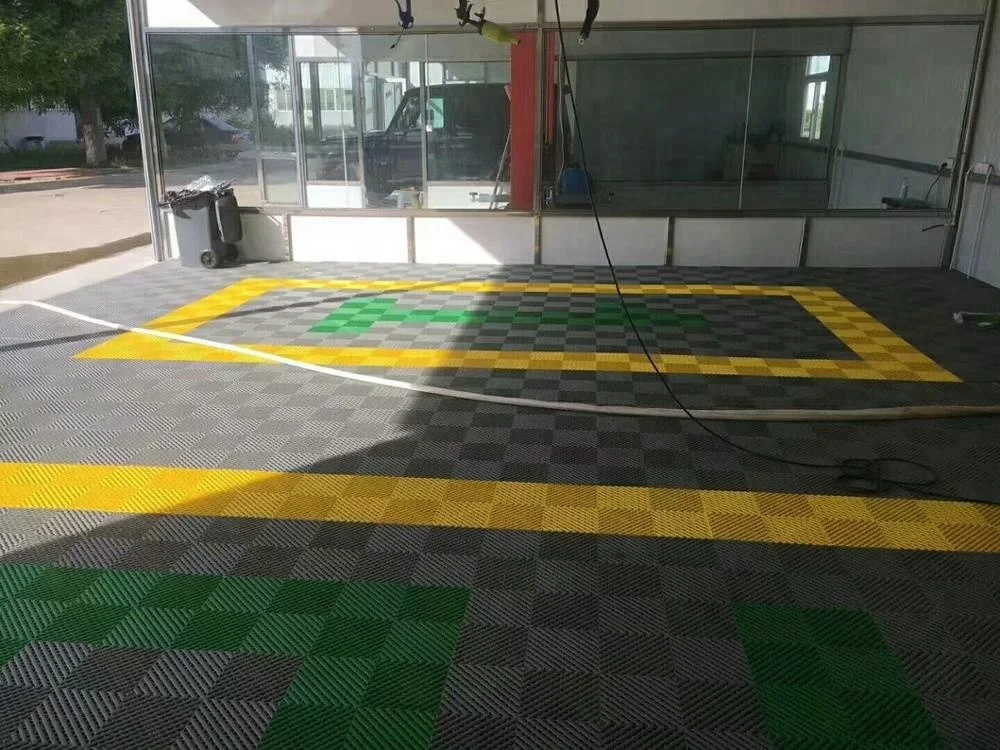

installation cases of modular plastic interlocking garage floor tiles as follows, just for reference.









Use life ofmodular plastic interlocking garage floor tiles is more than 10 years.





 Understructure of pp interlocking floor tiles has drainage ditch, so drainage effect is very good.





Packing method of modular plastic interlocking garage floor tiles :

the double corrugated carton packaging, carton size is 42*42*60cm. Each carton can load 42pieces of mat, each carton can load 200 pieces of edges(100 pieces of male edges and 100 pieces of female edges).

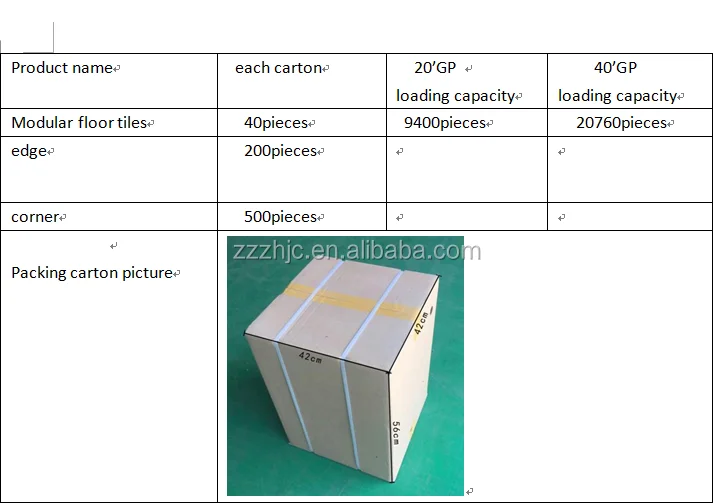

packing information as follows, just for reference.







Note:1.  If the order quantity is large, colors can be customized.

       2.  We accept OEM

       3.  MOQ:  500pieces



Zaozhuang Zhenghe Building Materials Co.,Ltd. focus on production and sales of automotive service industry flooring, which is a modular, lock type, function type ground material leading brand in China. Committed to build system, safety and high quality new ground engineering for clients, solving ground existing problems such as safety, pollution and rolling back and forth etc. In people-oriented product development philosophy, according to local conditions, formulate appropriate measures .Taking the industrial design wisdom and profound manufacture experience, Zhenghe company provides the most professional and special modular flooring and personalized solutions for users, to meet and exceed customer needs of patent products by continuous research&development, production.



We are the leading brand of interlocking floor tiles in China and hold 12 patents. Our company has professional research & development team and advanced equipments. Materials of all products are 100% new material. Every floor tile will be strictly checked.  our customers can be found in Southeast Asia, South America, the Middle East, Australia and other countries and regions. The company has always been adhering to mindfulness, altruism, Houde business philosophy, to provide professional high-quality products to withstand vehicle rolling and DIY model for global customers.



Our company is located in Zaozhuang city, Shandong province, China. I t is near from Qingdao port. We have 8-year production experience. High quality products have won the favor of customers. Continuous innovation allows us to have new more customers. Honesty makes us not only a cooperative relationship with customers, but also a friend.



production pictures of modular plastic interlocking garage floor tiles: as follows:





 The port of loading is Qingdao port, Shandong province. The delivery date is about 15 days.



FAQ:

1. About price:

The price is negotiable. It can be changed according to your quantity or package.

When you are making an inquiry, please let us know the quantity you want.



2. About sample:



Sample is free, but the air freight is collect or you pay us the cost in advance.



3. About MOQ:



The minimum order quantity is 1000 piece in many colors. The MOQ is 300 pieces per color.



4. About OEM:



Welcome, you can send your own logo, we can open the new mold and put your logo on product for you,



5. About warranty:



We are very confident in our products, and pack them very well, so usually you will receive your order in good condition.



6. About the port of loading:



We are near from Qingdao, Shandong Province, so the port of loading is Qingdao port.



7. Delivery time:



The delivery time is about 10 days.



8. About payment or ther question:



Please email me or chat with me directly.





I am Gao Hui, responsible for foreign trade. Sincerely hope we will establish business relationship.
