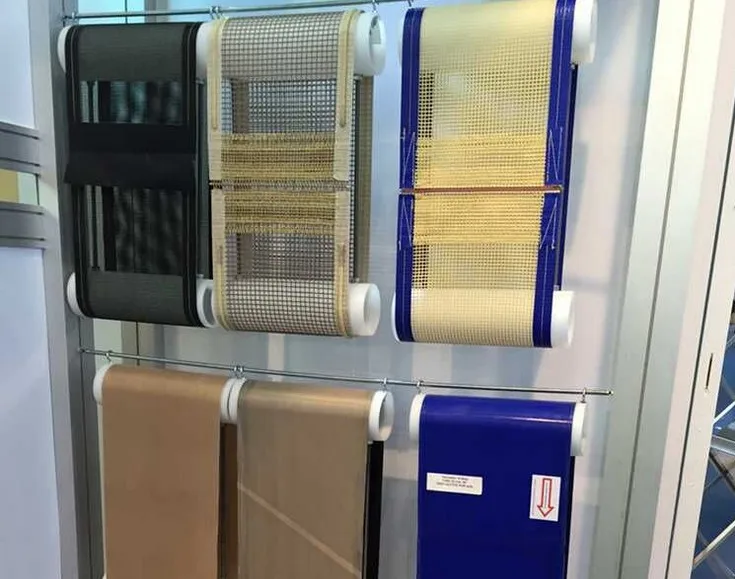

Ptfe mesh conveyor belt for uv dryer, shrinking and fusing machine

Product Overview

Description

Ptfe mesh conveyor belt for uv dryer, shrinking and fusing machine



Name	Ptfe mesh conveyor belt for uv dryer, shrinking and fusing machine
Type	PTFE mesh conveyor belt
Material	PTFE, PTFE coated fiberglass
Color	Black, brown
Mesh size	0.5*1,1*1,2*2,2*2.5,4*4,10*10mm
Width	Within 3m
Length	Customized
Thickness	0.5mm-1mm or customized
Temperature resistance	-70° ~260°
Application	Mining,coal,food dryer, power,Textile,screen printing
Certificate	/ / PONY/ ROHS/ REACH/ LFGB
Feature	Non stick, reusable,reversible, 100% PFOA free,washable,heat-resistant , eco-friendly
Price	Get your special discount here

PTFE Belting

manufactures various of belts with its material of smooth ptfe fabric,ptfe mesh, kevla, silicon rubber etc to custom specifications, depending on each customer’s individual needs. To help determine the best belt for your

unique application, you need provide the following information for our experienced technical manager to discuss

your requirement.

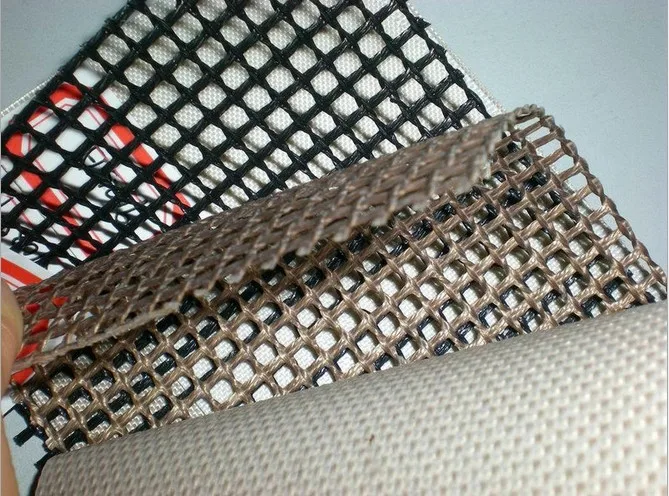

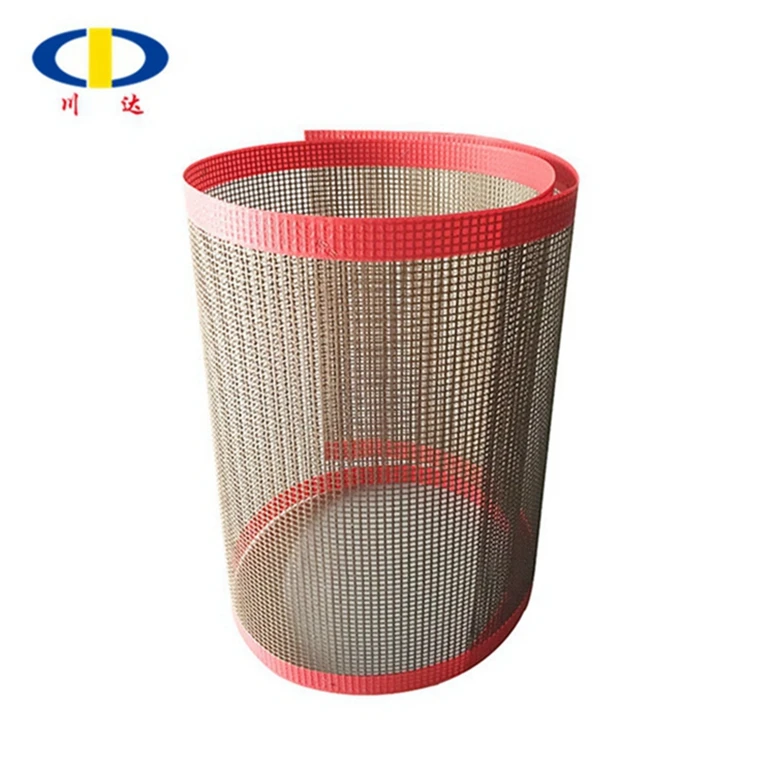

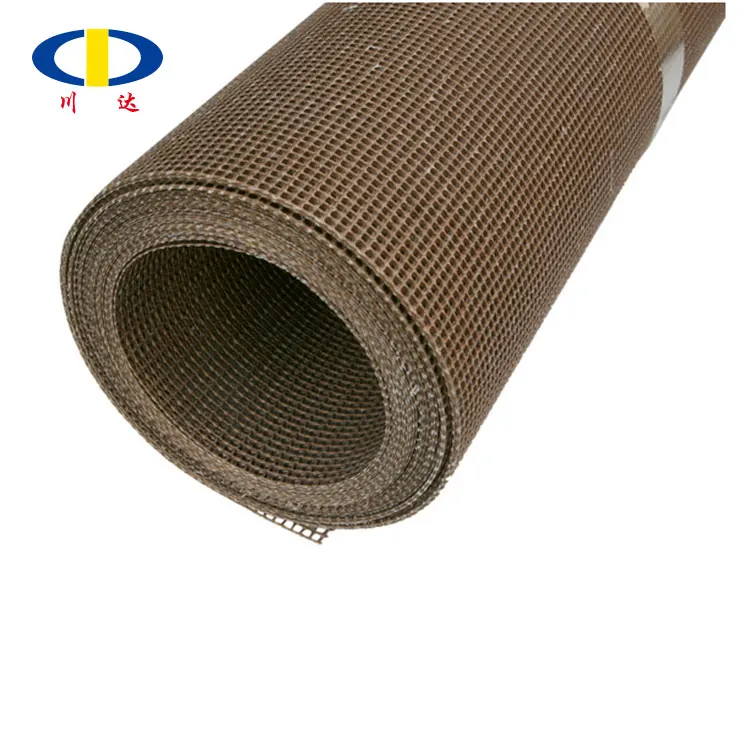

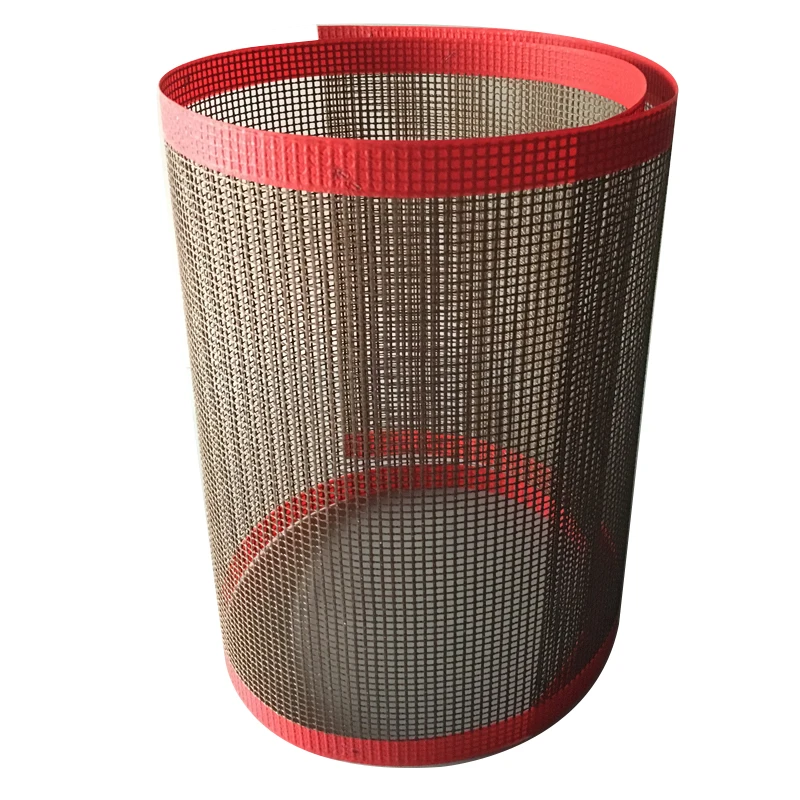

ptfe coated mesh conveyor belt

PTFE coated fiberglass open mesh belt select fine fiberglass, Kevlar or Nomex as basic weaving material,

coated with excellent PTFE resin to make it into various of PTFE conveyor belt.



ptfe coated mesh conveyor belt Properties:

1. Outstanding temperature resistance  (from -170ºC to +260ºC)

2. Resistant to corrosive agents

3. Low thermal mass

4. Controlled porosity

5. Superior non-stick surface, easy to clean

6. Dimensional stability

7.Non-toxic



ptfe coated mesh conveyor belt Usage:

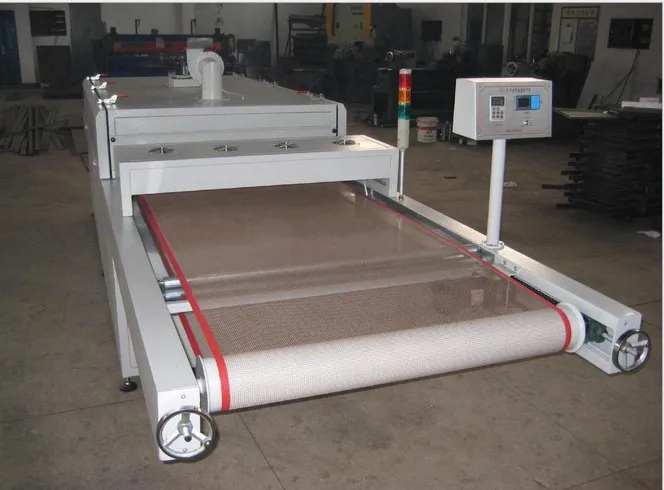

PTFE open mesh belts are used in screen printing to transport imprinted materials through drying ovens and

cooling chambers. These belts are long lasting and perform well over a wide range of operating temperatures.

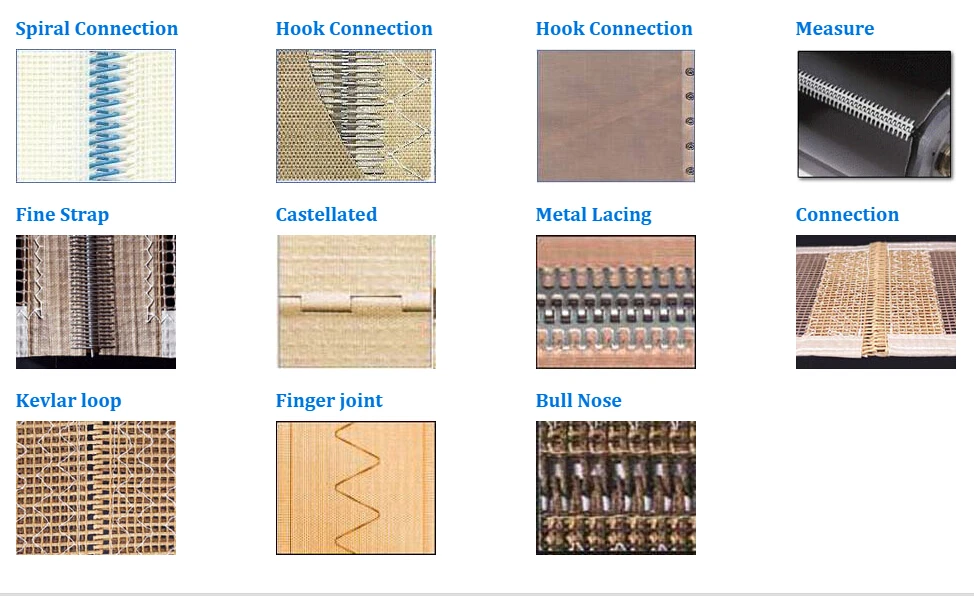

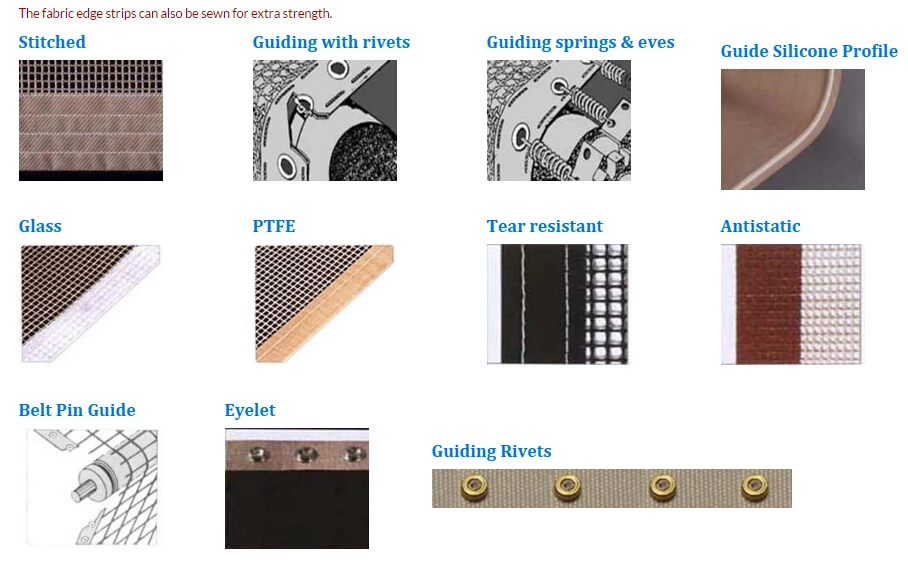

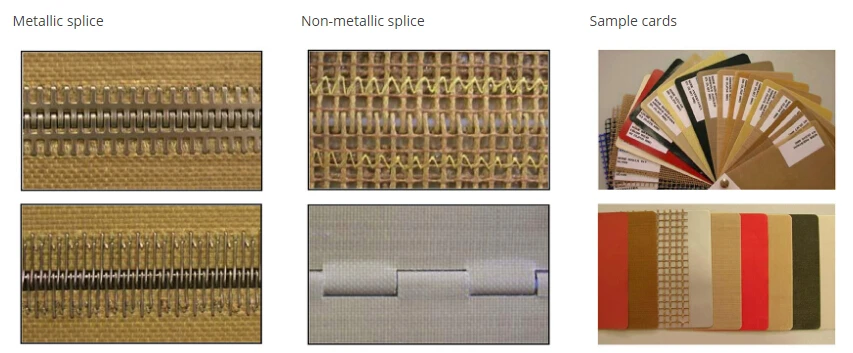

Fiber teflon belt fabrication department can supply a wide variety of splices and edge reinforcements in order to respond

customer’s specific applications.



Item	Mesh Size	material	Thickness	Weight	Temperature resistance	Max Width	Tensile Strength
6001	1x1mm	fiberglass	0.5mm	370g/m²	-70-260°C	4000mm	310/290N/cm
6002	2x2mm	fiberglass	0.7mm	450g/m²	-70-260°C	4000mm	350/310N/cm
6003	4x4mm	fiberglass (black)	1.0mm	400g/m²	-70-260°C	4000mm	390/320N/cm
6004	4x4mm	fiberglass	1.0mm	450g/m²	-70-260°C	4000mm	390/320N/cm
6007	4x4mm	Kevlar + fiberglass	1.2mm	600g/m²	-70-260°C	4000mm	895/370N/cm
6008	4x4mm	fiberglass	1.2mm	580g/m²	-70-260°C	4000mm	560/360N/cm
6010	4x4mm	Kevlar	1.0mm	500g/m²	-70-260°C	4000mm	900/600N/cm
6012	4x4mm	fiberglass (black)	1.0mm	550g/m²	-70-260°C	4000mm	395/370N/cm
6013	10x10mm	fiberglass	1.0mm	450g/m²	-70-260°C	4000mm	360/300N/cm
6014	0.5x1mm	fiberglass	0.5mm	420g/m²	-70-260°C	4000mm	310/290N/cm
6015	2x2.5mm	fiberglass	0.9mm	600g/m²	-70-260°C	4000mm	390/320N/cm
