Price:$22.63 - $27.20

Quantity:


Product Overview

Description


2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

 2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

Product Feature

 WE4626

  • MTK7628AN chipset, up to 580MHz
  • 8MB Flash+64MB RAM, Max support 32MB Flash+256MB RAM
  • Support dual band/11AC/2.4G+5.8G wireless protocol, wireless up to 1200Mbps
  • 1 WAN+4LAN+1 USB 2.0 port
  • Preload openwrt system
  • Different many enclosures design to meet customer different needs

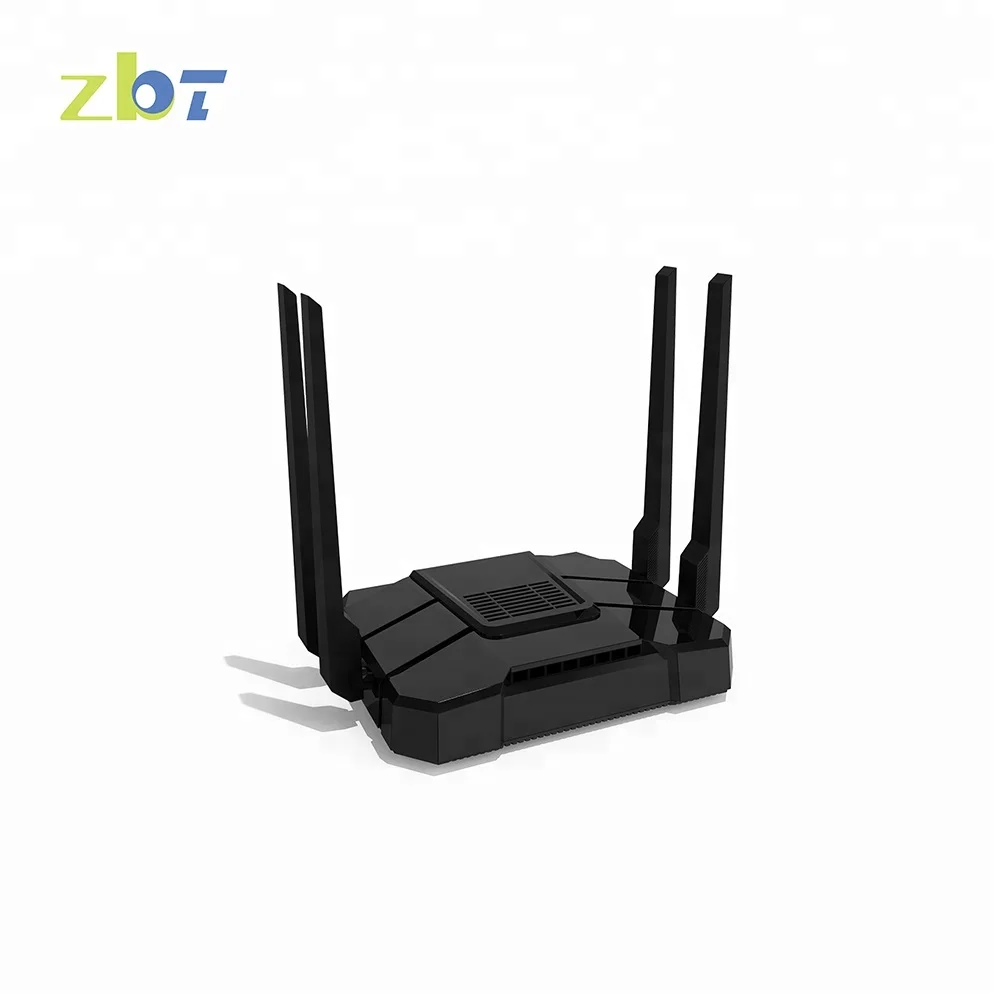

Option 1:



2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

Except Black color, we also have white color for customer choosing.

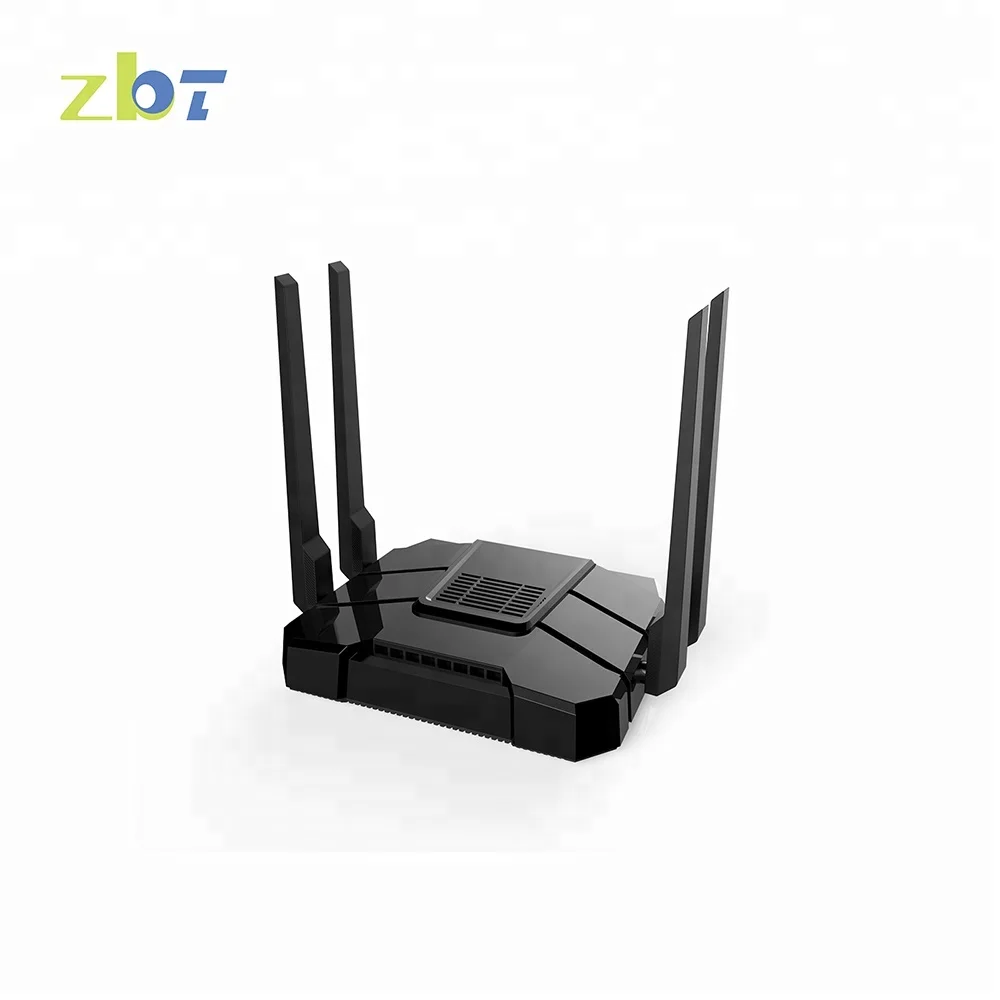

Option 2:

2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

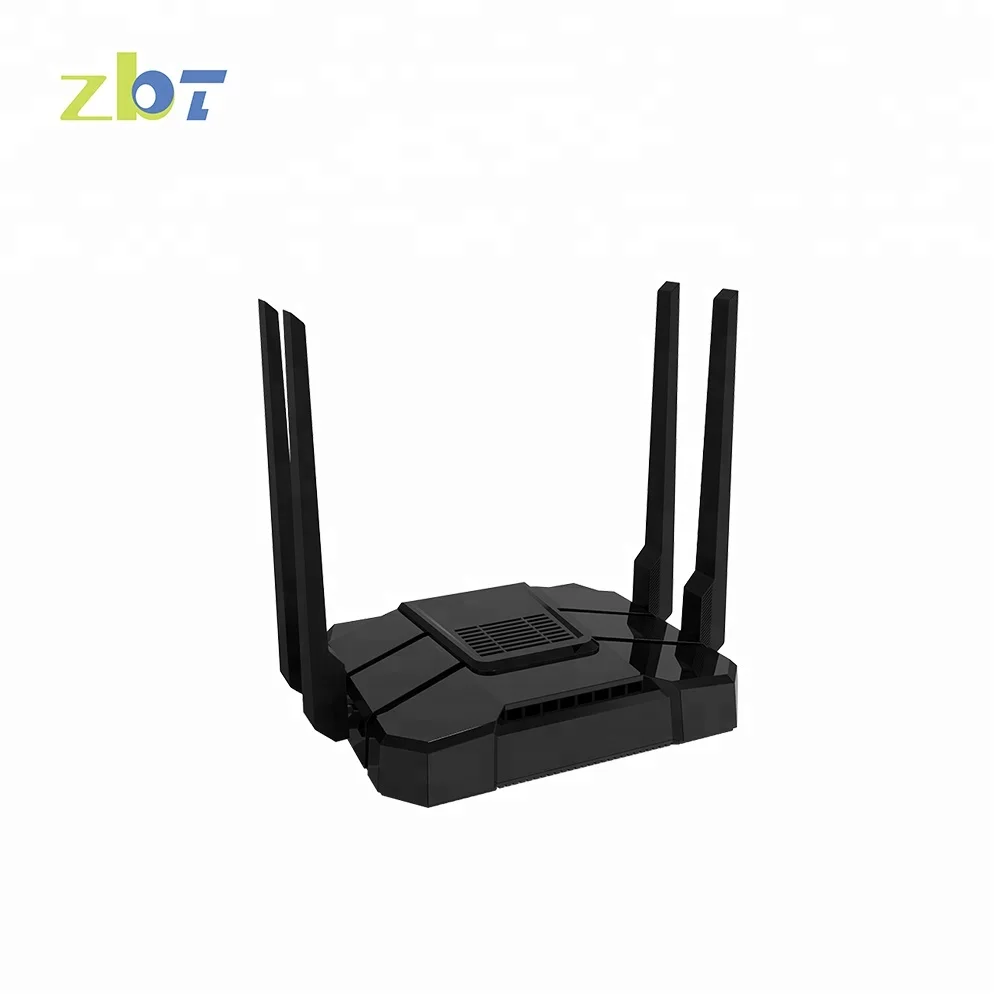

Option 3:

2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

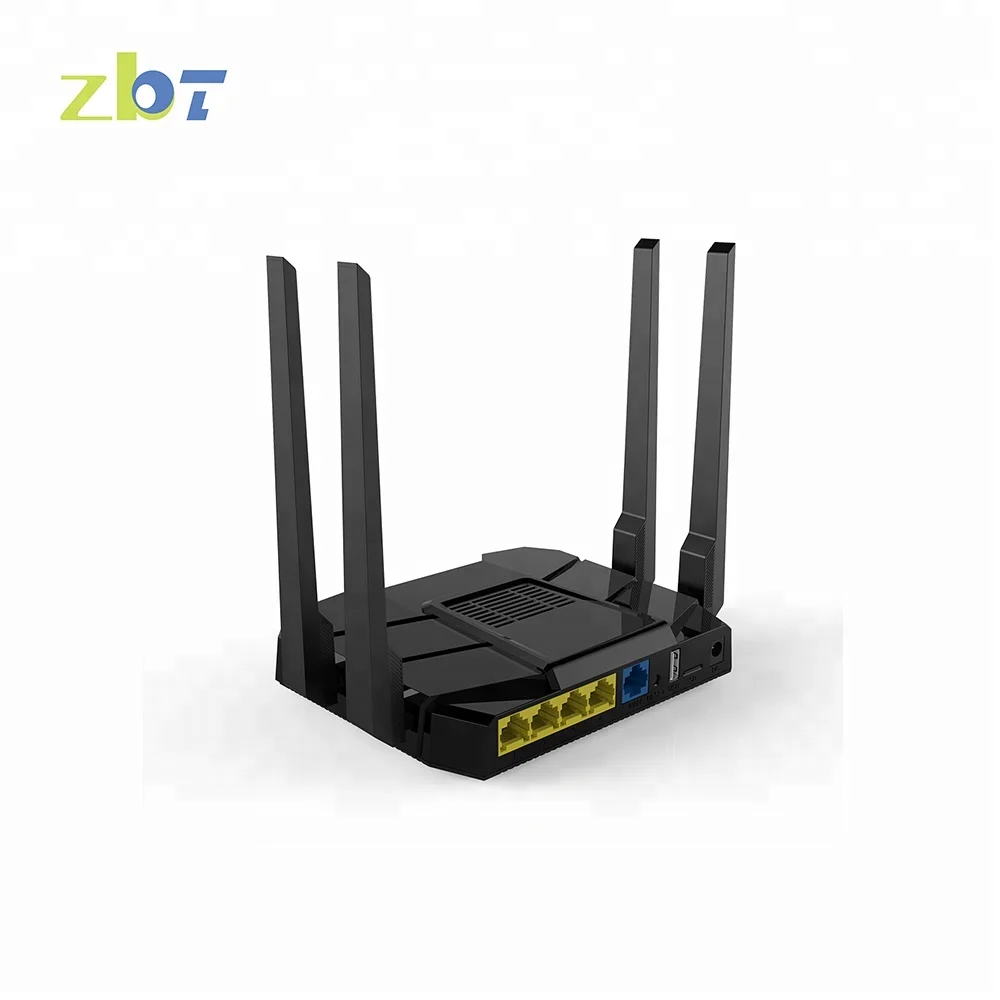

Option 4:

2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

 2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626



Product Description

 2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

Hardware

WE4626 uses the MTK7628N chipset,CPU up to 580Mhz,installed the large capacity SDRAM and the high speed SPI FLASH, provide 5 10/100Mbps Auto-MDI/MDIX port ,2.4G 300Mbps and 5G 867Mbps named 1200M dual band wireless network,1*USB2.0 port,1*TF card slot,could meet many kinds of wireless application, much better cost-performance



Wireless

Support IEEE802.11ac/n/g/b/a network protocol,used 2x2 MIMO(Multiple Input Multiple output),the wireless transmission speed can be up to 1200M,4 external antennas.Wifi coverage can be 50 meters, could supports 30 clients online .



Software:

Used stable and strong extensibility SDK system, Integration of a variety of network applications.



Support OEM&ODM

2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE46262 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

Hardware

Main chipset

MT7628A/580MHZ

RAM

DDR2 64MB (MAX DDR2 256MB)

FLASH

SPI 8MB  (MAX 16MB)

Protocol

IEEE802.11n/802.11g/802.11b/802.11a/802.11ac/802.3/802.3u

WiFi Rate

Max 1200Mbps

Work Frequency

2.4GHz\\5GHz

RT POWER

11n: 17dBm±1dBm

11g: 17dBm±1dBm

11b: 19dBm±1dBm

11a: 16dBm±1dBm

11ac: 14dBm±1dBm

Reception Sensitivity

11n: -82dBm

11g: -82dBm

11b: -76dBm

11a: -82dBm

11ac: -76dBm

Antenna

4 external antennas

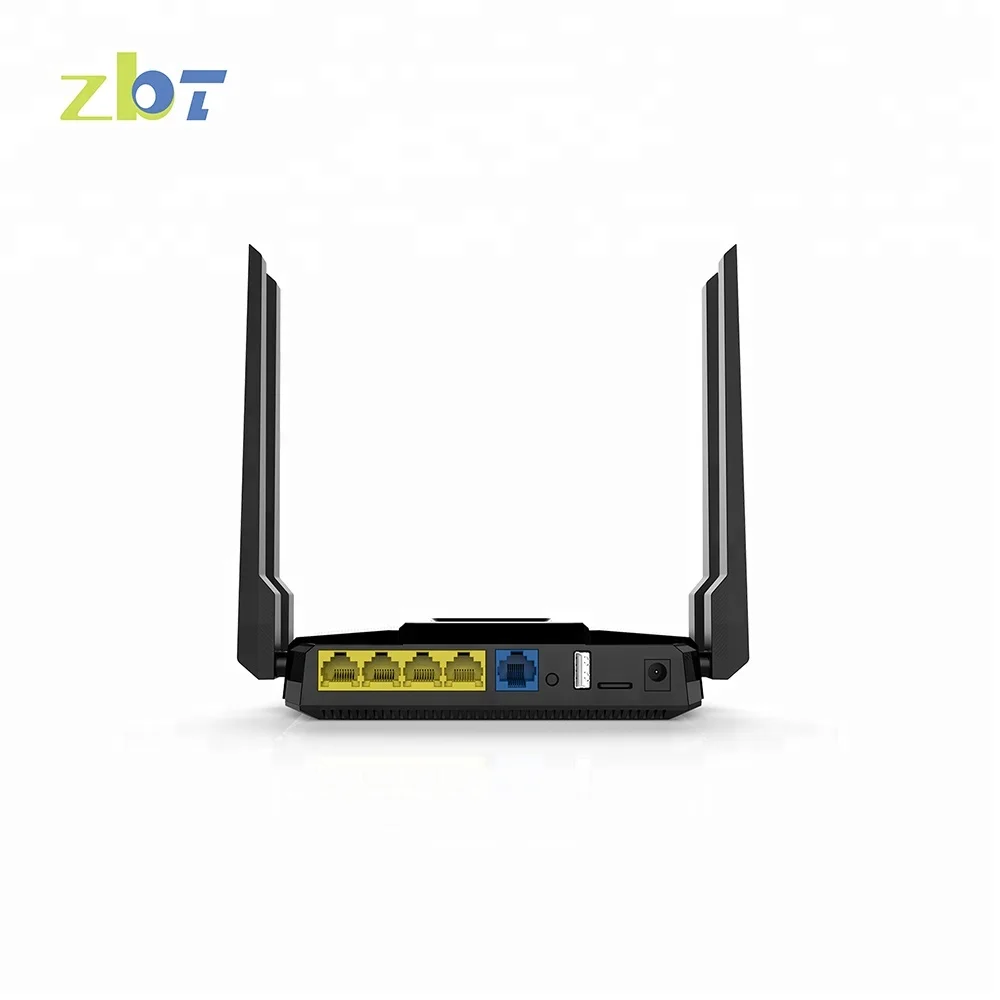

Interface

1*10/100M Auto-MDI/MDIX WAN port,
4*10/100M Auto-MDI/MDIX LAN port;

1*DC port

1*USB 2.0 port

LED

power/5G/2.4G/WAN/LAN1/LNA2/LNA3/LNA4

Button

1*Reset button

Power adapter

12V/1A

Max consumption

DC 9V/1A

Certifications

2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

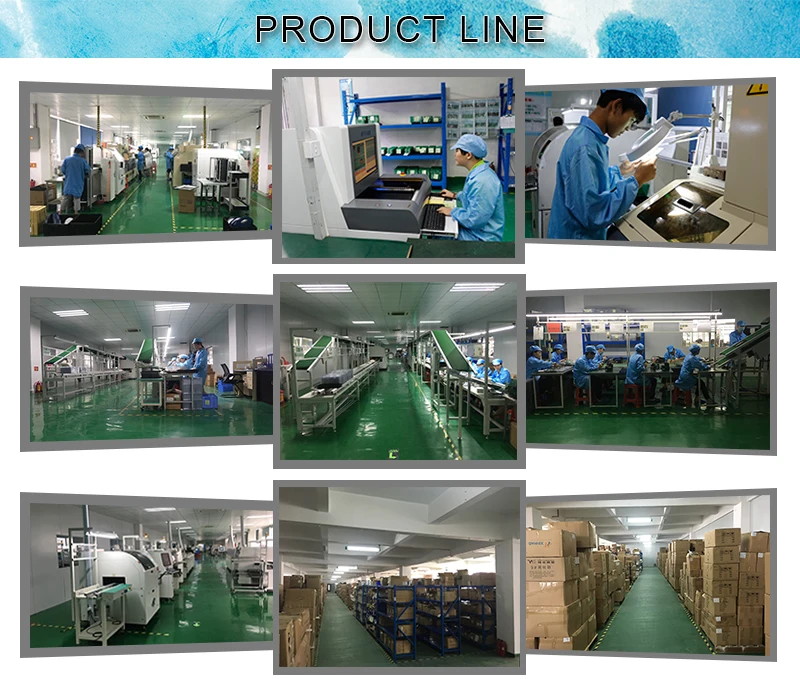

Company Information

 2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE46262 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626



2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

Packaging & Shipping

 2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

FAQ

2 4ghz 5ghz openwrt 11ac 19226811 wireless access point router WE4626

Do you provide customer LOGO?

Yes, we can provide customer LOGO on firmware and hardware.



Do you accept PCBA orders only?

Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.



Do you provide firmware support?

Sure thing, unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.



Do you....?

Maybe, why don't contact us now! Inquring us to see if we can, or if we do, to see if we can suprise you!
