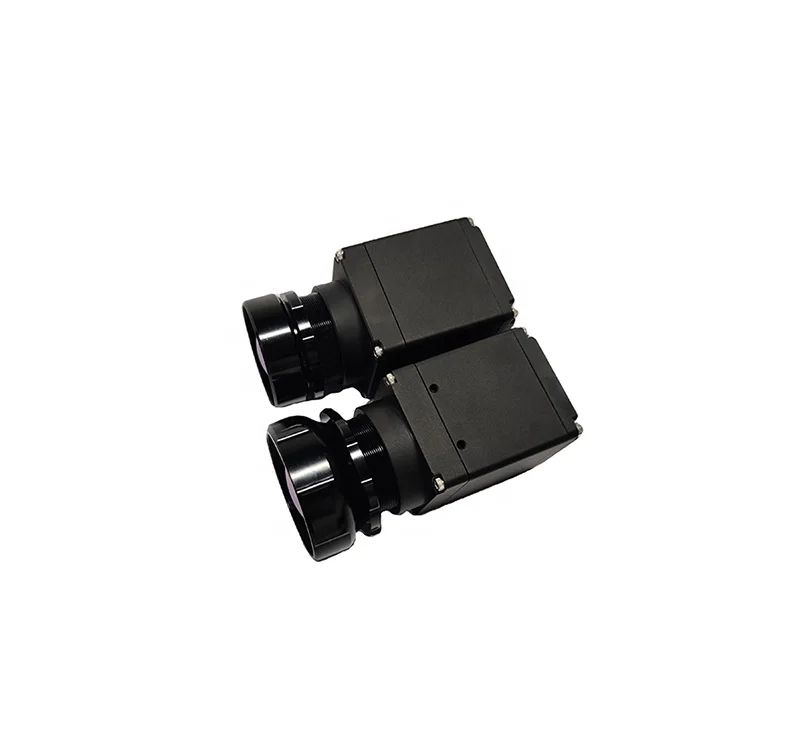

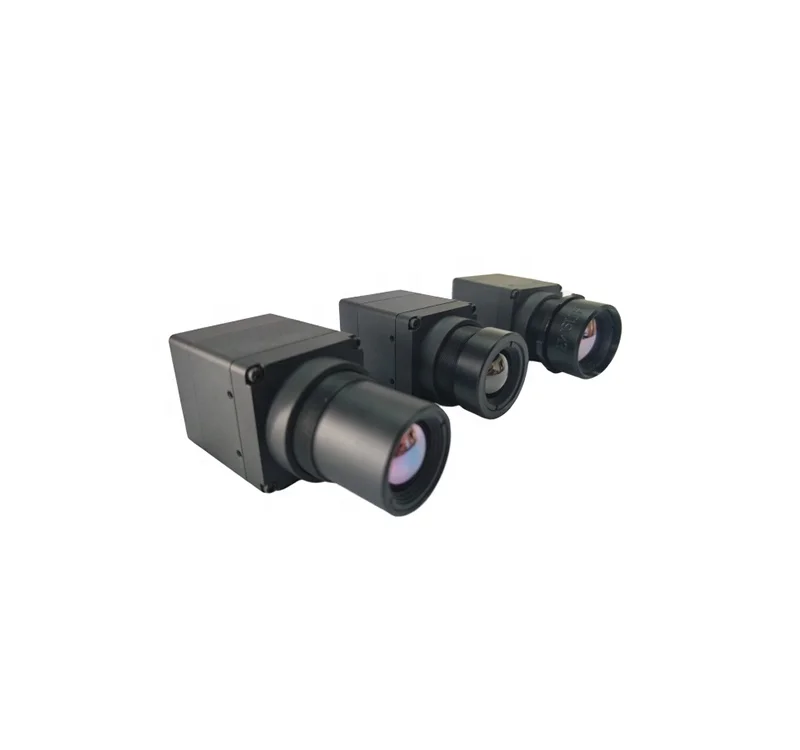

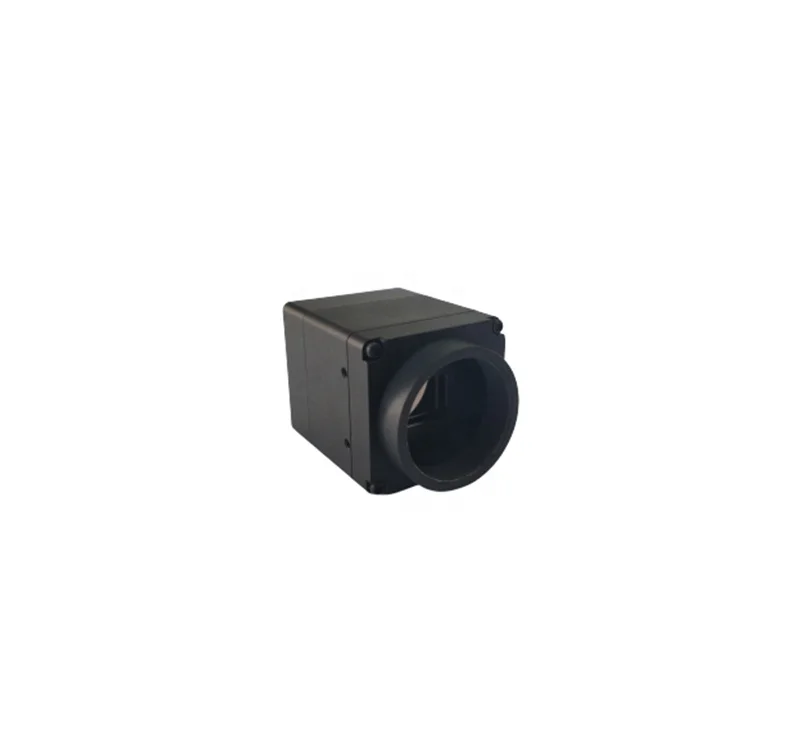

384*288 17um DHL free shipping Mini infrared camera cheap AS3817S top selling thermal imaging camera thermal imager
- Category: >>>
- Supplier: Jiangsu Ascendent Optronics Inc.
Share on (60775586344):
Product Overview
Description
promotion top 202105
Top Selling
Thermal system A3817SLS+19mm--$1250 including free shipping
Thermal Weapon Sight AB3875U-$3350/pcs
Thermal Sight AG3850-$3600/PCS bulk order
Fusion Thermal System---$2000 including free shipping
Thermal Lens50MM ATHERMAL -$880 including free shipping
Thermal Lens 35MM -$350 including free shipping
Thermal Lens19MM F0.8 -$360 including free shipping
Temperature Thermal Systems
Dual Temperature Camera-$2600/pcs
Dual Temperature Camera-$590/pcs
Thermal Sensor
Thermal Sensor 1024x768-$4500/pcs including free shipping
Product Description
we are top manufacturer of thermal camera module in China,
1,R&D center and market department has more then 10 years experience
2,Ultra small size,light weight,high quality and OEM accept.
3,Top selling product is VOX thermal camera which NETD less then 40mk.
4,Low price for test sample and bulk orders.
Mini infrared cheap thermal camera core AS3817S24 top selling 17um thermal camera thermal imaging camera
The AS3817S24 core is the infrared thermal imaging module based on a VOx detector. With the advantage of small size, light weight; multifunctional, easy to extend; standard interface , the system is stable and reliable, easy for further integration and development.
Profile
l Uncooled LWIR 384*288 detector
l Industrial mounting structure
l Various lenses optional
l Standard CCIR PAL video
l Compact, light, small
l High performance-price ratio
Performance | |||||||
Detector Type | Uncooled microthermal VOx FPA | ||||||
N.E.T.D | <40mK (@f/1.0,50Hz,300K) | ||||||
Resolution | 384 x 288 | ||||||
Pixel size | 17μm | ||||||
Wave range | 8-14μm | ||||||
Environment | |||||||
Operating Temperature | -40°C to +55°C | ||||||
Storage Temperature | -40°C to +70°C | ||||||
Humility | 95% Relative humidity, Non-condensing | ||||||
Protection Rate | IP45/IP67 (Customize) | ||||||
Physical | |||||||
Weight | ≤70g, Without Lens | ||||||
Size | ≤50mm(L)x33mm(W)x32mm(H), Without Lens | ||||||
Interface & Electronics | |||||||
Interface | J30J-9 | ||||||
Power Supply | DC 3-10V | ||||||
Video Output | Combined: PAL@50Hz(NTSC@60Hz optional) | ||||||
Digital Output | CameraLink Customize | ||||||
Control | RS232(default), RS485, RS422(Customize) | ||||||
Power Consumption | ≤1.5W(Static) | ||||||
Start Up Time | ≤15s | ||||||
Boot mode | Power on | ||||||
Optional Accessories | |||||||
Lenses | 7mm: 52.1° x 39.4° 19mm:19.5° x 14.7° 50mm:7.5° x 5.6° Customize | ||||||
DRI [Human: 1.7m x 0.6m] | DRI [Car: 2.3m x 1.5m] | ||||||
Lens | Detect | Recognize | Verify | Detect | Recognize | Verify | |
7mm | 206 | 51 | 26 | 631 | 158 | 79 | |
19mm | 559 | 140 | 70 | 1714 | 428 | 214 | |
50mm | 1471 | 368 | 184 | 4510 | 1127 | 564 | |

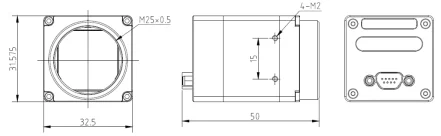

Dimension | |||||||
| |||||||
Buyer Feedback

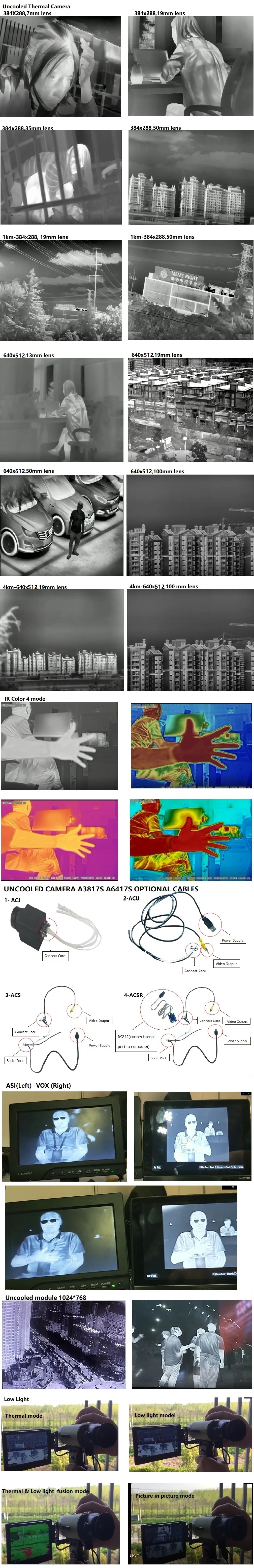

Detailed Images
