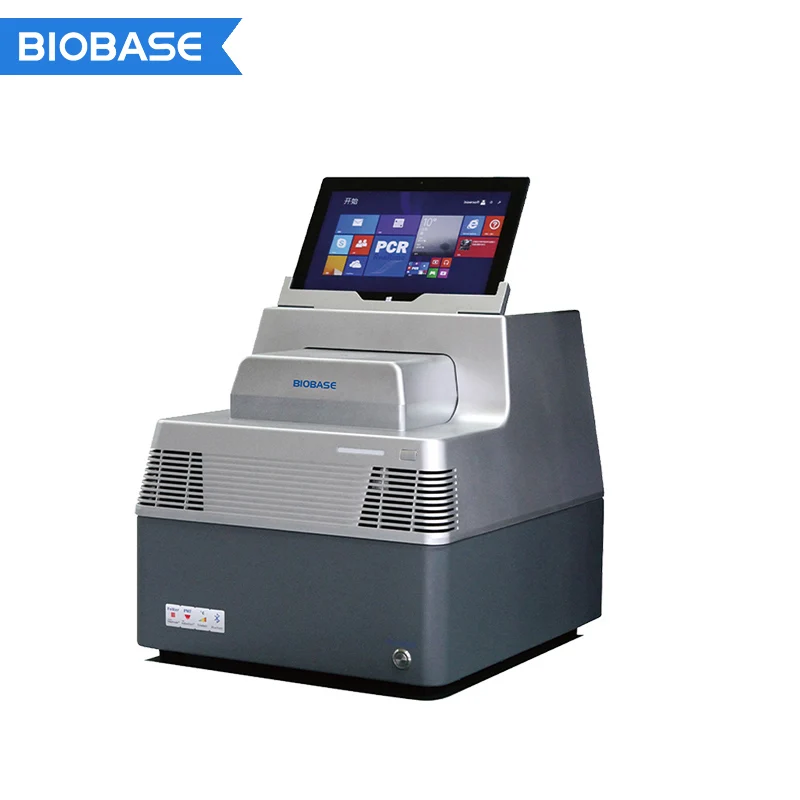

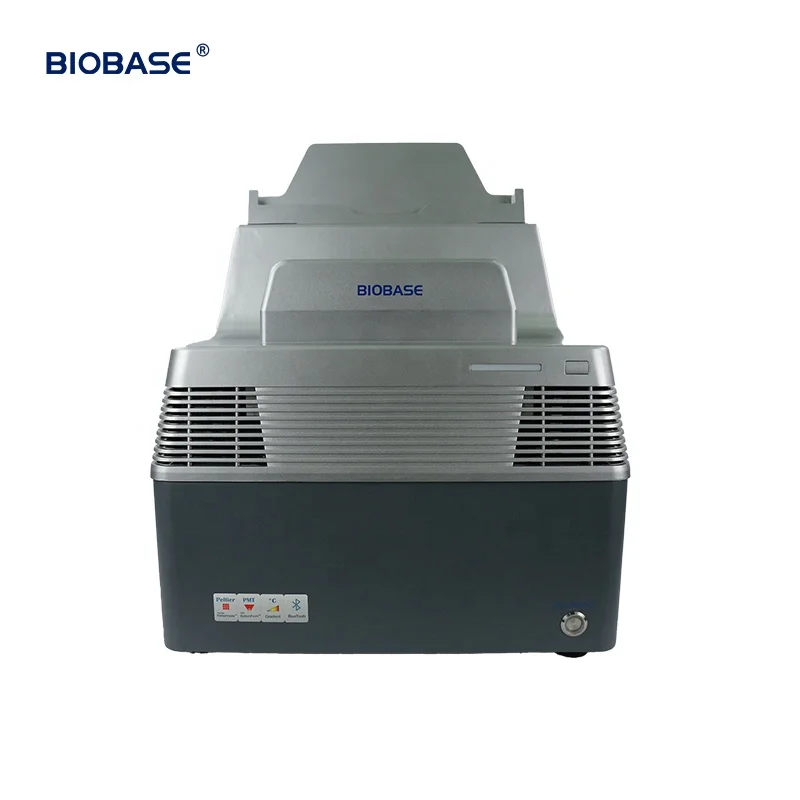

BIOBASE Gene Test Analyzer, 4 Channel Fluorescence Quantitative Real time PCR, BK 96P

Product Name

Fluorescence Quantitative PCR Detection System

Model

BK-96P

Sample Capacity

96-well PCR plate, 12*8-strip, 96*0.2(Bottom Transparent)

Dynamics Range

1-10^10 Copies

Excitation Wavelength

300-800nm

Emission Wavelength

500-800nm

Detected Fluorescence

F1:FAM,SYBR GREEN I F2:VIC,HEX,TET,JOE,CY3,

NED,TAMRA.

F1:FAM,SYBR GREEN I, F2:VIC,HEX,TET,JOE,CY3,

NED,TAMRA. F3:ROX,TEXAS-RED.

F1:FAM,SYBR GREEN I F2:VIC,HEX,TET,JOE,CY3,

NED,TAMRA. F3:ROX,TEXAS-RED. F4:CY5

F2:FAM SYBR GREEN I F2:VIC,HX,TET,JOE,CY3,

NED,TAMRA. F3:ROX,TEXAS-RED.

F4:CY5. F5: CY5.5

Block temp. range

4-105℃(Minimum increment:0.1℃)

SOAK Low Temp. Conservation Function

Heating/Cooling Rate

4.0℃/s(max)

Temp. Control accuracy

≤ ±0.1℃

Temp. Fluctuation

≤ ±0.1℃

Temp. uniformity

≤ ±0.3℃

Temp. control mode

BLOCK/Tube Simulation Mode

(Automatic Control Based On Sample Volume)

Sample Volume Range

5-100μL

Gradient Temp. Range

1-36℃

Hot-lid Temp. Range

30-110℃(Adjustable, Default 105℃), Automatic Hot-lid

Fluorescence Detection Repeatability

5%

Scan Mode

Entire plate of designated line

Program

Max 20 Segments for Each Program, Max 99 Cycles

Operation Mode

Continuous

Scan Period

5.5s

Feature function

Absolute quantification, relative quantification, SNP Analysis, Data automatic analysis, melting curve genotyping, Gradient, multi-channel crosstalk correction, background correction, automatic gain, customized parameters.

Operation system

Microsoft: windows7/windows8.1 Software:excel2000/2002/2007/2012

PC Configuration

Memory: 2G  Hard disk:32GB

Power supply

100-240V 50/60Hz 600W

Dimension(L*W*H)

410*386*352mm

Socket

USB Adapter, RS232 Adapter, BT Adapter

Authentication

Product quality liability insurance

Packing size

820*790*680mm

Gross weight

85KG
