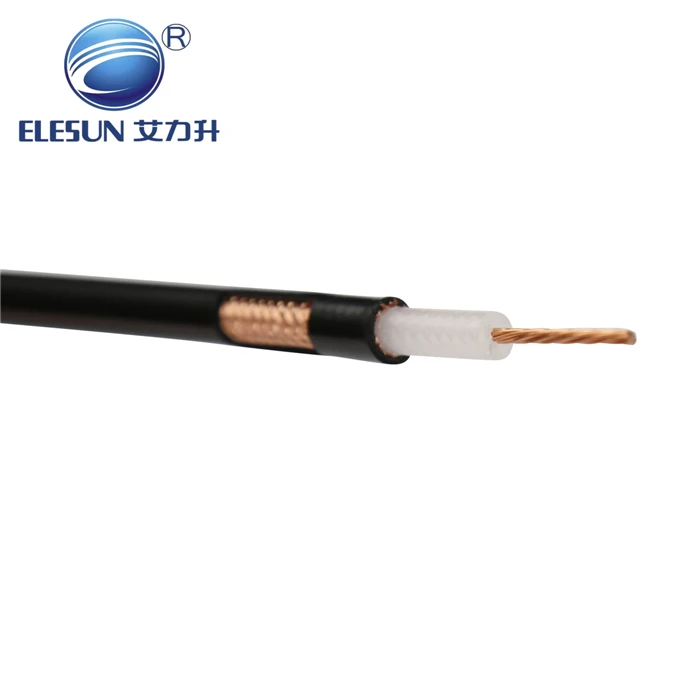

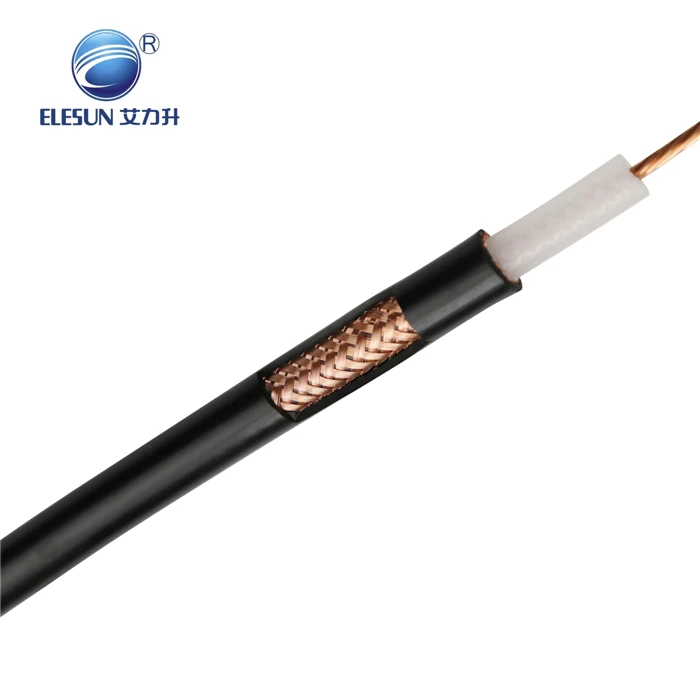

SYV 50 3 1 Solid PE Insulation RF Coaxial Cable

     Technical data of product

Name of cable

SYV-50-3-1 Solid Polyethylene Insulation RF Coaxial Cable

Type of cable

SYV-50-3-1

Standard

MIL-C-17

1. Size of product

No.

Item

Structure

Material

Color

1

Inner conductor

7*0.32 mm

Bare copper

Yellow

2

Insulation

2.95±0.10mm

PE

White

3

Wire braiding

96*0.12mm

Bare copper

Yellow

4

Jacket

5.00±0.10 mm

PVC

Black

5

Making

HIGH QUALITY COAXIAL CABLE CNALS SYV-50-3 50Ω  RoHS

  2. Electrical physical and properties of product

Item

Unit

Value

Capacitance

pF/m

100±5

Impedance

Ω

50±2

Velocity ratio

%

66

Bent radius

mm

25

Max voltage

VMS

1500

Max Frequency

MHz

3000

Temperature scope

℃

-20 ~ +80

200MHz

dB/100m

25.2

400MHz

dB/100m

36.4

900MHz

dB/100m

52.2

Attenuation constant at 20℃(Max.)

1800MHz

dB/100m

75.0

2000MHz

dB/100m

78.5

2500MHz

dB/100m

91.2

3000MHz

dB/100m

110.6
