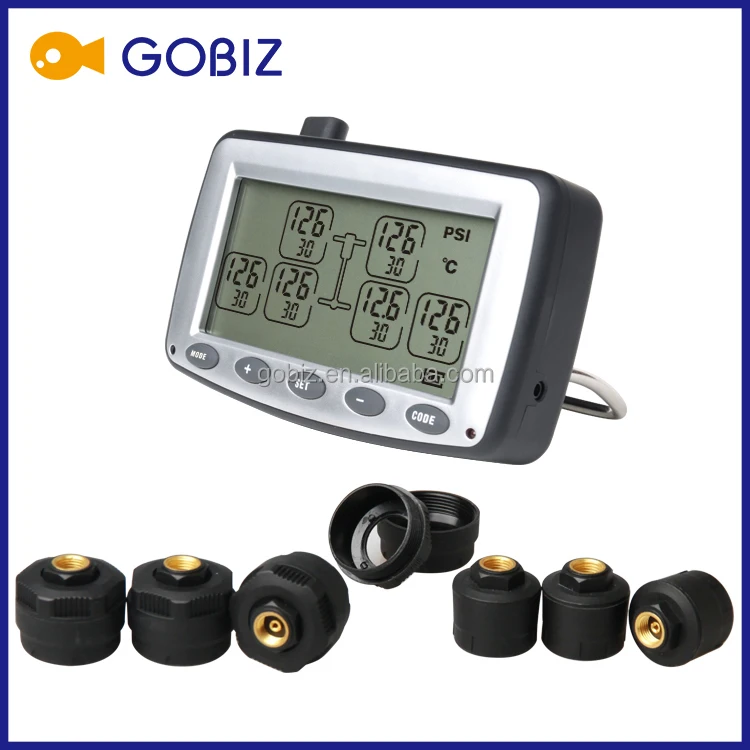

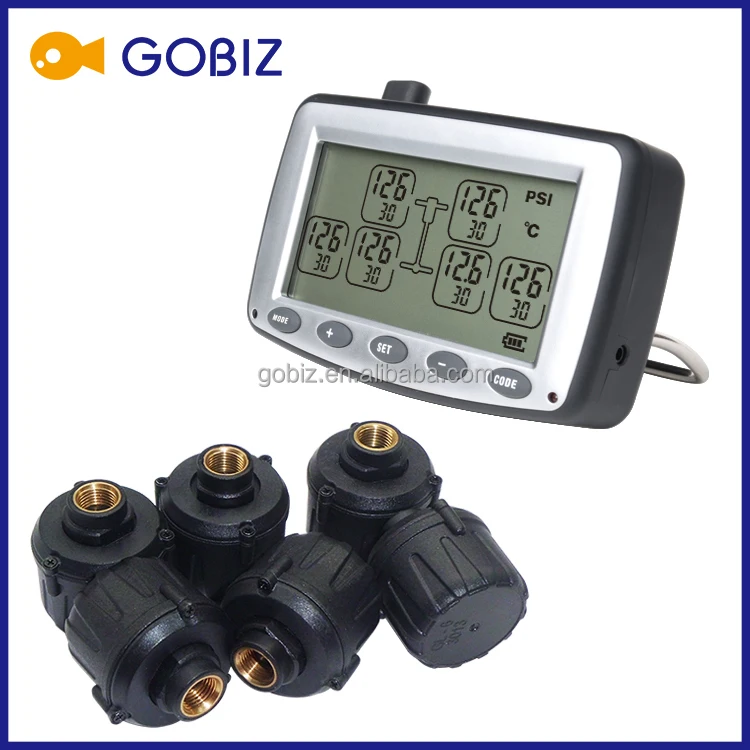

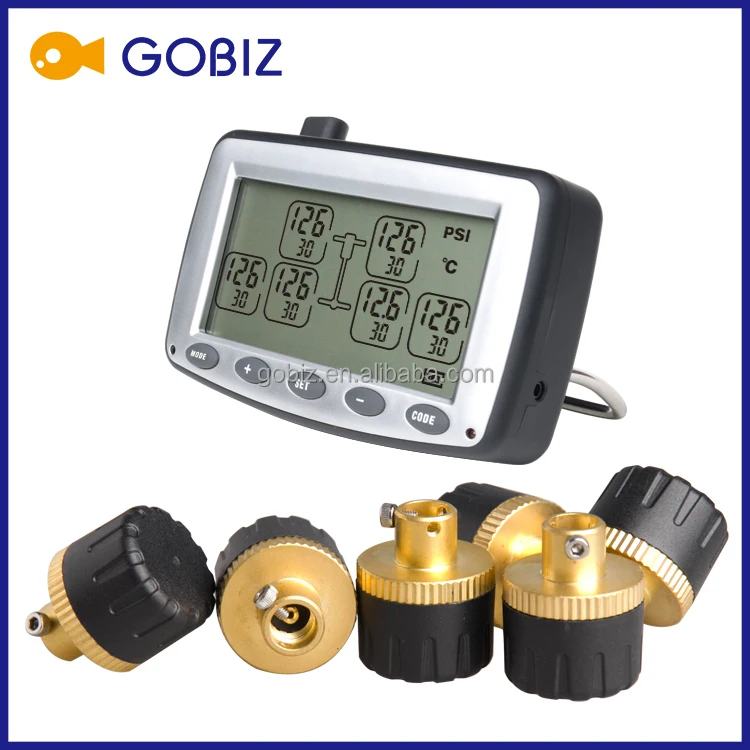

mining vehicles tpms, tire pressure monitoring system

Product Overview

Description

mining vehicles tpms, tire pressure monitoring system







1. What are the advantages of TPMS ?



Reduce Driving Risks



Improve Fuel Economy



Prolong lifetime of the tires



2. Monitor Features & Specifications:

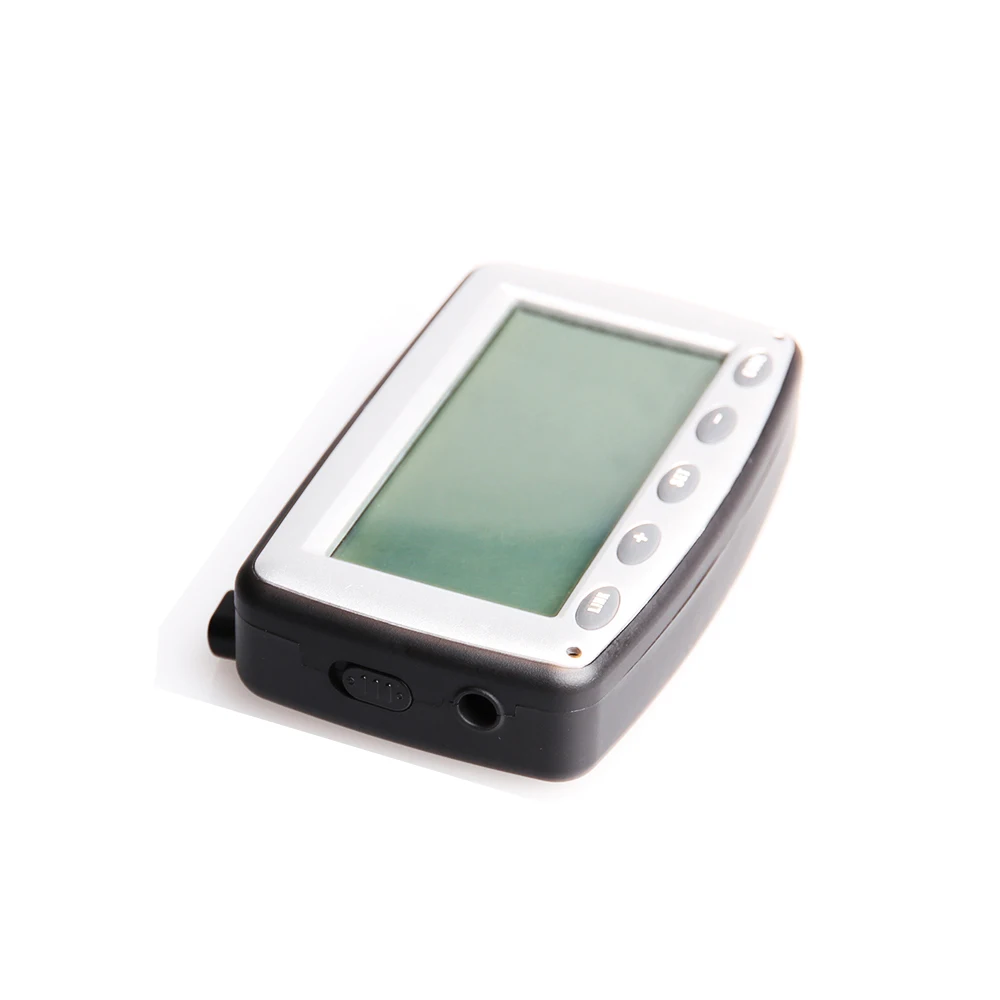

Monitor Features:



Reliable and easy to install.

Large LCD screen.

Built-in rechargeable lithium battery.

Vibration awakening.

Automatical backlight.

Configurable high/low pressure warnings.

Configurable high temperature warnings.

Visible and audible alerts.

Selectable pressure units ( BAR, PSI ).

Temperature unit selectable (℃, ℉)

Monitors up to 22 tires maximum.

Long range between monitor and sensors.

Individual configuration of axle high/low pressure warnings.

Awake sensor to program ID code.



Monitor specifications:



Operating temperature	-20 to +80° C
Storage Temperature	-30 to +85° C
Charge Input Voltage	DC 8 to 30 V
Frequency	433.92MHz
Size	116 ( L ) x 68 ( W ) x 25 ( H ) mm
Weight	138 g







3. Sensor Features & Specifications:



Sensor Features:



Reliable cap sensors, easy to install.

Water resistant.

Replaceable sensor batteries.

Sensors transmit pressure and temperature data every 5 minutes.

Fast leakage alert.

Individually coded sensors.

Anti-theft desigh.





External Sensor Specifications:



Pressure range:	0 to 13 bar, 0 to 188psi
Pressure sensitivity:	± 0.1 bar or 1.5psi
Temperature sensitivity:	± 3℃
Transmission power:	<10 dBm
Transmission frequency:	433.92MHz
Battery life:	2 years(Sensor battery replaceable)
Operating temperature:	-40 to +80° C
Weight:	30grams
Size:	Diameter:24mm Height:19.5mm



4. Our Facilities:





5. Our Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent





6. Cooperate with us, you will gain:



0EM or ODM service



Professional Research & Development Engineer



Competitive Price & Professional sales team



2-4 weeks leadtime

Looking Forward to Cooperating with You!
