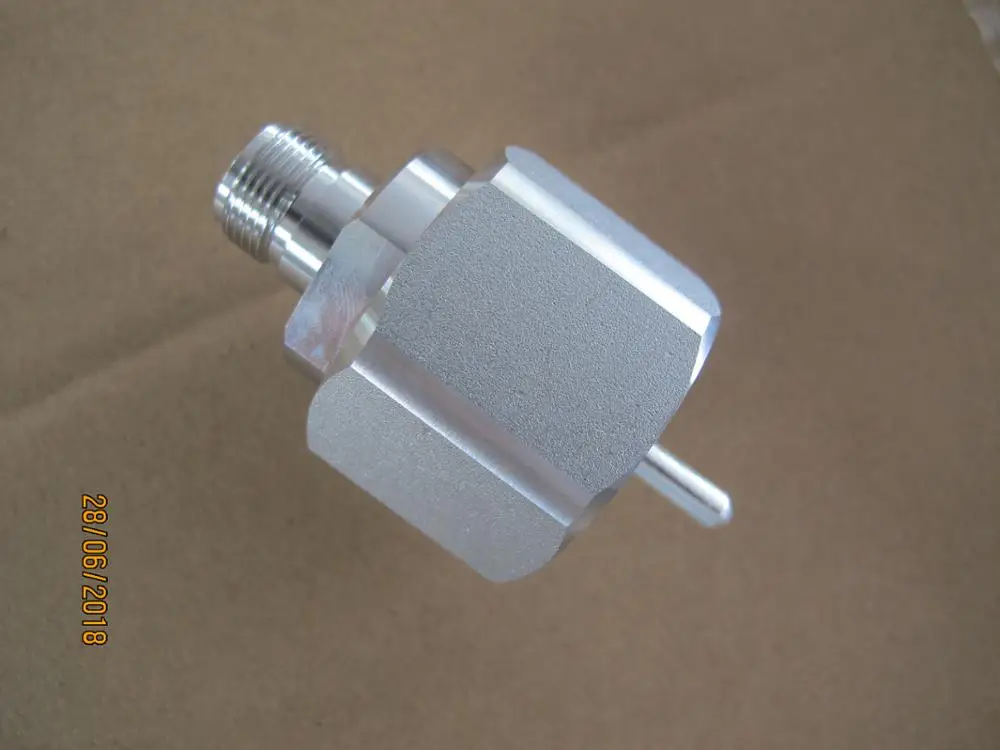

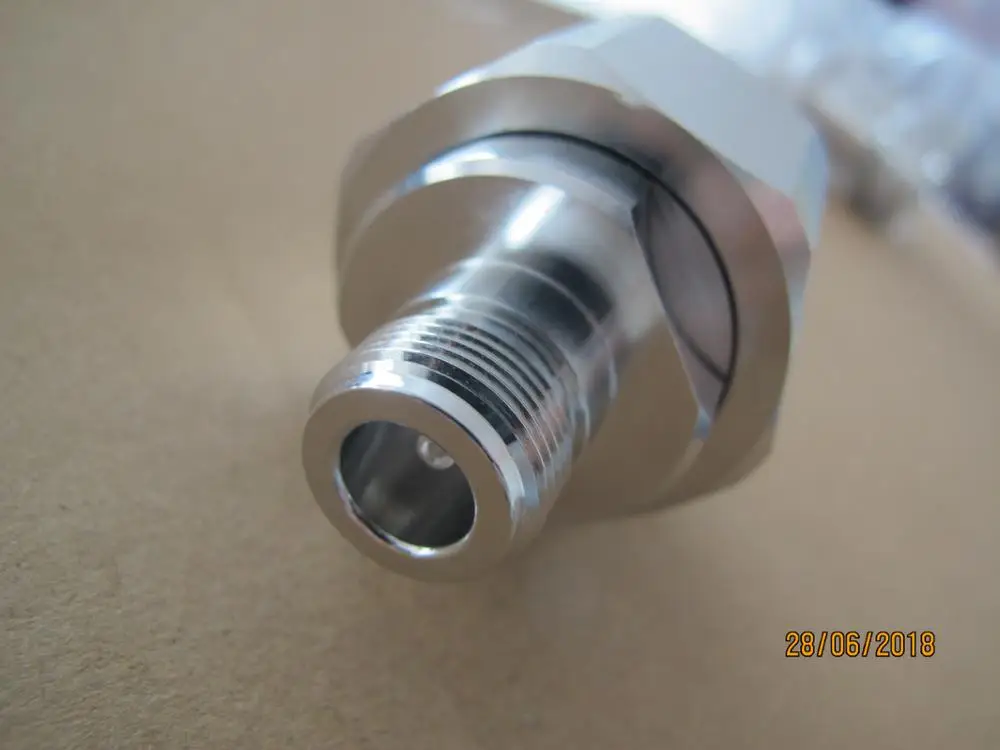

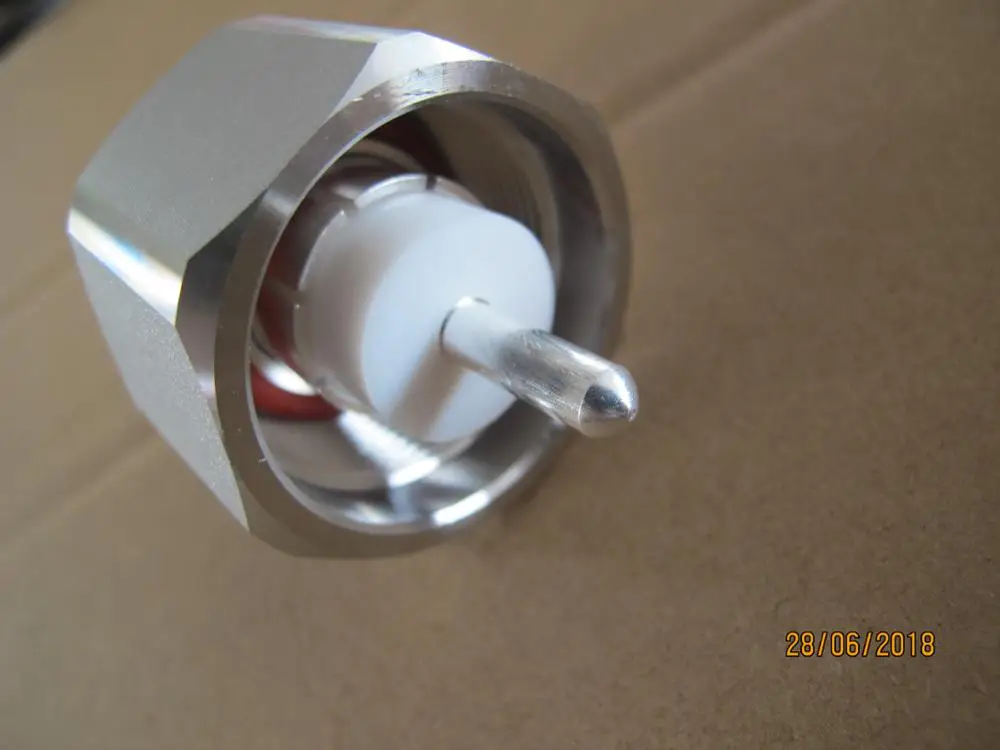

PE4192 PE4183 LC male to n female adapter LC RF connector

Product Overview

Description

PE4192 PE4183 LC male to n female adapter LC RF connector









Electrical Characteristics
Impedance	50Ω
Frequency range	0~6GHz
VSWR	1.20
Insulation resistance	≥1000MΩ
Center contact resistance	≤1.5mΩ
Outer contact resistance	≤0.4mΩ
Withstand voltage	4000 V rms
Working voltage	2700V
RF-leakage(dB)	≥128dB@1GHz
Mechanical Characteristics
Coupling torque	25Nm-30Nm
Coupling nut retention	≥ 800N
Center contact captivation	200N
Center contact retention force	≥6N
Mating cycles	≥500
Environmental Data
Temperature range	-55°C~+155°C
Moisture resistance	IEC 61169-1,Subclause9.4.3
Rapid change of temperature	IEC 61169-1,Subclause9.4.4
Vibration	IEC 61169-1,Subclause9.3.3
Shock	IEC 61169-1,Subclause9.3.14
Corrosion resistance	IEC 61169-1,Subclause9.4.6
Materials
Body	CuZn/ Au plating
Outer contact	CuZn/ Au plating
Center contact	CuZn/CuBe/ Au plating
Insolator	PTFE
