High Strength Steel Welded Pipe Roll Forming Machine
Technology Procedures

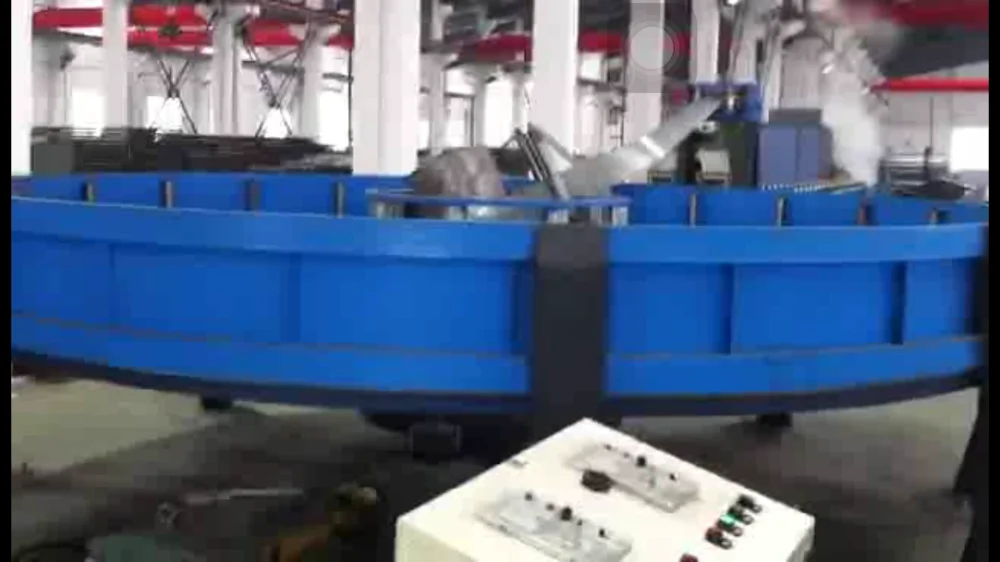

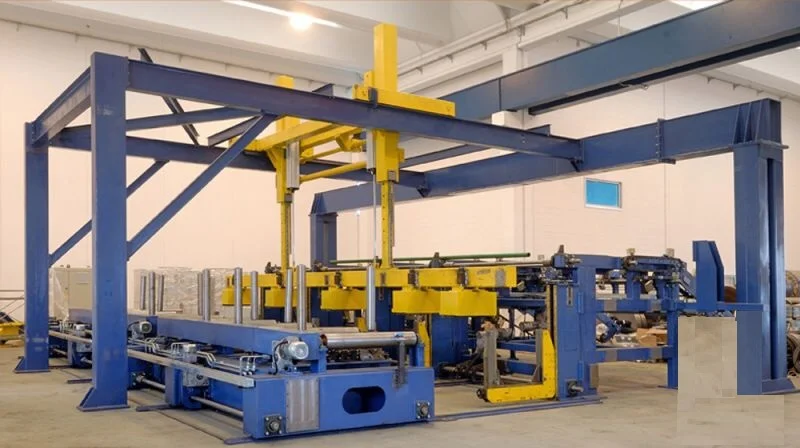

Uncoiler→Shear&end welder→Honrizontal accumulator→Leveling→Forming→HF welding→Scraper→Cooling→Sizing→Straightening→Flying saw cut off→Run out table
MainTechnical Specifications
Item
Patameter
Material
Hot/cold rolled carbon steel
Finished porducts Requirement
Round pipe
20-76mm
Thicness
0.8-3.0mm
Place requirement
Place type
Separate layout
Loyout type
Input,Side output(look from main console,decided by customer)
Production speed
0-80m/min
Cutting motor
15Kw
Cutting Type

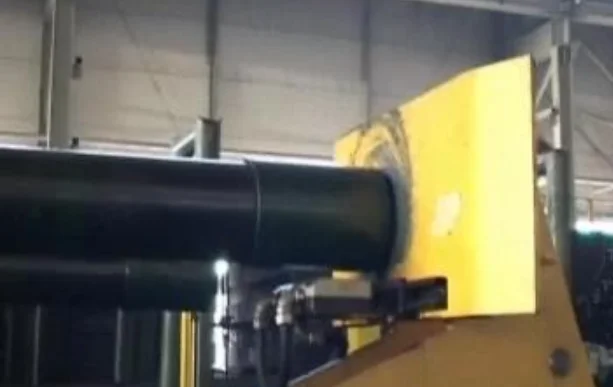

Hot friction saw
Cutting tolerance
±3mm
Tracking motor
11Kw
Pneumatic system
0.4-0.7Mpa

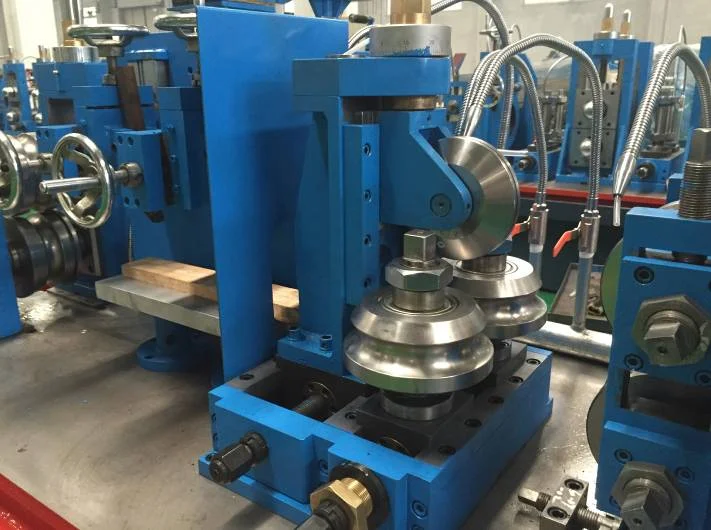

Detailed Drawing

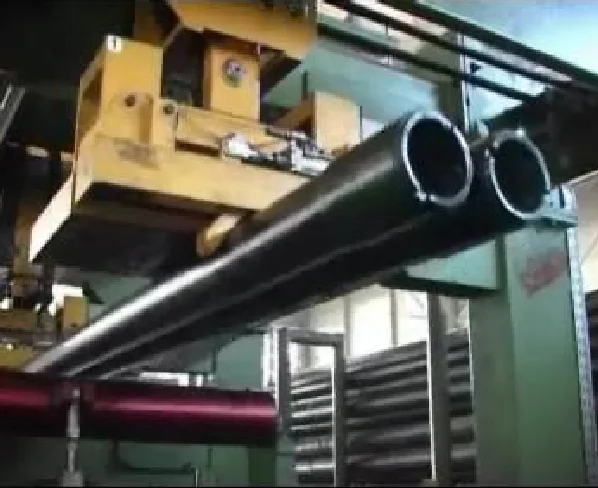

Finished Product Drawing
FAQ
1), Q: Do you have after sales support?
A: Yes, we are happy to give advice and have skilled technicians available across the world. 2), Q: How do your machines compare with other big companies in this market? A: We are up to date with the latest technology to improve our machines constantly. We have experts from domestic-leading machinery corporation as well as sals elites. Wokers, traders, designed as a family to insure best interest of our clints.
3), Q: How does your factory do regarding quality control? A: Quality is priority. Iuwon people always attach great importance to quality control during the whole process. Every product will be fully assembled and carefully tested before packed. 4), Q: Do you sell only standard machines? A: No, most of our machines are built according to customers specifications, using top brand name components.
5), Q: Will you deliver the right goods as ordered? A: Yes, we will. The core of our company culture is honesty and credit. We are 24 hours with you.
