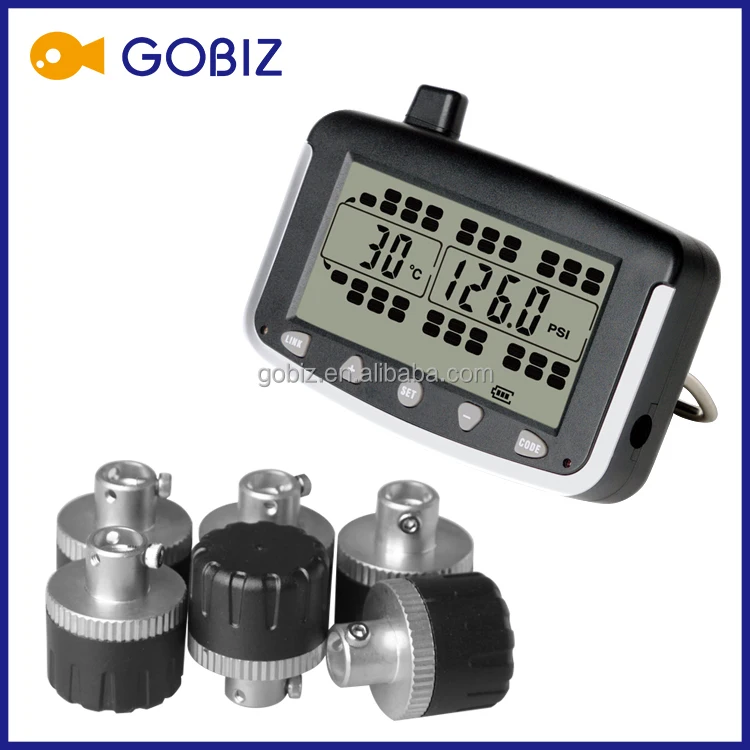

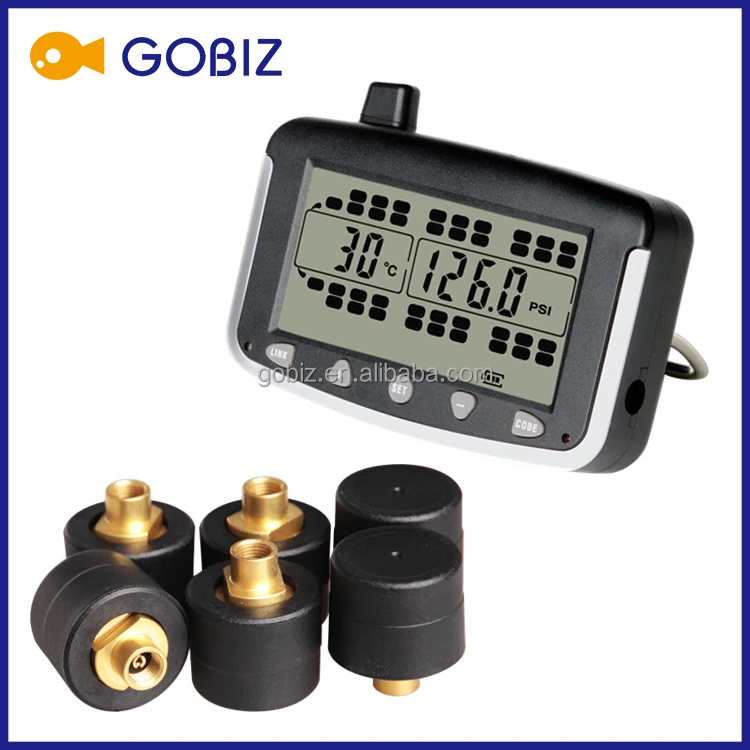

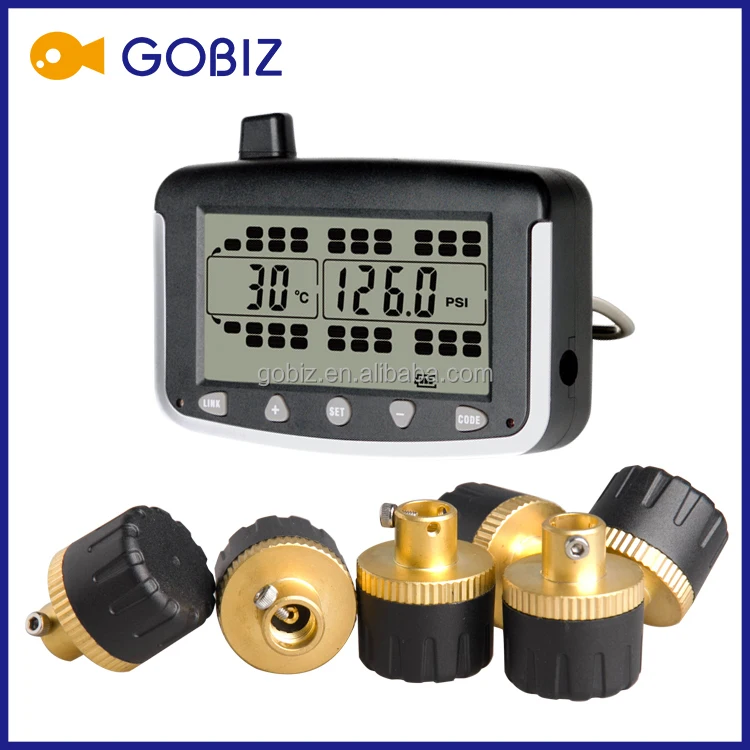

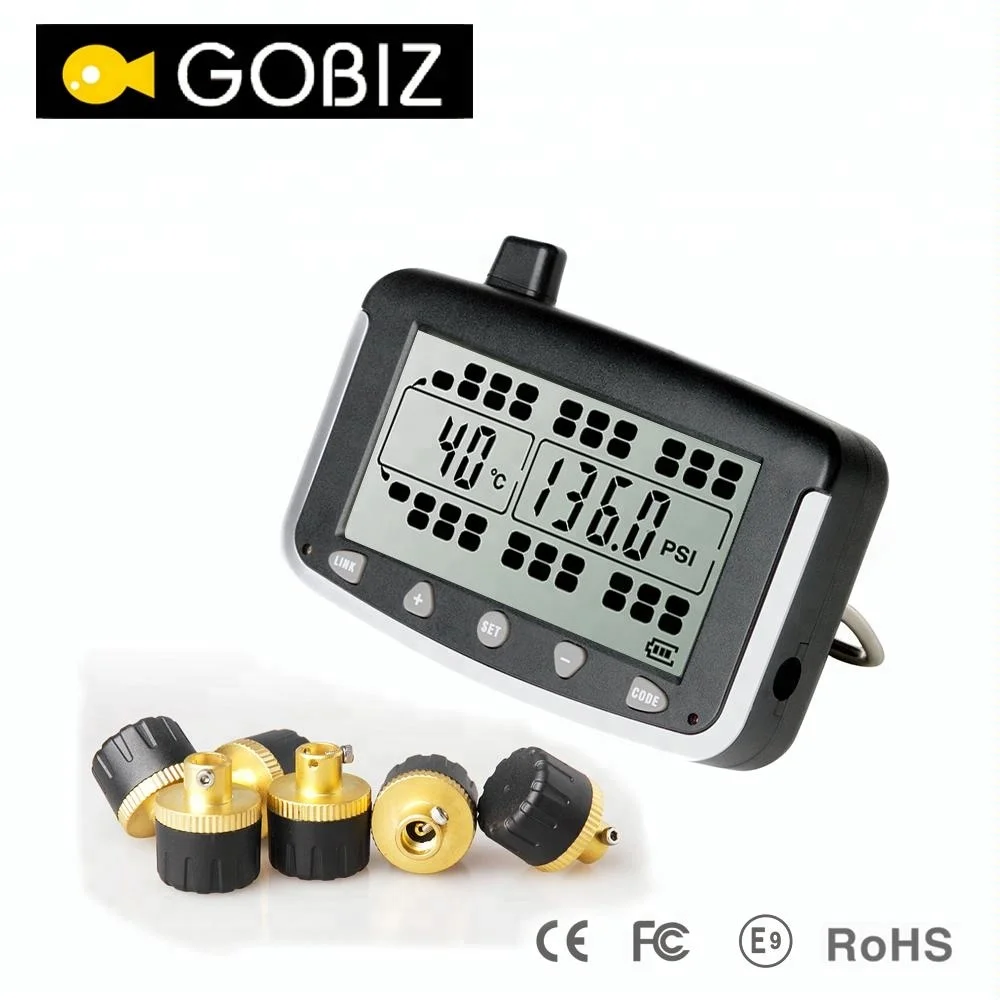

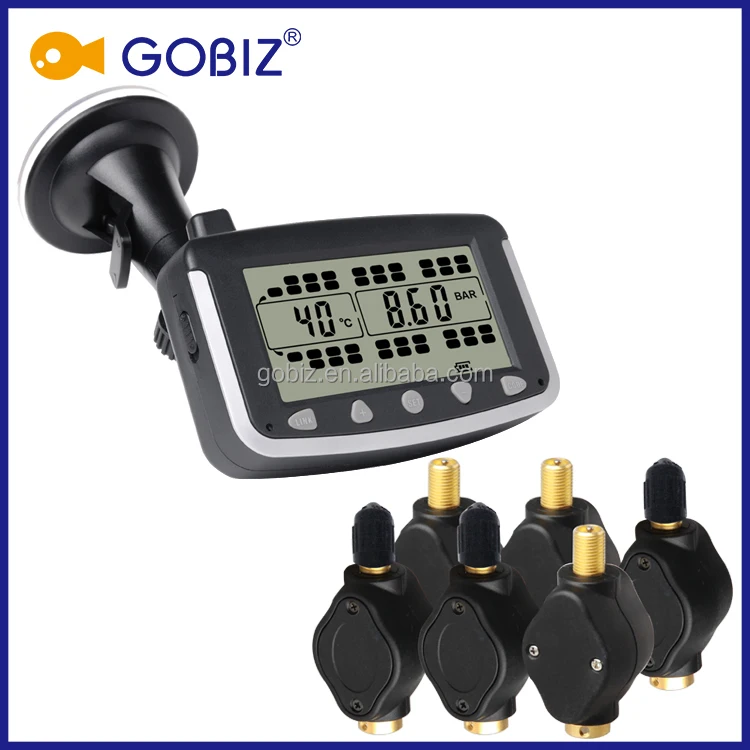

tire pressure gauge monitoring system 38tires external/internal sensor truck/BUS TPMS with school bus / bus / RV

Product Overview

Description

tire pressure gauge monitoring system 38tires external/internal sensor truck/BUS TPMS with school bus / bus / RV







1. What are the advantages of TPMS ?



Reduce Driving Risks



Improve Fuel Economy



Prolong lifetime of the tires



2. Features:



Monitor Features:



1,Full time, real time display tire pressure and temperature.

2,100% wireless transmitting.

3,Sensor transmit tire's pressure and temperature every 5 minutes.

4,Capable of a truck and a trailer with 38 tires in total.

5,Visible and audible alerts for high pressure / low pressure / high temperature / rapid drop in pressure.

6,Fast leakage alert.

7,High pressure/low pressure setting for each axle.

8,Supports trailer-exchange with an optional trailer-exchange repeater.



Sensor Features:

Reliable cap sensors, easy to install.
Water resistant.
Replaceable sensor batteries.
Sensors transmit pressure and temperature data every 5 minutes.
Fast leakage alert.
Individually coded sensors.
Anti-theft design .



3. Specifications:



Monitor specifications:



Operating voltage	12 to 24V
Frequency	433.92MHz
Operating temperature	-40 to +80° C
Charge Input Voltage	DC 8 to 30 V
Size	116(L) x68 (W) x 25(H) mm
Weight	138 g





External Sensor Specifications:



Pressure range:	0 to 13 bar, 0 to 188 psi
Pressure sensitivity:	± 0.1 bar or 1.5psi
Temperature sensitivity:	± 3℃
Transmission frequency:	433.92MHz
Battery life:	5 years
Operating temperature:	-40 to +85° C
Weight:	72 grams
Size:	110(L)*60(W)*21(H) mm



4. Our Facilities:





5. Our Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent





6. Cooperate with us, you will gain:



0EM or ODM service



Professional Research & Development Engineer



Competitive Price & Professional sales team



2-4 weeks leadtime

Looking Forward to Cooperating with You!
