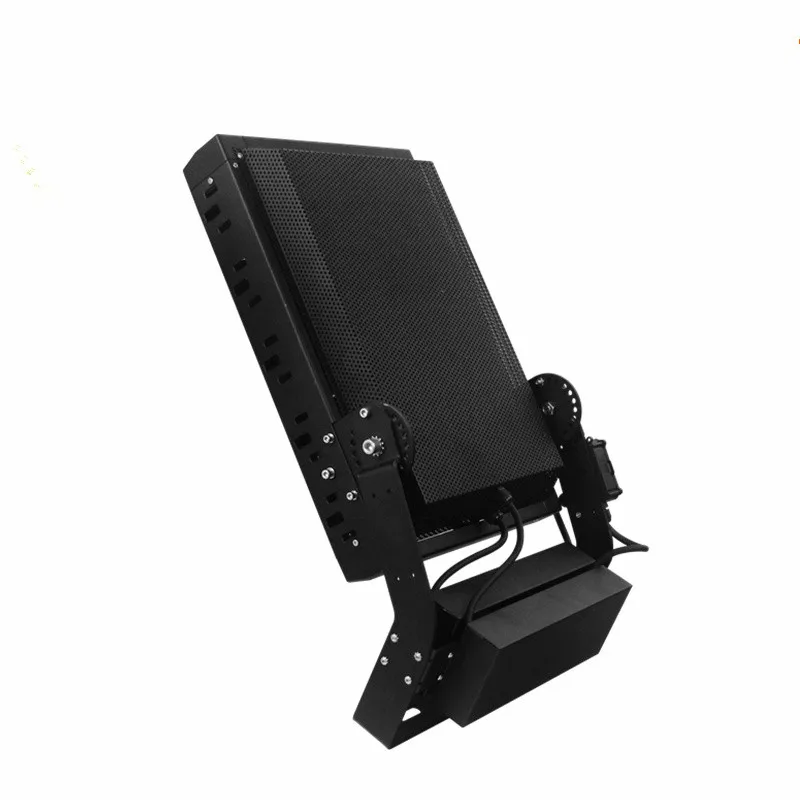

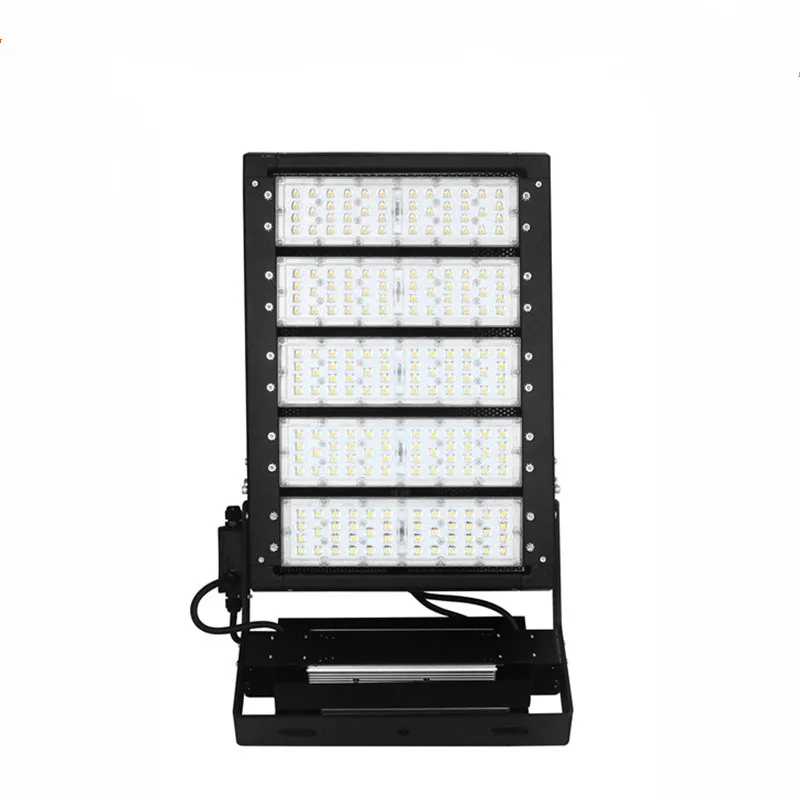

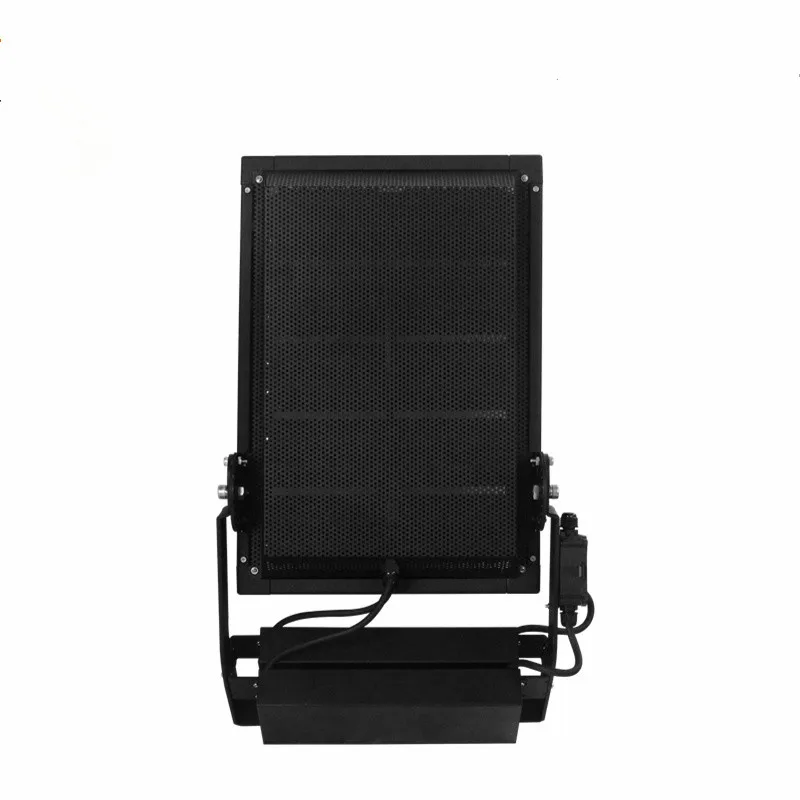

Outdoor Retrofit Floodlight 500W LED Tennis Court Flood Light Replacement 1000w Metal Halogen Lamp

Product Specifications:

LG-S300SP

LG-S400SP

LG-S500SP

LG-S600SP

LG-S800SP

Product power(W)

300

400

500

600

800

Input Voltage(AC/V):

90 ~ 305VAC

Product Efficiency(Typ%):

94%

94%

94%

92%

93%

Frequency Range(Hz):

50-60

Power Factor(Typ):

≥0.95

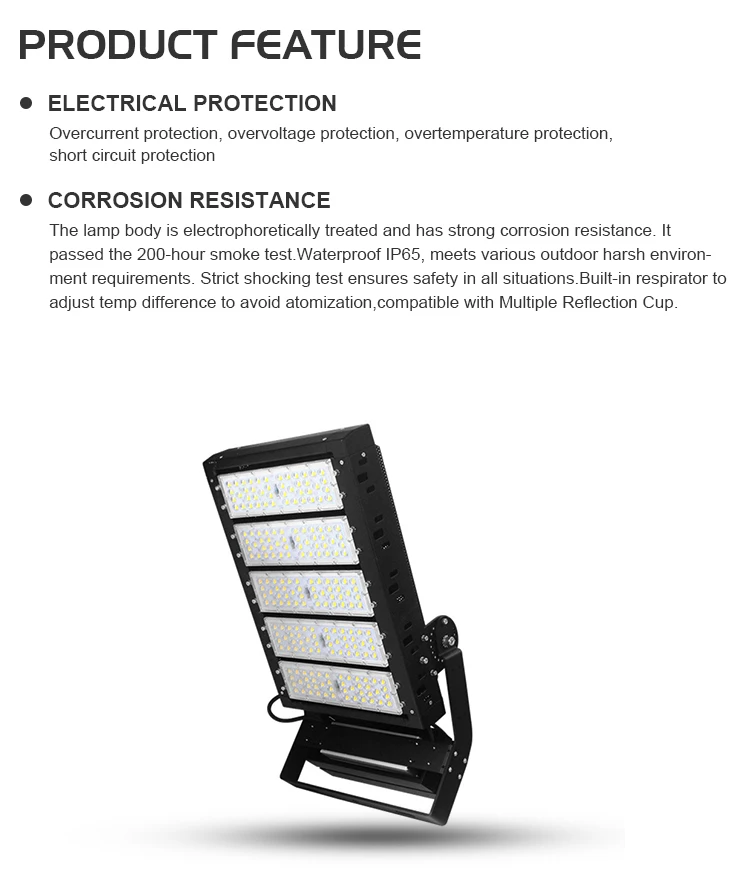

Electrical Protection:

Overcurrent protection, overvoltage protection, overtemperature protection, short circuit protection

Power Brand:

Meanwell

LED Chip

Lumileds

Color Temperature(CCT):

3000K,4000K,5000K,6500K

CRI (Ra>):

80+

Lamp Luminous Flux(lm):

42000LM

56000LM

71000LM

81000LM

112400LM

Lamp Luminous Efficiency(lm/w):

140Lm/W

140Lm/W

142Lm/W

135Lm/W

140Lm/W

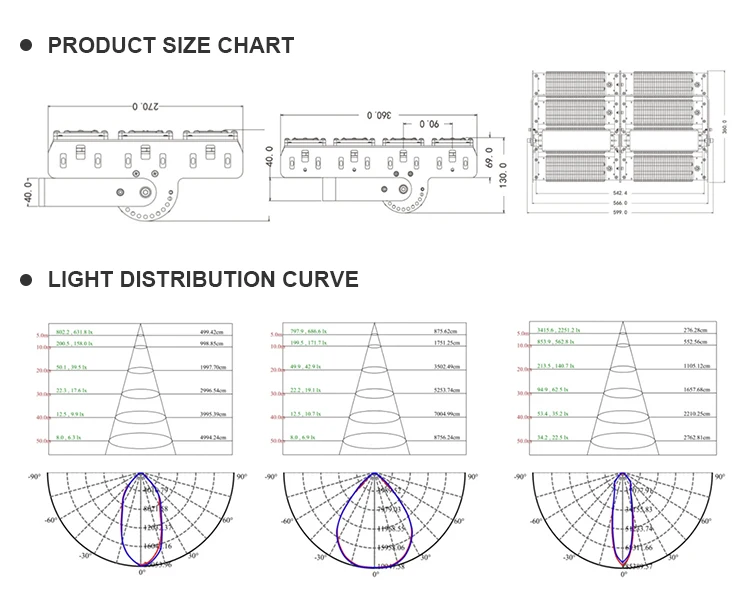

Beam angle(°):

10° 45° 60° 90°, 60°×145°

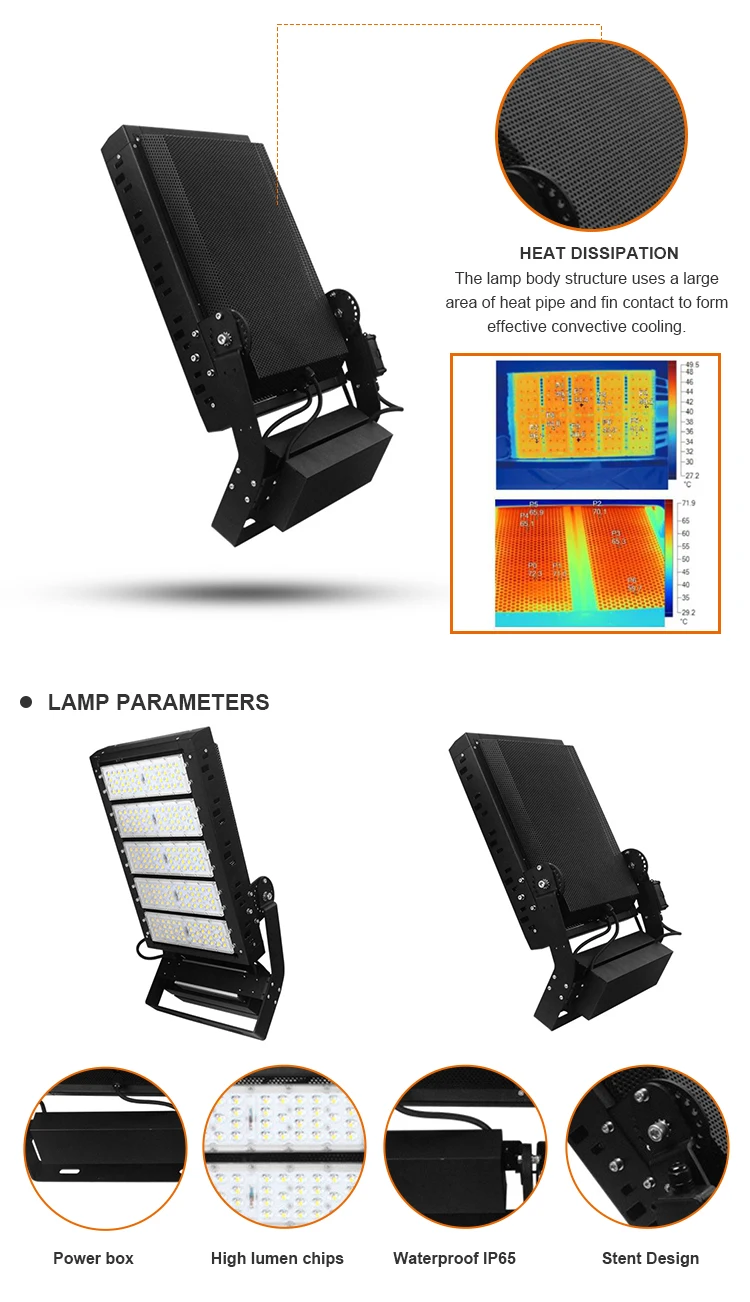

Lamp Body Material:

 fin shape aluminum +copper tube

Working Temperature(℃):

 -40℃-90℃

Working Lifetime(Hour):

50000

Certification:

CE, FCC,ROHS,TUV, CB,  ETL

Dimming mode:

3-in-1 dimming (0~10Vdc; PWM; resistance; intelligent timing dimming; DALI)

Place of Origin:

Made in China

Order Code:

TDS300SP50-MW

TDS400SP50-MW

TDS500SP50-MW

TDS600SP50-MW

TDS800SP50-MW

Warranty(Years):

5Years

Wenbo and Noise:

250mVpp

Voltage Accuracy:

±2.5%

Salt spray test:

Yes

Withstand voltage

I/P-O/P:3.75KVAC

I/P-O/P:3.75KVAC

I/P-O/P:3.75KVAC

I/P-O/P:3.75KVAC

I/P-O/P:3.75KVAC
