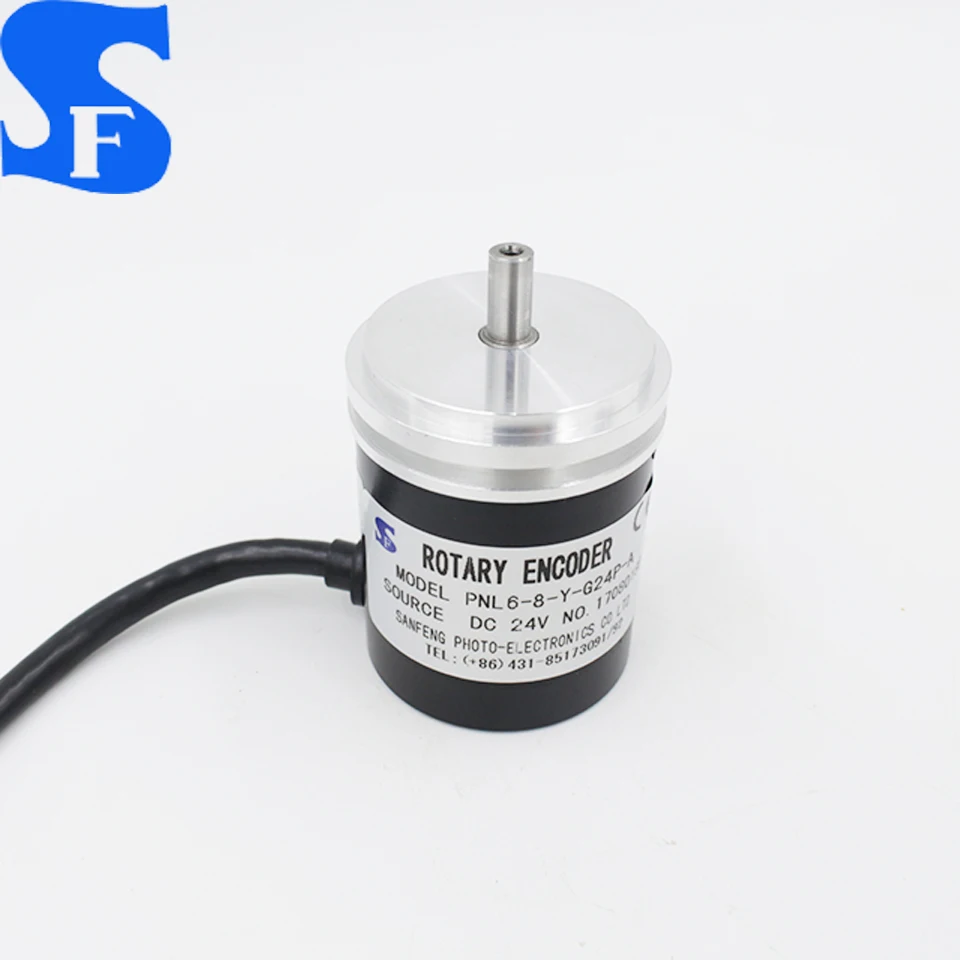

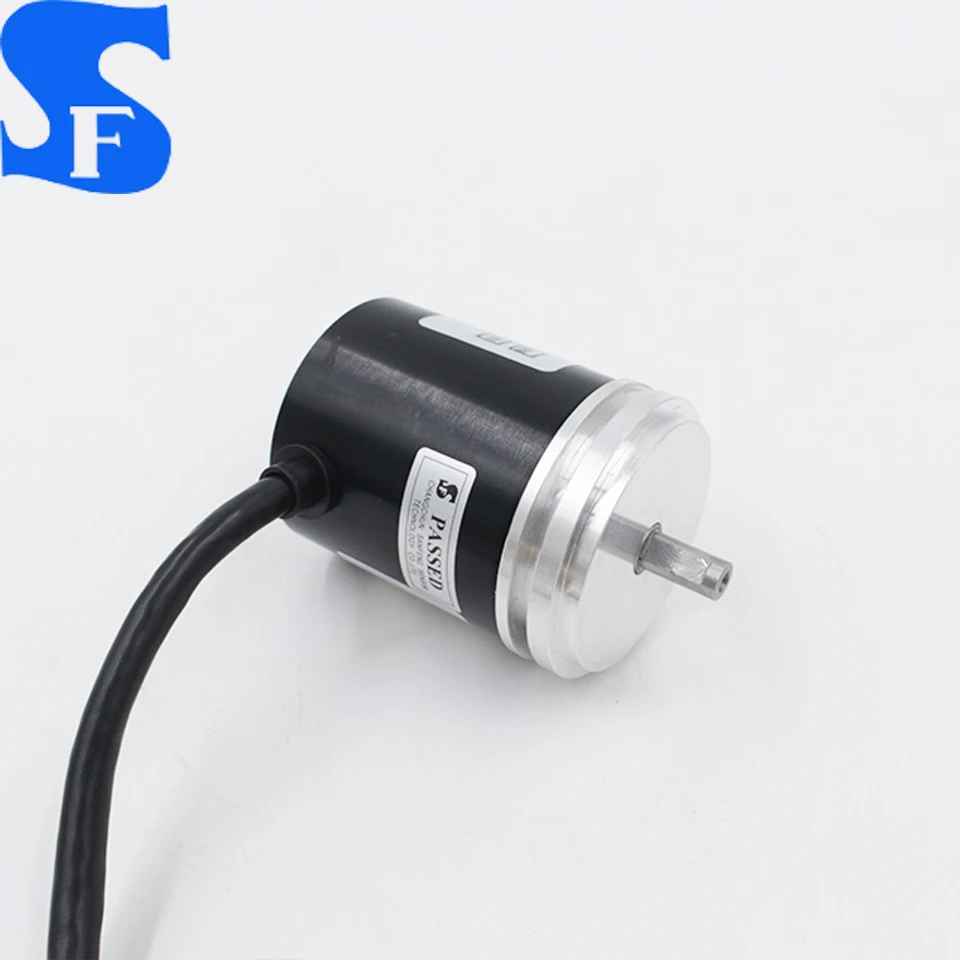

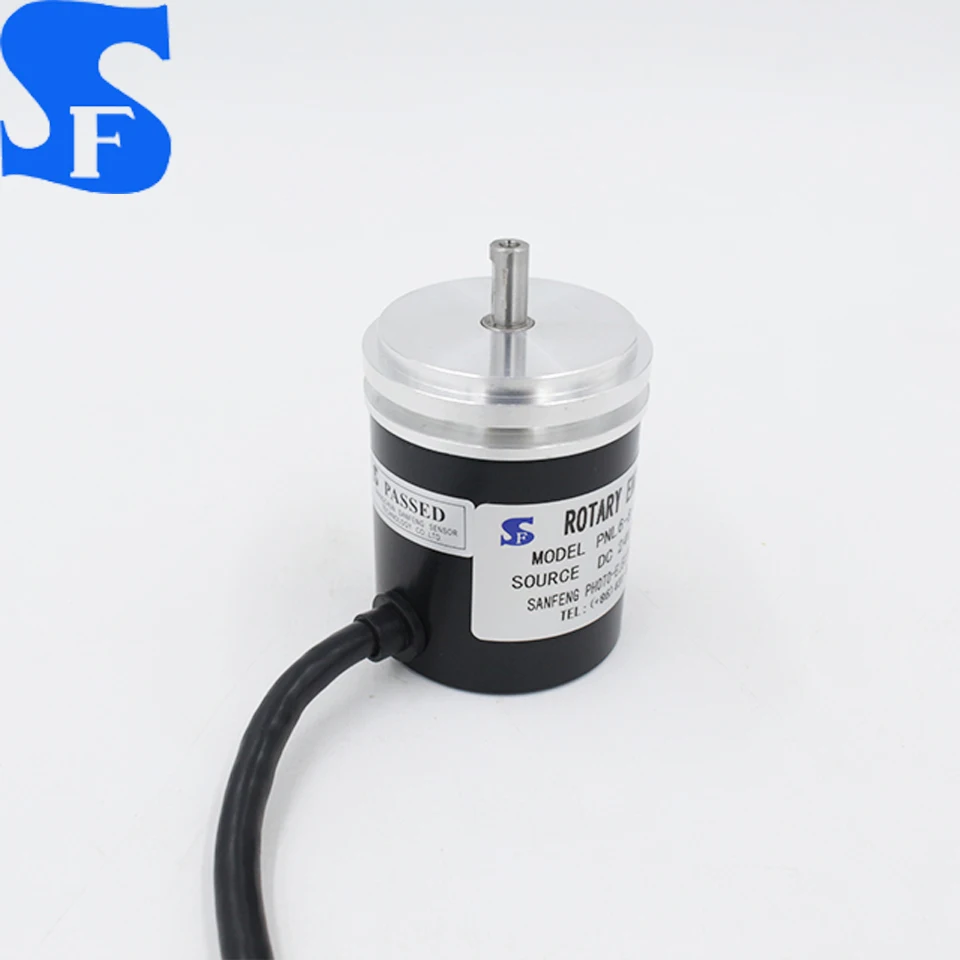

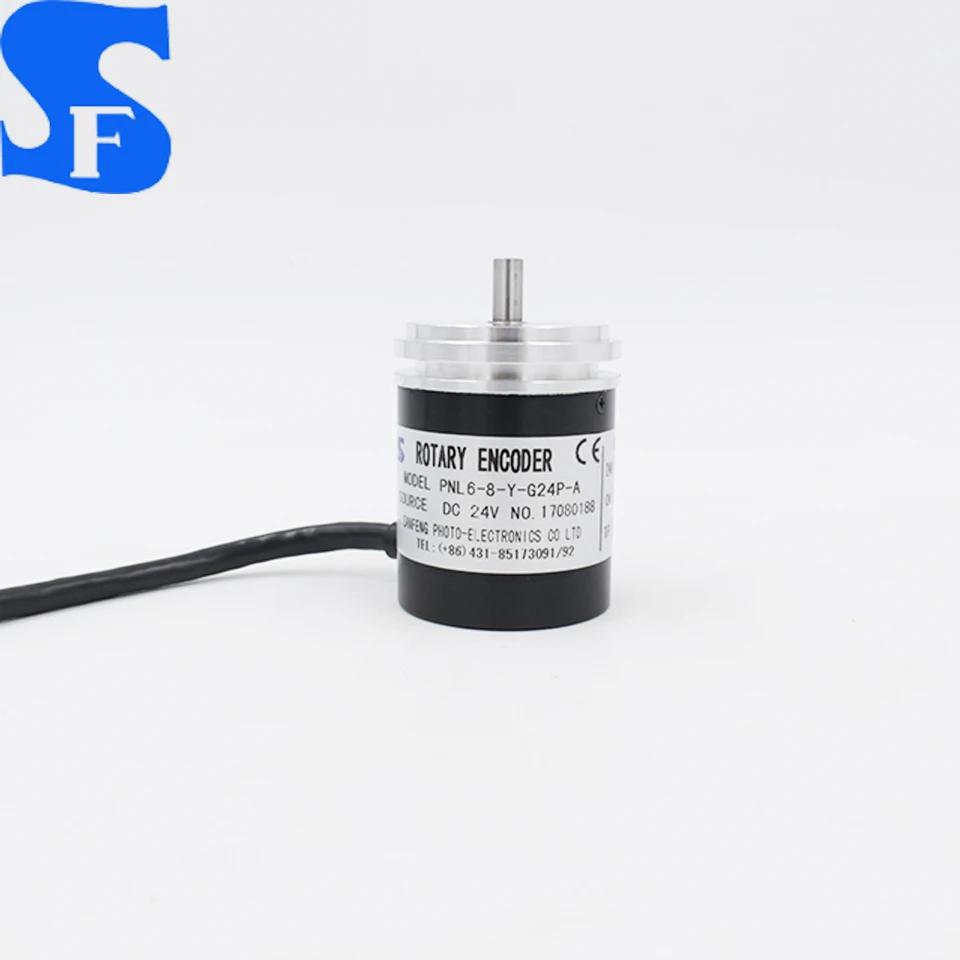

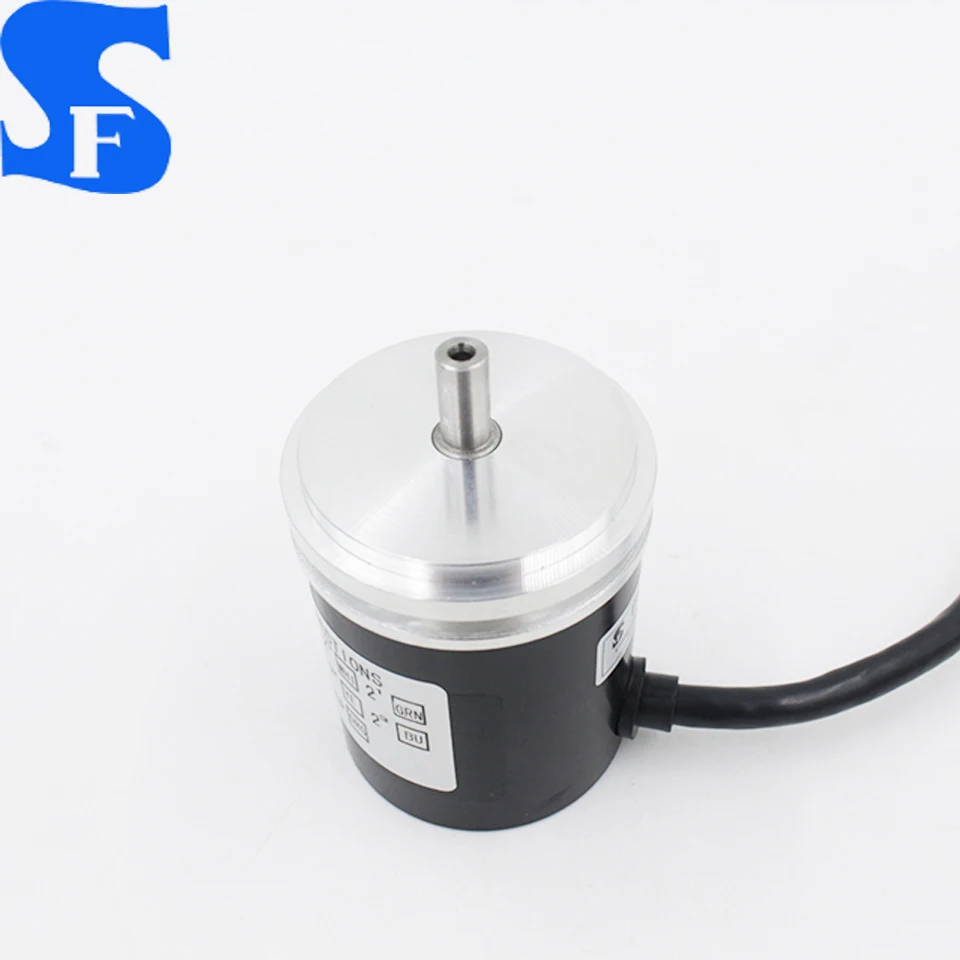

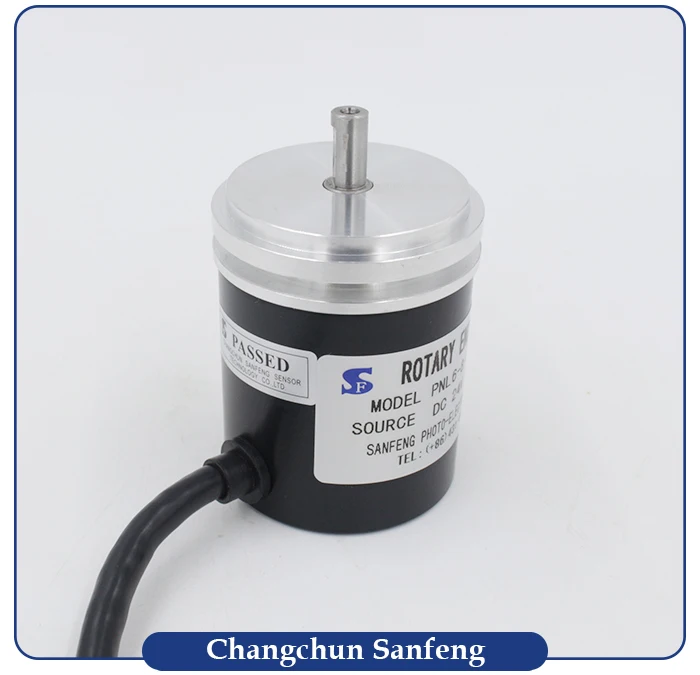

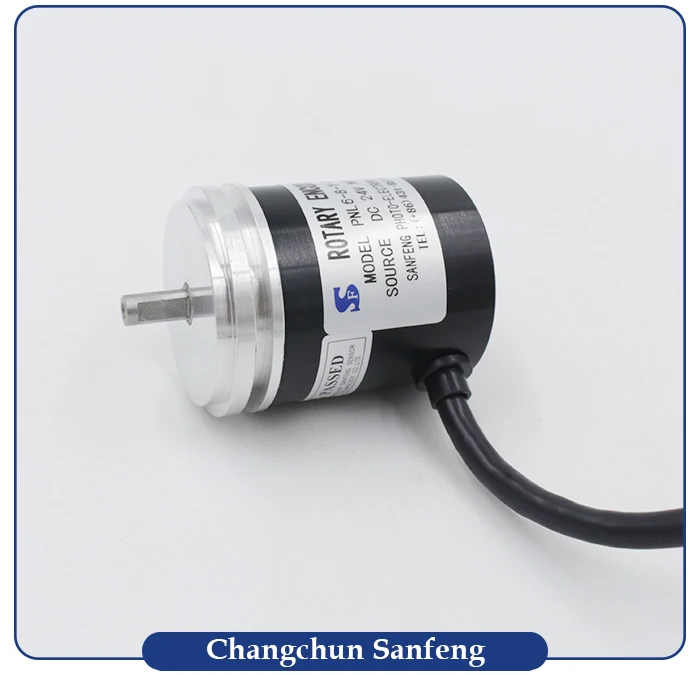

ISO Certificate multiturn binary code optical absolute rotary encoder

Resolution

4,6,8,10,12 Division

Output Logic

Positive Logic

Output Code

Pure Binary

Supply Voltage

DC24V±5%

V_H Output Voltage

≥Vcc*70%

V_L Output Voltage

≤0.5V

Current Consumption

≤60mA

Frequency Response

5kHz Max

Rise / Fall Time

-

Injection Current

≤50mA

Measurement Range

0~360°

Measurement Error

±20”

Starting Torque

1.5*10^-3N*m(+25℃)

Shaft Loading

Radial

20N

Axial

10N

Rotating Inertia

2*10^-7Kg*m²

Max Rotating Speed

180r/min

Vibration Resistance

50m/s²(10~200Hz)2 Hours in xyz Direction

Shock Resistance

980m/s²   3 Times in xyz Direction,continue 6 mS

Protection

IP65

Operating Temperature

-10℃~+70℃

Storage Temperature

-20℃~+80℃

Operating Humidity

30~85%RH

Weight(no cable)

Around  0.2Kg

Accessories

SE/PE Coupling

Cable Color

Red

Black

Brown

White

Green

Yellow

Blue

Pink

Shield

Signal

DC 24V

0V

TP

2⁰

2¹

2²

2³

EP

FG

Station

1

2

3

4

5

6

7

8

9

10

11

12

Output Signal

TP

1

1

1

1

1

1

1

1

1

1

1

1

2⁰

1

0

1

0

1

0

1

0

1

0

1

0

2¹

0

1

1

0

0

1

1

0

0

1

1

0

2²

0

0

0

1

1

1

1

0

0

0

0

1

2³

0

0

0

0

0

0

0

1

1

1

1

1

EP

1

1

0

1

0

0

1

1

0

0

1

0

Are you a trading company or a manufacturer?

We are a manufacturer of 20 years experience.

Do you accept OEM brand?

Accept large OEM brand customers, or a large number of customers.

Does your product have a factory inspection?

Every product we send is strictly factory inspection.

How long will you ship the goods?

Our delivery time ranges from 3 days to 3 weeks.

Can you provide free samples?

Regular products provide samples according to the original price. Customized products are provided at cost price.

What kind of packing do you send?

We use high-quality corrugated paper packing box, internal environmental protection buffer material.

What is our loading port?

Dalian port, or apply for other ports.

How long is your quality guarantee period?

The guarantee period for our products is one year.
