JingYing DC 50 portable mini tft video camera 5 inch full hd field HD MI small lcd monitor with HD MI AV input

We are a photography equipment supermarket .

What do we have:

Tilta , DJI, ZhiYun, Feiyu, Moza,Teris, Vaxis, YunTeng, YongNuo, Weifeng, Boya, Benro, NanGuan, Aputure, Atomos, Bestview, Viltrox, BMD, IFootage, Zoom, Falconeyes, Moma, CVW, Rolux, DBK, Dison, SmallRig, Meking, FeelWorld, Liliput, etc.

We haven't high copy, only full new and original.

Please send inquiry to us, tell to us what you need.

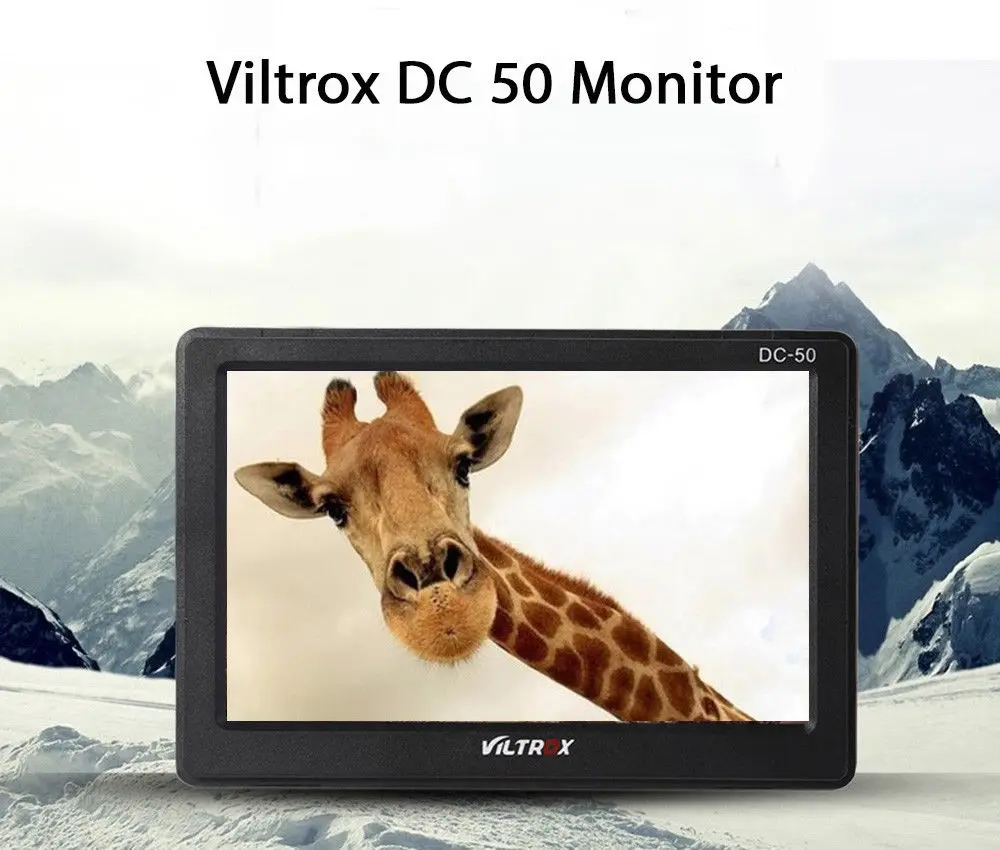

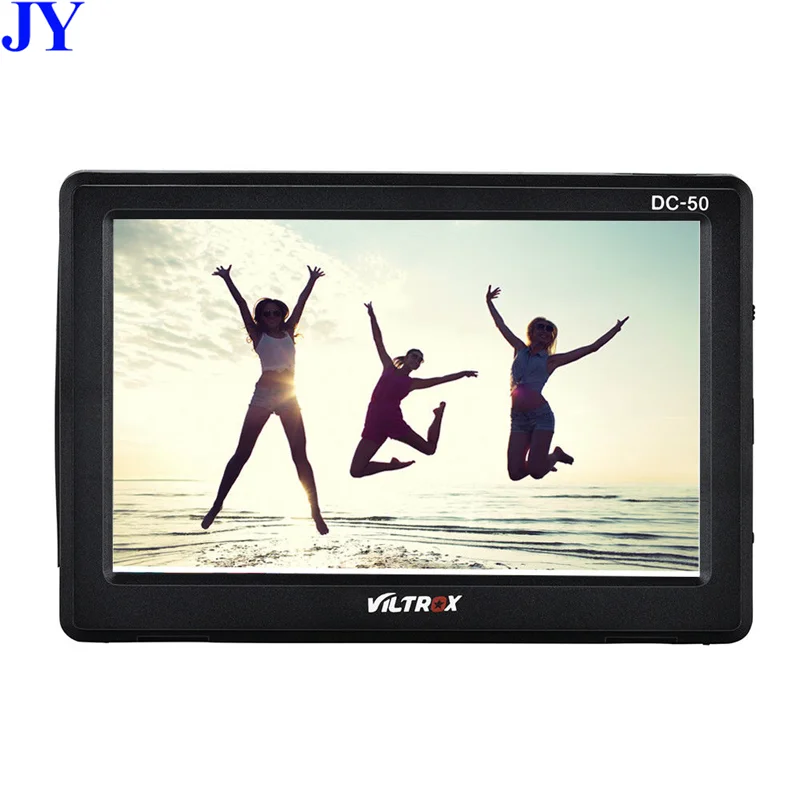

 Wide angle LCD screen

The original SHARP 5 inches TFT LCD HDTV, WVGA (800x480), supporting both 16:9 and 4:3 aspect ratios, can help filming the high quality HD video and high definition pictures.

 Peaking support for precise focusing and per-pixel zoom Function

Peaking enhances the edges of objects in the frame to allow for precise focusing. Meanwhile, per-pixel zoom Fuction can be in all the hd image selected parts provide more perfect amplification browsing.

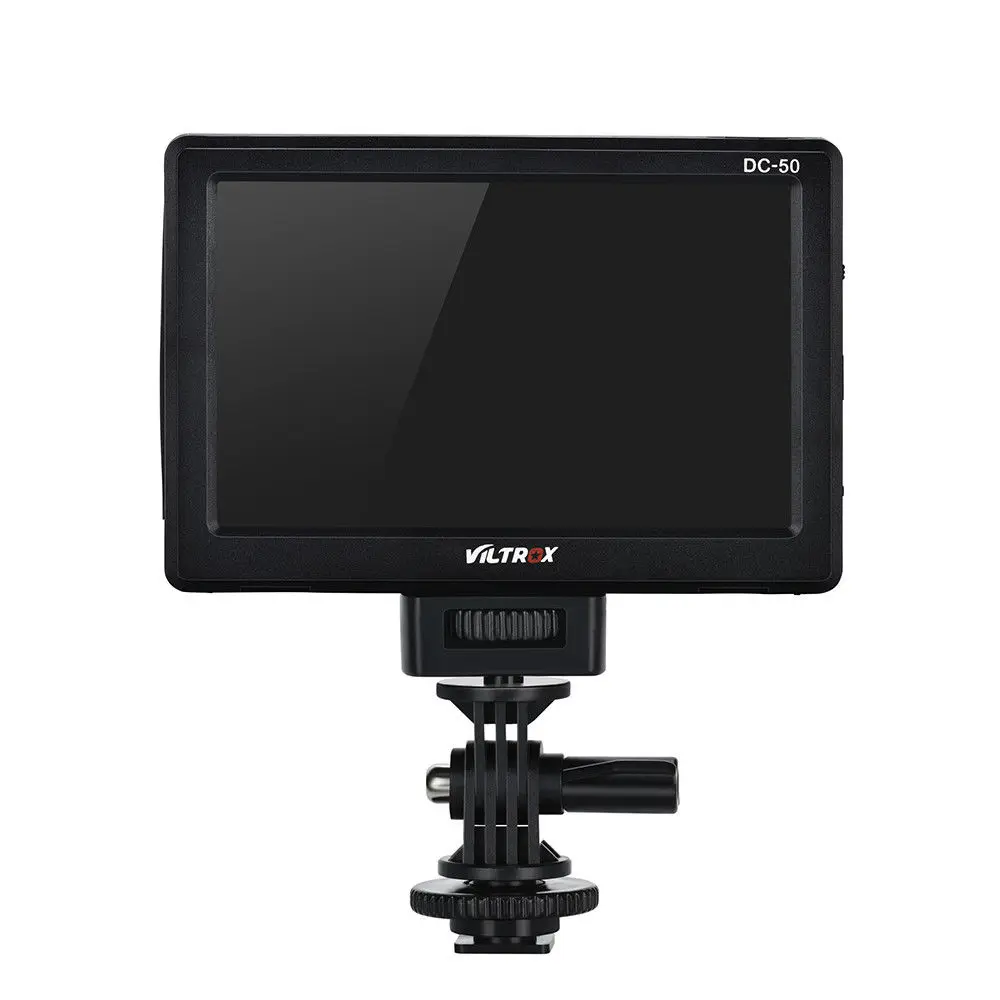

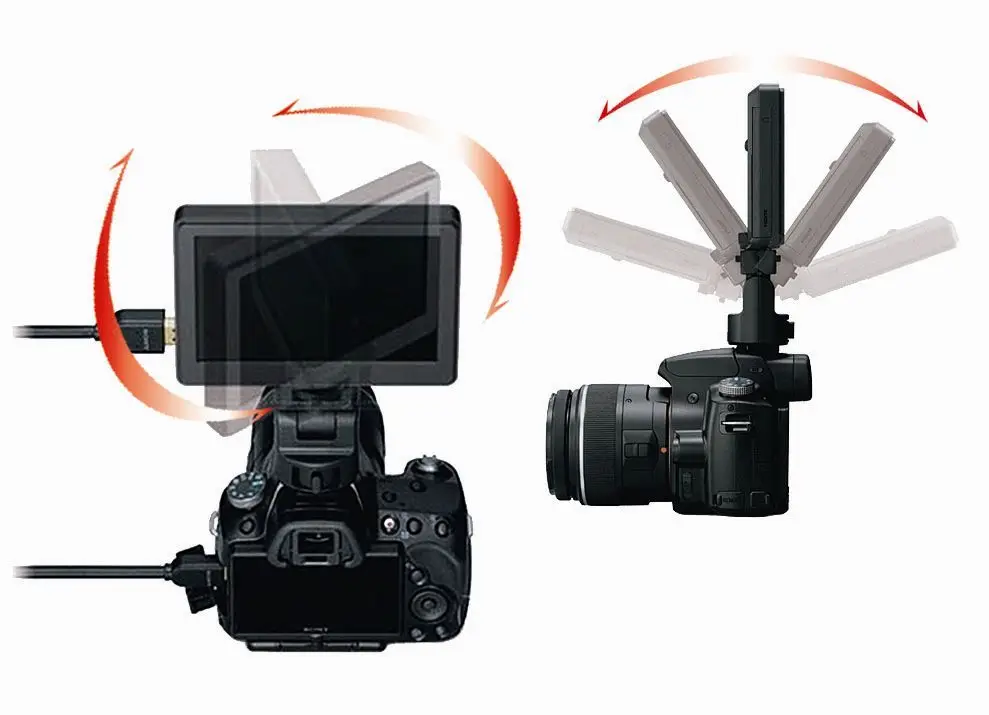

Tiltable up to 90° with supplied adapters

The supplied adapters allow the screen to be tilted forward and backward up to 90°, additionally the LCD can swivel 360° for superior flexibility when monitoring your video or still images.

Headphone jack for audio monitoring
Some cameras don’t always have a headphone jack for monitoring audio levels. The DC-50 with included headphone jack allows you to check audio signals with more clarity when shooting video.

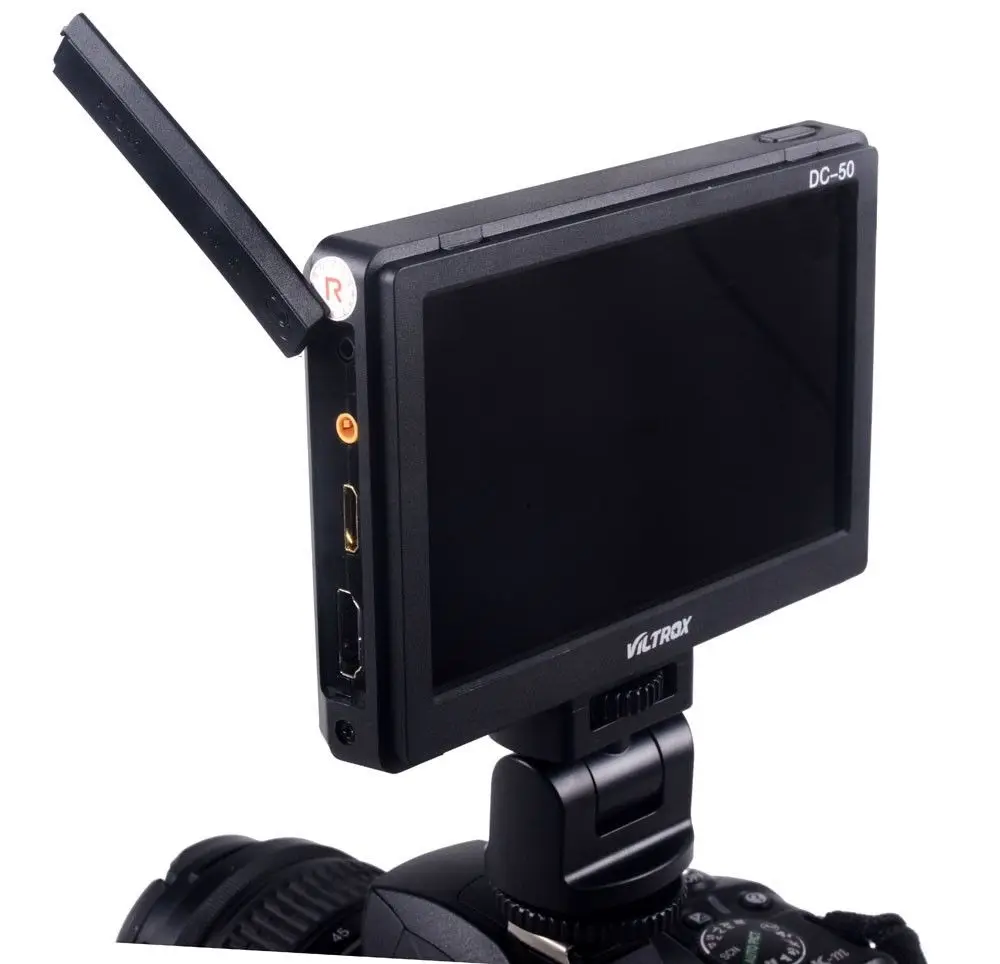

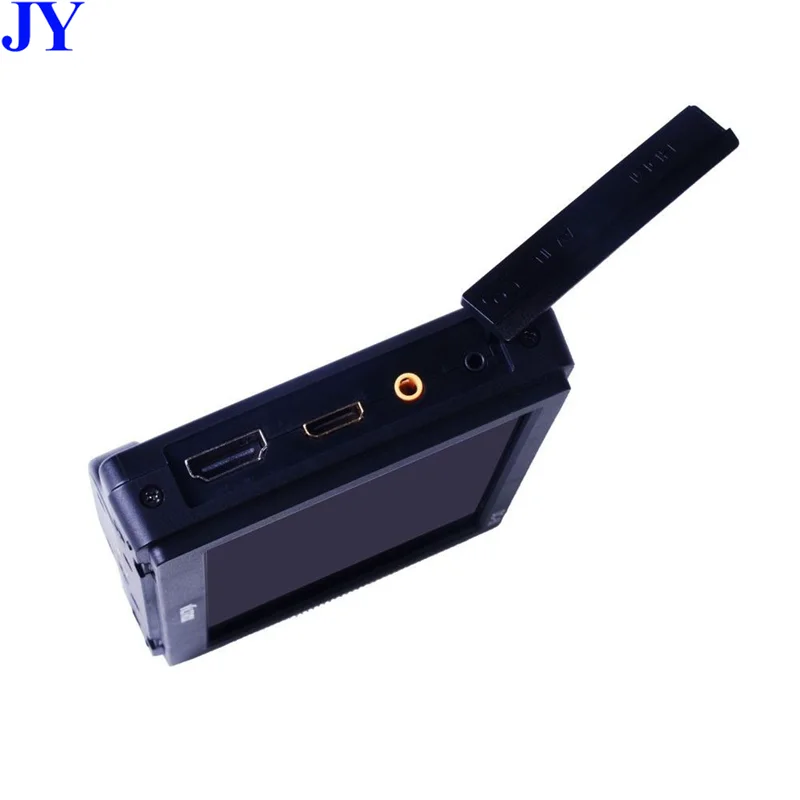

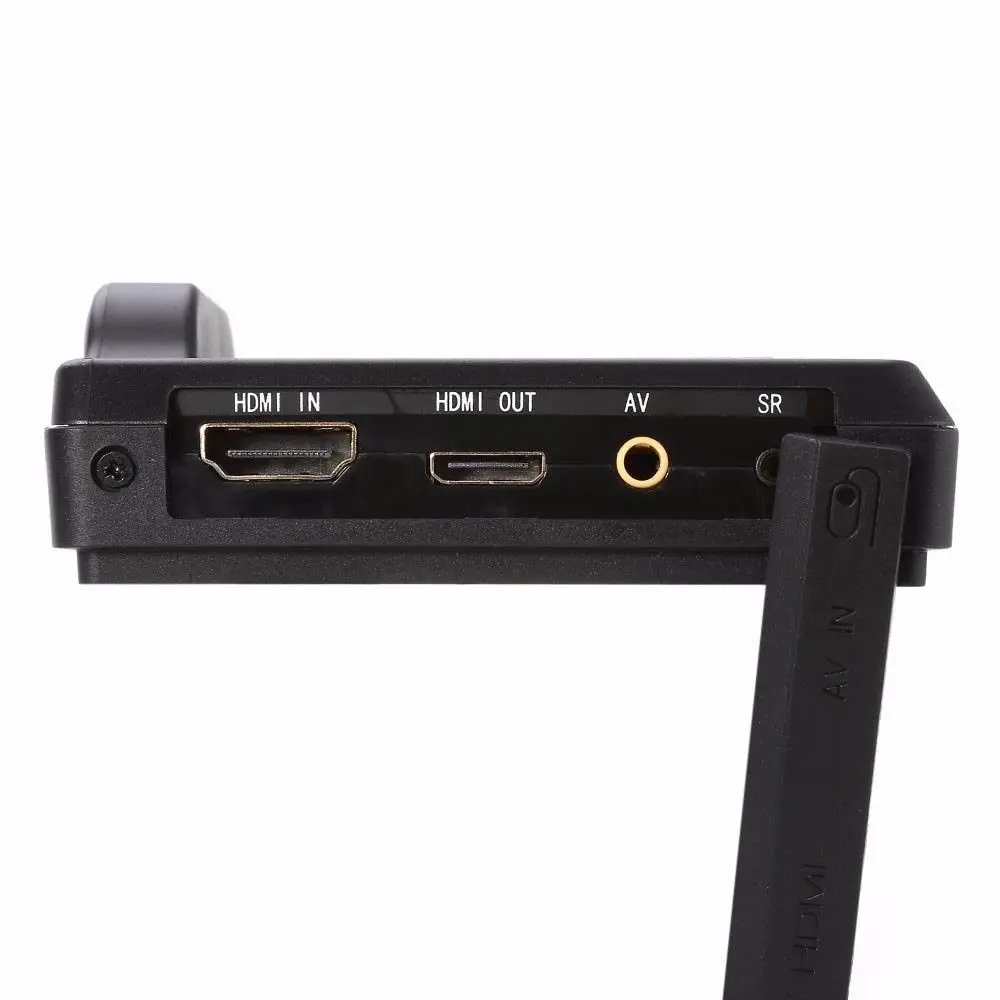

 2 HD MI port, 1 AV port

Can be connected to the camera interface for video signal.

 Configuration of the camera shutter connection

In the extension of the camera screen at the same time can control the camrea to shoot.

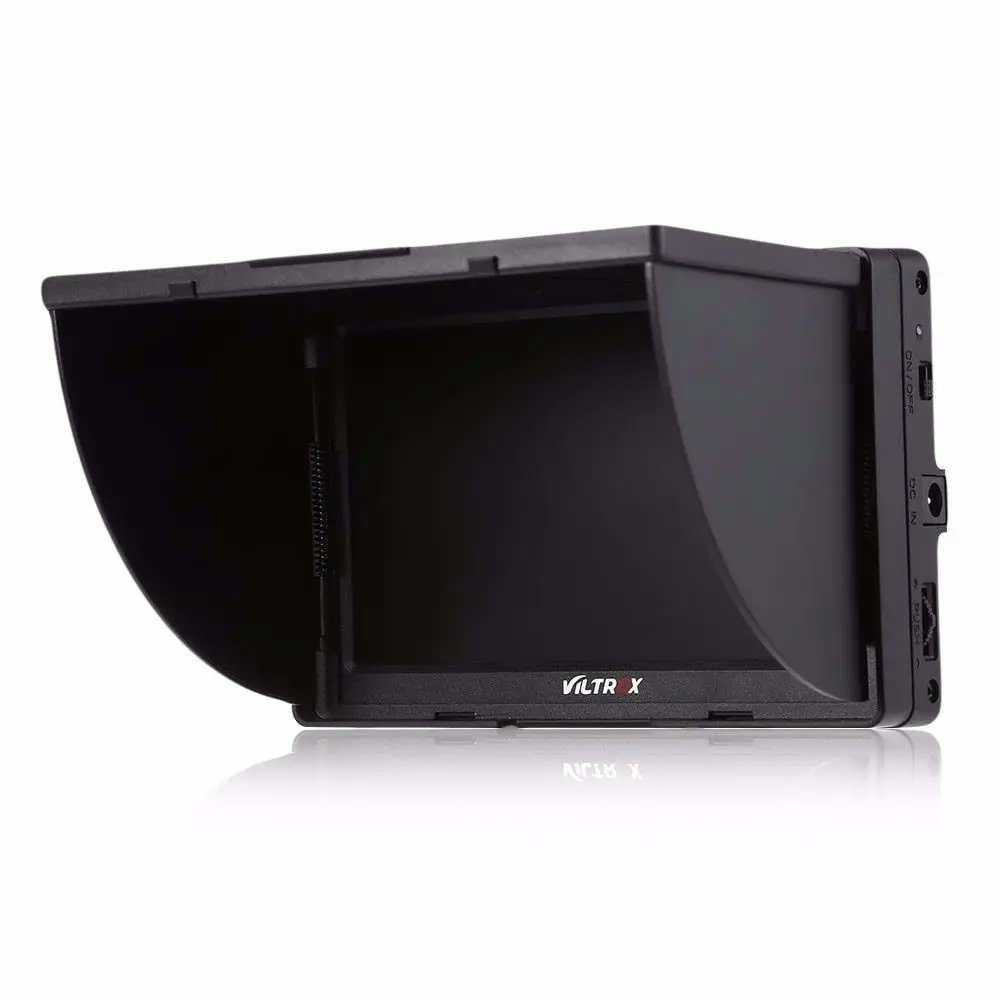

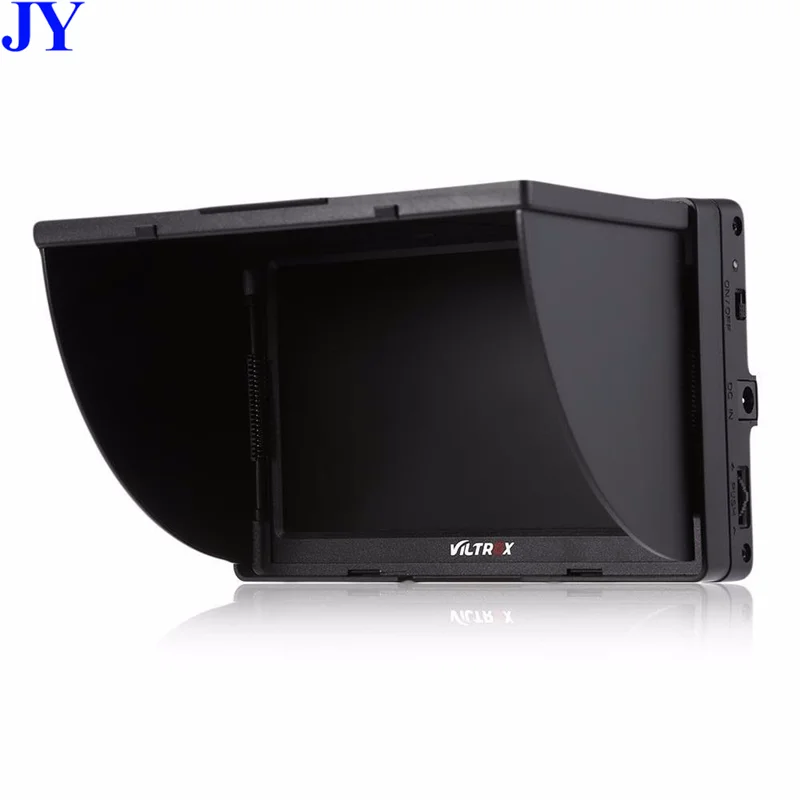

Hood for viewing in bright conditions

With the hood, it is helpful to focus more on video screen and avoid the interference of strong light, giving you a more enjoyable  better video experience.

 Control Dial (Aspect Ratio, Volume, Brightness, Contrast, more)

The easy to use control dial quickly and intuitively allows for adjustment of volume, brightness, contrast, color, and aspect ratio.

 Auto dimmer to conserve battery power
The Viltrox DC-50 has an auto dimmer that will dim the LCD’s output after 60 seconds of non-use to conserve battery power.

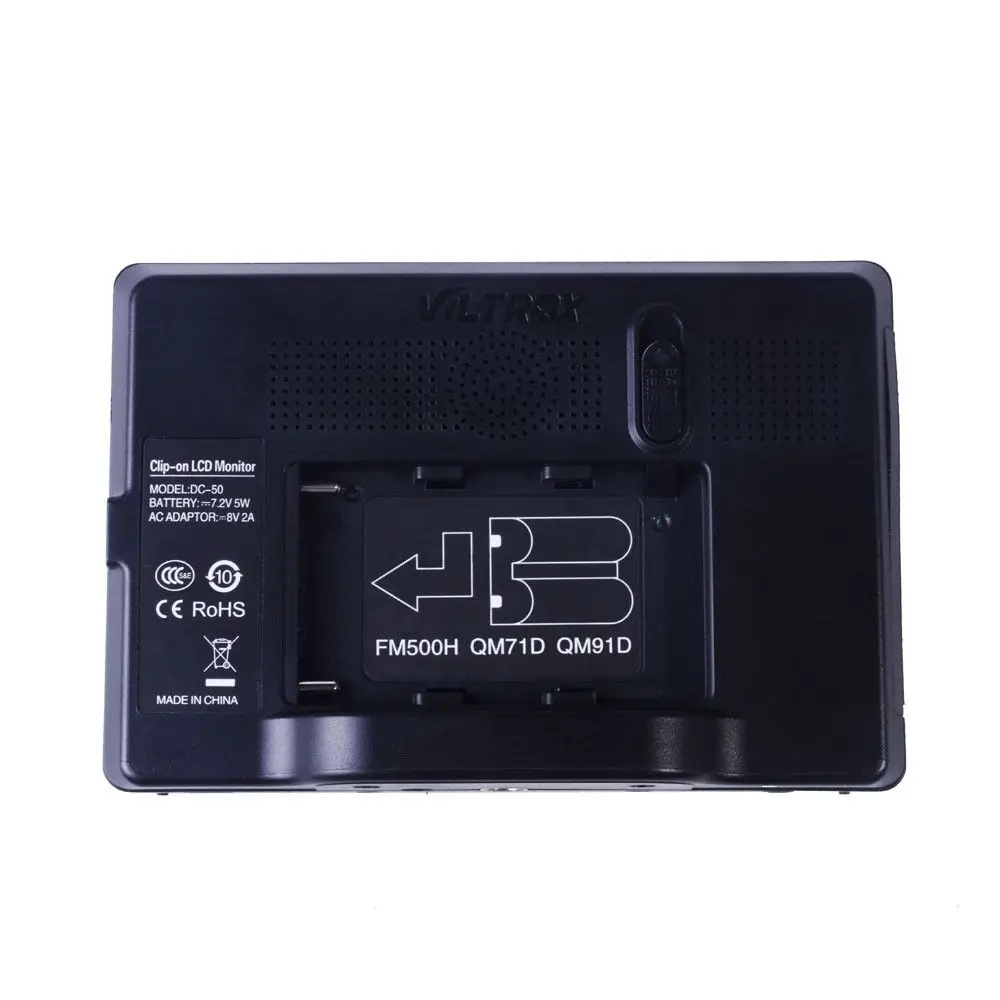

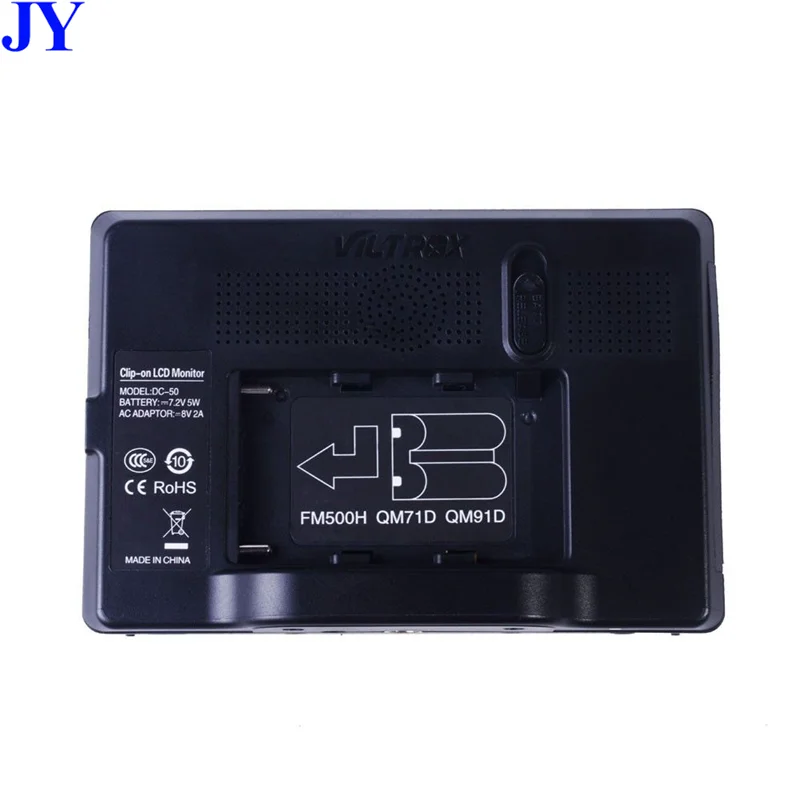

 Utilizes NP-FM500H battery common to many Camera DSLRs
The LCD is powered by the same InfoLITHIUM M series battery (excluded) that is used by many DSLR cameras for long life and high performance.

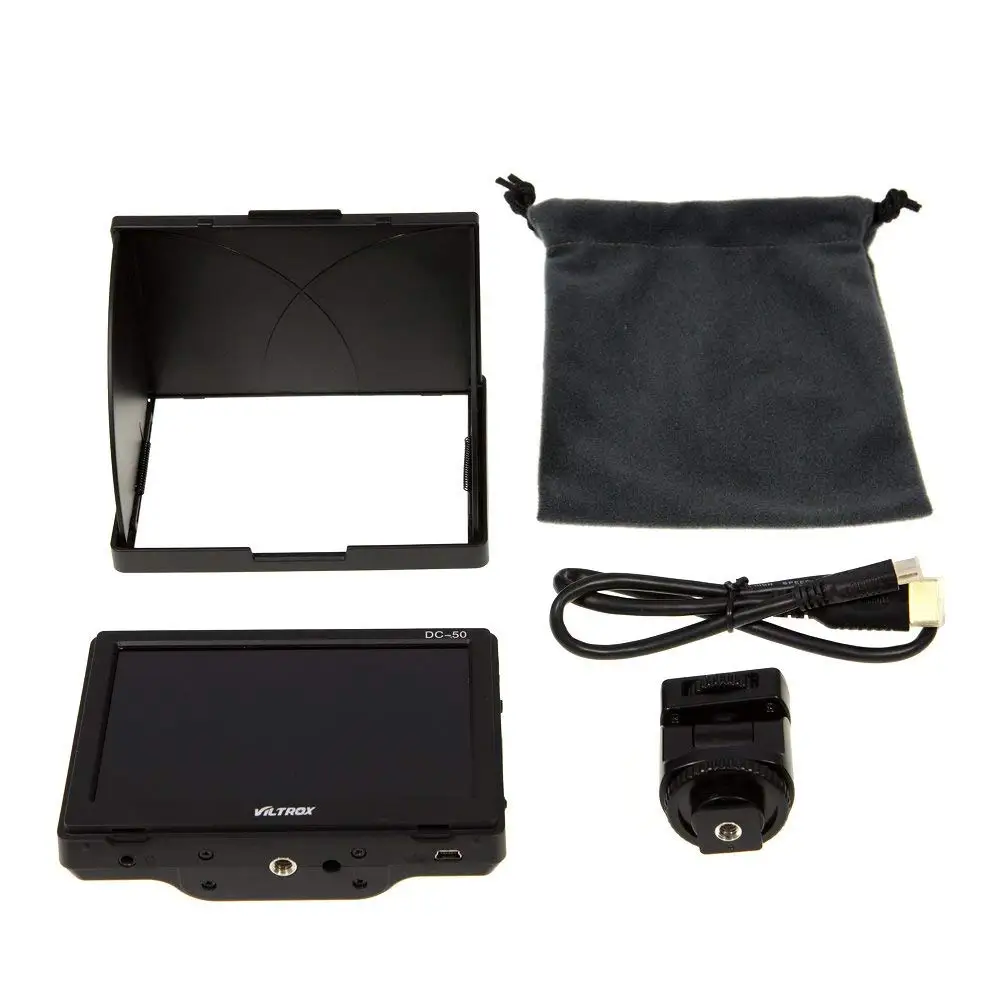

 Mini HD MI cable and shoe adapter included
A mini HD MI cable is included for easy connection to any camera with HD MI output, as well as a shoe adapter for tethering and stability. (Including 1 ordinary hot shoe and 1 SONY hot shoe)

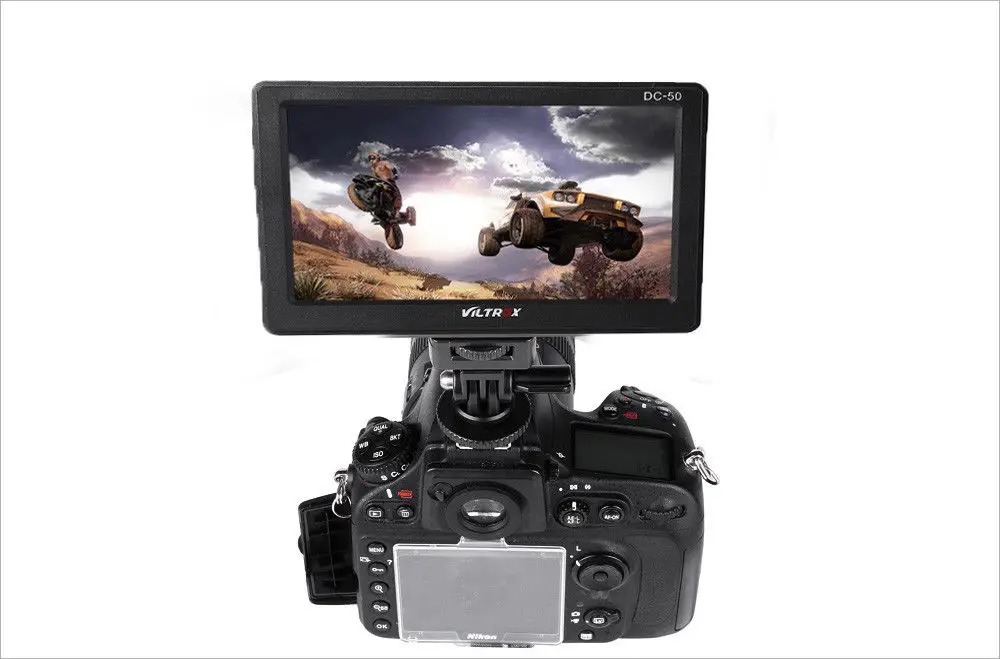

 Works with many DSLR/Camcorder manufacturers
Many of today’s HD cameras support HD MI™ output for high definition viewing and playback. With HD MI input and the included HD MI cable, the CLM-V55 can be used with a wide range of cameras and camcorders.

Specifications

LCD Display

• LCD Type: 5.0" TFTs
• Resolution: 800 x 480 pixels
• Brightness Control: Adjustable from 0 (dark) to 100 (bright), Default: 50
• Customization: Manual adjustment of Contrast, Color-tone (Phase), Backlight, Color Temp.

Convenience Features

• Power Save Mode: Auto dimmer (dims after 60 sec of non-use)

Power

• Battery Type: Compatible with NP-FM500H/QM71D/QM91D (not included)
• Output Voltage: DC 7.2 V
• Power Consumption (in View Finder Operation): Approx. 0.5W

Input Port

• Input port 1 HD MI x 2
• Input port 2 AV x 1
• Input port 3 DC IN(power adapter socket)
• Input port 4 USB upgrade port

Output Port

• Headphone socket Φ 3.5 ST×1
• The camera shutter outlets Φ2.5 ST×1

Weights and Measurements

• Cord Length (Approx.):  17.71 Inch (45cm)
• Dimensions (Approx.): (L x W x H) Approx. 5 x 0.75 x 3.5" (129 x 20 x 88.5 mm)
• Weight (Approx.): Approx. 8.8oz (250g)
