Home Ventilator Bipap Breathing Machine for Sleep Apnea
- Category: >>>
- Supplier: Hunan Ventmed Medical Technology Co. Ltd.
Share on (60775782958):
Product Overview
Description

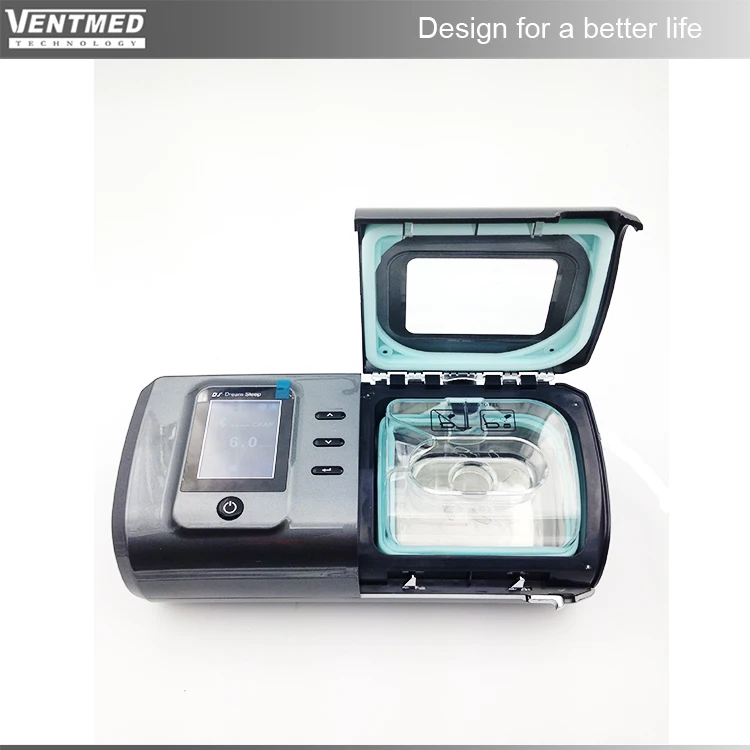

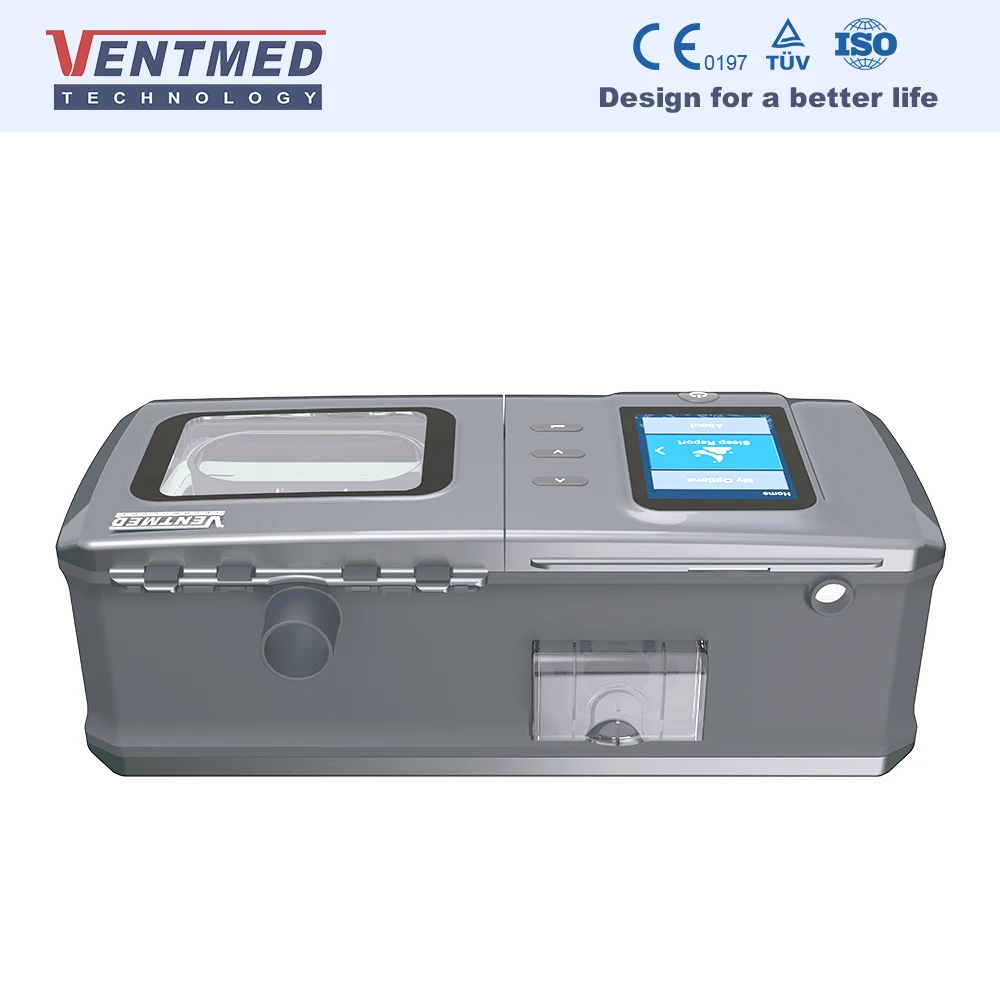

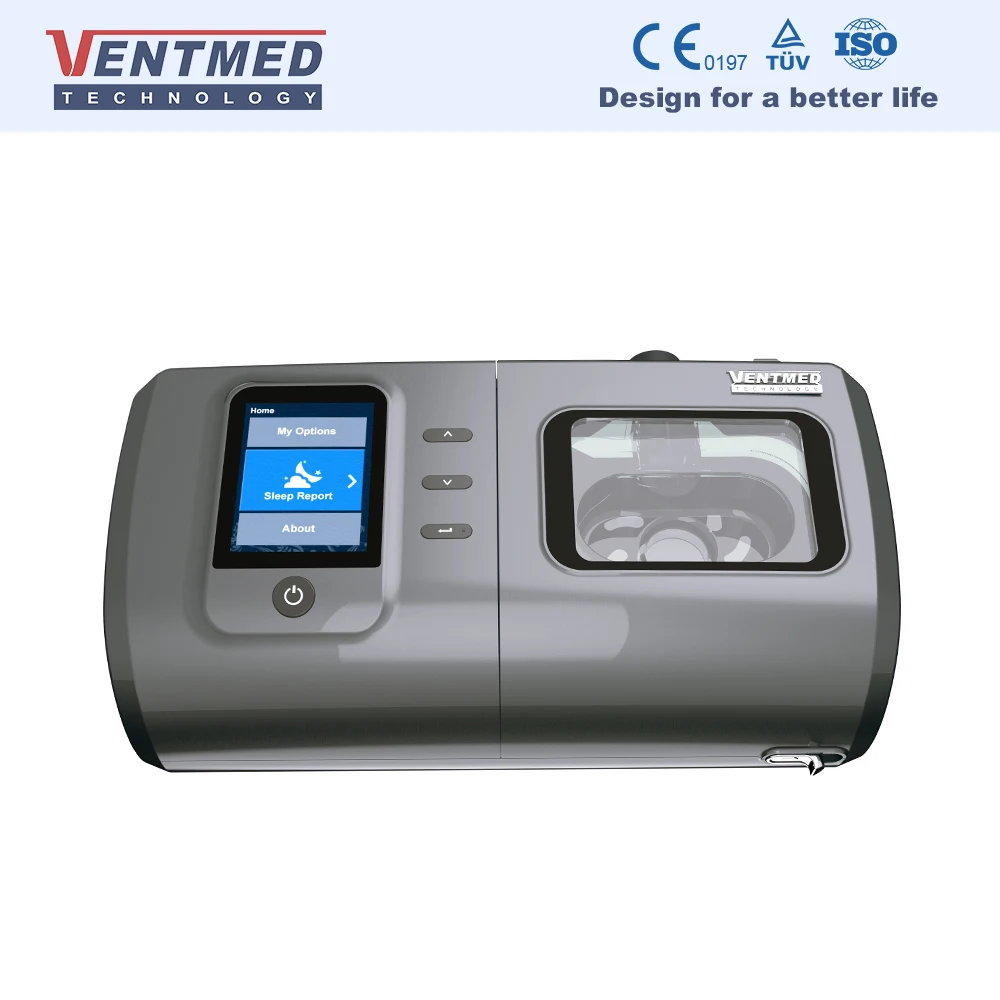

Home Ventilator Bipap Breathing Machine for Sleep Apnea
Ventmed Bi-level Positive Airway Pressure (BiPAP) with EPR (Expiratory Pressure Relief ) offers the ultimate in sleep therapy comfort. It combines auto adjusting pressure delivery with the breath-by-breath pressure relief for most natural sleep therapy. It also can provide non-invasive ventilation for patients with respiratory insufficiency in the hospital or home.
The key distinguishing feature of BiPAP is that the pressurized air is delivered at two alternating levels: inspiratory positive airway pressure(IPAP) and expiratory positive airway pressure(EPAP).
The inspiratory positive airway pressure is higher and supports a breath as it is taken in. Conversely, the expiratory positive airway pressure is a lower pressure that allows you to breathe out.
These pressures are preset and alternate just like your breathing pattern to make you get more comfortable.
Features:
1. More than 20hr real time data and more than 1 year used records can be saved.
2. Showing airflow and pressure waves on screen.
3. SD card for data communication.
4. Combined smart technologies.
5. Contemporary and stylish design for bedroom appeal.
6. EPR(expiratory pressure relief).
7. Auto-Leak Compensation.
8. Auto-Altitude compensation.
9. Alarm for cut down the power.
10. Independent airflow channel.
11. Huge display, 2.8” TFT Screen, show airflow and pressure on screen.
12. Parameters lock: all the parameters cannot be changed after setting.

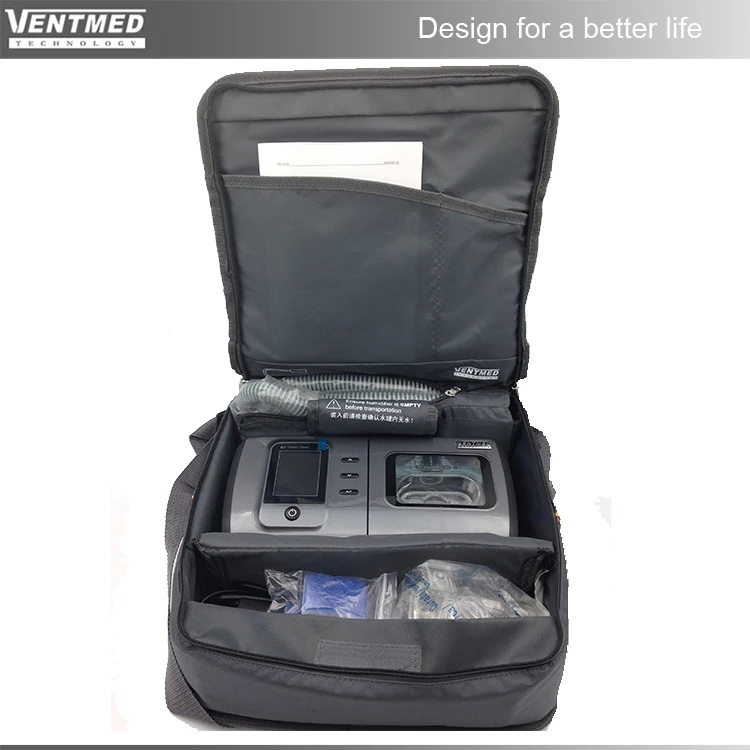

Packing List
1. Host Device with Integrated Humidifier

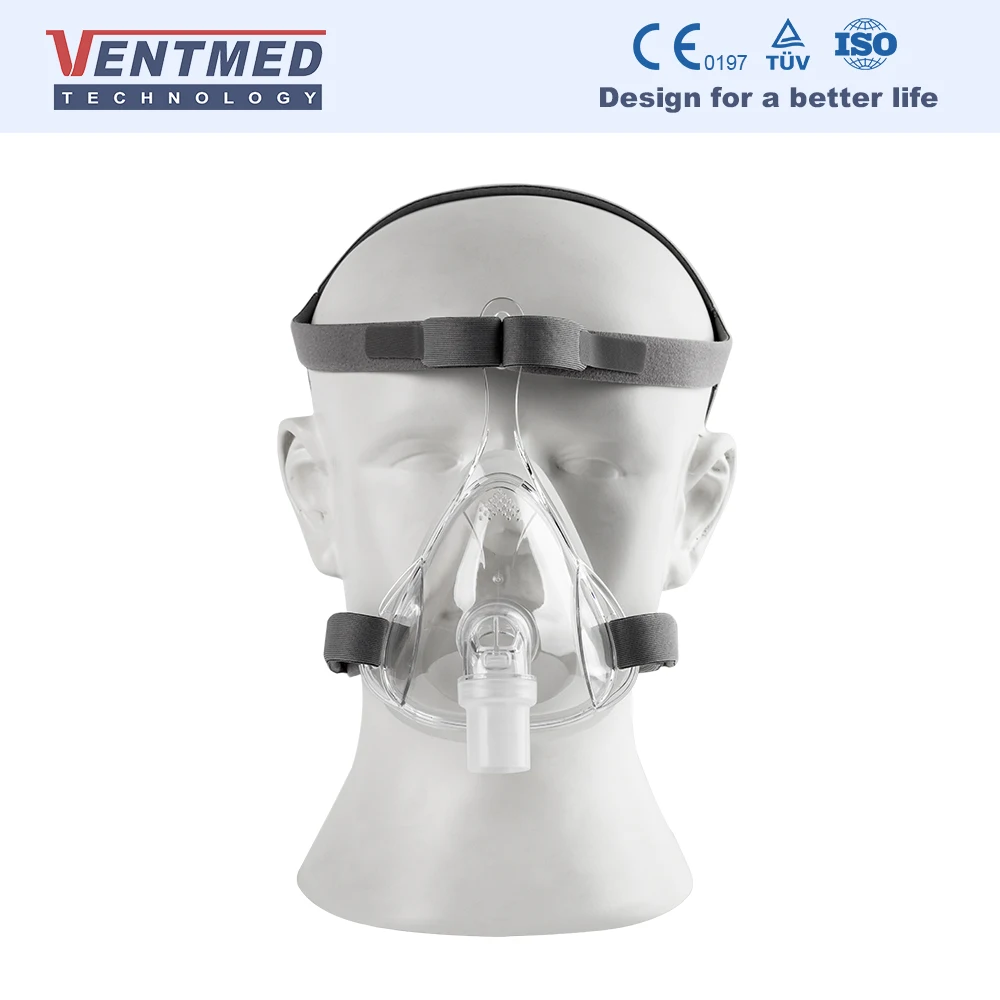

2. Full Face Mask or Nasal Mask (Optional)
3. 5 Pieces of Filter Cotton
4. Air Tubing
5. Water Tub
6. SD Card
7. Measuring Cup
8. Power Supply Unit
9. Carry Package
10. User Manual
11. Carton Box
Specification
Product Name | DS-7 |
Model | Auto CPAP |
Color | Dark Grey |
Machine Dimensions(cm) | 28L x 14W x 9.5H |
Carton Dimensions(cm) | 38L x 36W x 16H |
Gross Weight | 1.6KG for host, 3.9KG included all accessories and packing carton |
Power Supply | Input 100-240V, 50-60Hz, 2-1A Output +24V, 2.5A |
Working Mode | CPAP, Auto, S, T, ST |
Screen | 2.8 inch TFT, 320 x 240 |
Screen Auto Sleep | Auto sleep in 15 minutes, press any button to highlight screen |
Over-Temperature Protection | Motor will stop work automatically and buzzle will ring 4 times when temperature is over |
Button Press and Power off Sound | Yes |
Data Storage | SD Card |
DC Voltage | 24VDC |
DC Current | 2.0A maximum |
Sound | <28db |
Pressure Range | 4-25cmH2O, auto adjust |
IPAP | 4-25 cmH2O |
EPAP | 4-20 cmH2O |
| Pressure Compensation | Yes |
| Backup Rate | 5-50min, adjustable |
| I/E | 10-80% |
Ramp Item | 0-60min adjustable 1min/Step |
Auto ON | Yes |
Auto OFF | Yes |
Inspirate Triggle | 1-5 level |
Expirate Level | 1-5 level |
Inspirate Sensitivity | 1-5 level |
Expiration Pressure Relief(EPR) | Yes |
Auto-Altitude | Yes |
Leak Compensation | Yes |
| Awake Detection | Yes |
| Breath Event Detection | Yes |
| Auto Pressure Titration | Yes |
Mask Off Alarm | When mask is off, will Beep till mask put on or power off. |
| Power Off Alarm | If power is off when the machine is working, will make a warning sound over 30 seconds. |
| Water Capacity | 220ML max |
| Humidifier Level | 0-5 level |
| Humidifier | Integrated Heated Humidifier |
Other products
Company Information
Company Introduction
Hunan VentMed Medical Technology Co., Ltd. was established in April 2013, which is integrates of R&D, production and sales. Company’s professional R&D team has focused on the exploration and innovation of medical devices for 15 years, dedicated to the diagnosis of sleep disorders and the overall solution of CPAP. The application of new high precision 3D sensors in related fields for the first time improves the comfort of the products and the accuracy of the data. In addition, the cloud platform built by 3G/4G network can realize the real-time monitoring of hospital, doctor and patient. It is the first medical device company to apply cloud platform to sleep monitoring in China.
VentMed have obtained multiple independent intelligent property rights.
Company Belief---Design, for a better life!
We are full of faith, persistent pursuit! Provide comfortable, healthy breathing solutions! Overcome various difficulties, explore the science to make life more healthy and more beautiful!
Exhibition
Our Services
We are professional in sleep & breathing field, deeply understand sleep & breathing device with many years of product development and manufacturing experience.
Except for our VentMed brand CPAP/AUTO CPAP/BiPAP/Sleep Study device, we also provide OEM/ODM service. We can do your private brand products according to your requirement.
--- 2 years warranty!
--- Provide minimum and shortest delivery time!
--- Long-time maintenance service for the product!
--- Offer competitive price, high quality and best service!
--- Your inquiry related to our products or prices will be replied in 24 hours!
