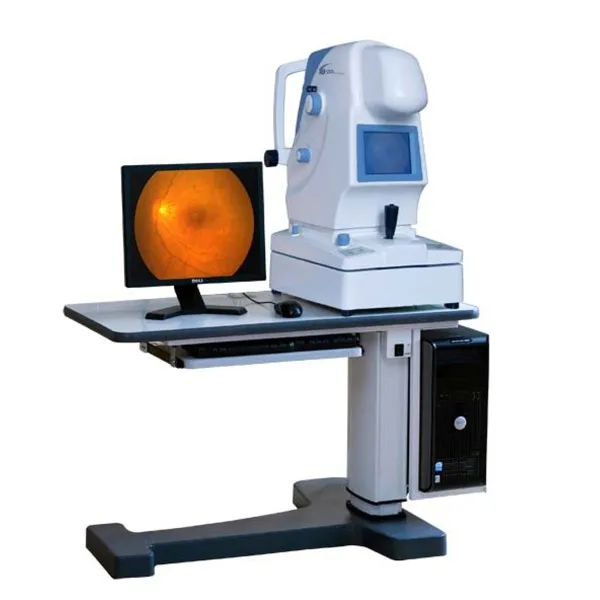

Eye Exam Optometry Equipment Factory ophthalmic equipment fundus fluorescence retinal camera digital
- Category: >>>
- Supplier: Shanghai Link Instruments Co. Ltd.
Share on (60775784539):
Product Overview
Description
Eye Exam Optometry Equipment Factory ophthalmic equipment fundus fluorescence retinal camera digital
Shanghai Link
Features
•Split line provides the function of accurate focusing and makes the focusing more accurate and convenient;
•The use of pupil alignment spots eliminates stray light effectively;
•Targeting and focusing of infrared light improves greatly the feeling of patient comfort;
•Flash strength of eight adjustable forwards ensures suitable exposure;
•Functions of using periphery internal fixation standard, object images stitching and field-of-view can expanded to 77º
•Design of no eyepiece and colorful screen can target and focus conveniently and directly.
•With the function of right/left eye auto detection.
Specification
Images | Fundus color/red-free photography |
View field | 45º |
Working Distance | 41mm |
Dioptric Compensation for Patient’s Eyes | -34D~+35D total -15D~+13D with no dioptric lens -34D~-14D with minus dioptric lens +12D~+35D with plus dioptric lens |
Min Pupil Diameter | Φ3.7mm |
Internal Fixation Target | 3 in center, 6 in the periphery with 60 º detent interval |
Backward and Forward Movement | 45mm |
Left and Right Movement | 80mm |
Up and Down Movement | 30mm |
Chinrest Movement | 65mm |
Input Voltage | AC220±22V/50Hz±1Hz, AC110V±11V/60Hz±1Hz |
Input Power | 300VA |
Fuse | AC250V T3A |
Light | 12V/30W, Halogen |
Electrical Safety Standard | GB9706.1-1995,ClassI Type B |
Voltage Transformer Thermal Circuit Breaker | 130°C |
