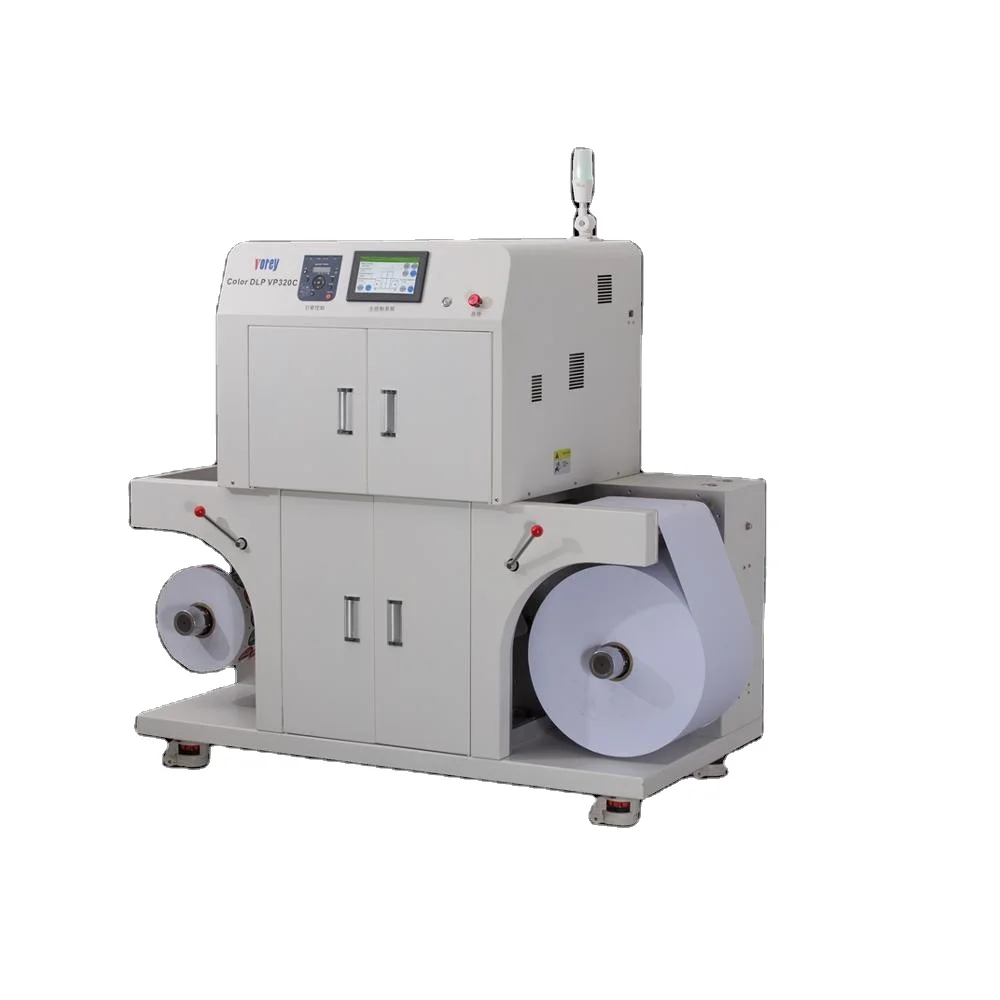

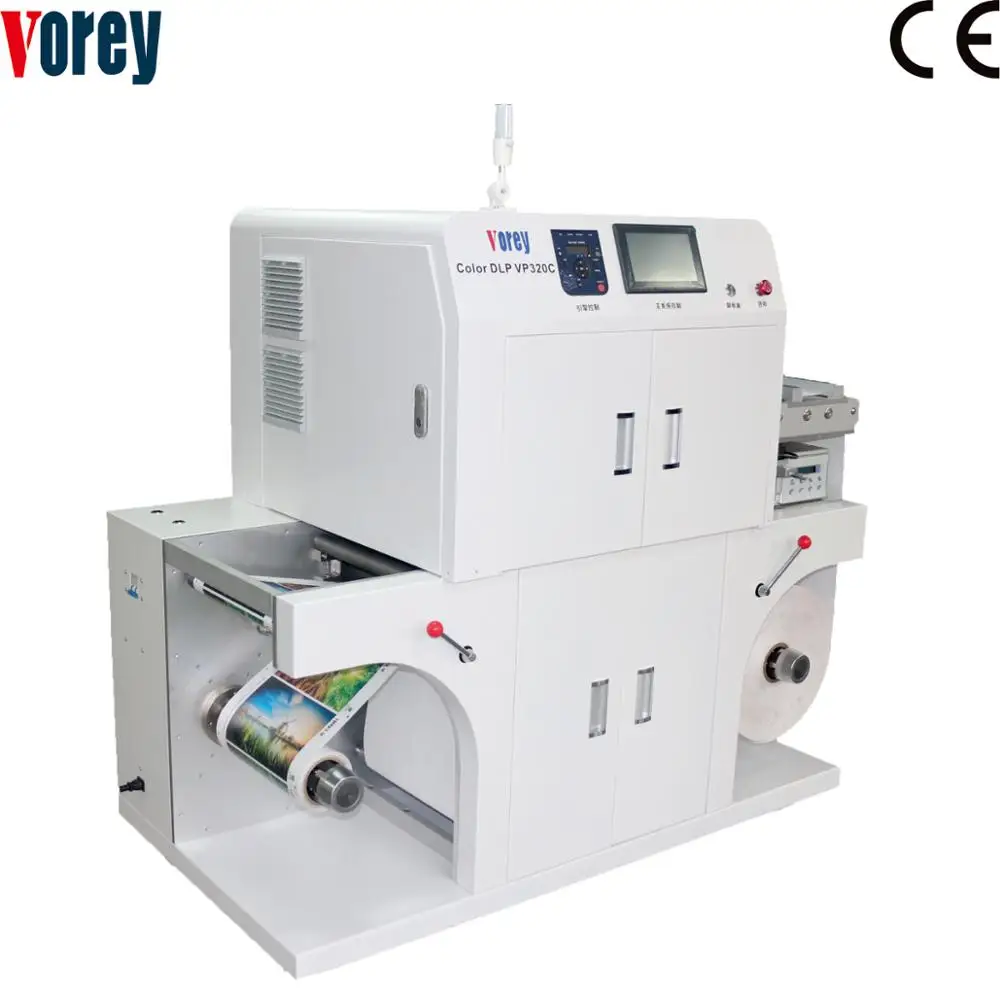

Vorey Color VP320C Digital Label Printing Printer Machine
Product Description
Digital Label Printing Machine
Multifunction, High Quality, High Efficiency
The best assistant is for labeling printing.
1200*2400dpi Self-scanning LED chips with ASC Driver.
PhaserMatch 5 color management system was nested to printing software with media management system.
Very low temperature EA environmental toner powder without coating before and after printing.
IRecT is possible to correct images in ultra high-precision of up to 2400dpi.
The newly developed induction heating fuser incorporates a thin, non-magnetic metal.
Largest label up to 320mm * 1200mm, can use most of media without costing.
The diameter of unwinder 450mm which can hold 1000m media roll.
Stable tension control system can avoid media to wrinkle and Stretch, feeding more stable.
High quality printing with 14592 LEDS while the ASIC driver allows precise control of there LED Chips.
1200*2400dpi high quality image extreme fine digital screening technology.
The diameter of rewinder 450mm which feeding well and stablely.
Temperature control system can control the image outputting is always 28degree.
Very high printing quality with 1200*2400dpi

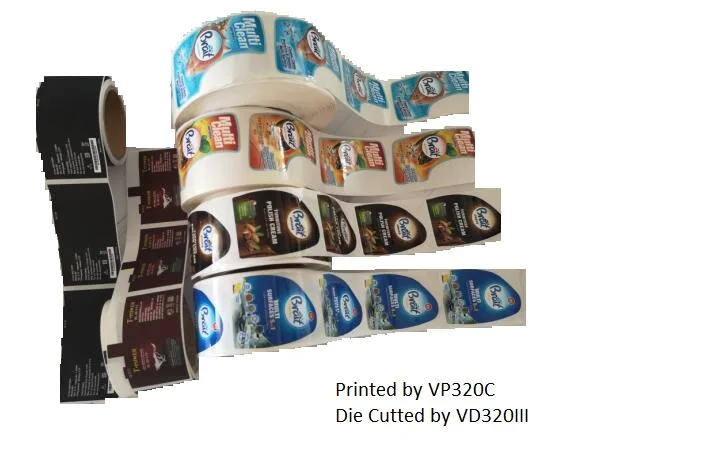

Printing on the cloth
Parameter :
Print Speed:
Up to 7.26m per minute
Print Technology:
4 color (CMYK) LED technology
Print Processor:
933Hz, 2G
Data Port:
Standard : 10BASE -T/100BASE-TX. USB2.0
Options: Internate 1000BASE-T, IEEE1284-B
Media Width:
Min. 140mm Max. 330mm
Print Width:
Min. 130mm Max. 300mm
Pint Label Length:
Up to 432mm, can get 1230mm under long label mode
Media Type:
60-250um
Paper: Paper, High glossy paper, matt paper
Film: PET, PP, PE, GHS
Other: Fabric, all of media was tested in special enviroment, not tested media possible can't be used
Resolution:
1200*2400dpi
Toner Capacity:
CMY-25000 sheets (A4, 5% coverage )
K-26000 sheets (A4, 6% coverage )
Refer to fthe ISO/IEC guide19798
Drum Capacity:
CMYK-70000 sheets (print runs according to the operating cycle, medium side and the direction to change.
Unwinder & Rewinder:
Max. roll media diameter: 450mm
Roll media core dismeter: 76.2mm
Max. weight roll media: 47.2kgs
Automatic expandable pressure system connect meida table.
Media precessing system (static eliminate)
Printing cooling system (options)
Wed guide system (options)
Size (L×W×H)
1400mm×750mm×1600mm
Operation space:
2500mm×1850mm×1600mm
Weight:
423kgs
Operation Environment:
Temperature: 20-23℃
Humidity: 45-55% relative humidity
Power Supply:
110-127V AC 50-60Hz @3800W
220-240V AC 50-60Hz @3800W
Power Consumption:
(AC220-240V) Sleep: 25W
Waiting: 135W
Running: 1200W
Remark: 1.Published performance results based on laborattory, individual results may vary.
2. The products was designed operated base on using vorey genunine consumables, certified media and parts, please contact Vorey get registered media list.
3. Vorey reserves the right to change specification of product without prior to notice, trademark are the property of their respective manufacturer. @2017 Copy right, Vorey All rights reserved
Printer Main Feature
Label Printer Background
Physical Feature
Exclusive Software Feature
Technical Feature
Comparison with traditional printer
Certifications
All of Our Machines have CE Certifications!
Company Information
Vorey Technology Co., Ltd. is specialized in researching, producing and selling digital label printing equipment and finisher. We are located in Ningbo of Zhejiang which called “ Rich in culture, and an important trading port” . We produce a complete new Color DLP VP320C digital label printing machine unless VD320 digital label die-cutter and EDGE850 LED digital label printer. Color DLP VP320C Utilizes advanced S-LED and DELCIS system, it is not only output high resolution image get to 1200 * 2400dpi, but also help you to get a solution for labels production. Whatever you have big batch order or short and sample, you always get a perfect job from it.
