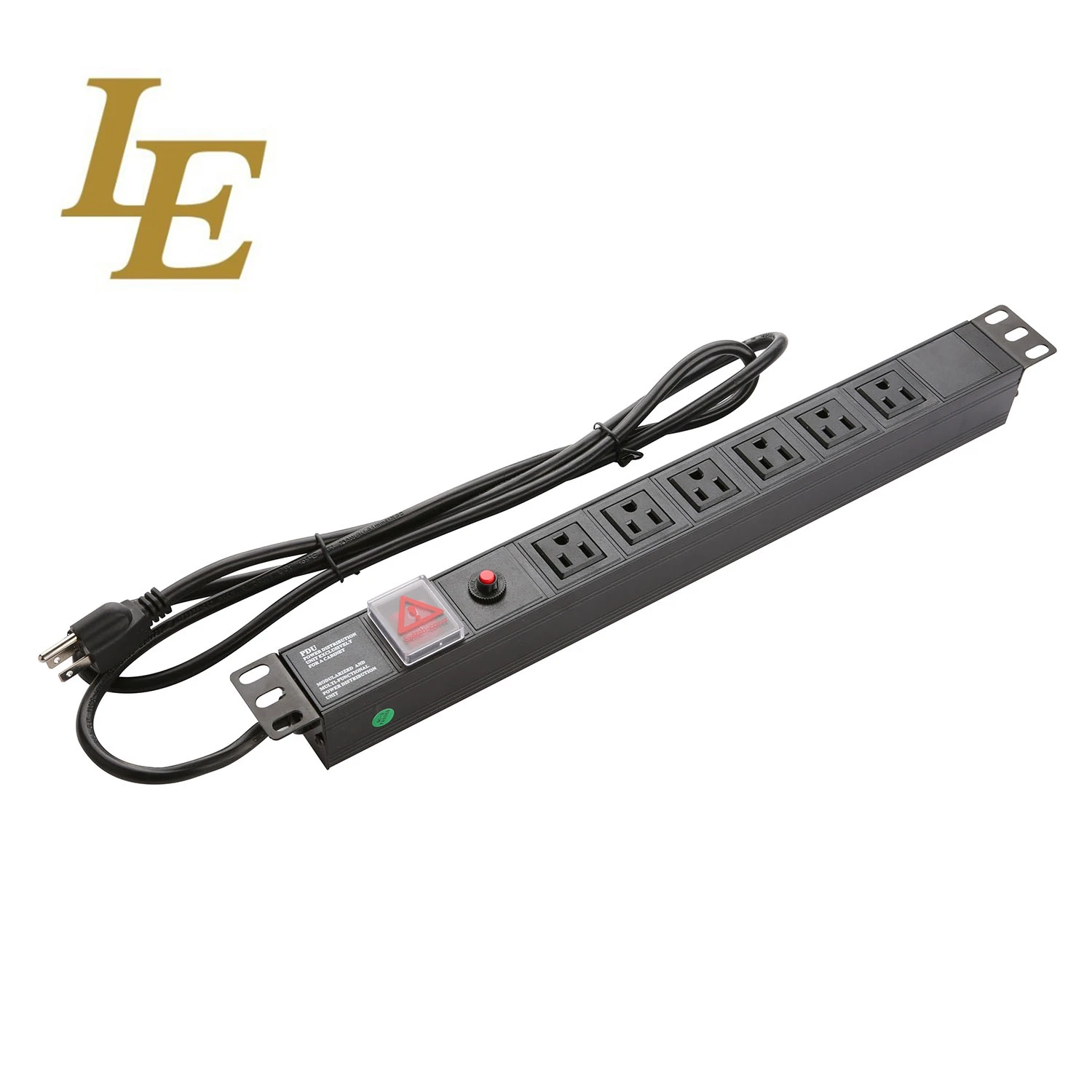

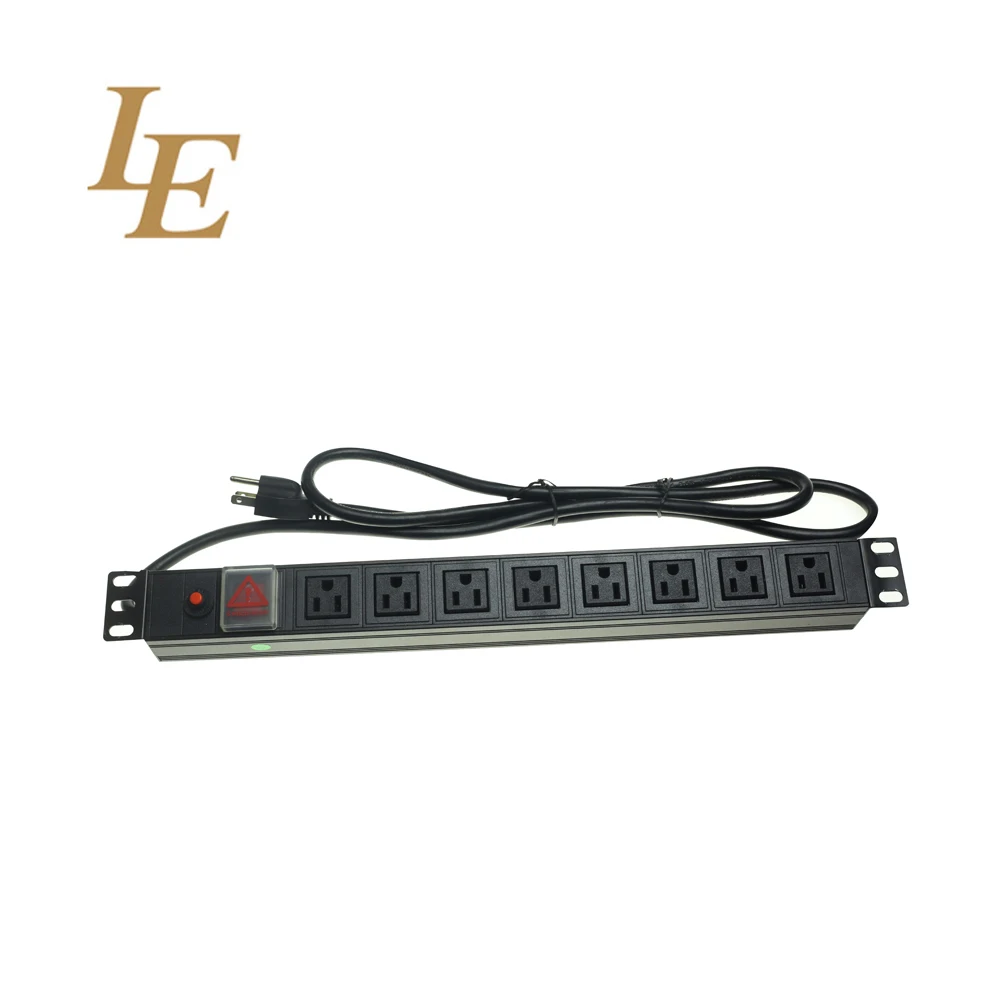

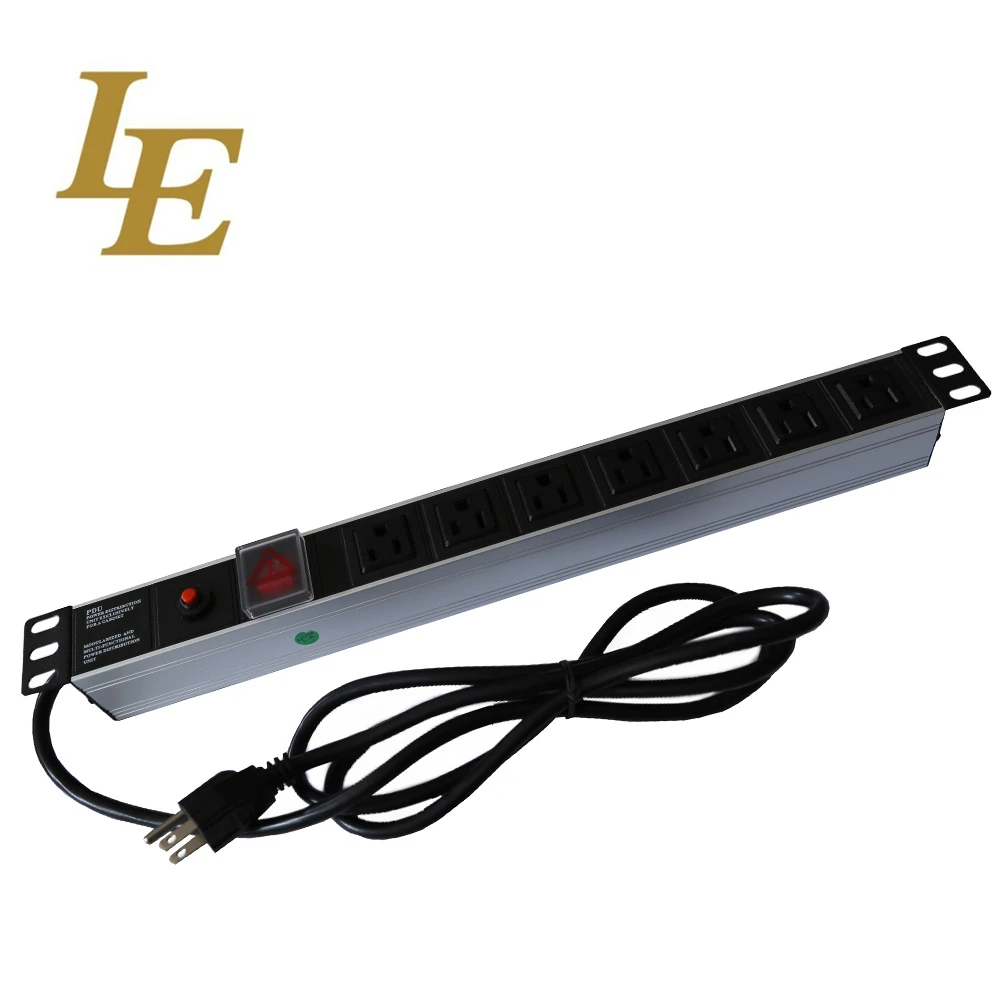

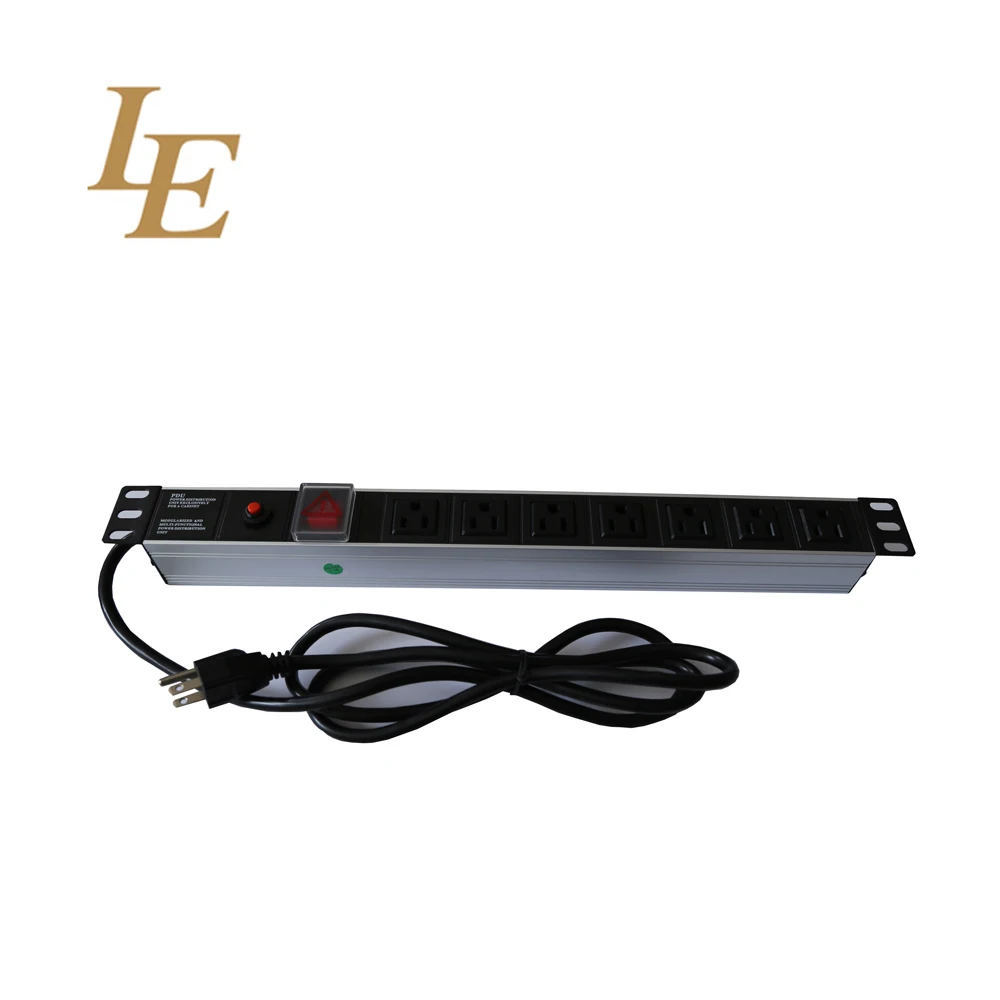

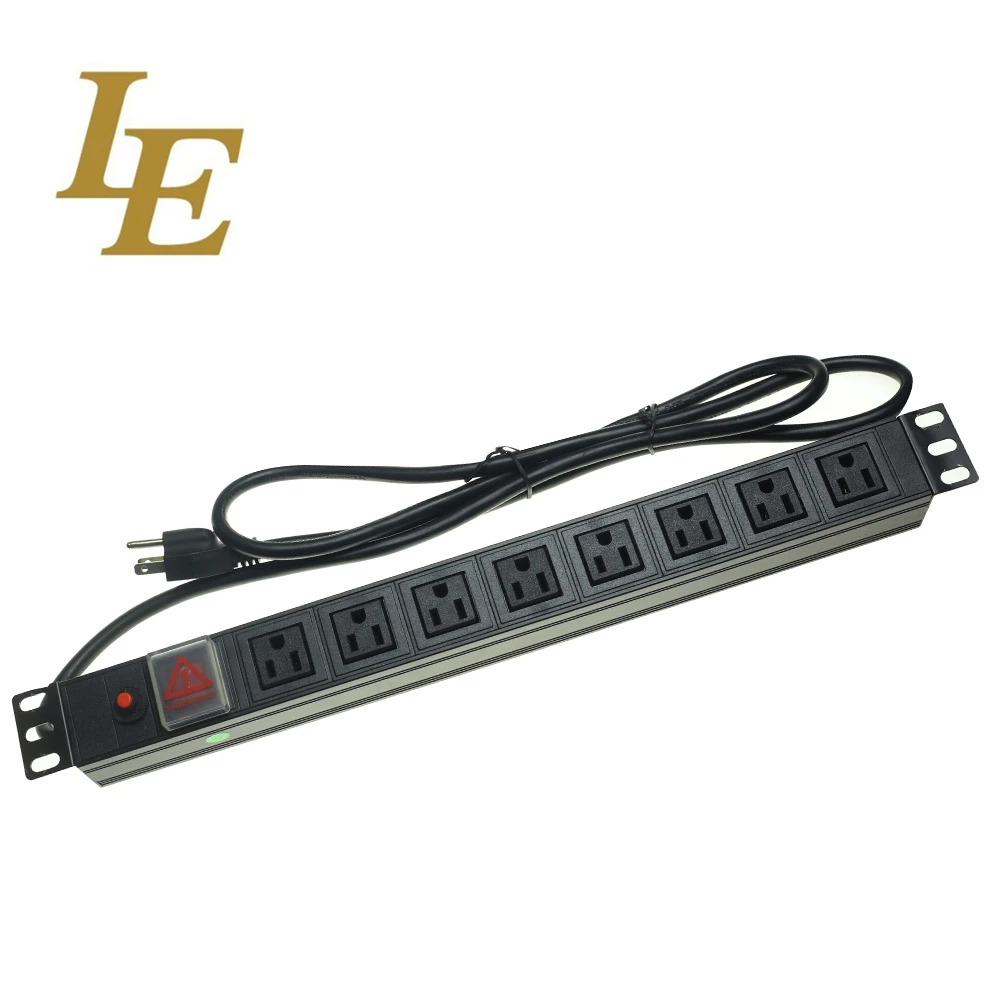

Customizable 19inch Server Rack PDU Manufacturer Power Distribution Unit
- Category: >>>
- Supplier: Ningbo Latitude Communication Equipment Co. Ltd.
Share on (60775825717):
Product Overview
Description
1.19” USA type PDUs are horizontal and vertical installation are optional,output available are 4 to 8way
2.Over 19” USA type PDUs are vertical installation ,output available are more than 8way
3.Height 1U and 1.5U are optional
4.Cable length is 2M,3×1.5mm²,other length optional
5.Kinds of control function and protection function are optional
| Input characteristics | |
| Rated input voltage | 125VAC 50/60Hz |
| Type of plug | NEMA5-15P |
| Cable specification | 16AWG |
| Cable length | 2M |
| Max input current | 15A |
| Output characteristics | |
| Socket standard | NEMA5-15R |
| Output quantity | 6 |
| Rating output voltage | 250VAC 50/60Hz |
| Max output current | 15A |
| Functions | |
| Control | Lighted master switch |
| Protection | Overload protection |
| Product size | |
| Product size | L×W×H=482.6×44.4×62mm(19″) |
| Mounting length | 465mm |
| Color&material | |
| Color | black |
| Shell material | Aluminum alloy |
| Plastic flame retardant rating | UL94V-0 |
| Test item | |
| Hi-pot test | PASS |
| Grounding | PASS |
| IR | PASS |
| Certificate | CE RoHS TUV SGS |
| Mounting | |
| Mounting method | Horizontal or vertical installation |
| Occupying space | 1U |
