1000KW generator load bank
- Category: Testing Equipment >>>
- Supplier: Hebei,Kaixiang,Electrical,Technology,Co.,Ltd,[Hebei,China]Hebei
Share on:
Product Overview
Description
Product Description

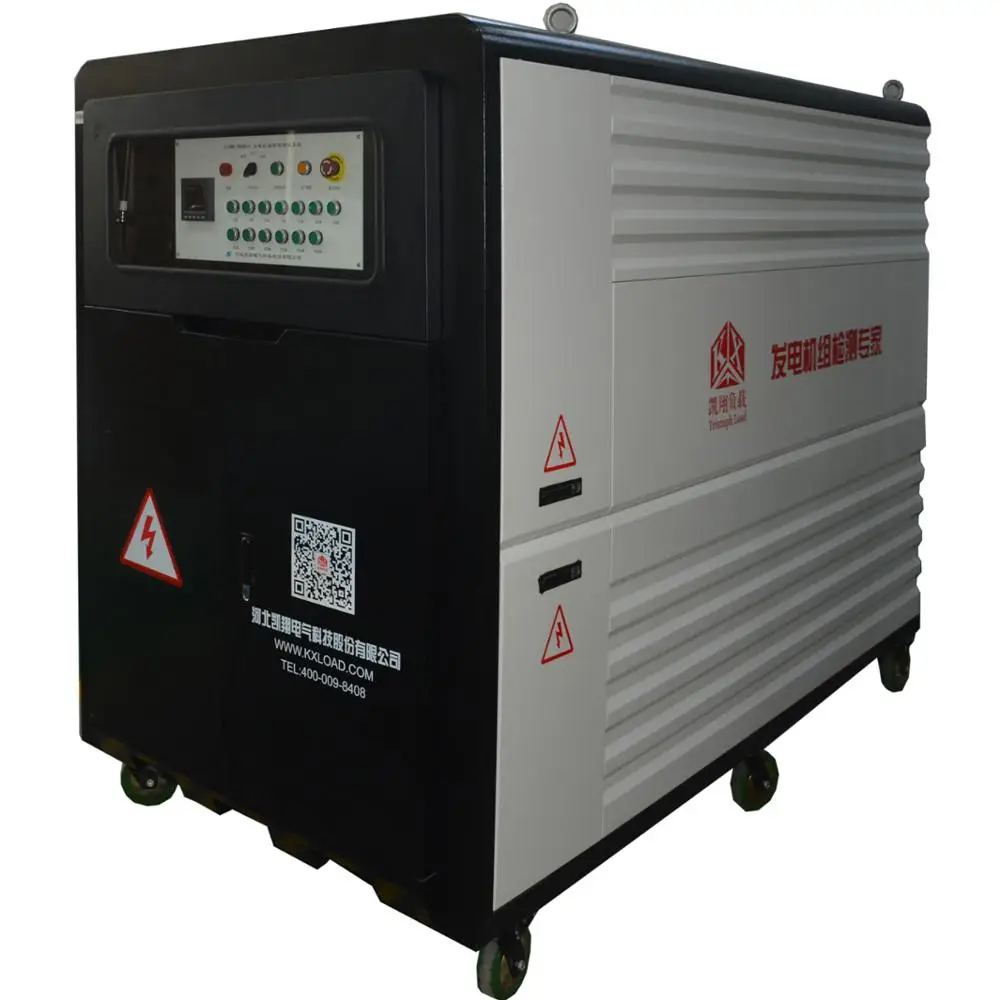

1000KW generator load bank
Rated Voltage: 200V/220V/380V/400V/415V/440V/690V etc
Rated Power: 30KW/50KW/100KW/200KW/300KW/500KW/1000KW/1250KW etc
Power Factor: 1
Frequency: 50HZ/60HZ etc.
Wire Connection: single phase/3phase 3wire/3phase 4wire/3phase 5 wire etc
Control Model: manual/remote/software
Transportation: With lifting lugs on the top and wheel castors at the bottom of the enclosure.
Compact and Lightweight design that is ideal for moving from job site to job site or within your facility.
It offers the most robust, high-capacity designs in the industry. It is setting the standard with intelligent operator controls, safety indication layouts, adjustable load step resolution, and lightweight designs. It is the perfect solution for regularly scheduled maintenance testing and commissioning of mission-critical standby emergency power systems.
Main features

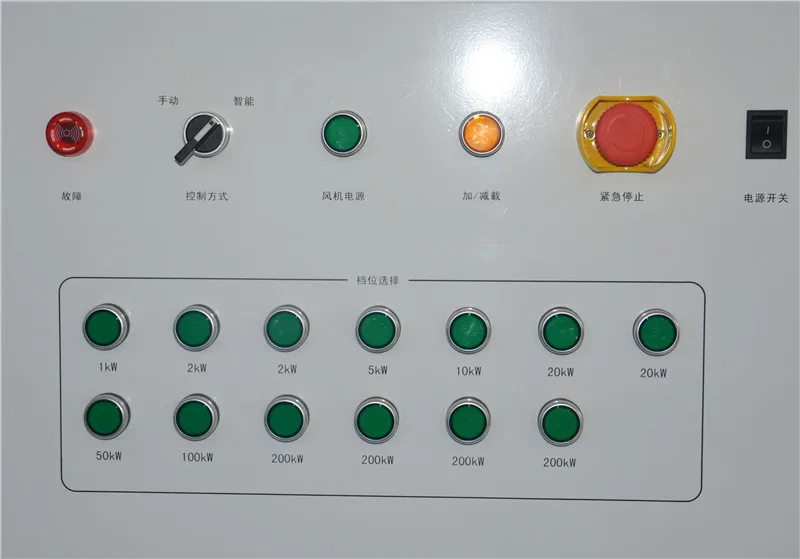

1. Multiple control mode: (1) manual panel control (2) remote control (3)software control
2. Multiple display function: voltage, current, frequency, power factor, active power, reactive power, apparent power etc.
3. Multiple protection function: overvoltage, overcurrent, overheat, over low blowing rate, blower overheat, blower phase sequence reverse protection, smoke alarm etc.
4. Forced air cooling: industrial heavy duty fan, horizon air intake, upwards outlet, low noise.
5. Power consumption components: made by special alloy resistance, high temperature resisting, high heat dissipation capability, high heat stability, no naked light, safety and reliability. Running temperature is 1/3 of rating.
6. Weather-proof structure: containerized structure provides ultra protection, protection grade higher than IP55.
7. Material and coating: the body adopt cold-rolled steel plate that processed by galvanizing corrosion protection, powder coated and spray paint.
8. Integrated & modularization design: compact structure, easy to installation, maintenance and transportation.
9. Software control: it can test and display voltage, current, frequency, power factor, active power, reactive power, apparent power etc, the test result can be store & print and form all kinds of curve, chart and test report.
AC400-1000kW Automatic Load Bank | |
400VAC, 3 phase 4 wire, wire voltage 400V, phase voltage 230V 50Hz | |
Rated Load Power | Resistive load: 1000kW |
Installed Capacity | Resistive load: 1000kW |
Load Step | 1,2,2,5,10,10,20,50,100,200,200,200,200kW, min step load: 1kW |
PF(Power Factor) | 1 |
±5% | |
±3% | |
0.5 class | |
Control Power | External 380VAC/50Hz, 3 phase 4 wire, 220V 1-phase |
Load power supply input——Copper bar (star coupling) Control power supply input——Connector-bar | |
F | |
Duty Cycle | |
Cooling Type | Force air cooling, horizontal air inlet and horizontal air outlet |
Hoisting, there are lifting lug on top and castors at the bottom of casing | |
Dimension | About 2440mm*1400mm*1680mm(L×W×H) |
Weight | About 1500kgs |
Grey(RAL7035)or as required | |
Workplace | Indoor |
-10℃~+50℃ | |
≤95% | |
≤2500 meter | |
86~106kPa | |
Brands of Main Components | |
Contactor | Schneider |
Fuse | Miro |
PLC | Siemens |
Data processing software | Kaixiang(self-developed) |
Alloy Resistance | |

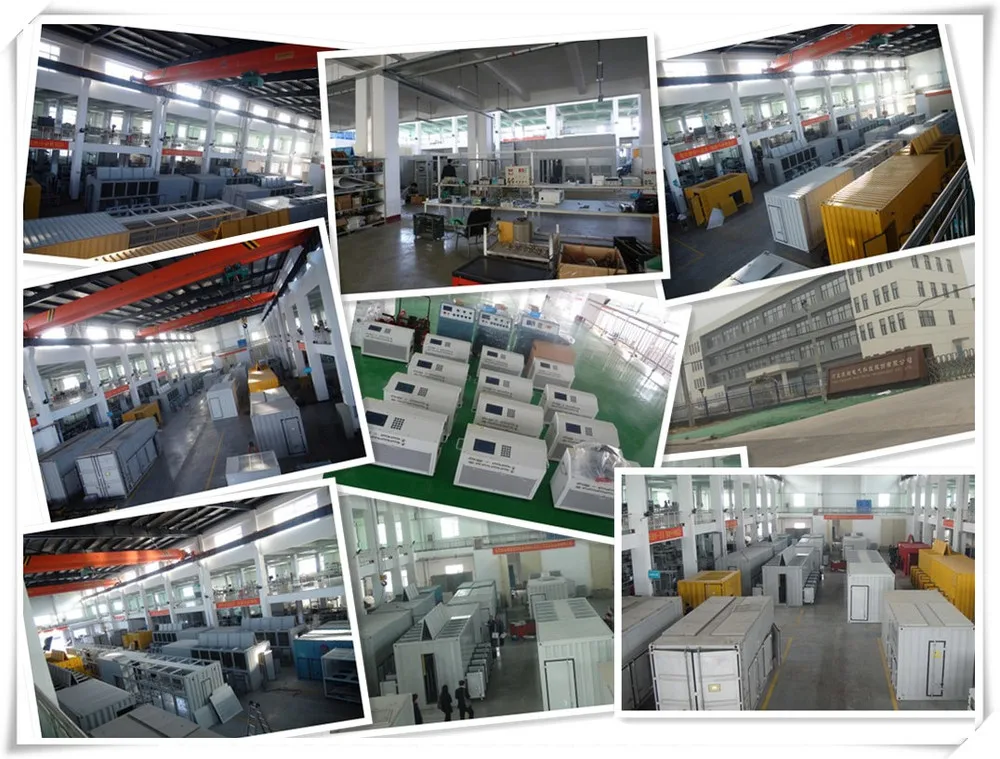

Workshop
