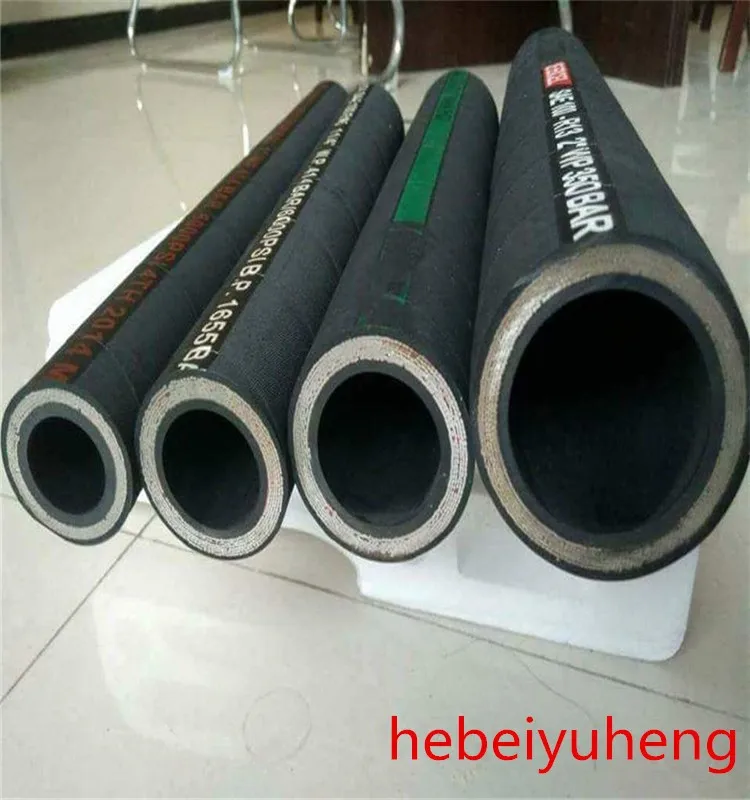

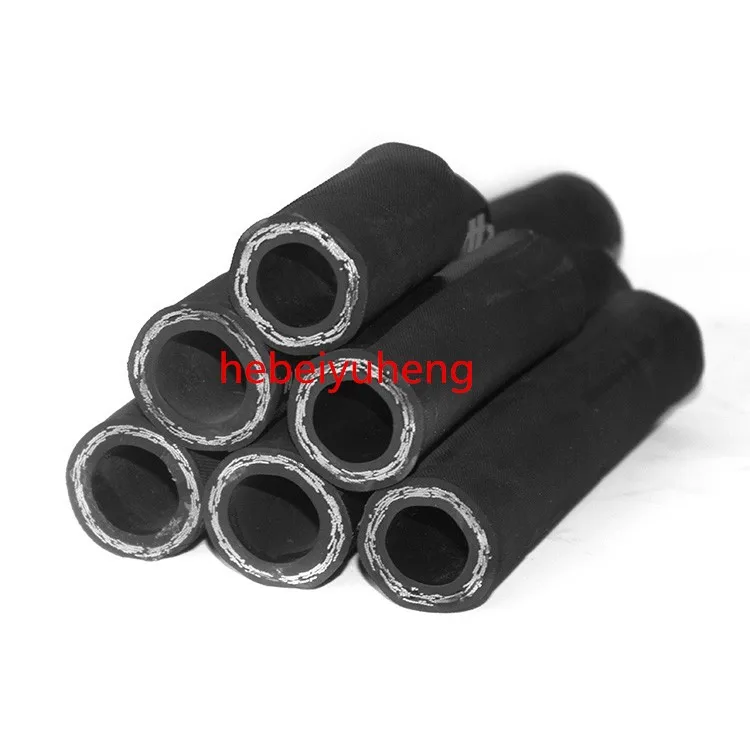

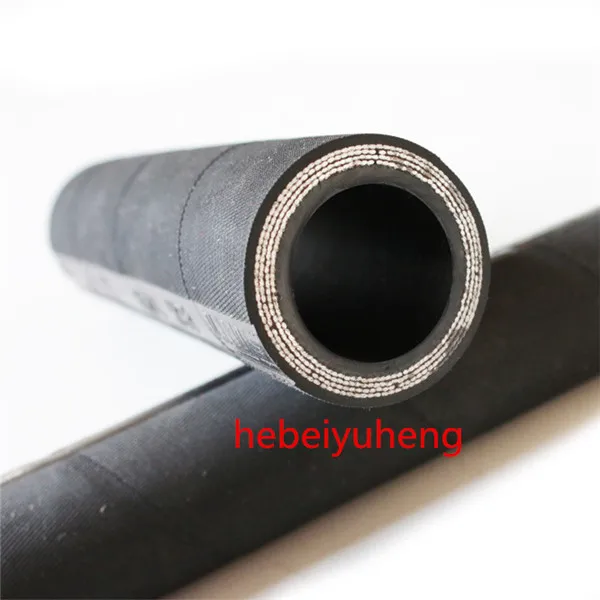

high pressure hydraulic steel wire reinforced rubber hose

Product Overview

Description

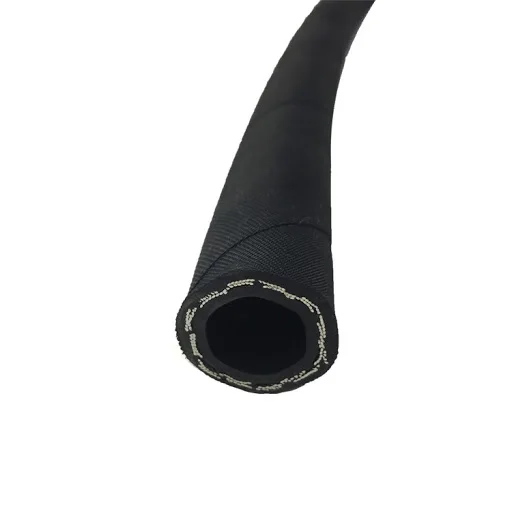

1>SAE 100 R1 AT / DIN EN 853 1SN :

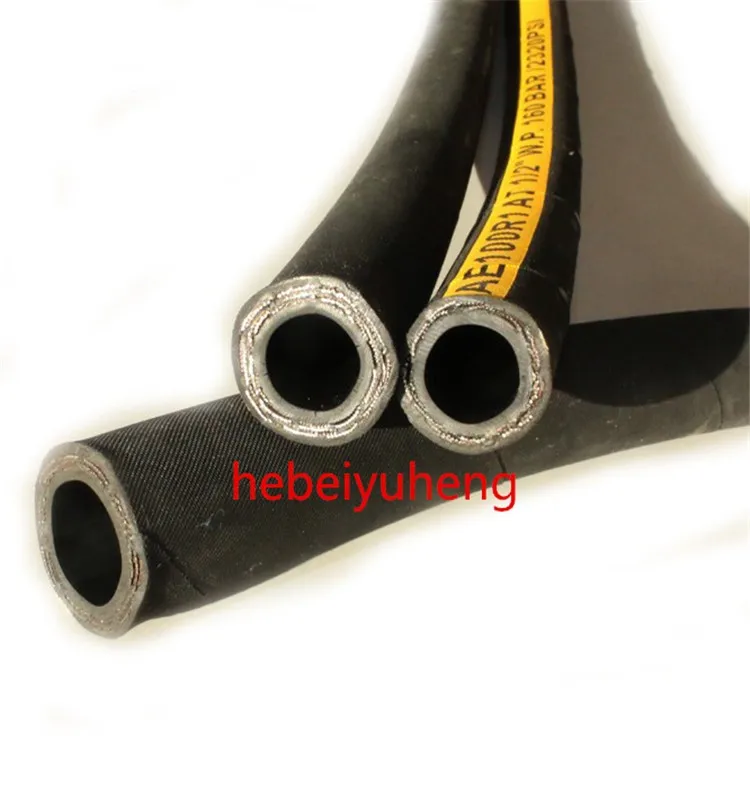

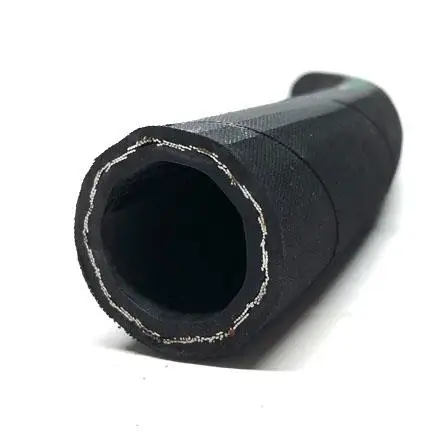

SINGLE WIRE BRAID HOSES (SAE 100R1AT, EN 853 1SN)

rubber hose Tube: Oil resistant synthetic rubber

rubber hose Reinforcement: One steel wire braid

rubber hose Cover: Oil, abrasion and weather resistant synthetic rubber. MSHA approved

rubber hose Temperature Range: -40° to 100°C (-40° to 212°F), petroleum base fluids intermittent to 125°C (257°F).

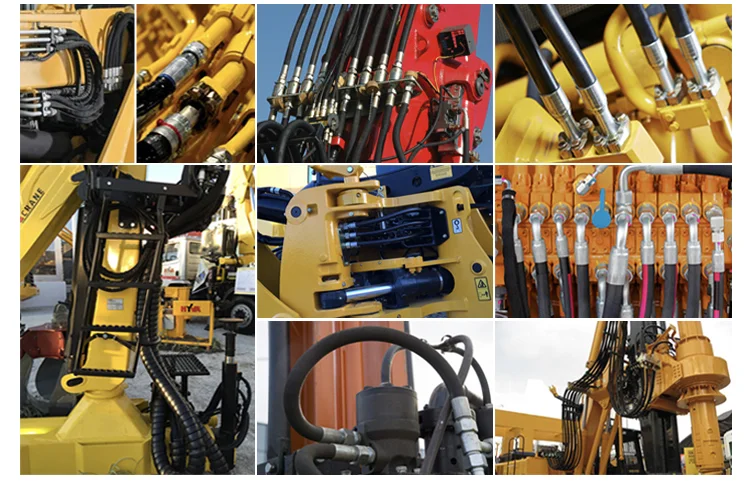

rubber hose Application: ideally suited for medium pressure hydraulic oil lines, return lines, grease lines, water lines and power steering hoses.



DN	Hose ID		Wire OD	Hose OD	Working Pressure		Burst Pressure	Minimum Bend Radius	Weight
mm	inch	mm	mm	mm	Mpa	Psi	Mpa	mm	kg/m
6	1/4	6.4	11.1	15.9	22.5	3270	90	100	0.31
8	5/16	7.9	12.7	17.5	21.5	3120	86	114	0.38
10	3/8	9.5	15.1	19.8	18	2610	72	127	0.45
13	1/2	12.7	18.3	23.0	16	2320	64	178	0.55
16	5/8	15.9	21.4	26.2	13	1890	52	200	0.63
19	3/4	19.0	25.4	30.2	10.5	1530	42	240	0.77
25	1	25.4	33.3	38.1	8.8	1280	35	300	1.06
32	1-1/4	31.8	40.5	46.0	6.3	892	25	419	1.45
38	1-1/2	38.1	46.8	52.4	5	730	20	500	1.80
51	2	50.8	60.2	66.7	4	580	16	630	2.30
