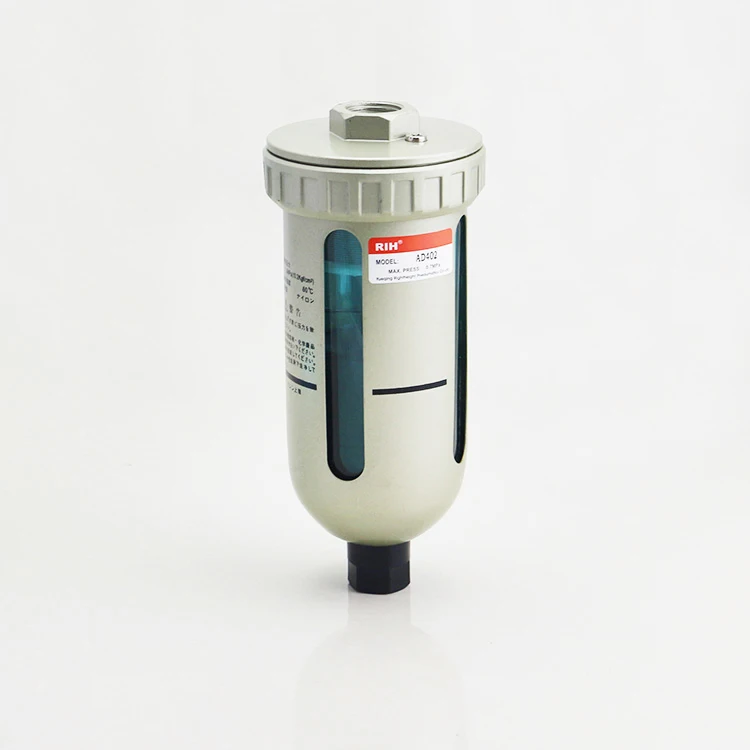

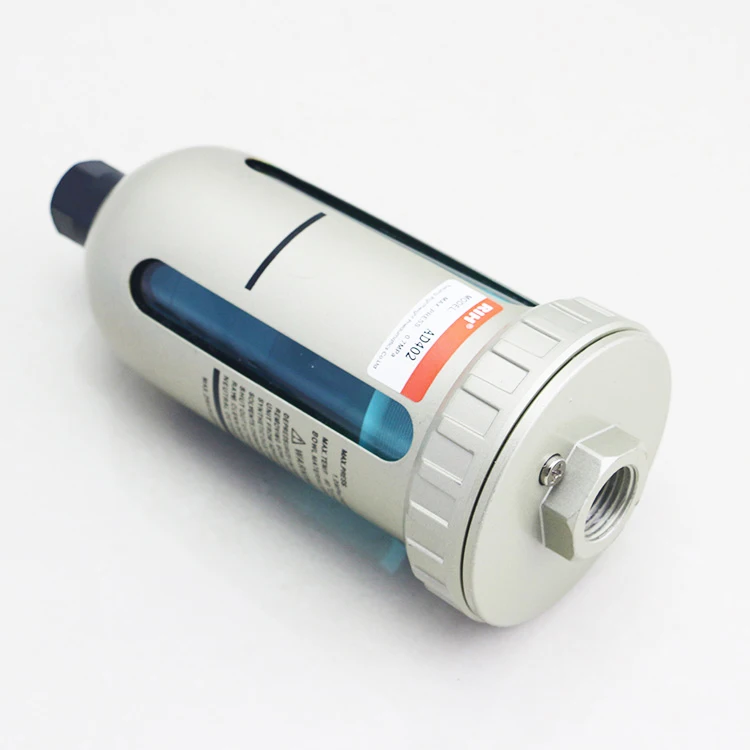

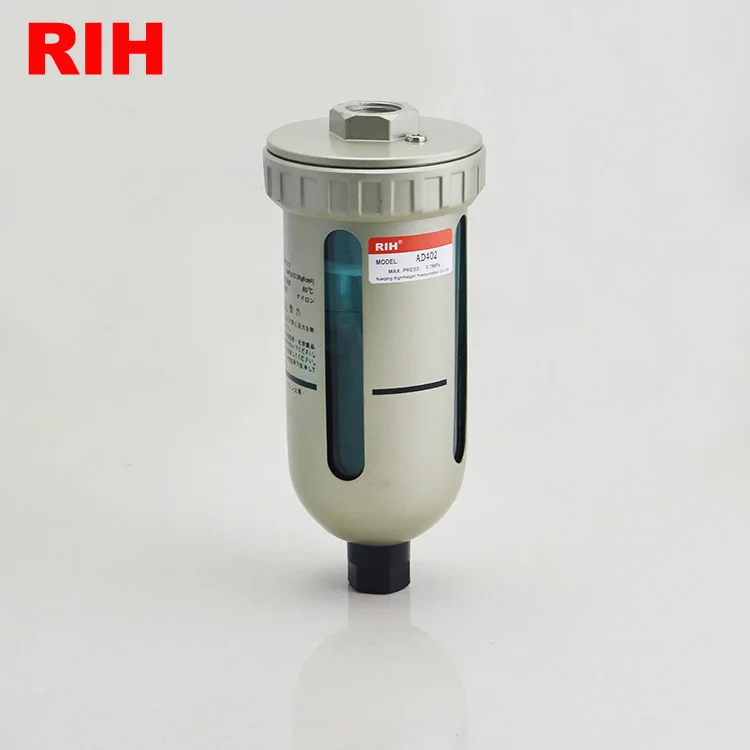

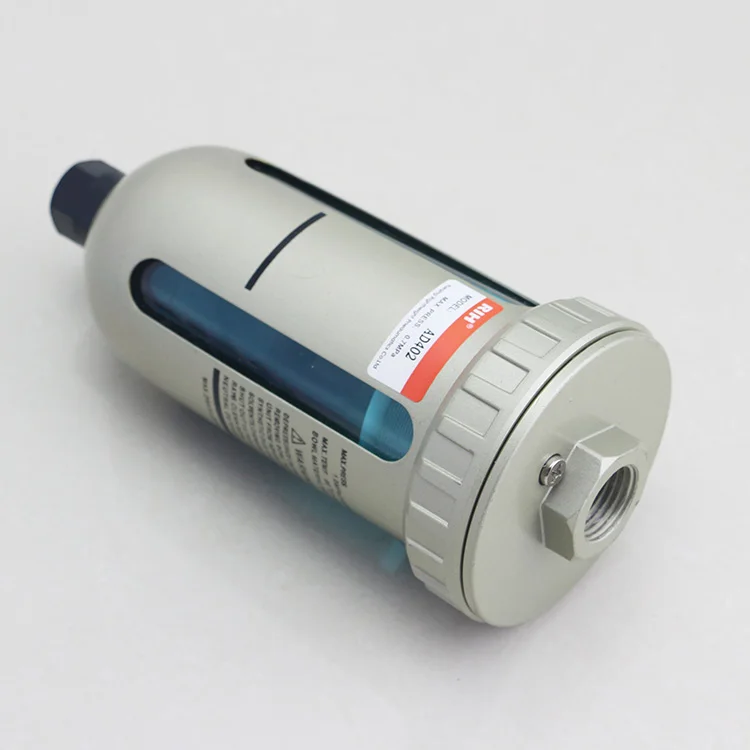

SMC Type Pneumatic Auto Drain Valve Auto Drainer AD402 04 1/2 Inch Air Auto Drainer,source Treatment Unit
- Category: >>>
- Supplier: Yueqing Rightheight Technology Co. Ltd.
Share on (60775904147):
Product Overview
Description
Banner
Features:
1. Auto Drainage type.
2. The water cup is provided with metal protective cover.
3. Easy to maintain and operate, long service life.
4. It's used for drain the condensate of the air system without requiring human operators.
5. Widely used in compress air.
2. The water cup is provided with metal protective cover.
3. Easy to maintain and operate, long service life.
4. It's used for drain the condensate of the air system without requiring human operators.
5. Widely used in compress air.
Application:
AD402-04 Auto Drainer often applies to auto remove the see per at the lower places of piping,frozen type air drying machine.Oil separator, air storage tanks and the bottom of various air filters.
It can be installed in the places inconvenient for manual discharge of sewage,such as higher,lower and narrow places,especially there slarge consumption of air or frequent water drains.It can prevent the compressed air being re-polluted by con-dense water resulting from neglect of manual drain.Model | AD202-04 | AD402-04 | |
Port Size | G1/2'' | ||
Working Media | Compressed Air | ||
Proof Pressure | 1.5Mpa | ||
Pressure Range | 0.15~1Mpa | ||
Working Temperature Range | 5-60℃ | ||
Drainer Mouth Connection | Push-in 6mm tube | ||
Drain Status | Normal Open Type | ||
Material | Body:Aluminum Alloy; O ring:NBR; Filter net:SUS | ||
Note: When using,the draine r should be installed ve rt ically the drain port facing down.
AD402 Working Principle:
1) When no pressure is applied inside the bowl:
Float descends of its own weight and valve closes the chamber hole. Piston is pushed down by spring , and drain passes through the chamber's long hole to enter the housing and is discharged.
2) When pressure is applied inside the bowl:
When pressure is 0.1MPa or more, it overcomes the forces of spring, allowing the piston to ascend, and comes in contact with O-ring. Thus, the inside of the bowl is isolated from the outside.
Float descends of its own weight and valve closes the chamber hole. Piston is pushed down by spring , and drain passes through the chamber's long hole to enter the housing and is discharged.
2) When pressure is applied inside the bowl:
When pressure is 0.1MPa or more, it overcomes the forces of spring, allowing the piston to ascend, and comes in contact with O-ring. Thus, the inside of the bowl is isolated from the outside.
3)When drain has accumulated:
Float ascends due to flotation and opens the chamber hole, allowing the pressure to enter the chamber. Piston descends due to internal pressure and the force of spring, and the accumulated drain is discharged through drain guide.
Float ascends due to flotation and opens the chamber hole, allowing the pressure to enter the chamber. Piston descends due to internal pressure and the force of spring, and the accumulated drain is discharged through drain guide.
