6HP Refrigeration HCFC compressor wholesale
- Category: >>>
- Supplier: Taixing Jingchuang Penguin Refrigeration Equipment Factory (general Partnership)
Share on (60775967535):
Product Overview
Description
6HP Refrigeration HCFC compressor wholesale
Product Description

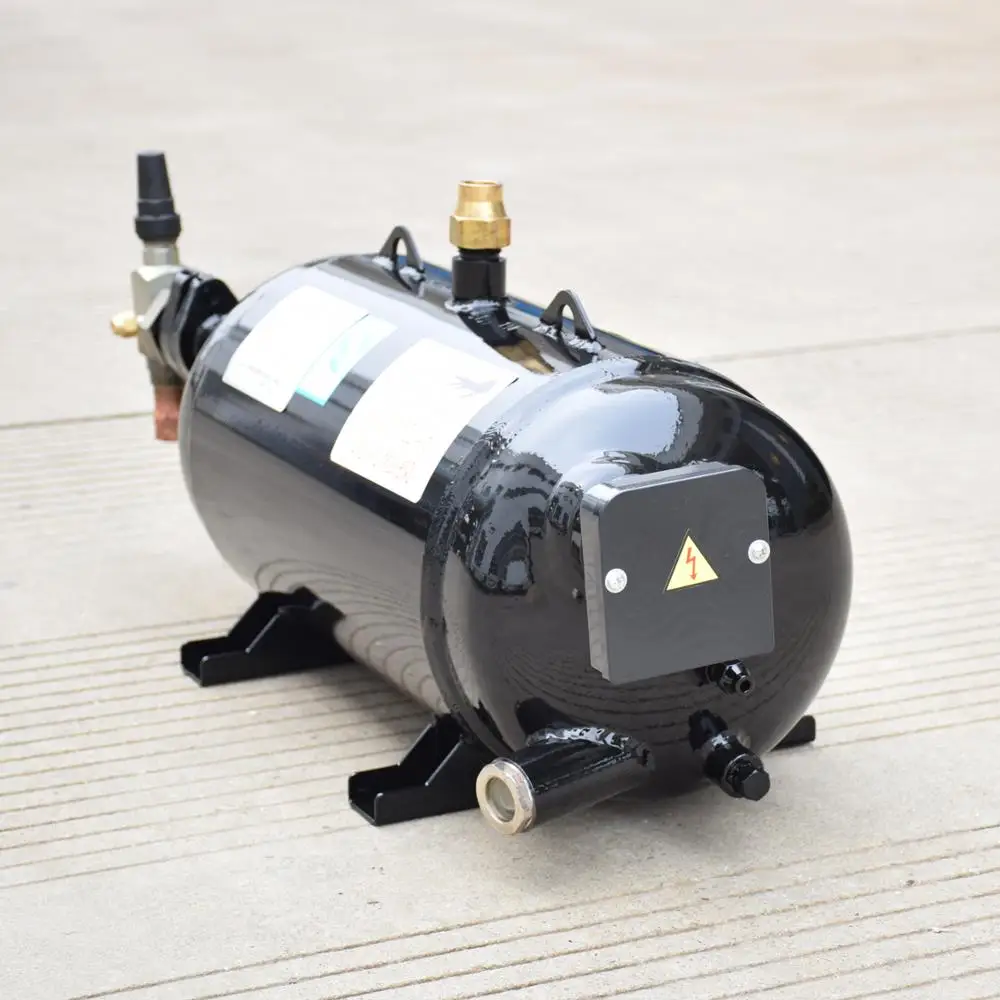

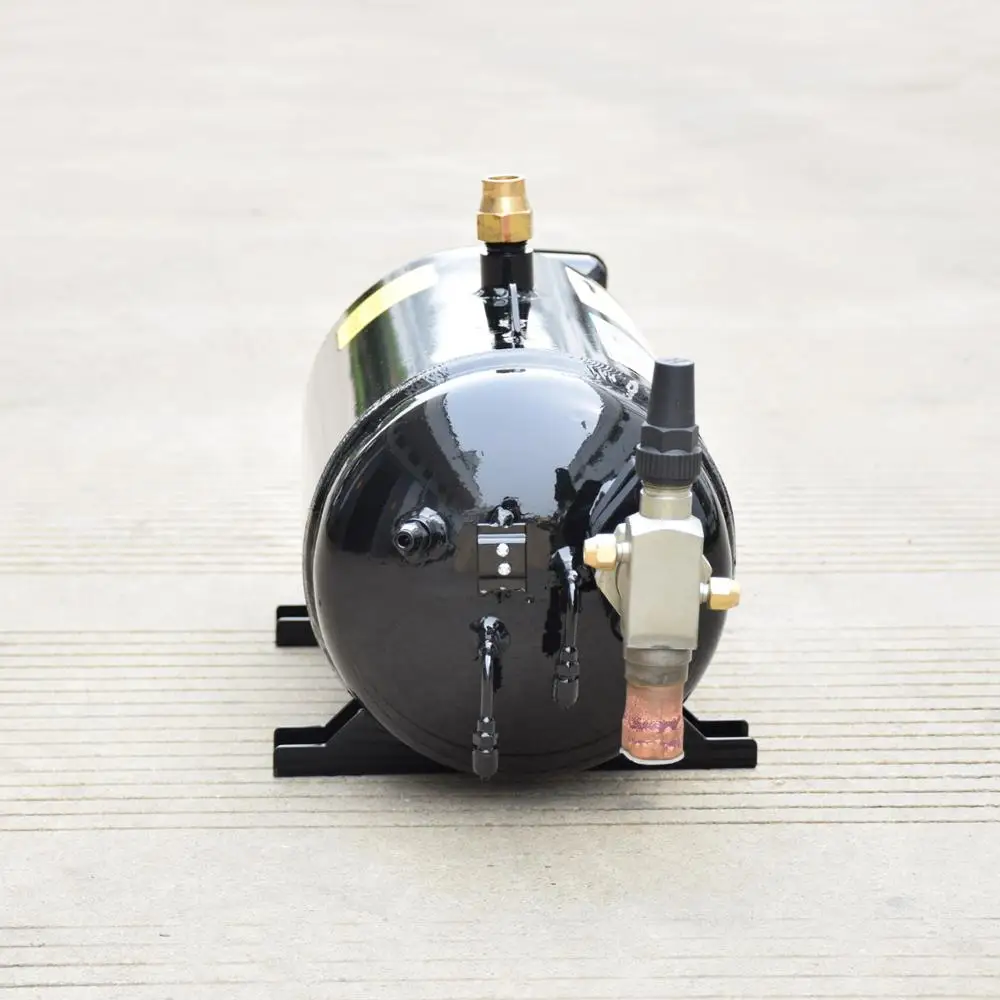

VR-6D Hermetic scroll compressor

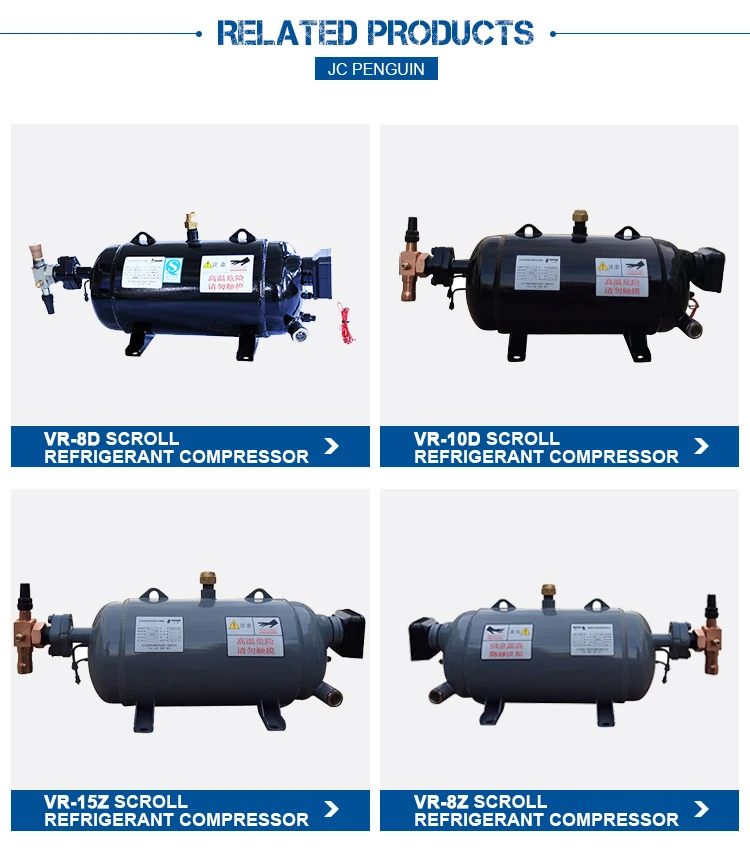

Related Products
Technical Parameter
| VRD Scroll compressor (Low temperature application) | |||||
| Technical parameter&Application Scope | |||||
| Evaporating Temperature:0℃~-45℃(air-cooled),+5℃~-45℃(water-cooled) | |||||
| Condensing Temperature:air-cooled≤40℃,water-cooled≤36℃ | |||||
| Discharge Temperature≤125℃ | |||||
| Model | VRD4 | VRD5 | VRD6 | VRD7 | |
| Motor nominal power | HP | 4HP | 5HP | 6HP | 7HP |
| Displacement | m³/h | 12m³/h | 15m³/h | 17.8m³/h | 21m³/h |
| Motor Power | kw | 3kw | 3.7kw | 5.2kw | 5.5kw |
| Dimensions LWH | mm | 490*248*295 | 490*248*295 | 490*248*295 | 760*280*331 |
| Foot mounting dimensions LW | mm | 200*190 | 200*190 | 200*190 | 275*250 |
| Applicable refrigerant | R22 R404A | ||||
| Rated Speed | rpm | 2900rpm | |||
| Motor Type | Three-phase Two-stage Motor | ||||
| Insulation Class | ClassH | ||||
| Power | 3Φ380V/50Hz | ||||
| Lubrication Mode | High pressure oil supply | ||||
| Refrigerating Oil | R22:MORESCO BF—32H,R404A:FVC32D,Synthetic lubricating oil RL32 | ||||
| Heater | W | 80W | |||
| Oil injection quantity | L | 1.8L | 1.8L | 1.8L | 2.2L |
| Suction valve diameter | mm | 22mm | 22mm | 22mm | 32mm |
| Exhaust valve diameter | mm | 16mm | 16mm | 16mm | 16mm |
| Weight | Kg | 42Kg | 55Kg | 65Kg | 85Kg |
| The above-mentioned parameters are subject to actual data. | |||||

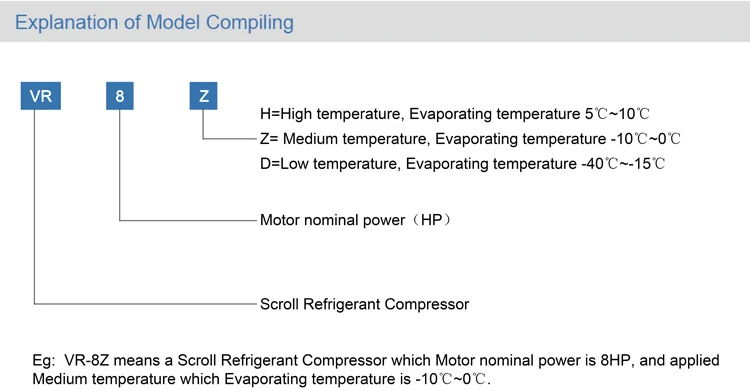

Model Compiling
| Refrigeration Capcaity Table | |||||||||
| VRD6-17.8m³/h | Condensing temperature | Refrigerating capacity Qo(kW) Power P(kW) | |||||||
| Evaporating temperature ℃ | |||||||||
| -45 | -40 | -35 | -30 | -25 | -20 | -15 | |||
| R22 | 35 | Qo(kW) | 3.75 | 4.90 | 6.27 | 7.71 | 9.23 | 11.39 | 13.62 |
| Power(kW) | 3.83 | 3.83 | 3.83 | 3.83 | 3.89 | 3.89 | 3.89 | ||
| 40 | Qo(kW) | 3.32 | 4.40 | 5.63 | 6.92 | 8.30 | 10.25 | 12.18 | |
| Power(kW) | 4.02 | 4.04 | 4.04 | 4.04 | 4.11 | 4.11 | 4.11 | ||
| 45 | Qo(kW) | 2.88 | 3.75 | 4.80 | 5.91 | 7.14 | 8.80 | 10.45 | |
| Power(kW) | 4.18 | 4.15 | 4.18 | 4.18 | 4.18 | 4.25 | 4.25 | ||
| R404A | 35 | Qo(kW) | 3.82 | 5.05 | 6.49 | 7.92 | 9.51 | 11.74 | 13.98 |
| Power(kW) | 3.83 | 3.83 | 3.83 | 3.83 | 3.89 | 3.89 | 3.89 | ||
| 40 | Qo(kW) | 3.46 | 4.54 | 5.84 | 7.06 | 8.50 | 10.59 | 12.54 | |
| Power(kW) | 4.04 | 4.04 | 4.04 | 4.04 | 4.11 | 4.11 | 4.11 | ||
| 45 | Qo(kW) | 2.96 | 3.89 | 4.98 | 6.13 | 7.35 | 9.01 | 10.82 | |
| Power(kW) | 4.18 | 4.18 | 4.19 | 4.19 | 4.19 | 4.25 | 4.25 | ||
| *Based on the suction temperature of4.4℃,Liquid No subcooler *Speed = 2900 /min (50Hz) | |||||||||

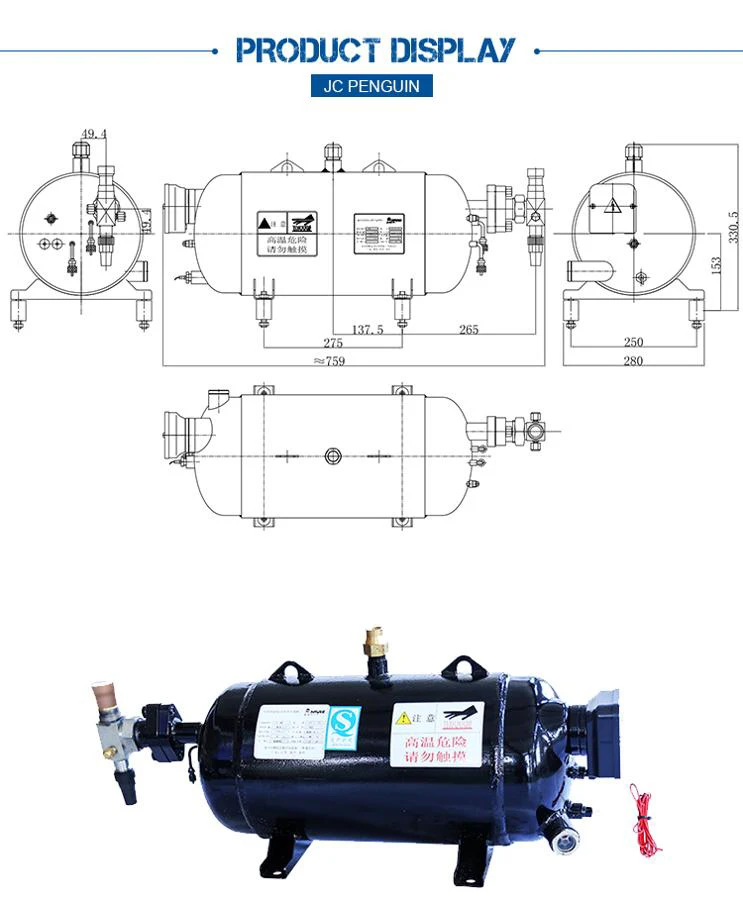

structure chart
Company Information

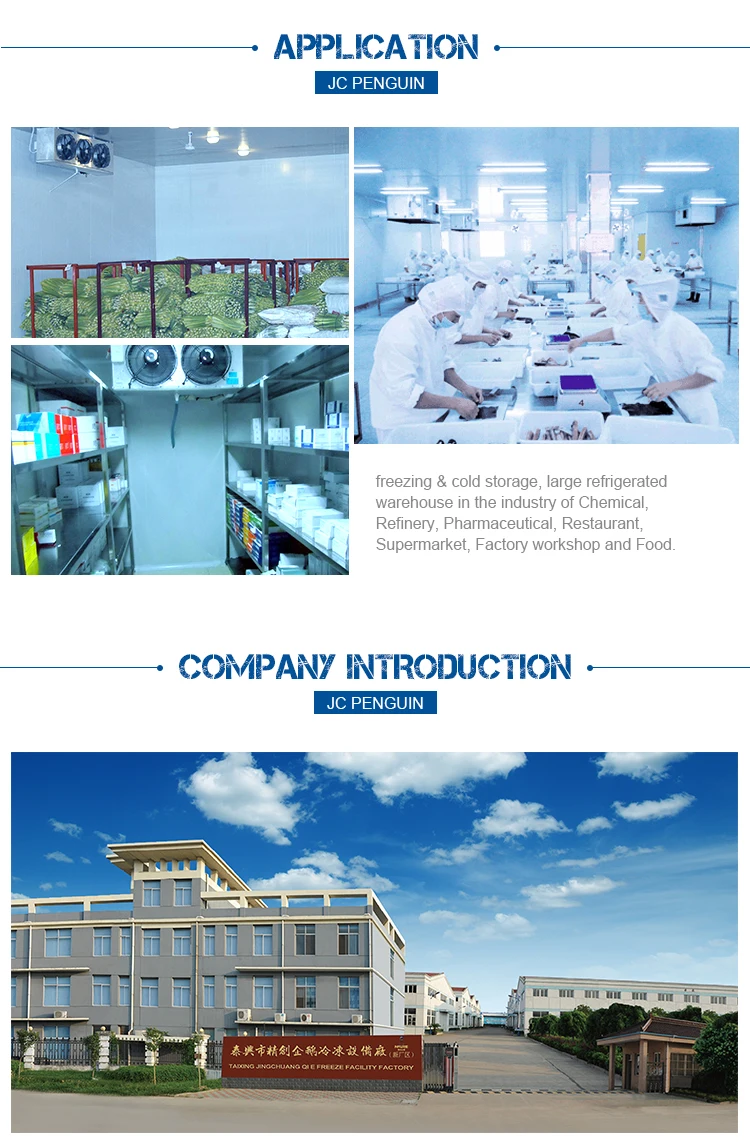

Jiangsu Taixing Jingchuang Penguin Refrigeration Equipment Manufactory (JC PENGUIN) was established in 1992, we are an enterprise specializing in the development and production of refrigerating compressors and related condensing units. The main products range from semi-hermetic Piston refrigerating compressors to scroll and screw refrigerating compressors and related condensing units that have extensively been applied into freezing & cold storage, large refrigerated warehouse in the industry of Chemical, Refinery, Pharmaceutical, Restaurant, Supermarket, Factory workshop and Food.
