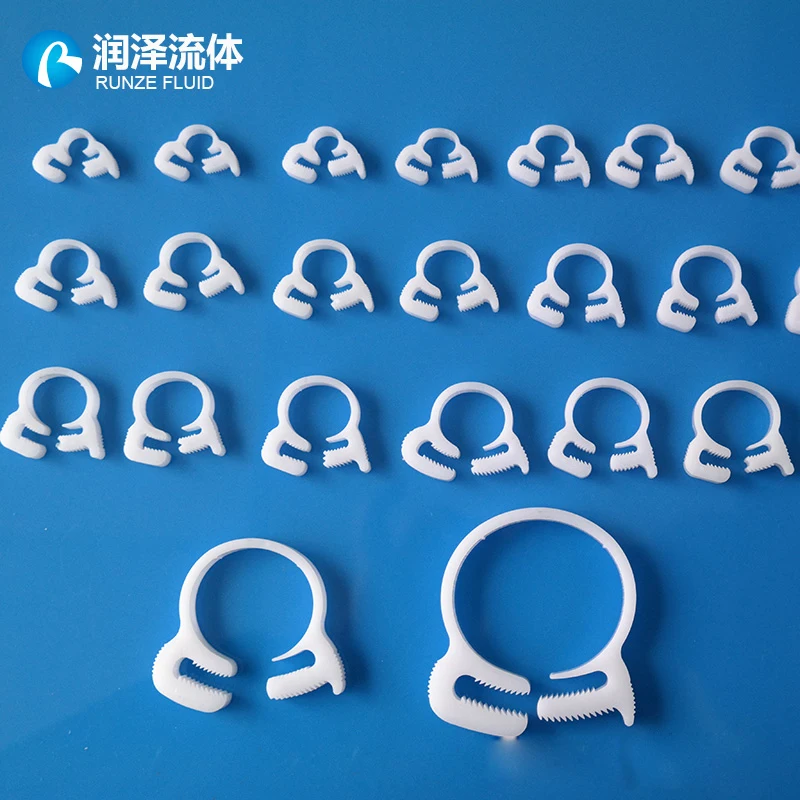

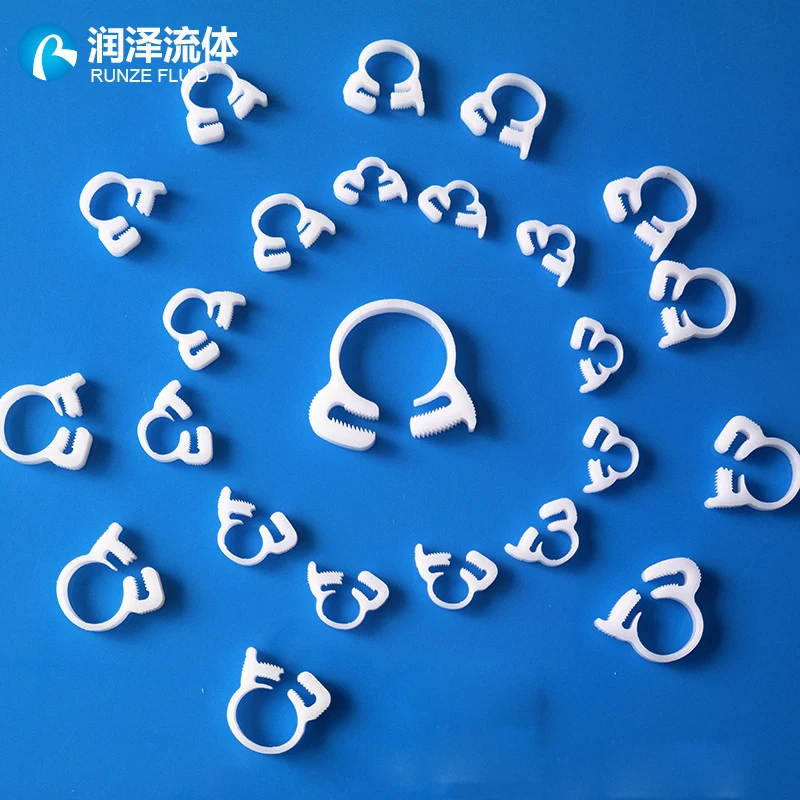

Double Toothed Jaw Ratchet Type Plastic Tubing Hose Clamp

Product Overview

Description







Specification (unit: mm)



Model No. (New)	Material	Color	Adapted Diameter (mm)	Product Width (mm)	Qty.
HG00001	POM        (For non-corrosive and weak corrosive liquid)	White	3.8-4.3	22	500-pk
HG00004			4.3-4.8	22
HG00003			4.9-5.4	22
HG00029			5.5-6.0	22
HG00012			6.0-6.5	22
HG00002			6.5-7.0	23
HG00017			7.0-7.5	24
HG00007			7.5-8.0	24
HG00008			8.0-8.5	26
HG00022			8.6-9.1	26
HG00015			9.1-9.6	26
HG00009			9.6-10.2	25
HG00010			10.2-10.7	26
HG00019			10.7-11.2	25
HG00020			11.1-11.6	25
HG00011			11.6-12.1	24
HG00013			12.0-12.5	26
HG00021			12.6-13.1	28
HG00028			12.3-14.0	25
HG00018			13.1-13.6	33
HG00026			13.7-14.2	28
HG00030			14.2-14.7	27
HG00023			14.7-15.2	27
HG00024			15.2-15.7	27
HG00025			24.3-26.1	48
HG00031			35.5-37.5	51



































































Advantages



1. Easy disassembly and installation, recycle use, strong force, long service life, excellent fastening effect.

2. Imported engineering plastic, anti-corrosive, anti-organic solvent, anti-oil (note: no resistance to acid and alkali)

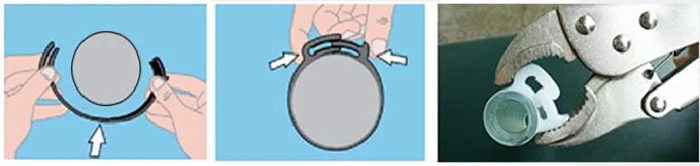

Disassembly way



Clamp the outermost tooth with a wire-cutter(please don’t clamp left and right tooth together),move flatly and gently as the tooth slot, fleetly twist it with small angle(upper and nether tooth misplaced),then it will be loosened, Pls note keep small angle when twisting to ensure the tooth undeformed when misplaced it is reusable.







Color difference



Color difference is caused by different production equipment, different parameters equipment during moulding injection, different batches, but property of hose clamp be ensured to be the same with same raw materials.
