Electric motor for bicycle bafang max drive brushless hub motor 24v 250w
Position | Front Motor | Weight (kg) | 2.0 |
Wheel Diameter (Inch) | 16/20 | Noise Grade (dB) | < 50 |
Construction | Gear drive | Operating temperature | -20-45℃ |
Rated Voltage (DCV) | 36/43 | Color | Black / Silver |
n0 (Rpm) | 335; 370 | IP | IP 65 |
Rated Power (W) | 220 | Certifications | ROHS / CE |
nT(Rpm) | 290:325 | Salt Spray Test Standard(h) | 96 |
Max Torque | 28 N.m | Efficiency (%) | ≥ 80 |

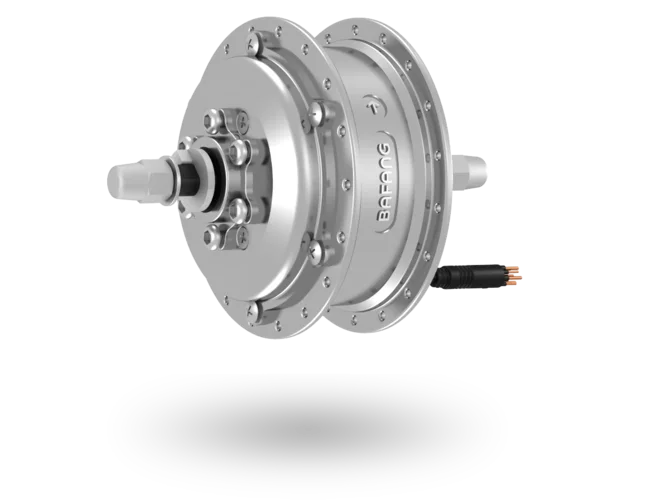

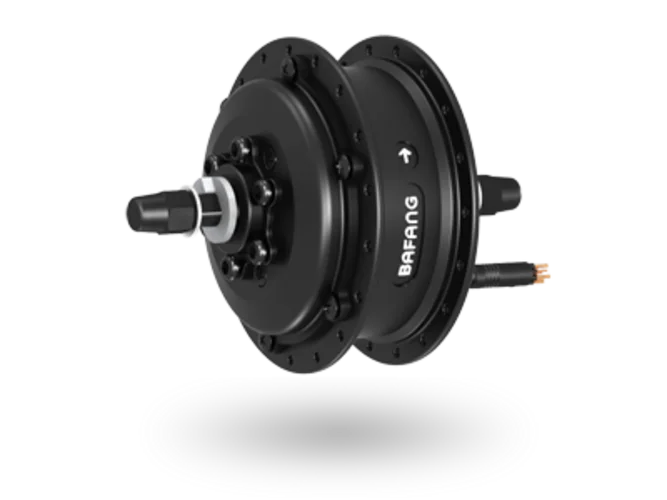

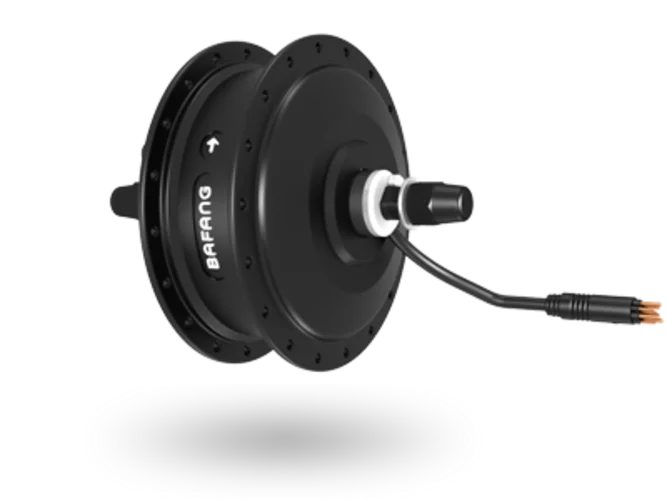

This front-drive motor, which has an inner rotor, is compatible with a disc or a V brake and has a rated power of 220W. Because of its inner rotor design and a large reduction ratio (1:12.5), the motor's power can be effectively released. Small in size, light in weight, high in efficiency, and smooth & quiet in running, this motor is suitable for city bikes. This motor can be black or silver.
