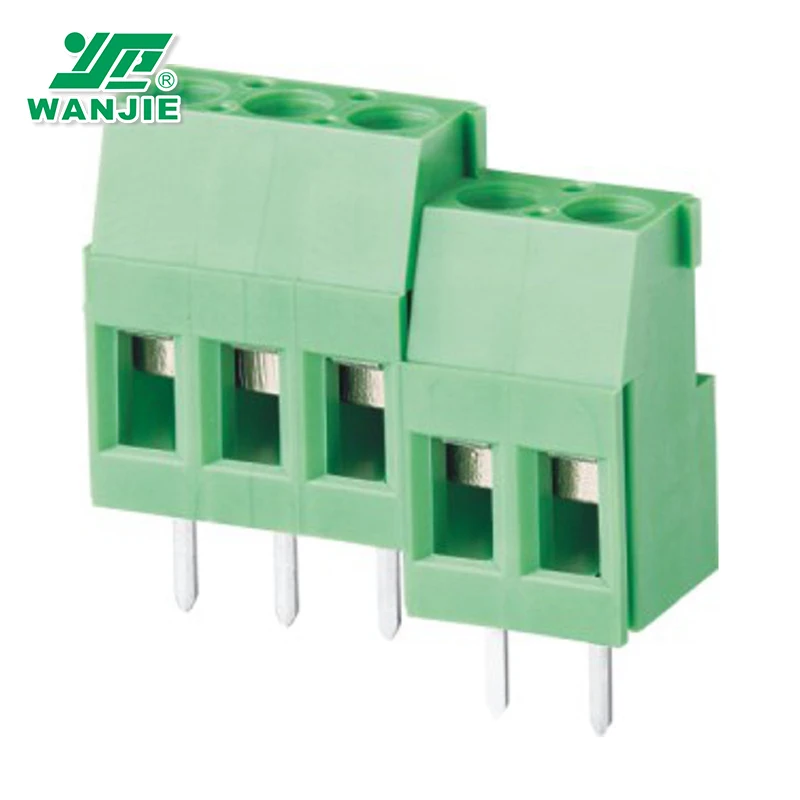

VDE Approved PCB screw Terminal Block(pitch 5.0mm, 5.08mm) WJ129 5.0/5.08
VDE Approved PCB screw Terminal Block(pitch 5.0mm, 5.08mm) WJ129-5.0/5.08

VDE Approved PCB screw Terminal Block(pitch 5.0mm, 5.08mm) WJ129 5.0/5.08

Share on (60776029665):


Price:

Quantity:


Product Overview

Description


UL VDE Approved PCB screw Terminal Block(pitch 5.0mm, 5.08mm)






Product Description


Material
























ScrewsM3.0 Steel Zn plated
CageBrass,Ni plated
Pin headerBrass,Sn plated
HousingPA66  UL94V-0




Electrical

































Standed            UL                             IEC
Rated voltage          300V                           250V
Rated current           20A                            20A
Wire range        26-12awg                     2.5mm2
Contact resistance                         20mΩ
Insulation resistance                   500MΩ,DC500V
Withstanding voltage                     AC2000V/1Min







Mechanical
























Temp.range-40℃-+105℃
Max.soldering+250℃ for 5 sec
Torque5.10kgf-cm/0.5Nm/4.43Lbin
Strip length6-7mm
