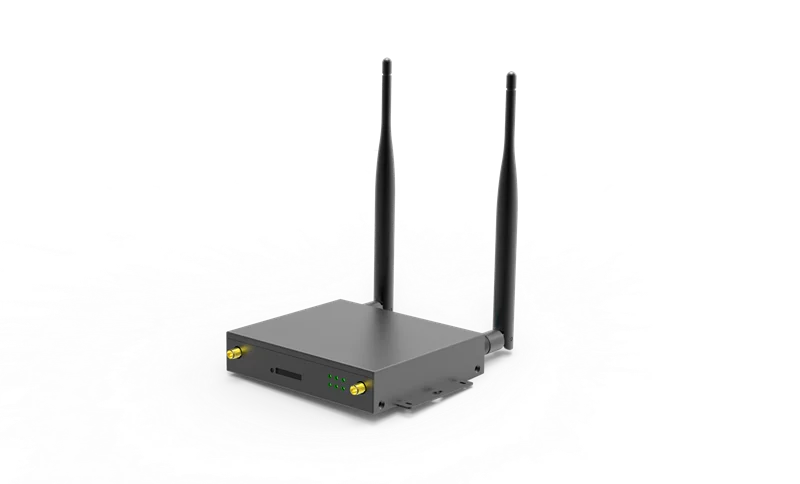

4G LTE CPE with LTE antenna, fast WAN/LAN,3g/4g wireless router with sim card slot
- Category: >>>
- Supplier: Shenzhen Yunlink Technology Co. Ltd.
Share on (60776037260):
Product Overview
Description
4G LTE CPE with LTE antenna, fast WAN/LAN,3g/4g wireless router with sim card slot
Product Description

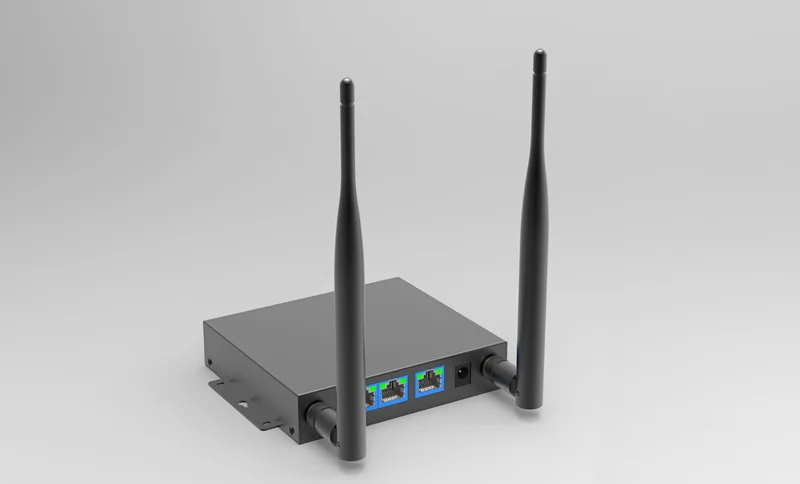

T530 is an 4G wireless router with metal case; Design in Qualcomm Chipset, Comply with IEEE 802.11b/g/n MIMO standard, the data rate up to 300Mbps, more than 50 end users can access into it; With SIM card slot, build in ZTE/Huawei LTE module, it support FDD-LTE/TDD-LTE for worldwide use with 100Mbps uplink/downlink speed. Beside that, there are 2*10/100Mbps WAN/LAN ports, support PPPoE/Static IP/Dynamic IP if no 4G Ethernet. What’s more, there is console port, easy for engineering debug.
Hardware
Name | Details |
CPU | Qualcomm QCA9531,533MHz Frequency, 32KB Dcache, 64KB Icache |
FLASH | Industrial SPI NOR FLASH 16Mbyte |
SDRAM | Industrial DDR2 128Mbyte |
RF-FEM | SKYWORKS-2.4G FEM |
DC-DC | MAX 18V-IN, DC TO DC |

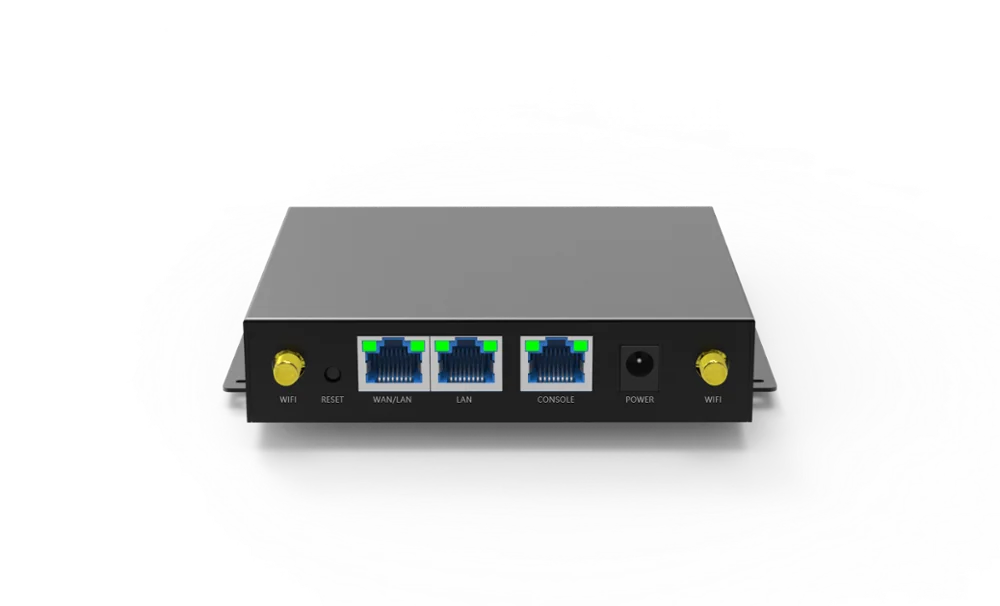

Interface:
Name | Details |
LAN | 1*10/100MBase-T LAN, support IEEE 802.3/802.3u auto-negotiation |

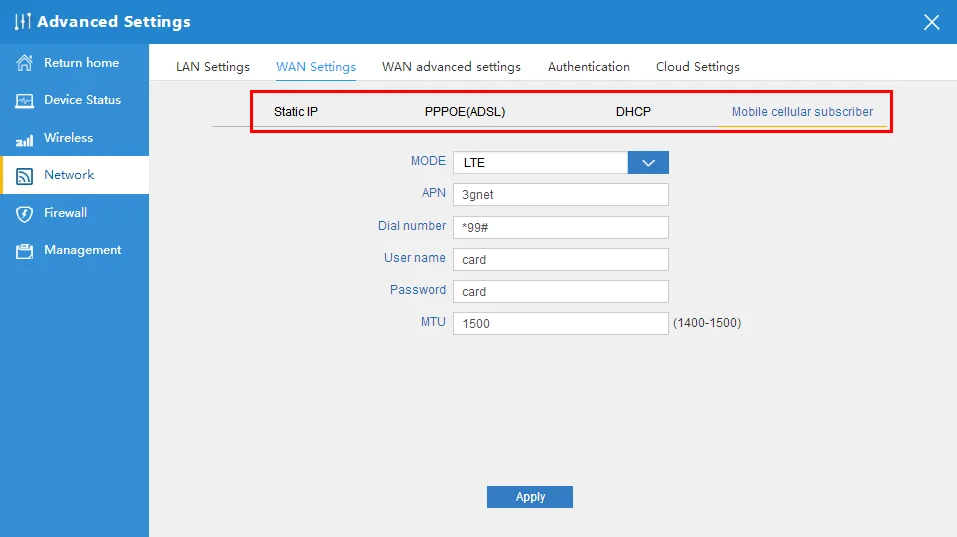

WAN/LAN | 1*10/100MBase-T WAN/LAN, support IEEE 802.3/802.3u auto-negotiation; It is LAN port when work as 4G Router, WAN port when work as wireless router |
Console | RJ45 Port (Tx-6, Rx-3, GND-4,5), Baud Rate 115200bps |

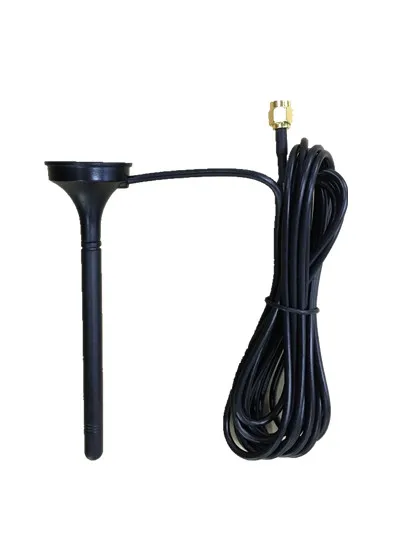

4G Antenna Connector (Selective) | External Female SMA Connector, Impedance 50Ω |
WIFI Antenna Connector | External Male SMA Connector, Impedance 50Ω |
SIM Card Slot | Support SIM Card Slot |
DC Power | 12V/1.5A |
RESET | Press it 10 seconds, Reset to factory default |
LED Light | 1*Power; 1*Online; 1*WiFi; 3*Signal Strength; 1*Link; |

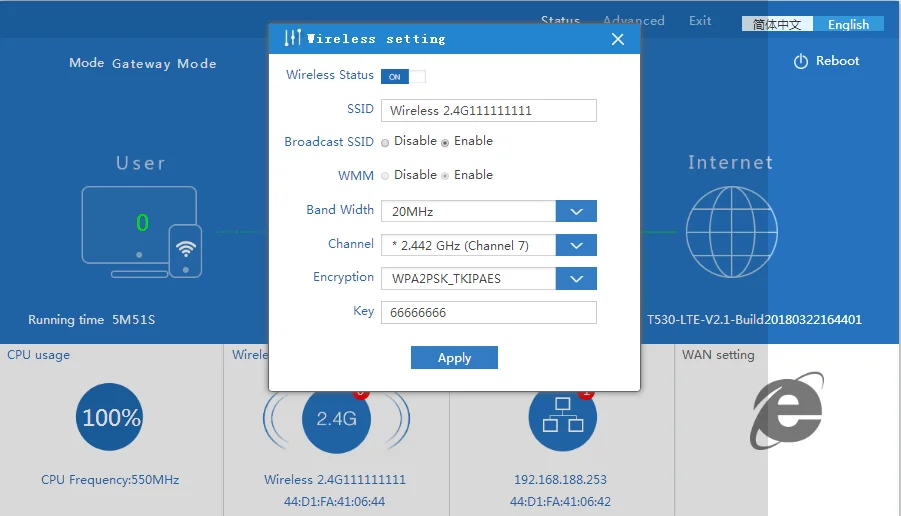

2.4GHz RF Power
Name | Content |
RF Power | 11n @MCS7:21±2dBm, @MCS0:24±2dBm. 11g @54M:22±2dBm, @6M:25±2dBm. 11b @11M:24±2dBm, @1M:26±2dBm. |
Receive Sensitivity | 11n: -70dBm@MCS7, -88dBm@MCS0. 11g: -72dBm@54Mbps, -90dBm@6Mbps. 11b: -85dBm@11Mbps, -94dBm@1Mbps. |
EVM | 11n: ≤-28 dB 11g: ≤-25 dB 11b: ≤-10 dB 11a: ≤-25 dB |
Channel | 1~13, Support auto channel |
Standard | 802.11g/n ;802.11b/g |
Bandwidth | HT20/HT40 |
Security | WPAPSK_TKIP/WPAPSK_AES/WPAPSK_TKIPAES/ WPA2PSK_TKIP/WPA2PSK_AES/WPA2PSK_TKIPAES/ (WPA/WPA2PSK_TKIP)/(WPA/WPA2PSK_AES)/ (WPA/WPA2PSK_TKIPAES )/WPA-EAP/NONE |
RF Power Adjustable | Support |
Name | Content |
LTE Module Model | ZTE: ME3630-C1C |
Band Support | GSMB3/8; CDMA1X CDMA EVDO 800M; WCDMA B1; TD-SCDMA B34/39; LTE FDD B1/3/5; LTE TDD B38/39/40/41 |
LTE Module Model | Huawei: ME909s-821 |
Band Support | GSMB3/8; WCDMA B1, B9, B5, B8 TD-SCDMA B34/39; LTE FDD B1/3/8; LTE TDD B38/39/40/41 |
Packaging & Shipping
Gift box size: 338*250*73mm
CARTON BOX: 52.5*39.5*36CM
10PCS/CTN
Our Services
1.Samples available if need to test it.
2. Provide OEM/ODM service
3. Short delivery time, 7~10 days.
Company Information

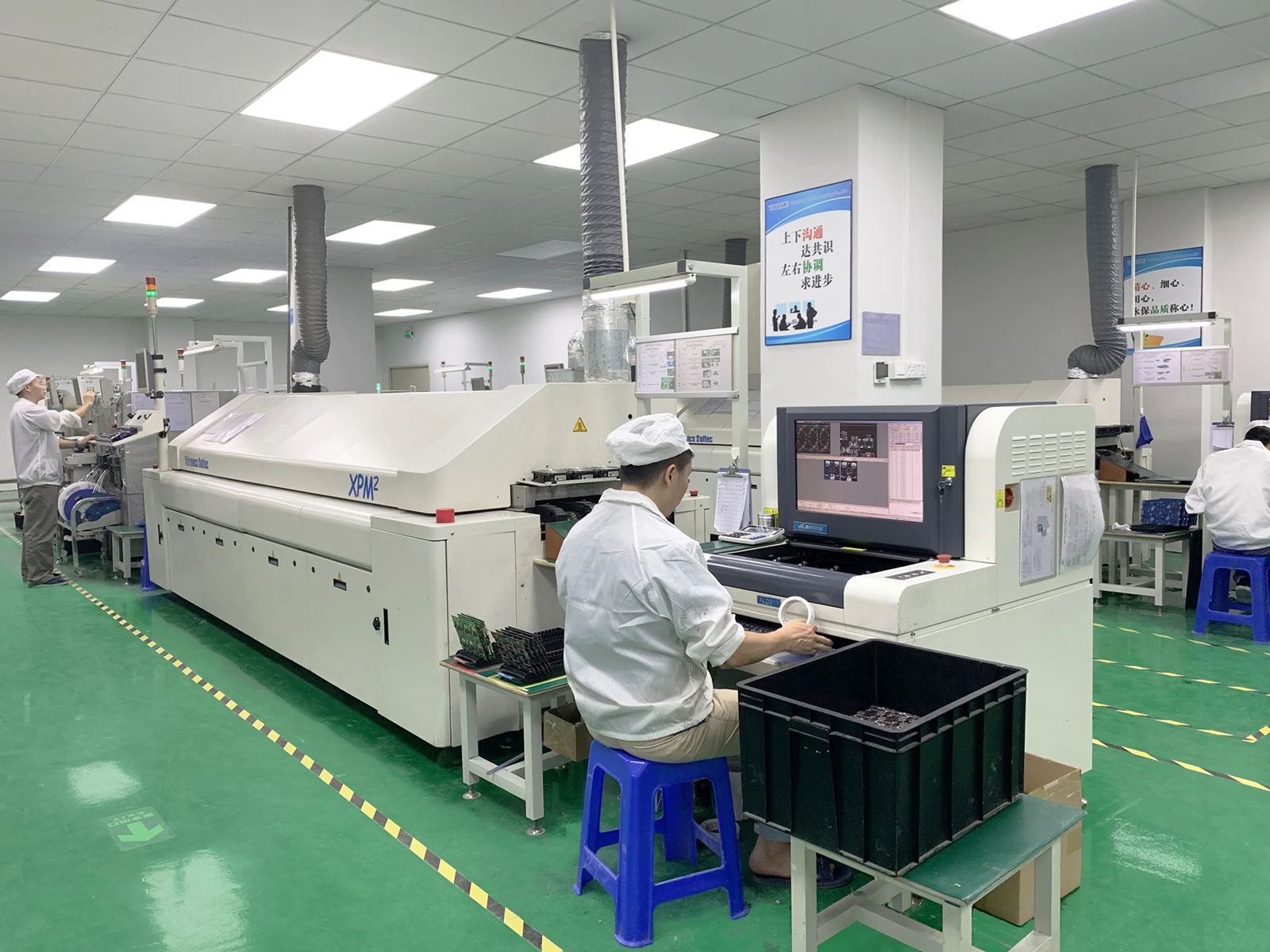

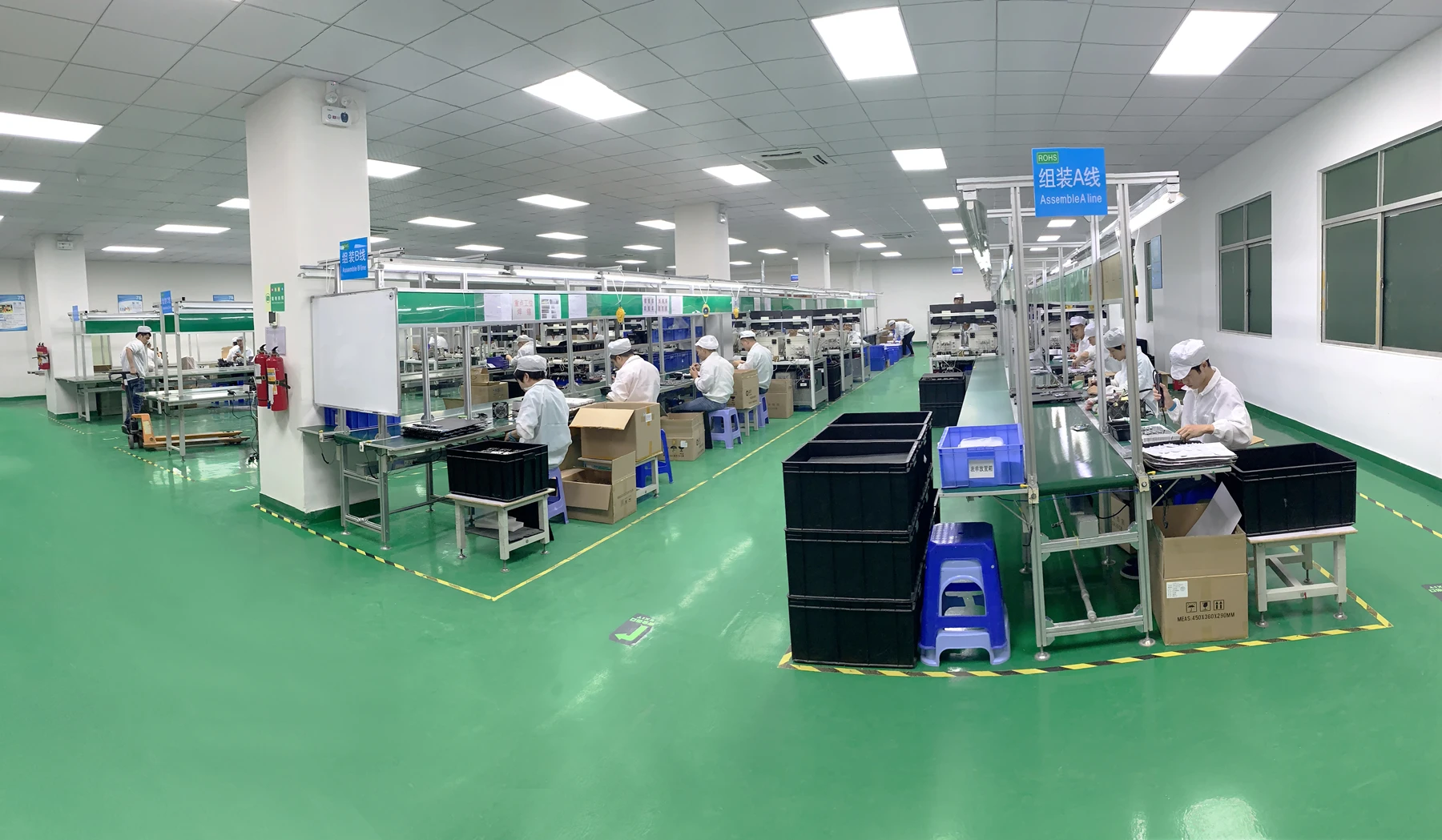

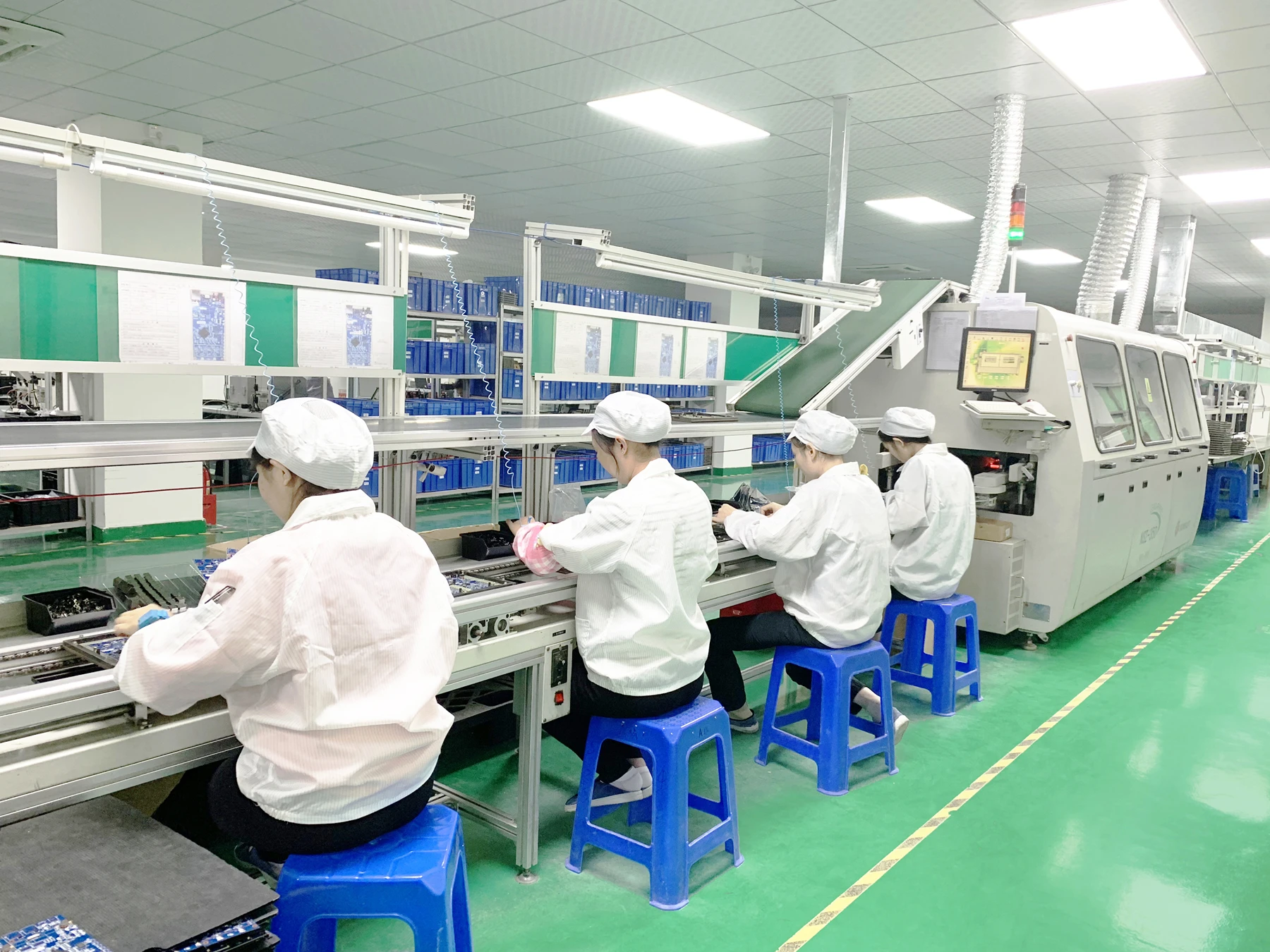

SGS Certified Factory Picture:
Our Certification:
FAQ
Welcome your inquiry if any questions you have:
Contact: | M.P and WhatsApp |
Mr. Jessy | +86-13760492976 |
Mr. Kimi | +86-13632614875 |
Mr. Stone | +86-18825212132 |
Mr. Leckie | +86-18676731545 |
Mr. Jo | +86-13652404407 |
