TONGDA Textile Machine Spare Parts Cone Winder Grooved Drum
- Category: Apparel & Textile Machinery Parts >>>
- Supplier: Qingdao Tongda Textile Machinery Co. Ltd.
Share on (60776038263):
Product Overview
Description

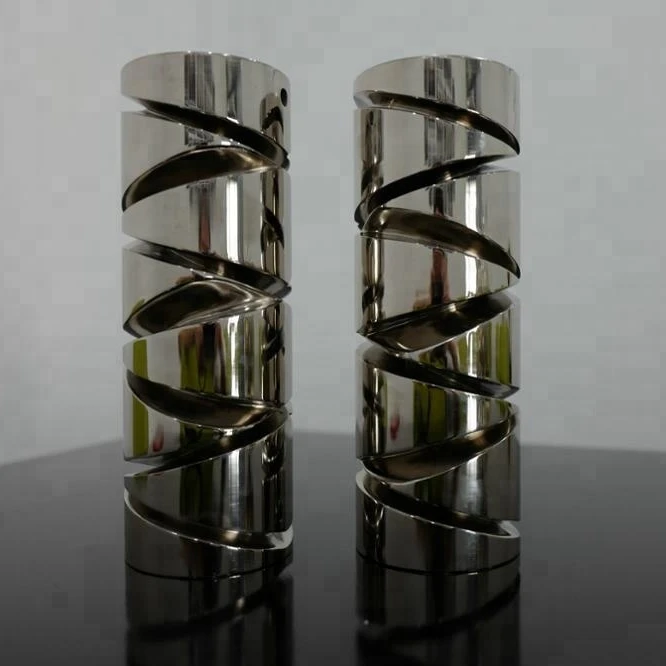

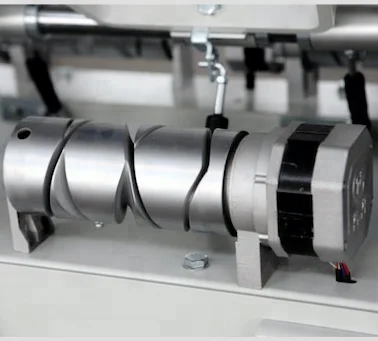

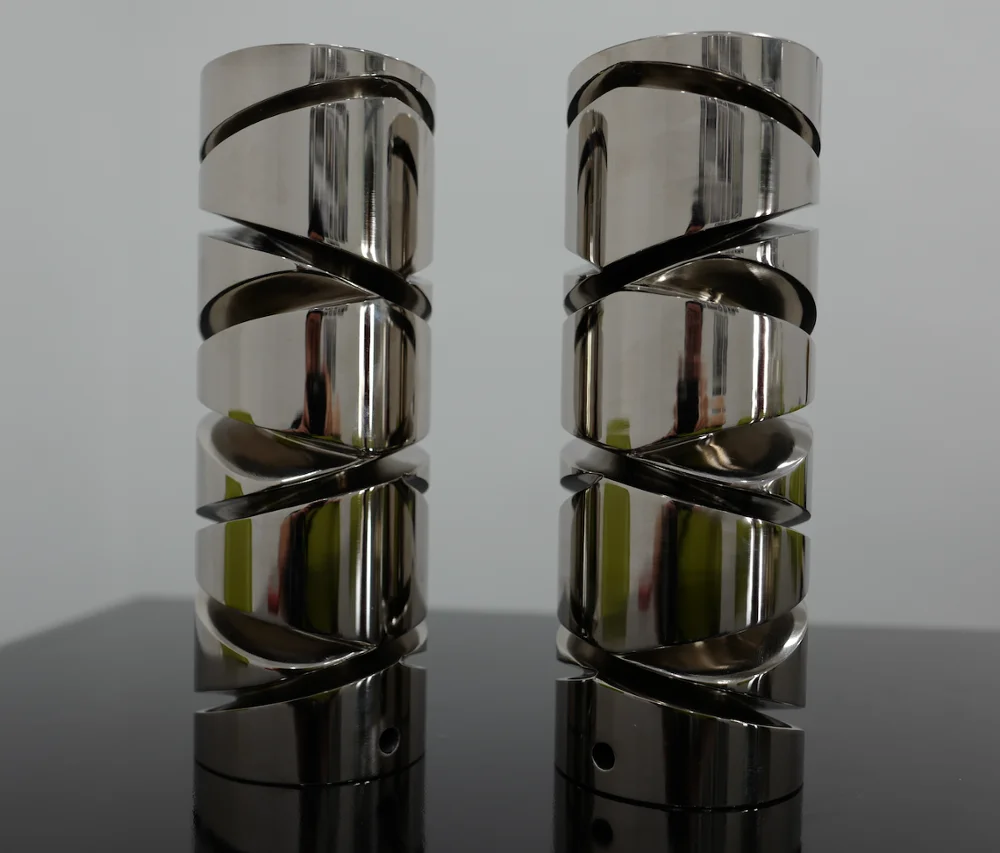

TONGDA Textile Machine Spare Parts Cone Winder Grooved Drum
Product Description
- Modified groove curve, steady yarn linear density and perfect forming.
- Ultra-fine processing, high smooth finish (Ra<0.4μm).
- We plating Cr on the surface, the hardness of the surface is higher than HV900. High wear resistance, static elimination, less hairiness and surface inferior smooth processing.
- The dynamic balance of our grooved drums are highly accurate, perform reliably, the linear velocity can reach 1200m/min.
- Light weight and energy saving.
 |  |
Advantages
- Better wear resistance
- Better corrosion resistance
- Better uniformity
- Longer using life
- Beautiful appearance with modified groove curve
Specification:
| Model | Turns | Lead | hole diameter | outer diameter | Length |
| TDZ | 2 | 152 | cone type | 94mm | 166mm |
| TDJ | 2.5 | 152 | 20mm | 82mm | 176mm |
| TDS | 2.5 | 147 | 20mm | 82mm | 183mm |
| TDB | 2.5 | 154 | 20mm | 82mm | 176mm |
| TDNIP | 2 | 146 | 20,25mm | 95mm | 176mm |
| TDJ1 | 2.5 | 150 | 20mm | 82mm | 176mm |
| TDS2 | 1.5 | 130 | 20mm | 90mm | 147mm |
| TD200 | 2.5 | 200 | 20,25mm | 95mm | 230mm |
| TD200-2 | 2.5 | 200 | 20mm | 82mm | 240mm |
| TD250 | 3.5 | 250 | 20,25mm | 100mm | 280mm |
 |  |
Product Categories

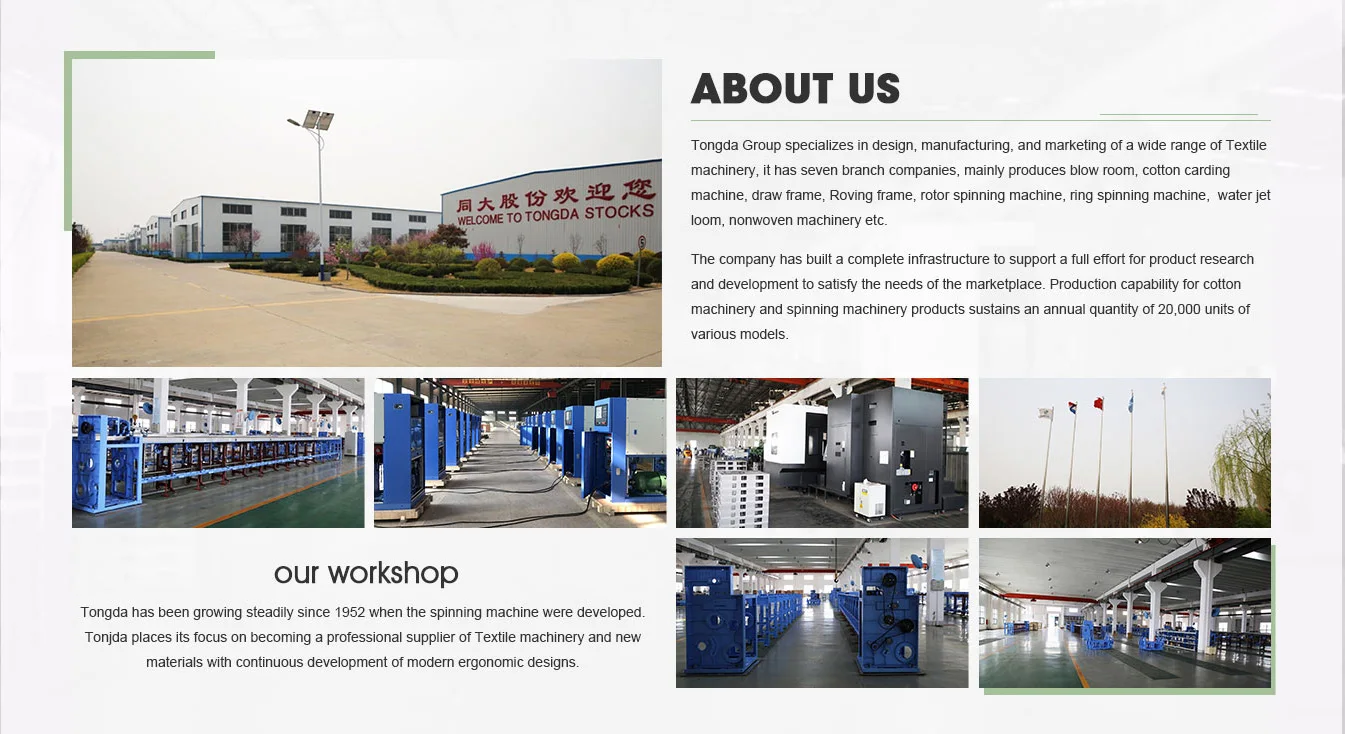

Company Information
- We're established in 1952,our company has been specializing in designing,manufacturing and marketing of a full range oftextile machinery for many years.We have five branch companies now.
- Our main products are that blow room,cotton carding machinery,draw frame,roving frame,rotor spinning
- machinery ring spinning machinery,water jet loom, nonwoven machinery etc.

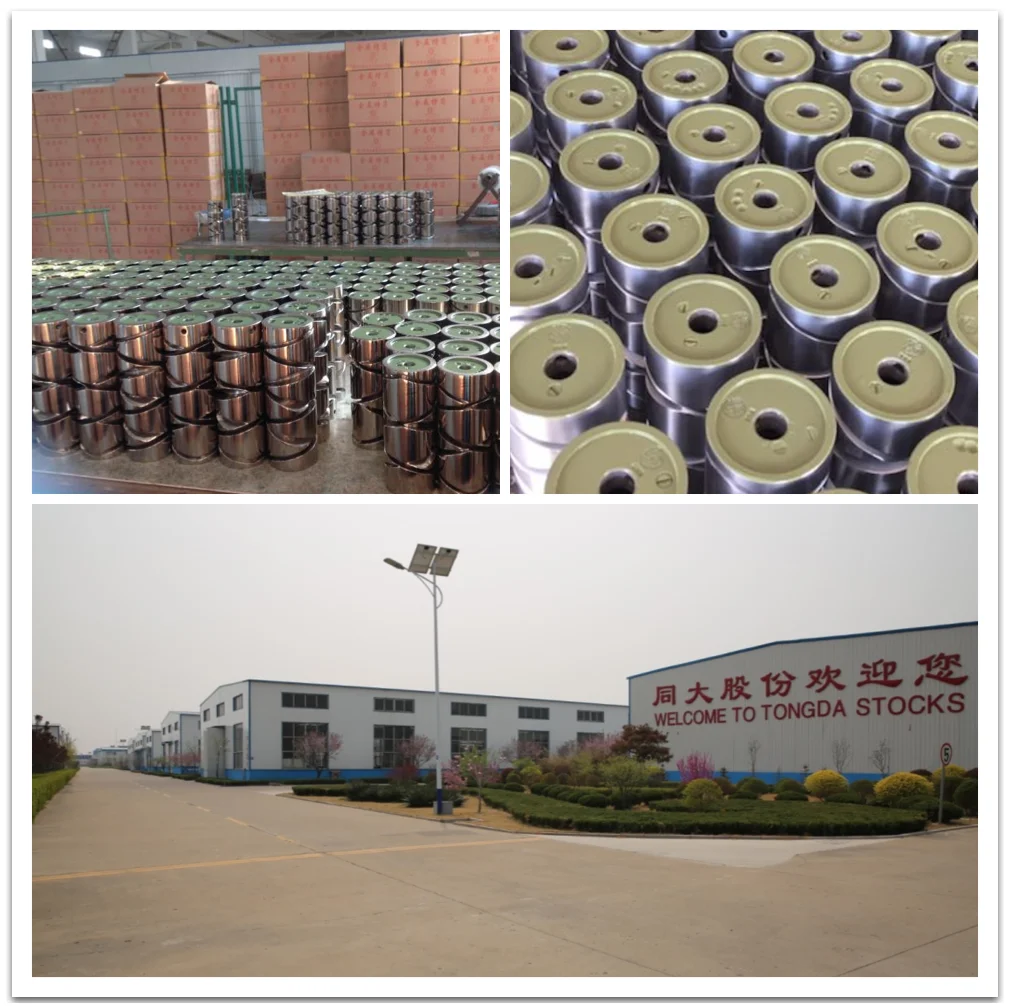

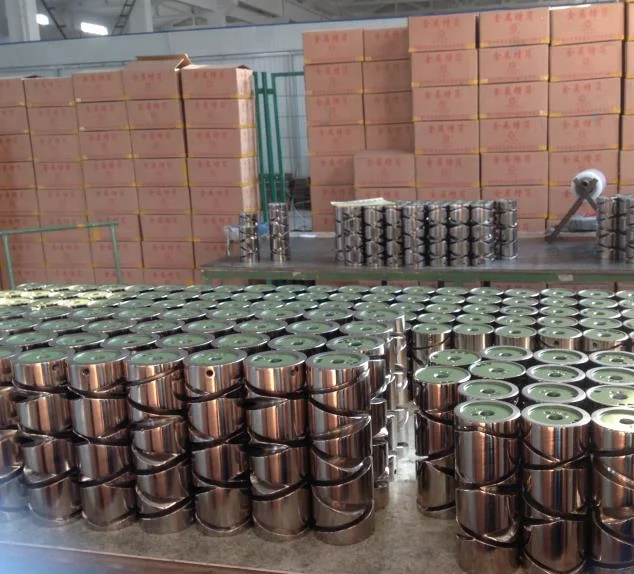

Workshop

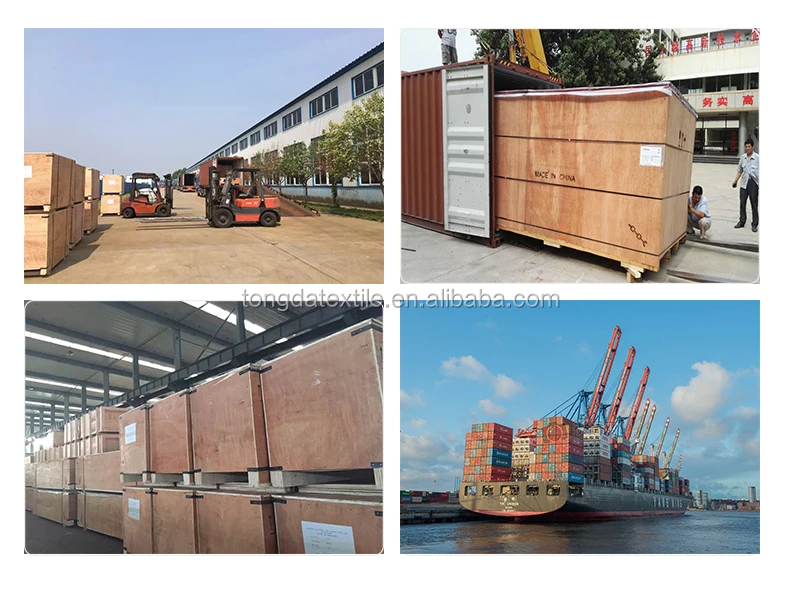

Packaging & Shipping
