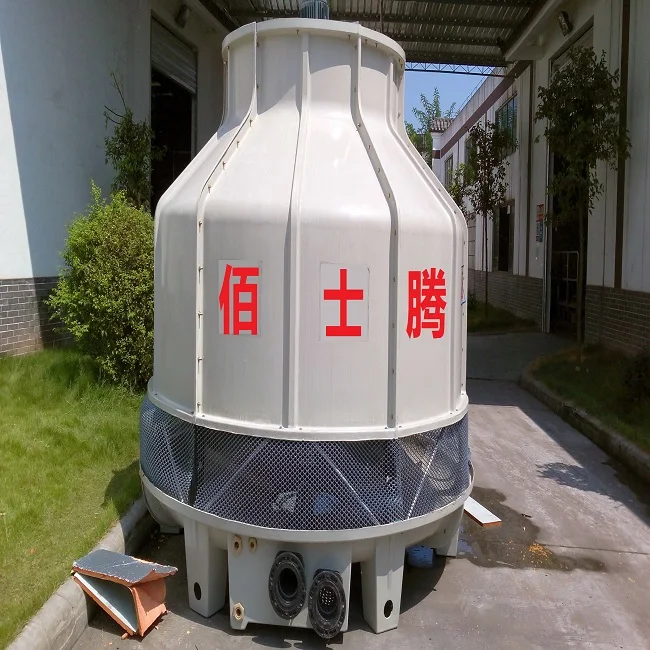

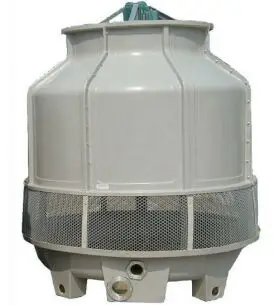

150T with water flow 117m/h fiber plastic water cooling tower The BESTEN brand cooling tower initiatively pursues new concepts of environmental protection in design,
fully adopts new technology development, and completely transforms the materials of the various components
in the cooling tower to achieve high performance.
The main configuration and characteristics of industrial cooling towers: automatic rotating atomized cooling
tower consists of inlet pipe, automatic rotary atomizer, housing, water receiver, fan, motor, inlet window, water
collection basin (water tank), outlet pipe , brackets, escalators and other components.
1.The industrial cooling towers are all made of FRP FRP composite materials. The colored plastic on the
surface has anti-aging, anti-corrosion, and the whole tower is bright, smooth, and not easy to fade.

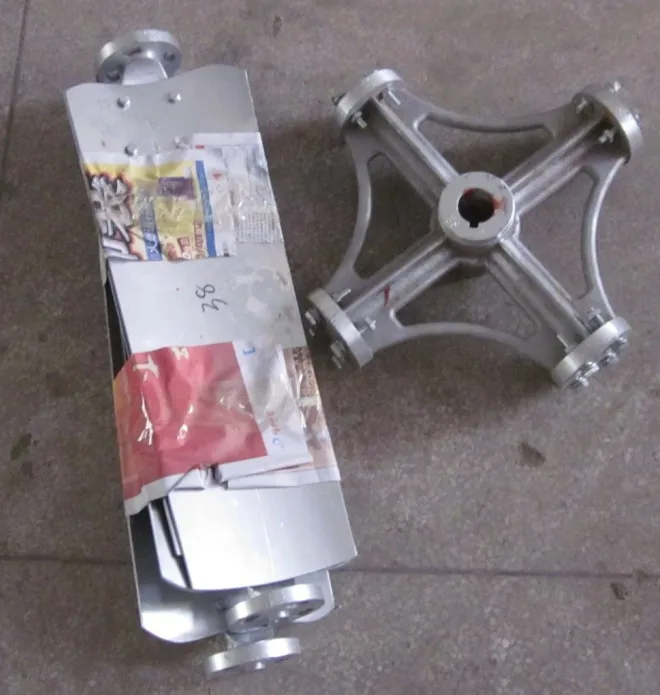

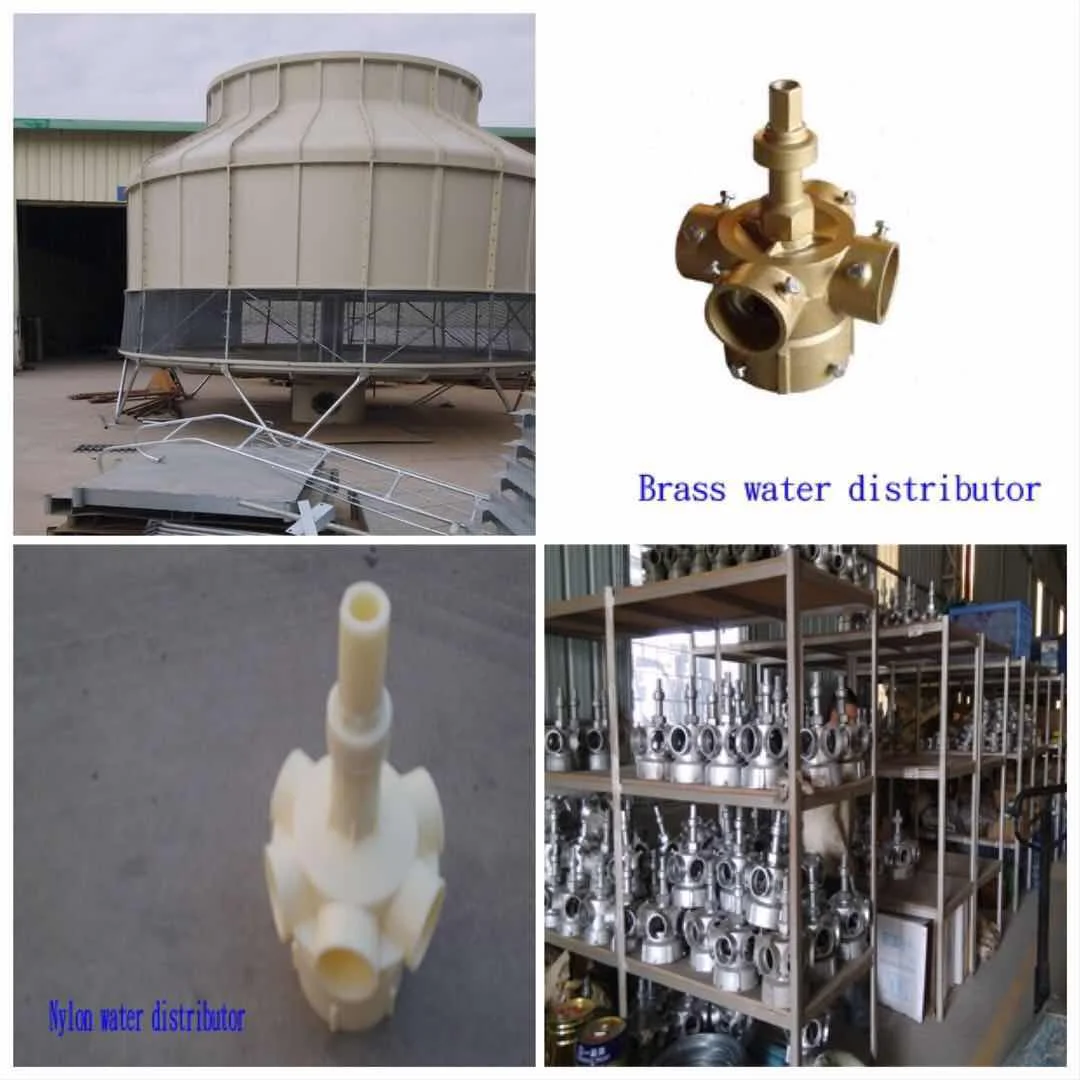

2.The water distribution system adopts copper new nylon rotary water distribution, which has large flow, small
floating water, low noise, uniform water distribution, and low water supply pressure
3.Cooling tower dedicated motor, fan. The tower body is well-matched and has the advantages of high wind
speed, low wind power, and low energy consumption.
4.Filler modified ramp PVC, the test shows that with high strength, high cold efficiency, high temperature, anti-
aging, anti-corrosion, can adapt to poor water quality.
5.All steel brackets are treated with hot-dip galvanizing and then double industrial anti-corrosion paints to
extend the service life.
6.The chassis of the cooling tower can be used as a water collection basin, equipped with automatic,
overflow, sewage discharge and other devices, and can be used as a closed circulating pool without additional
water pool.
7.Mute series is more suitable for residents, offices near the Department, the city's environmental protection
and noise control department, with a unique noise reduction technology.
Technical parameters of BST-100 round cooling tower:
Model
BST-150
flow
117m3/h
Motor
2.25kw
net weight
260kg
Running weight
1680kg
Out of water / into the water
150/150 WI/WO
Full water/drainage
25/25 OF/DR
Tower height
2875 TH
Shell height
1310 CH
Basin height
450 WH
Out/into the water
200/295 IN/OH
Fan diameter
1150 ED
Basin diameter
2900 WD
Base height
300 FH
Center diameter
1180 BC
Screws
11*4 BD

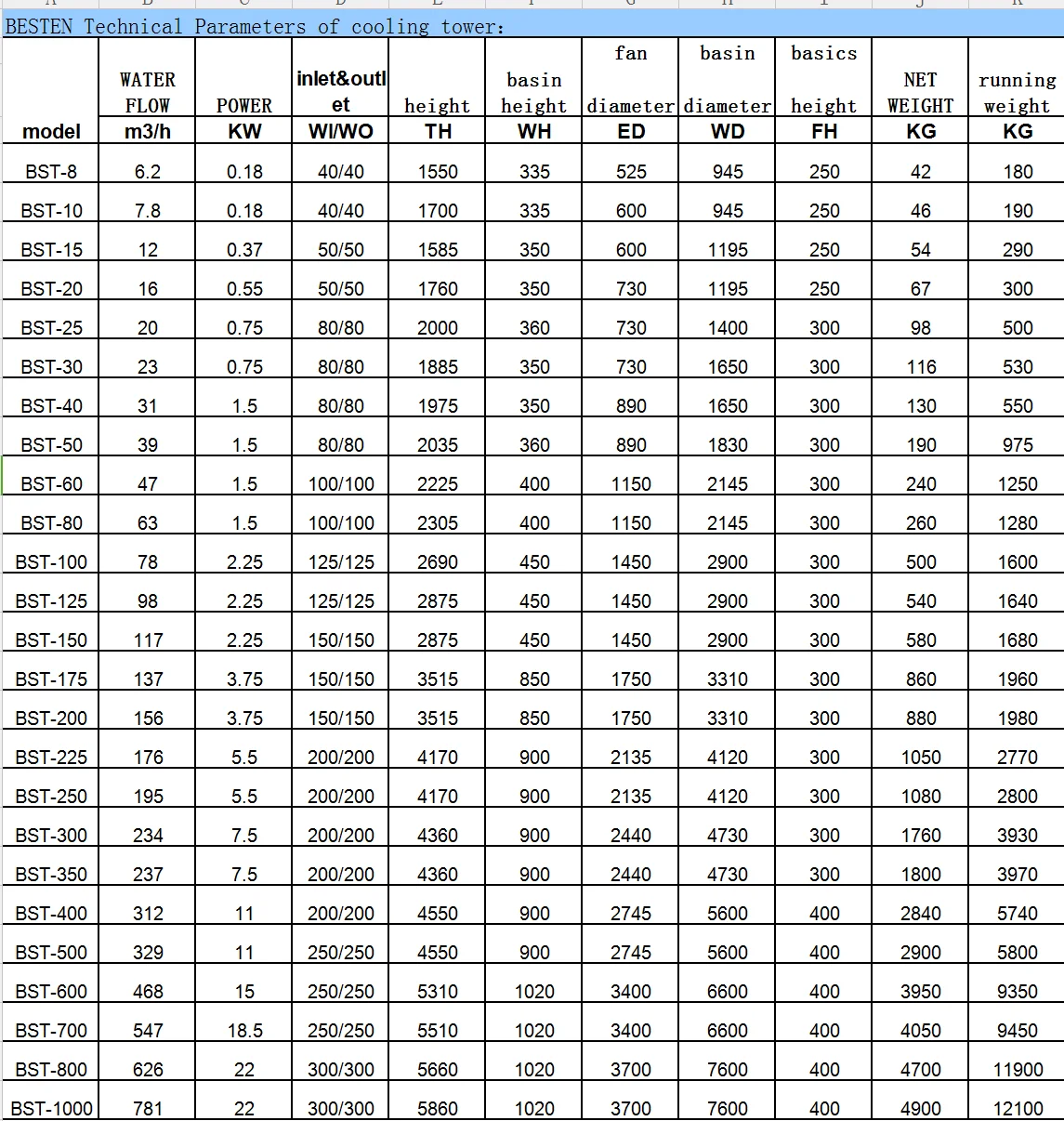

BESTEN brand circular cooling tower other models and technical parameters:
Application: The "BESTEN" brand cooling tower has a wide range of applications and is particularly suitable for the air-
conditioning industry, refrigeration industry, bleaching and dyeing industry, and provides extremely quiet cooling functions
for other general industries.
product details:

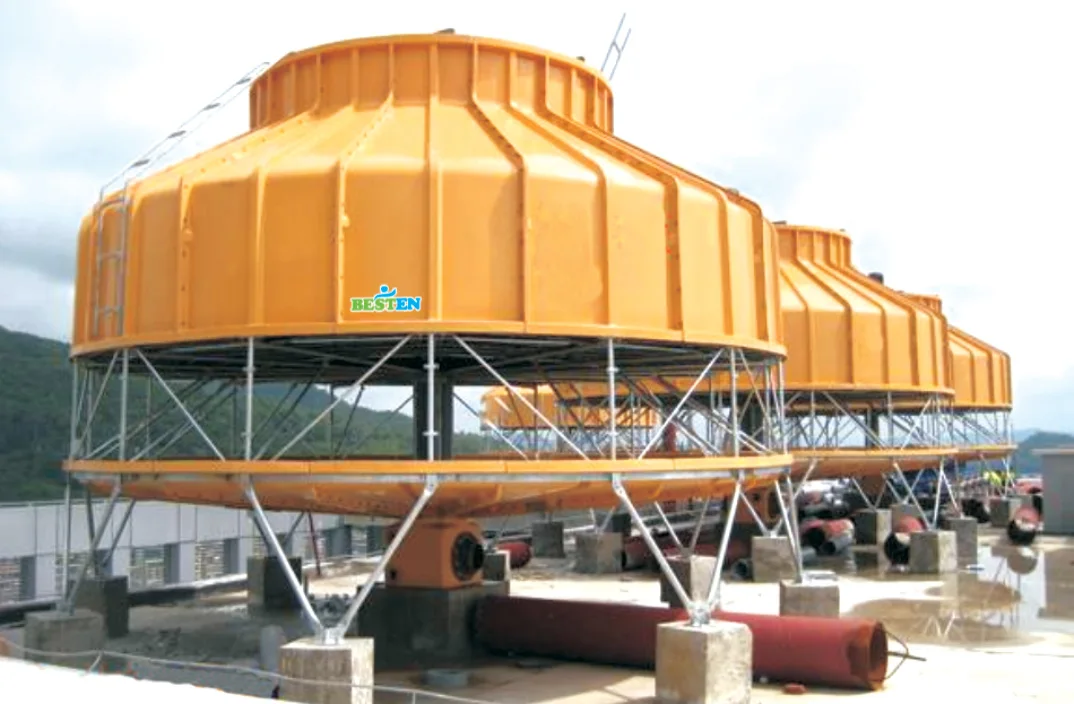

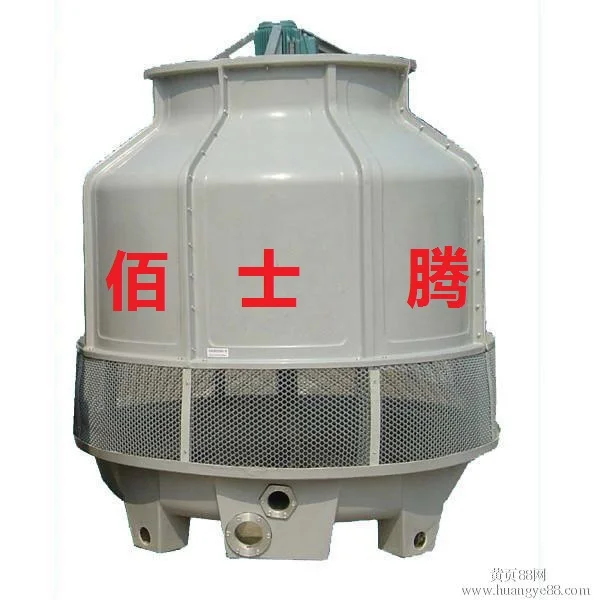

Round tower Fans and motors
Related Products:
welcome to order:

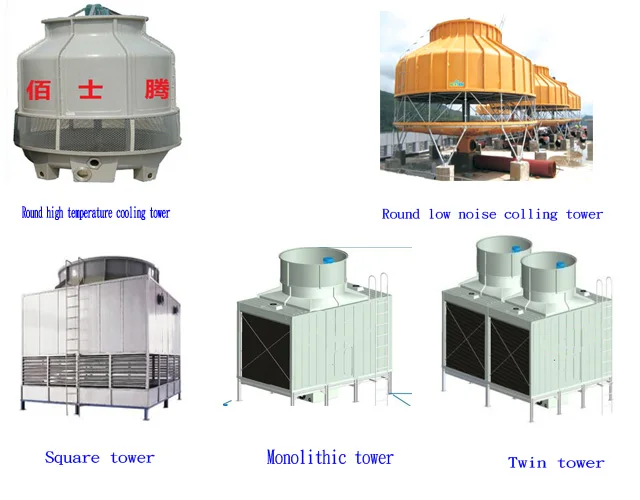

Round low noise cooling tower series Round high temperature cooling tower series Square cross-flow cooling tower series Square Counterflow Cooling Tower Series
Our Services:
1.Free maintenance within 1 year, operating the machine in the right way,
Does not include daily maintenance, also does not undertake pearl river delta travel expense.
2.Our factory provides machine testing when customers come to our factory to see this machine.
