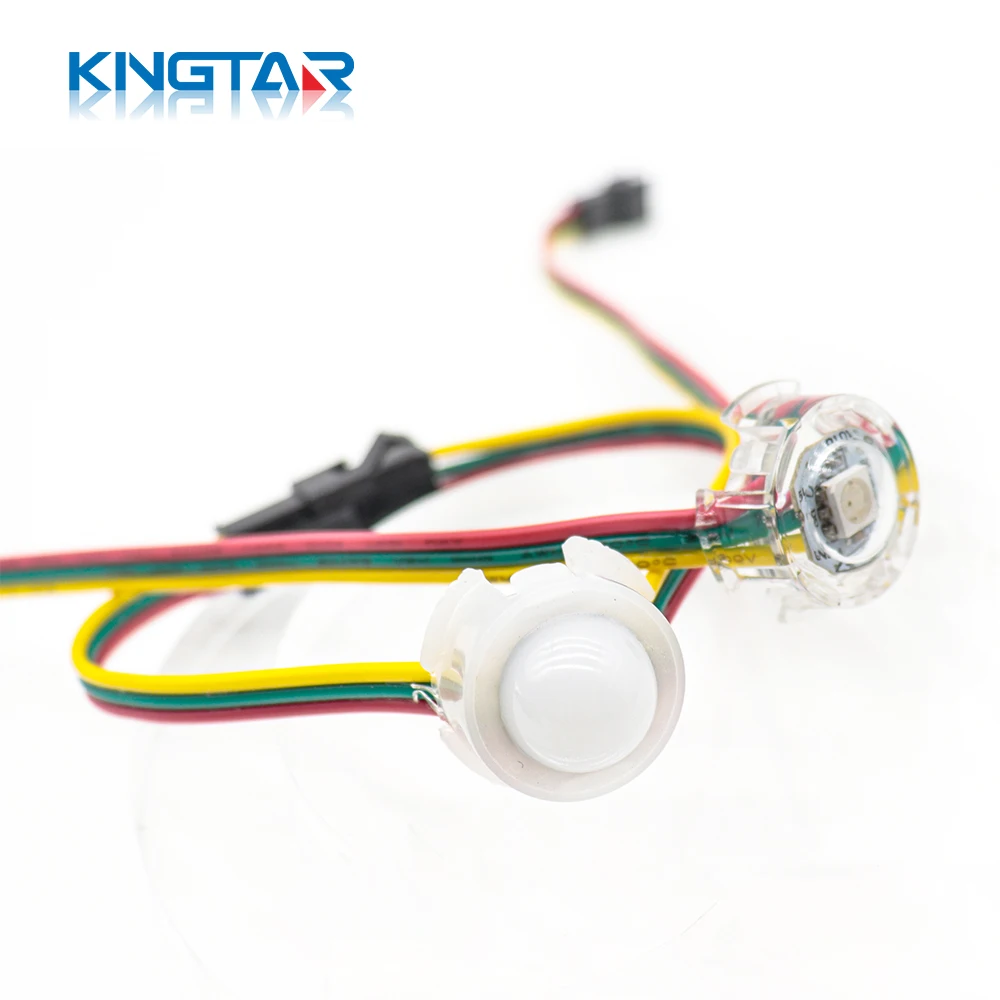

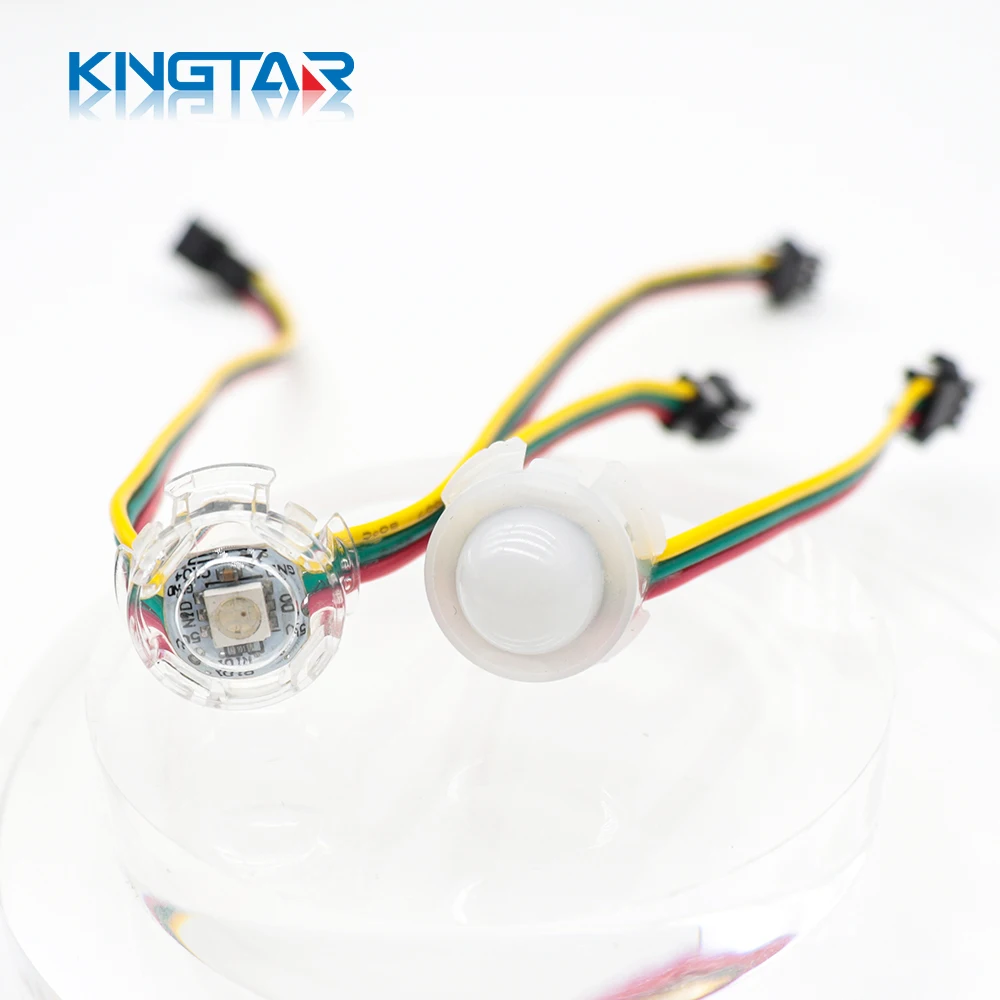

Amusement DC5V 5050 RGB WS2811 20mm Decorative String Lights 1Lens SMD Chip IP67 led pixel light

Product Overview

Description

DC5V 5050 20mm with lens RGB led pixel light ws2811



DESCRIPTION:

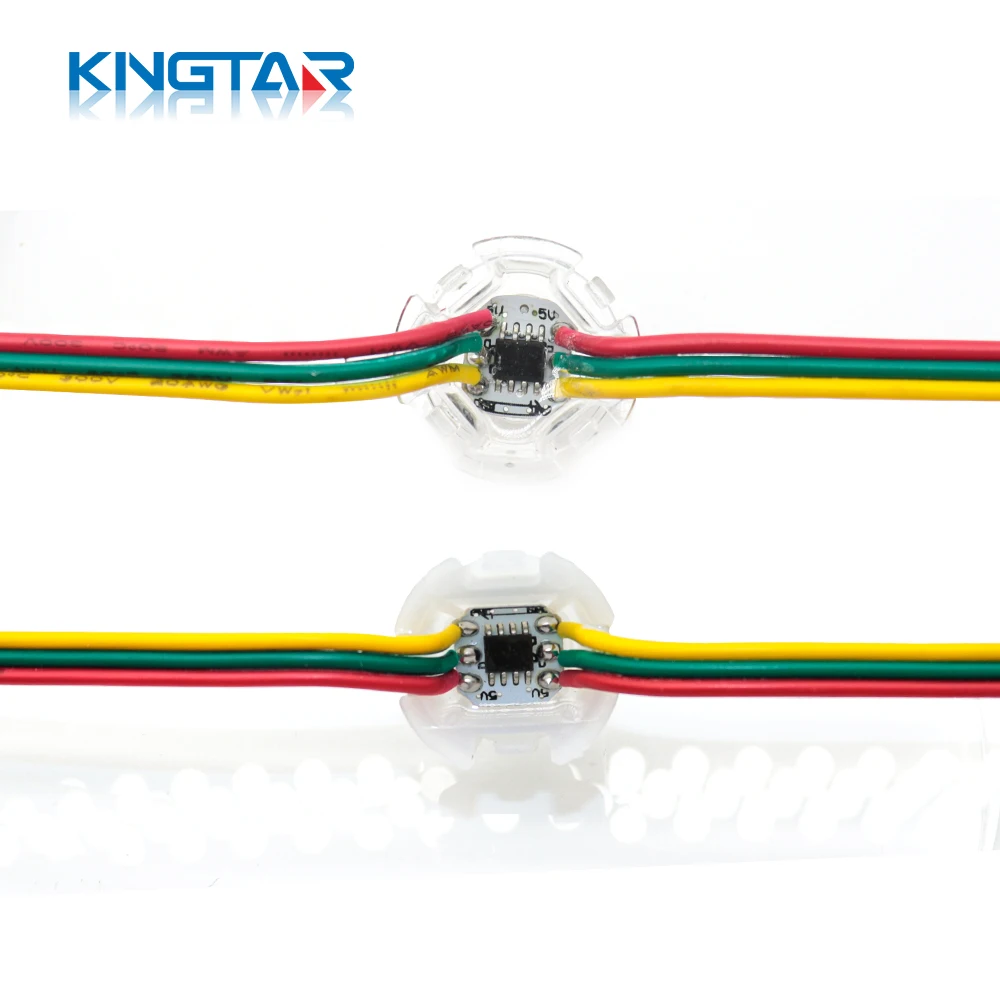

The pixel LED use 1 piece SMD5050 RGB (High brightness) as light source. Each pixel has its own ws2811 IC,by comparison



Technical Parameters:
1.Working Temperature: -20-60 °C
2.Supply Voltage: DC5V
3.Output Power: 0.3W/pcs
4.LED Type: SMD5050

5.LED Quantity: 1LEDs/pcs
6.Grey Scale: 256 Levels
7.Beam Angle: 120°
8.Waterproof Rate: IP67

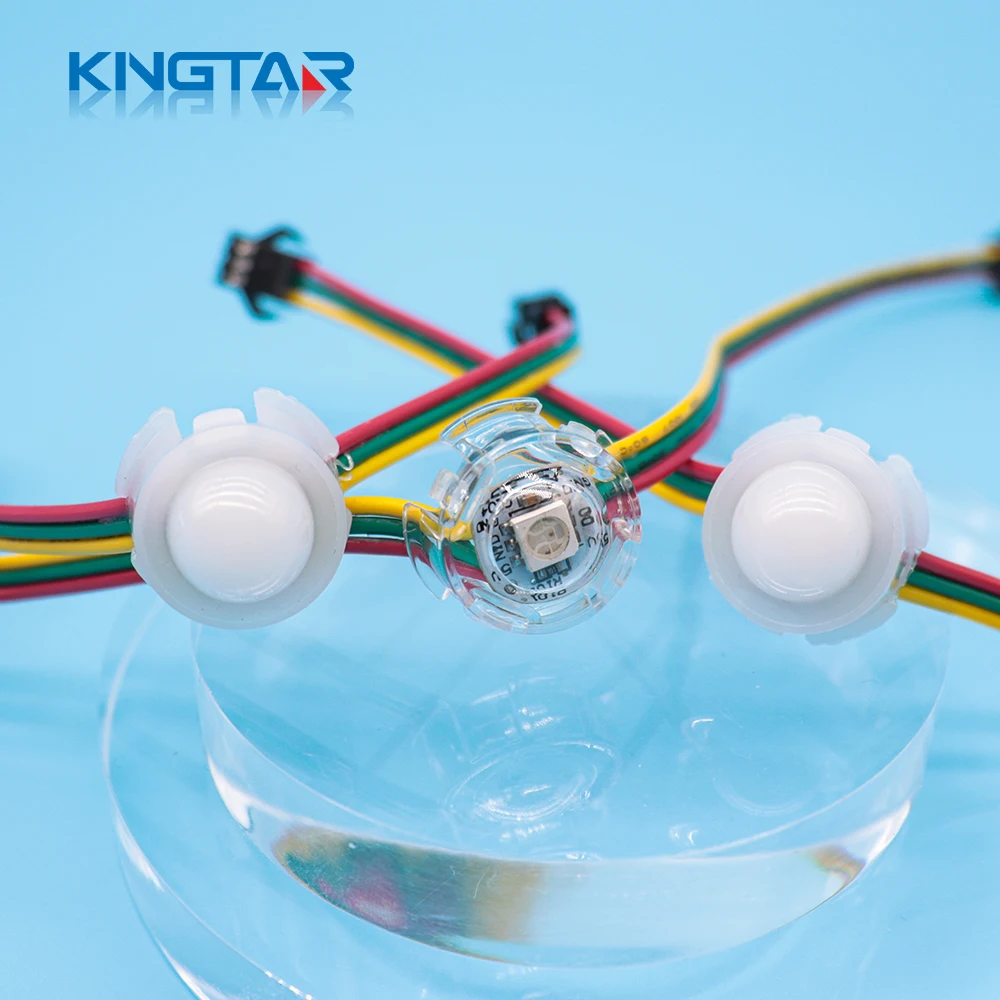

Pictures:





Specification:

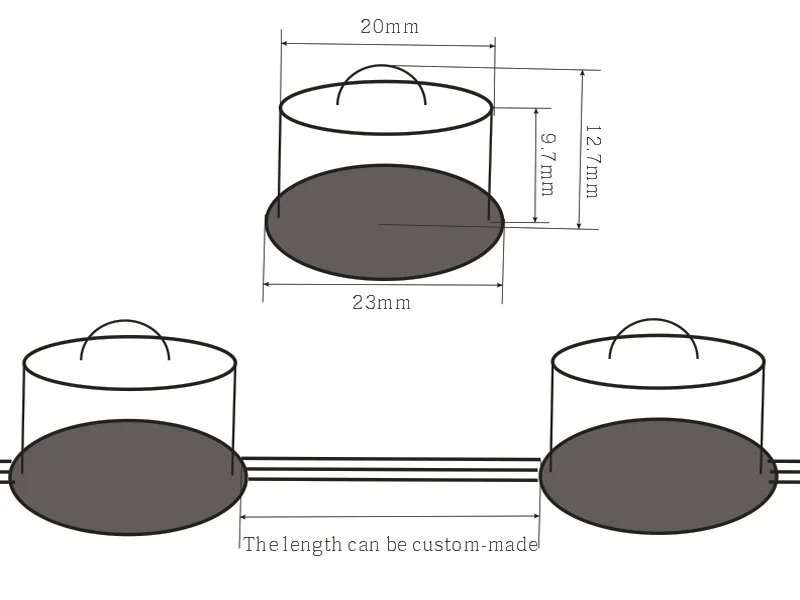

Products Name	20mm Pixel LED
Model NO.	KT-IC20-50
Power Consumption	0.3W/pcs
Work Voltage	DC5V
IC model	WS2811
LED Quantity	1pcs SMD5050
Color	Full color(ICRGB)
Packing	50pcs/string
Waterproof Grade	IP67
Work Temperature	-20-60°C
Life-span	50,000H
Certificate	CE&RoHS
Warranty	2 years



CONNECTION:

1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier;DAT and GND connect to controller
3) Relative Controller: SPI controller; when use DMX decoder, can connect to DMX system
4) Support online control

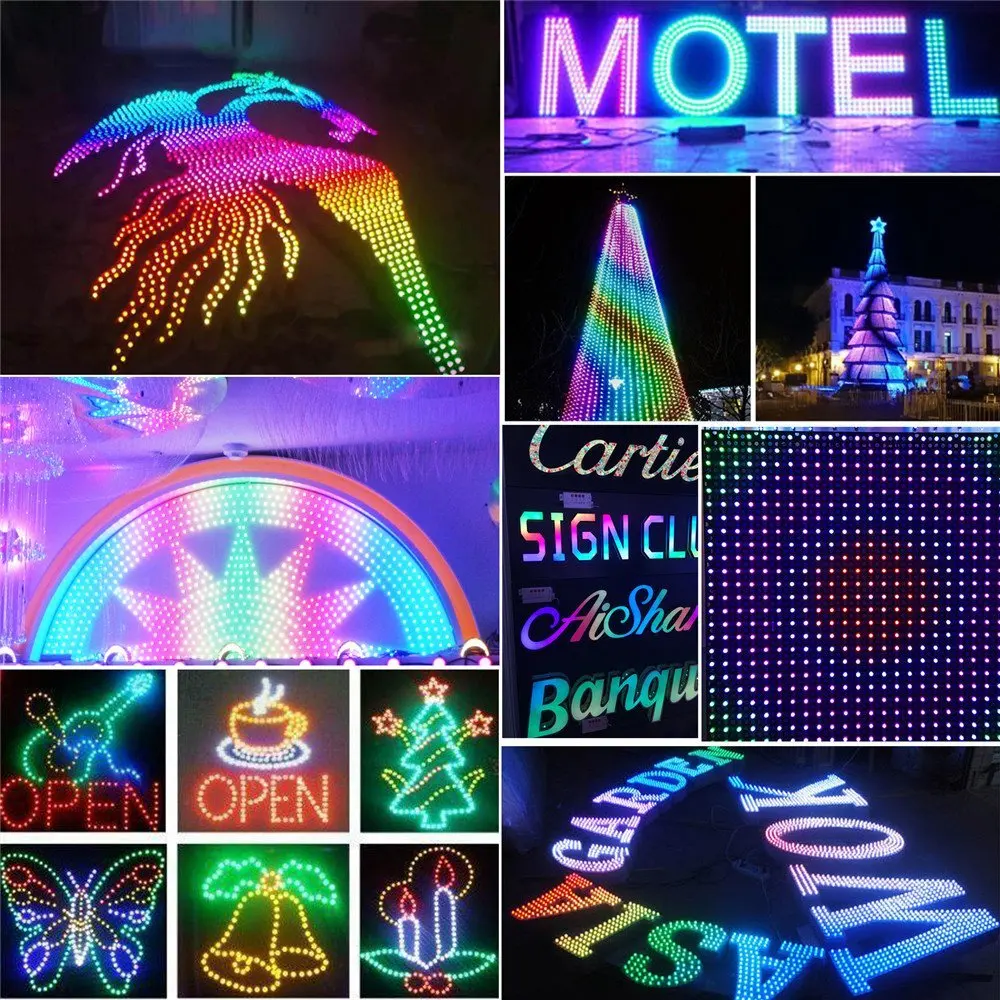

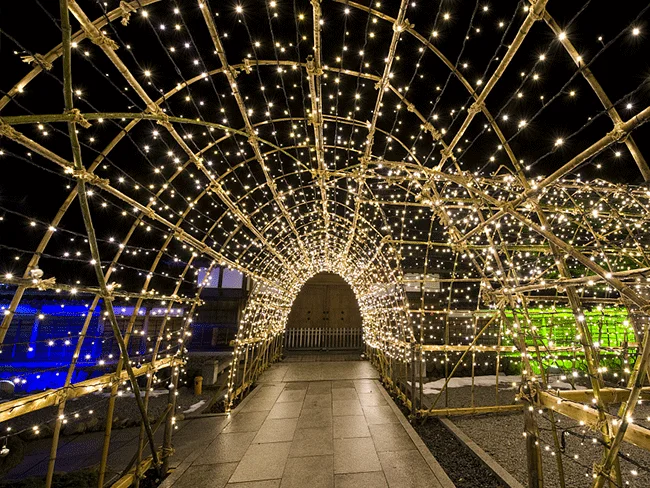

APPLICATIONS:

1.Outside advertising signage.

2.Amusement lighting

3.DJ,Nigh club ,window display lights

4.LED screen,supermarket.hotel lighting

5.Any place needs color chaning.
