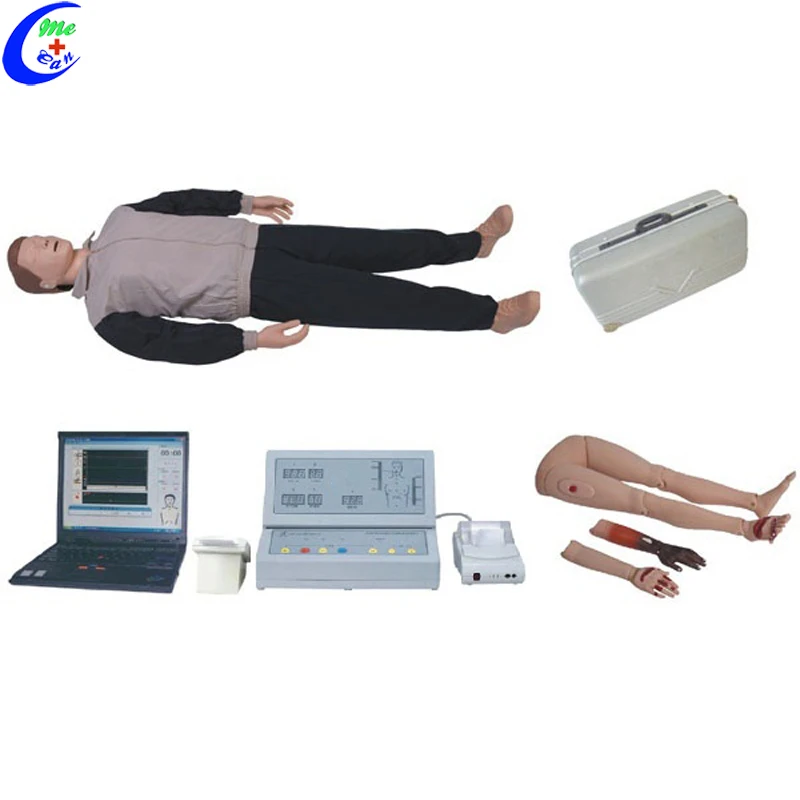

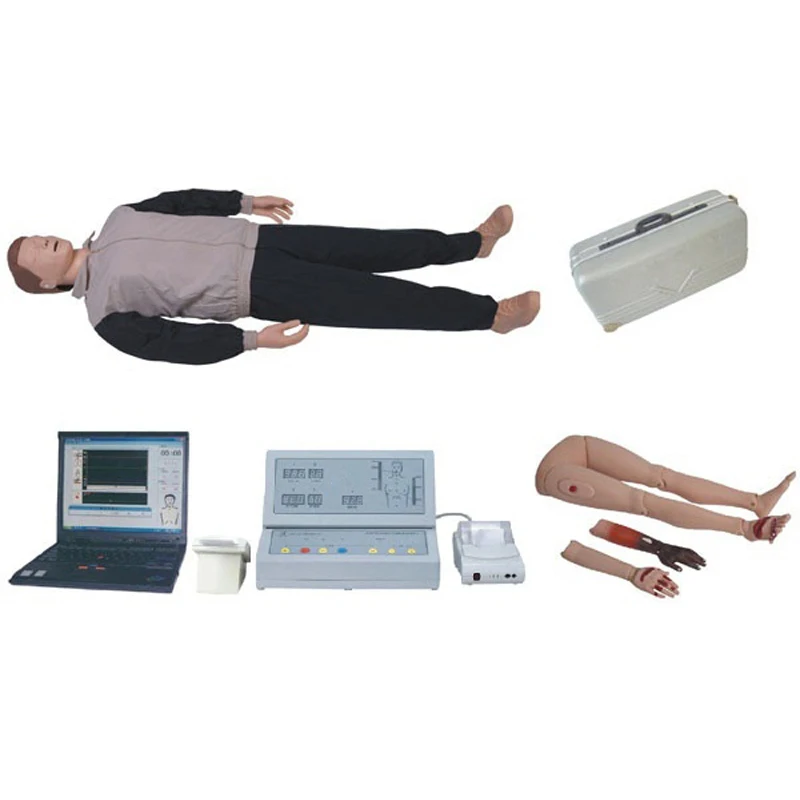

What is the detail of our full body mannequin?
Features:
1. With all functions of MC-CPR400S
2. Student IC card: IC card can record all the operation and assessment information; can also be used for exam process playback, result evaluation, student documents management
3. Equipped with trauma limbs, can replace the original limbs to act wound washing, stop bleeding, bandaging, fixation, carrying.
Main Components:
1. Full body manikin (1)
2. Trauma limbs (1set)
3. Monitor (1)
4. Card reader (1)
5. IC card (20pcs /set)
6. Manage software (1)
7. Portable plastic box (1)
8. Temperature sensing printer (1)
7. CPR operation pad (1)
8. CPR face shield sheet (50pcs/box)
9. Exchangeable lung bag (5)
10. Exchangeable face skin (1)
11. Temperature sensing print paper (2 roll)
12. Guide manual (1)
PACKAGE SIZE: 97*33*58cm+80*30*40cm
G.W.: 30.2KGS

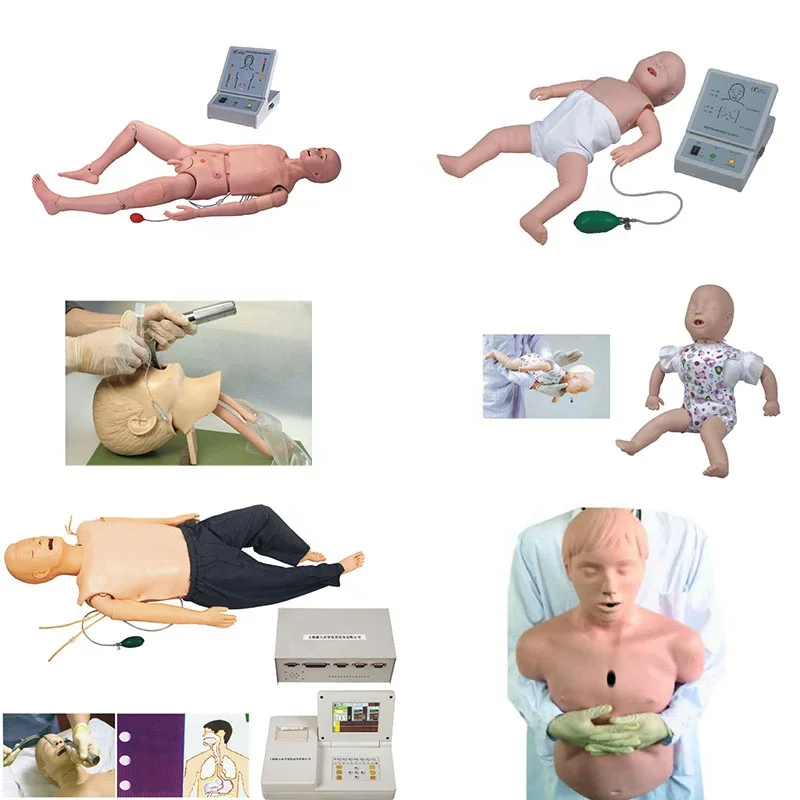

Other cpr medical models

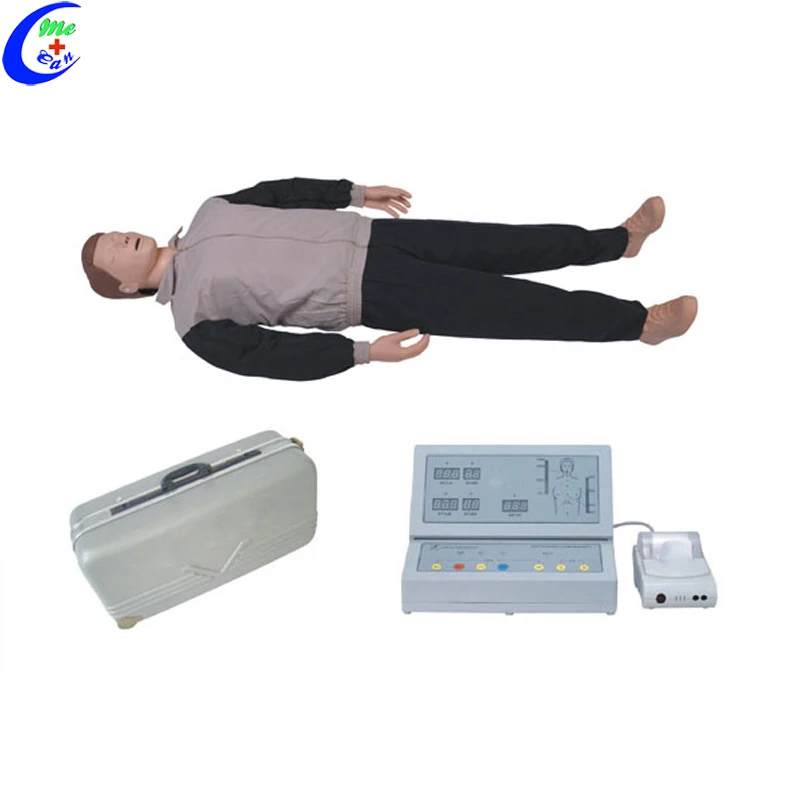

MC-CPR400S-A
Features:
1. Simulate standard open airway and sound prompting
2. External breast compression: indicator light display, digital counter display and sound prompting
a) Indicator light display of correct and wrong compression position; digital counter display; sound prompting of wrong compression.
b) Display of correct (at least 5cm) and wrong (less than5cm) compression intensity; digital strip indicator light (yellow, green, red) shows compression depth; counter display; sound prompting of wrong operation.
3. Artificial respiration (Inhalation) indicator light display, digital counter display and sound prompting:
a) Inhalation is ≤500ml/600ml-1000≤, strip indicator light shows inhalation volume; counter display of correct and wrong operations, and sound prompting of wrong operation.
b) Inhalation too quickly or too much result in air entering into stomach; indicator light display; digital counter display; sound prompting.
4. Ratio of compression and artificial respiration: 30:2 (one or two person)
5. Operating cycle: one cycle includes five times of 30:2 ratio of compression and artificial respiration.
6. Operation frequency: at least 100 times per minute
7. Operation methods: exercise operation; examine operation
8. Operation time: counting down device
9. Sound prompting device: volume control; turning on or turning off sound prompting device
10. Print: print operation result
11. Examination of pupil response: mydriasis and myosis
12. Examination of carotid response: simulate spontaneous carotid pulse in compression process
13. Working conditions: Working conditions: Input power is 110-240V or adopts direct current of eight No.1 batteries.
Standard components:
1. Full body manikin (1)
2. Monitor (1)
3. Portable plastic box (1)
4. Temperature sensing printer (1)
5. CPR operation pad (1)
6. CPR face shield sheet (50pcs/box)
7. Exchangeable lung bag (5)
8. Exchangeable face skin (1)
9. Temperature sensing print paper (2 roll)
10. Guide manual (1)
PACKAGE SIZE: 97*33*58cm
G.W.: 22KGS
MC-CPR300S
Features:
1. Simulate standard open airway and sound prompting
2. External breast compression: indicator light display, digital counter display and sound prompting
a) Indicator light display of correct and wrong compression position; digital counter display; sound prompting of wrong compression.
b) Display of correct (at least 5cm) and wrong (less than 5cm) compression intensity; digital strip indicator light (yellow, green, red) shows compression depth; counter display; sound prompting of wrong operation.
3. Artificial respiration (Inhalation) indicator light display, digital counter display and sound prompting:
a) Inhalation is ≤500ml/600ml-1000ml≤, strip indicator light shows inhalation volume; counter display of correct and wrong operations, and sound prompting of wrong operation.
b) Inhalation too quickly or too much result in air entering into stomach, counter display and sound prompting of wrong operation.
4. Ratio of compression and artificial respiration: 30:2 (one or two person)
5. Operating cycle: one cycle includes five times of 30:2 ratio of compression and artificial respiration.
6. Operation frequency: at least 100 times per minute
7. Operation methods: exercise operation; examine operation
8. Operation time: counting down device
9. Print: print operation result
10. Examination of pupil response: mydriasis and myosis
11. Examination of carotid response: simulate spontaneous carotid pulse in compression process
12. Working conditions: Input power is 110-240V
Main Components:
1. Full body manikin (1)
2. Monitor (1)
3. Portable plastic box (1)
4. CPR operation pad (1)
5. CPR face shield sheet (50pcs/box)
6. Exchangeable lung bag (5)
7. Exchangeable face skin (1)
8. Temperature sensing print paper (2 roll)
9. Guide manual (1)
Optional function:
1. Endotracheal intubation
2. Gastrolavage
3. Trauma limbs
PACKAGE SIZE: 97*33*58cm
G.W.: 22KGS
MC-CPR300S-A
Features:
1. Simulate standard open airway and sound prompting
2. External breast compression: indicator light display, digital counter display and sound prompting
a) Indicator light display of correct and wrong compression position; digital counter display; sound prompting of wrong compression.
b) Display of correct (at least 5cm) and wrong (less than 5cm) compression intensity; digital strip indicator light (yellow, green, red) shows compression depth; counter display; sound prompting of wrong operation.
3. Artificial respiration (Inhalation) indicator light display, digital counter display and sound prompting:
a) Inhalation is ≤500ml/600ml-1000ml≤, strip indicator light shows inhalation volume; counter display of correct and wrong operations, and sound prompting of wrong operation.
b) Inhalation too quickly or too much result in air entering into stomach, counter display and sound prompting of wrong operation.
4. Ratio of compression and artificial respiration: 30:2 (one or two person)
5. Operating cycle: one cycle includes five times of 30:2 ratio of compression and artificial respiration.
6. Operation frequency: at least 100 times per minute
7. Operation methods: exercise operation; examine operation
8. Operation time: counting down device
9. Print: print operation result
10. Examination of pupil response: mydriasis and myosis
11. Examination of carotid response: simulate spontaneous carotid pulse in compression process
12. Working conditions: Input power is 110-240V or adopts direct current of eight No.1 batteries.
Standard components:
1. Full body manikin (1)
2. Monitor (1)
3. Portable plastic box (1)
4. Temperature sensing printer (1)
5. CPR operation pad (1)
6. CPR face shield sheet (50pcs/box)
7. Exchangeable lung bag (5)
8. Exchangeable face skin (1)
9. Temperature sensing print paper (2 roll)
10. Guide manual (1)
PACKAGE SIZE: 97*33*58cm
G.W.: 22KGS

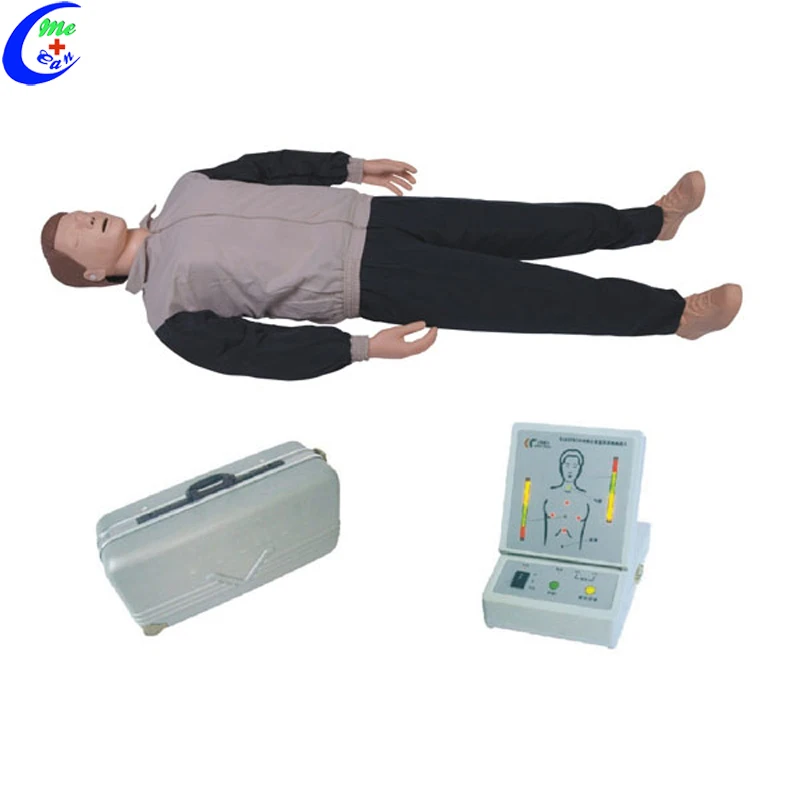

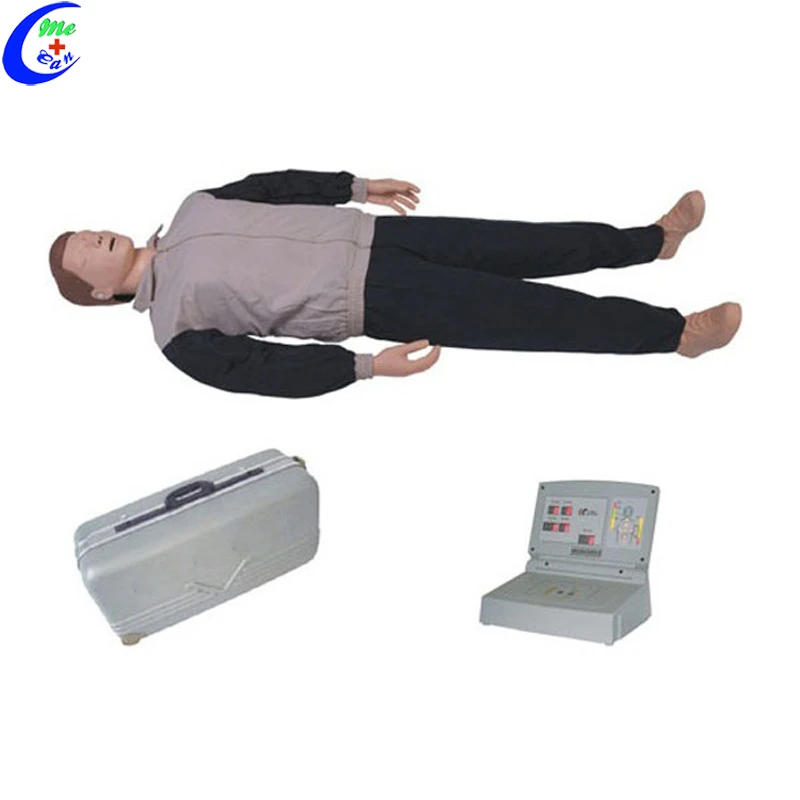

MC-CPR230S
Features:
1. Simulate standard open airway
2. External breast compression: display device and alarm device
1) Indicator light display of correct and wrong compression; alarm of wrong compression;
2) Intensity display of correct (at least 5cm) and wrong (less than 5cm) compression; alarm of wrong compression. Digital strip indicator light (yellow, green, red) shows compression depth;
3. Artificial respiration (Inhalation): display device and alarm device
1) Display of inhalation (≤500ml-600ml≤), strip indicator light shows inhalation volume; alarm of wrong operation
2) Inhalation too quickly or too much result in air entering into stomach; indicator light display and alarm prompting.
4. Ratio of compression and artificial respiration: 30:2 (one or two person)
5. Operating cycle: 2times correct respiration, one cycle includes five times of 30:2 (one or two person)
6. Operation frequency: at least 100 times per minute
7. Operation methods: exercise operation
8. Examination of pupil response: mydriasis and myosis
9. Examination of carotid response: pinch the pressure ball by hand and simulate carotid pulse
10. Working conditions: Input power is 110-240V
PACKAGE SIZE: 97*33*58cm
G.W.: 19.5KGS
