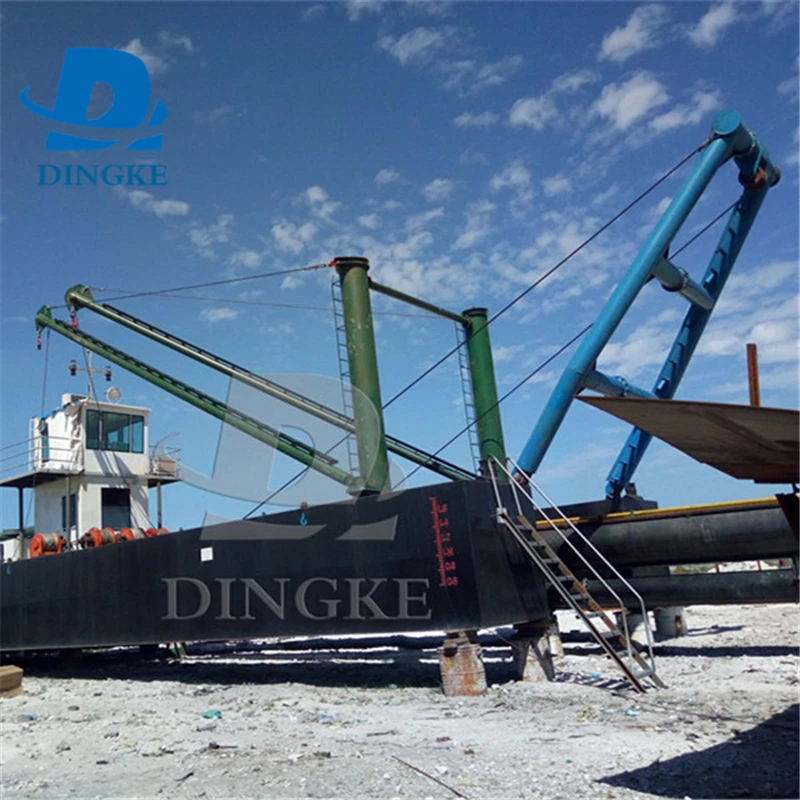

10 Inch Cutter Suction Dredger/Dredging Machine/Lake Cleaning Machine
- Category: >>>
- Supplier: Qingzhou Dingke Machinery Equipment Co. Ltd.
Share on (60776334676):
Product Overview
Description
Product Description

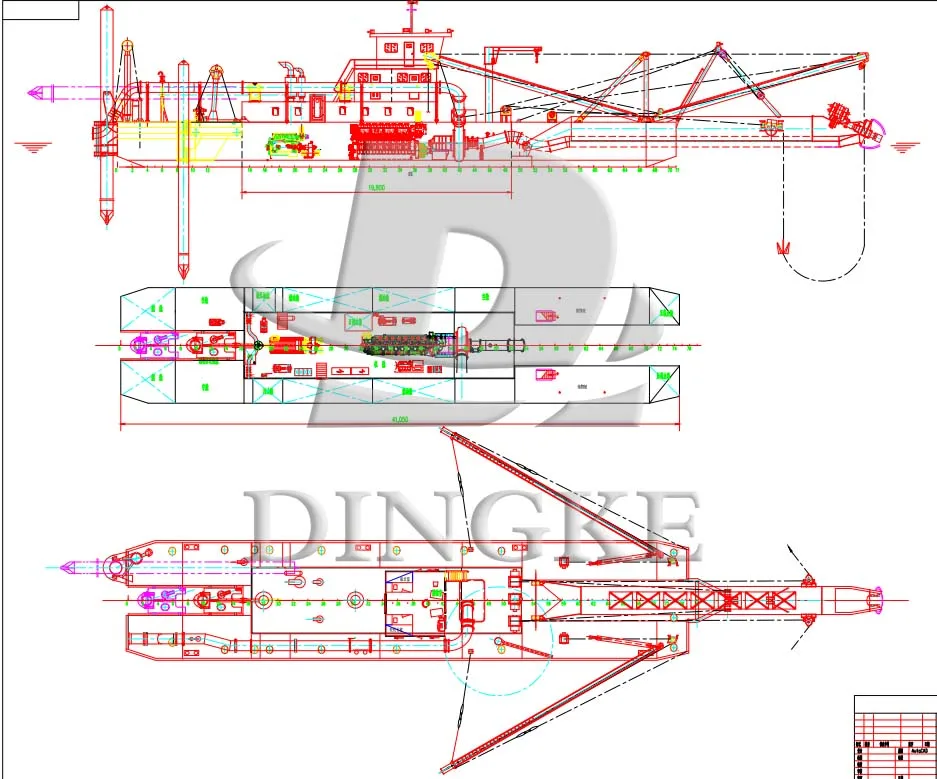

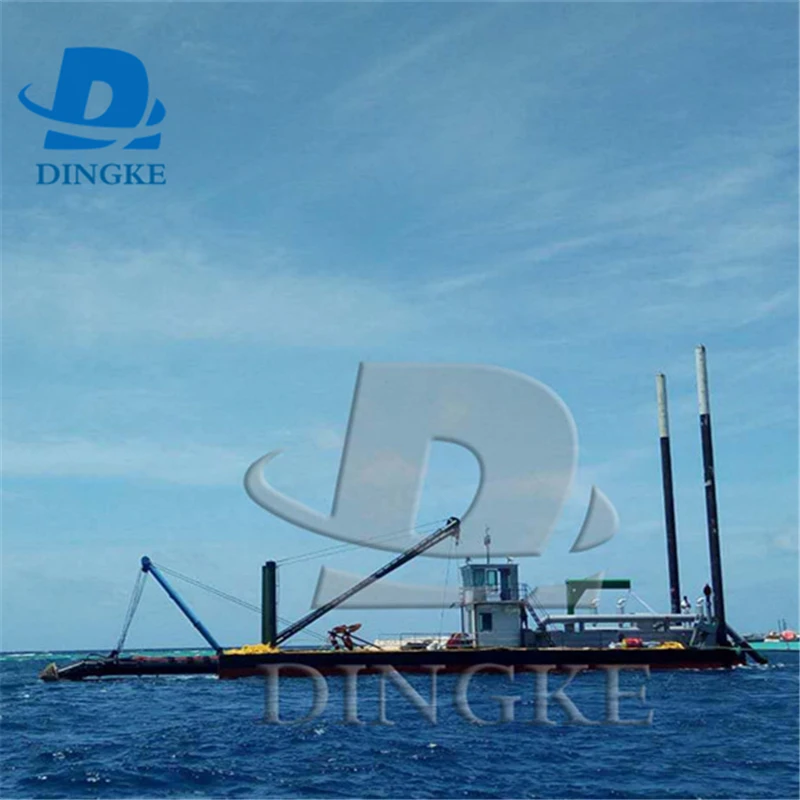

Overview
This ship suit shadowing sea (waves less)and follow water area operation requirements that is Non-self-propelled dredger assembled the whole steel welded.
Main Principle:first through Bridge hydraulic cutter underwater excavation of soil was excavated sediment rotating reamer driven with water to form a fluid medium containing certain ores, located in the hydrodynamic cutter circle at the mouth of the mud pump suction , into the pump and get some energy out through the pipeline.
Operating environment qualification
——Environment highest temperature 400C
——Minimum ambient air temperature -100C
——River (sea) water Maximum temperature: 320C
——Relative Humidity 70%
——Minimum ambient air temperature -100C
——River (sea) water Maximum temperature: 320C
——Relative Humidity 70%
Applications
1. Sand Dredging
2. Land Reclamation/Beach Restoration
3. Mineral Mining(such as gold mining,iron mining,tin mining etc.)
4. Port,Lake,River,Harbor,Channel and Dam Desilting
5. Well Head and Location Sweeping
6. Canalization
Required Information

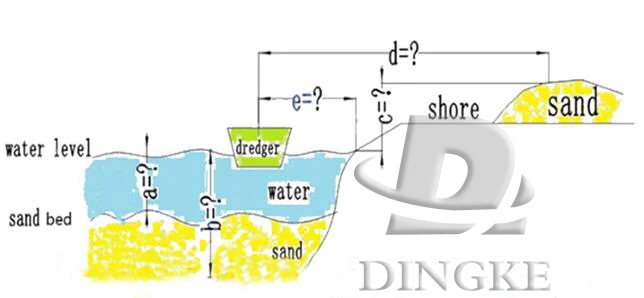

Sketch Drawing
1) Dredging Depth(a):____m
2) Dredging Distance(d):_____m
3) Capacity:____m3/h
Detailed Information

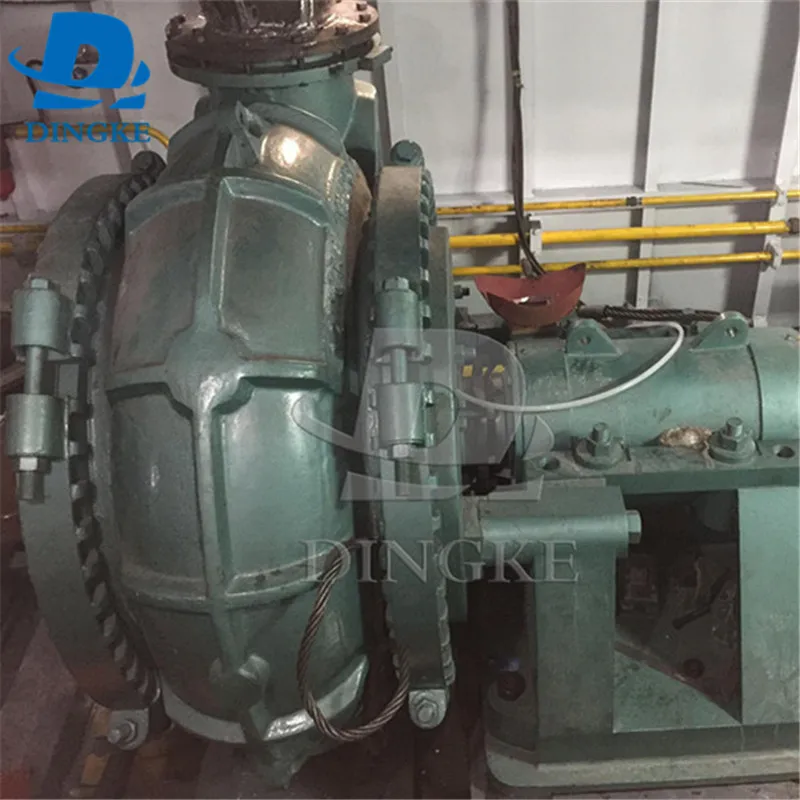

Sand pump
Name: 16/14g-g
Brand: SJZGY
Original: China
Heavy duty, horizontal slurry pump. Hiigh efficiency transfer of abraisive and high density slurries with extended wear life and reliable service intervals.

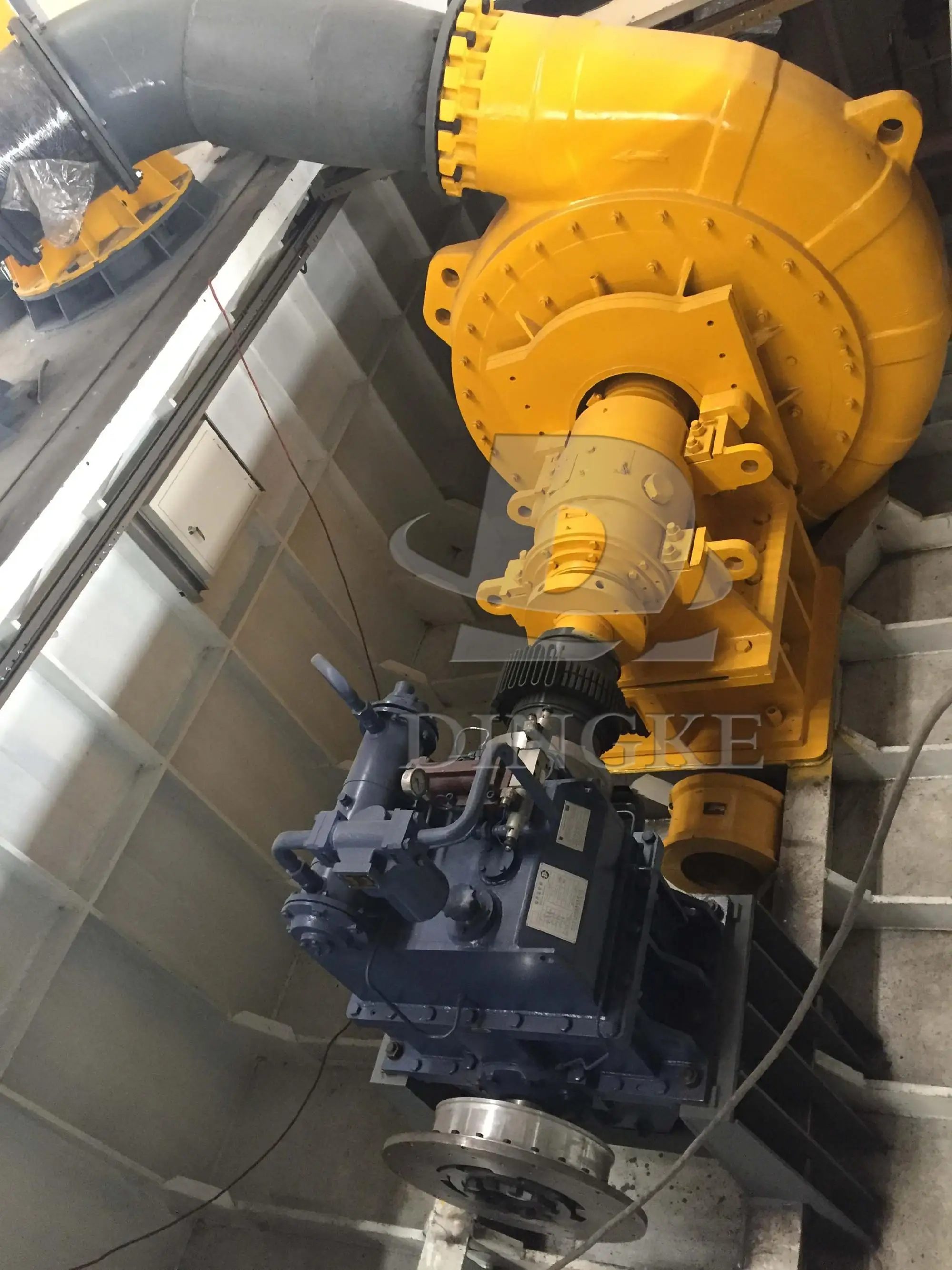

Gearbox
Name: 3FL620type
Brand: HCQJ
Ritio: 1:1
Output form: One in, three output
Diesel Engine
Name: KTA-38
Brand: CUMMINS
Original: America
Power: 895KW
Speed: 1800r/min

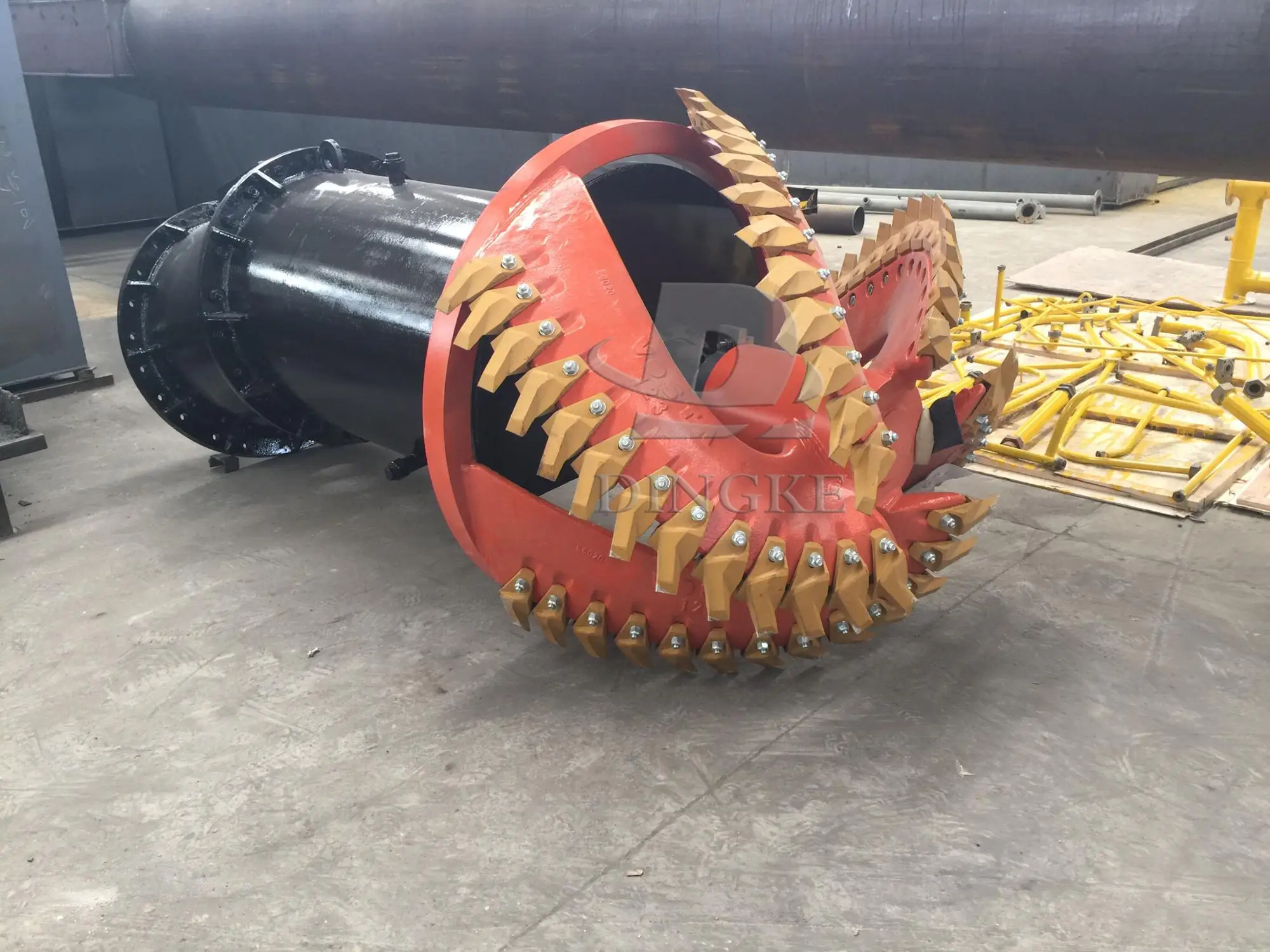

Cutter
Name: Dredging cutter
Brand: DINGKE
Original: China
Cutter diameter: 1550mm
Shaft Power: 150KW
Max Speed: 33r/min
Rubber Pipes
HDPE Pipes

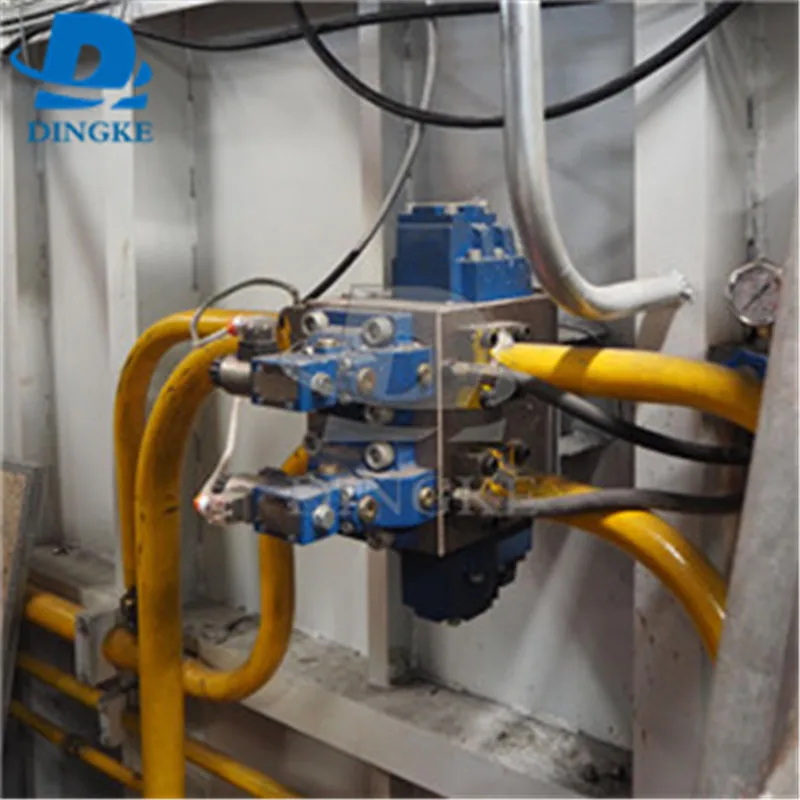

Hydraulic Valve
Floater
Pressure Valve
Instruments
Our Service
Installation At Sight
After-Sales Service
Dredging
Contact Us
For more information, please feel free to contact me.
Our professional team will try our best to give you the best skuggestion.
