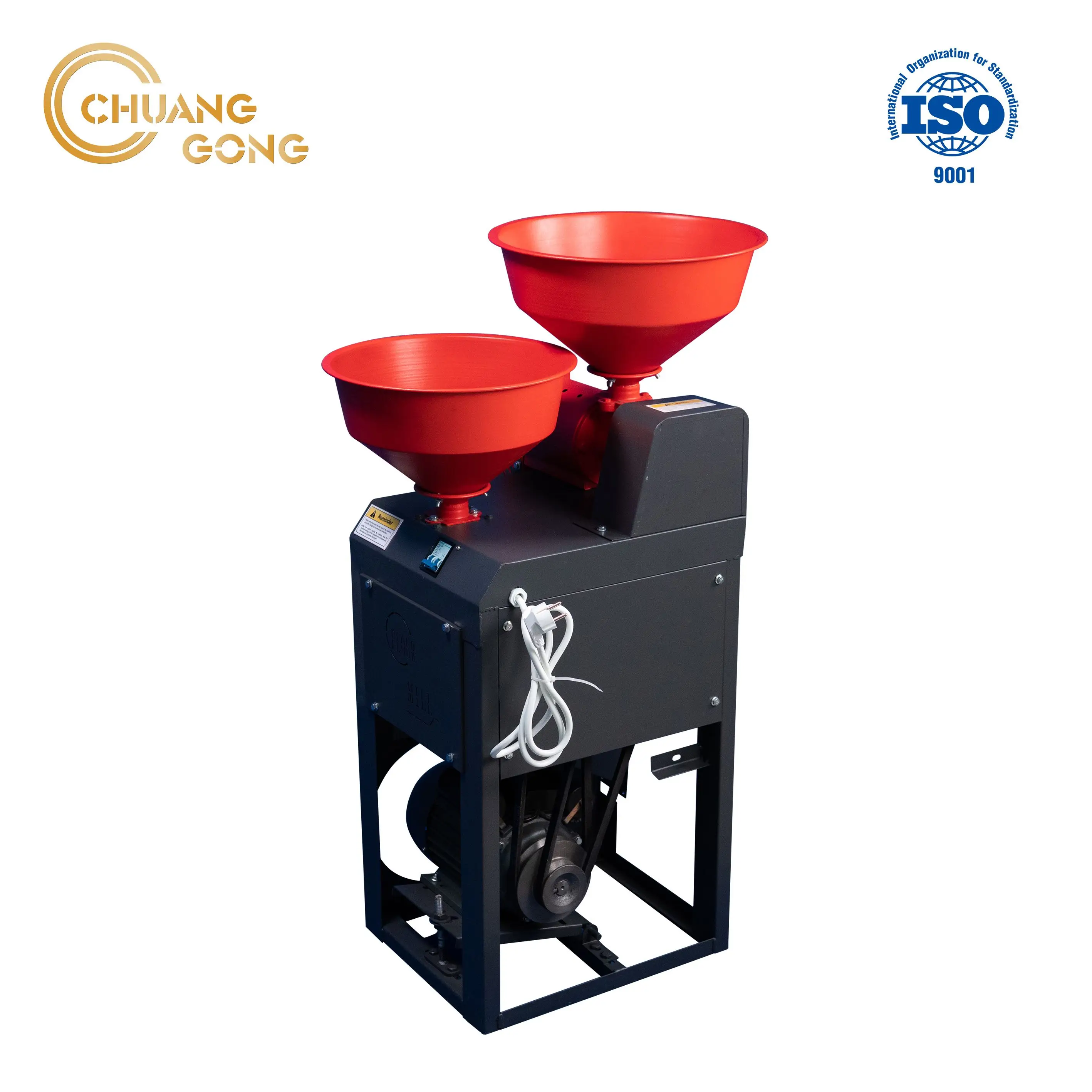

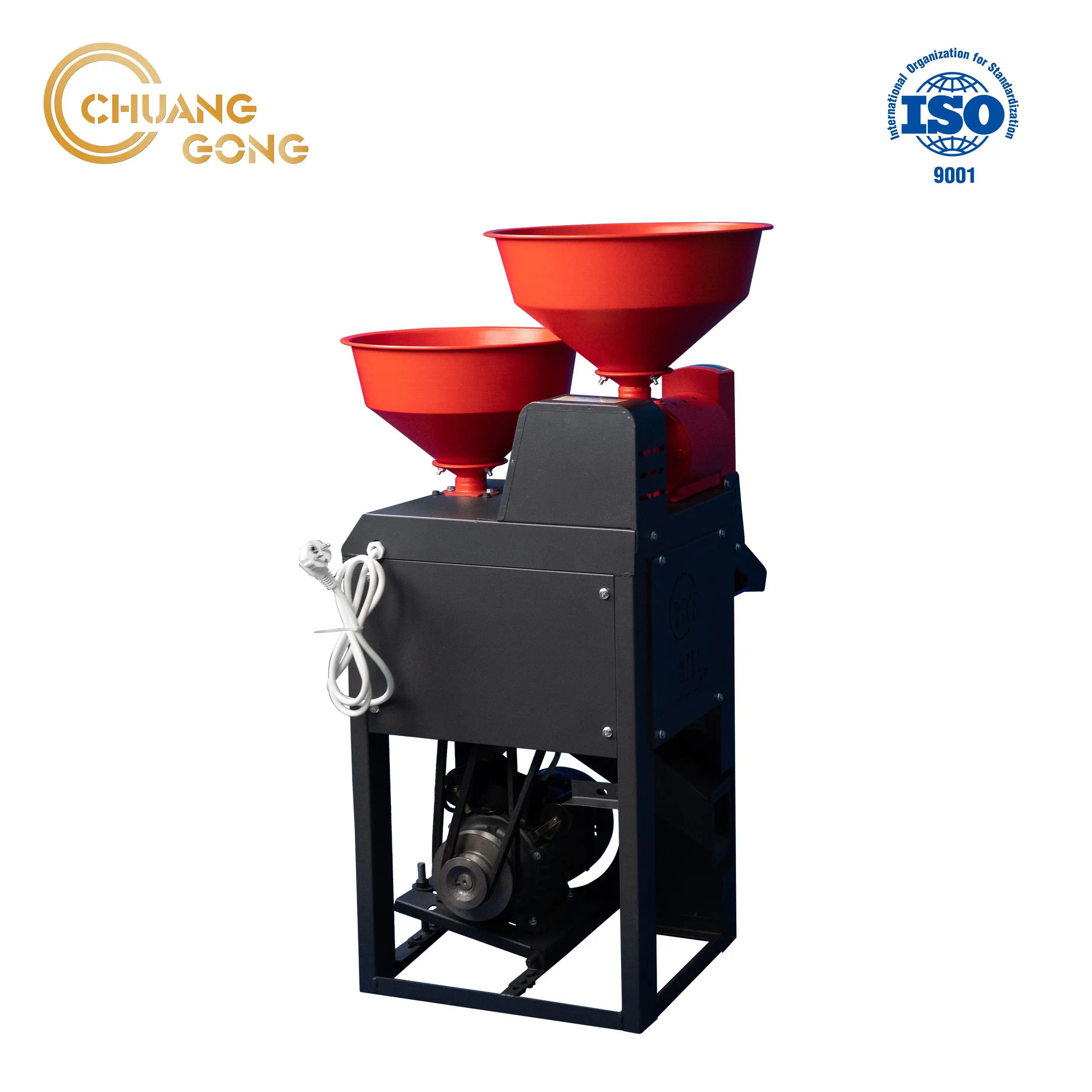

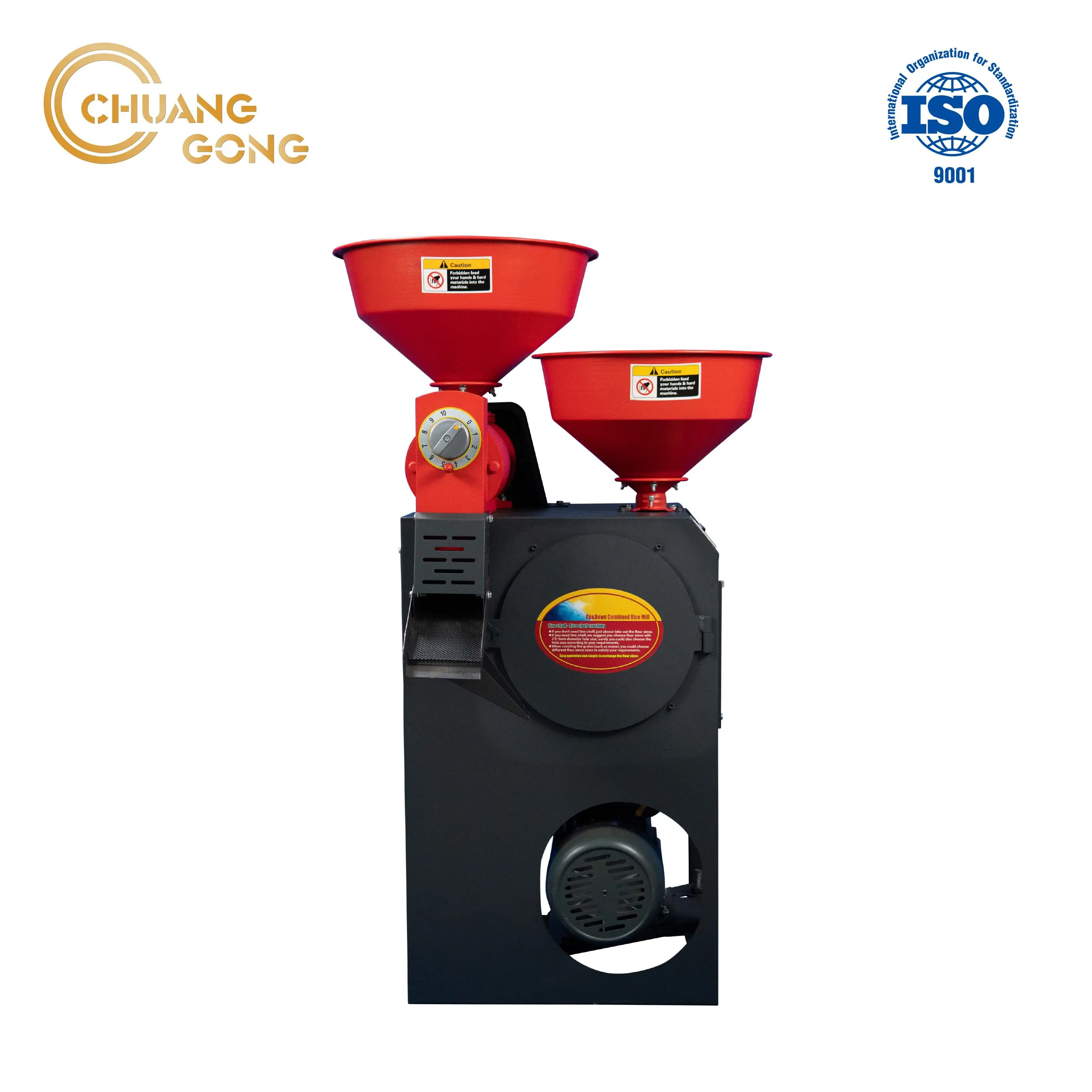

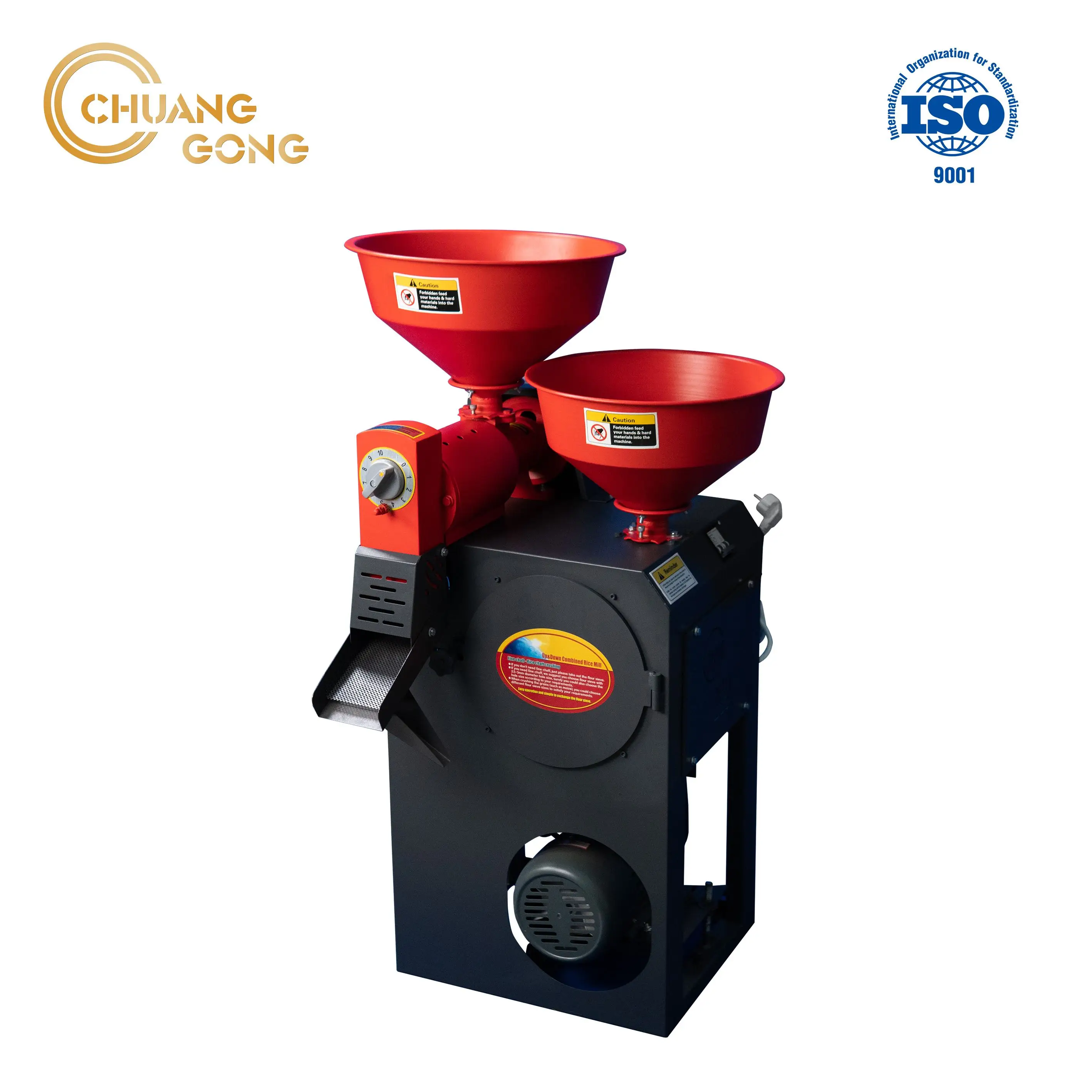

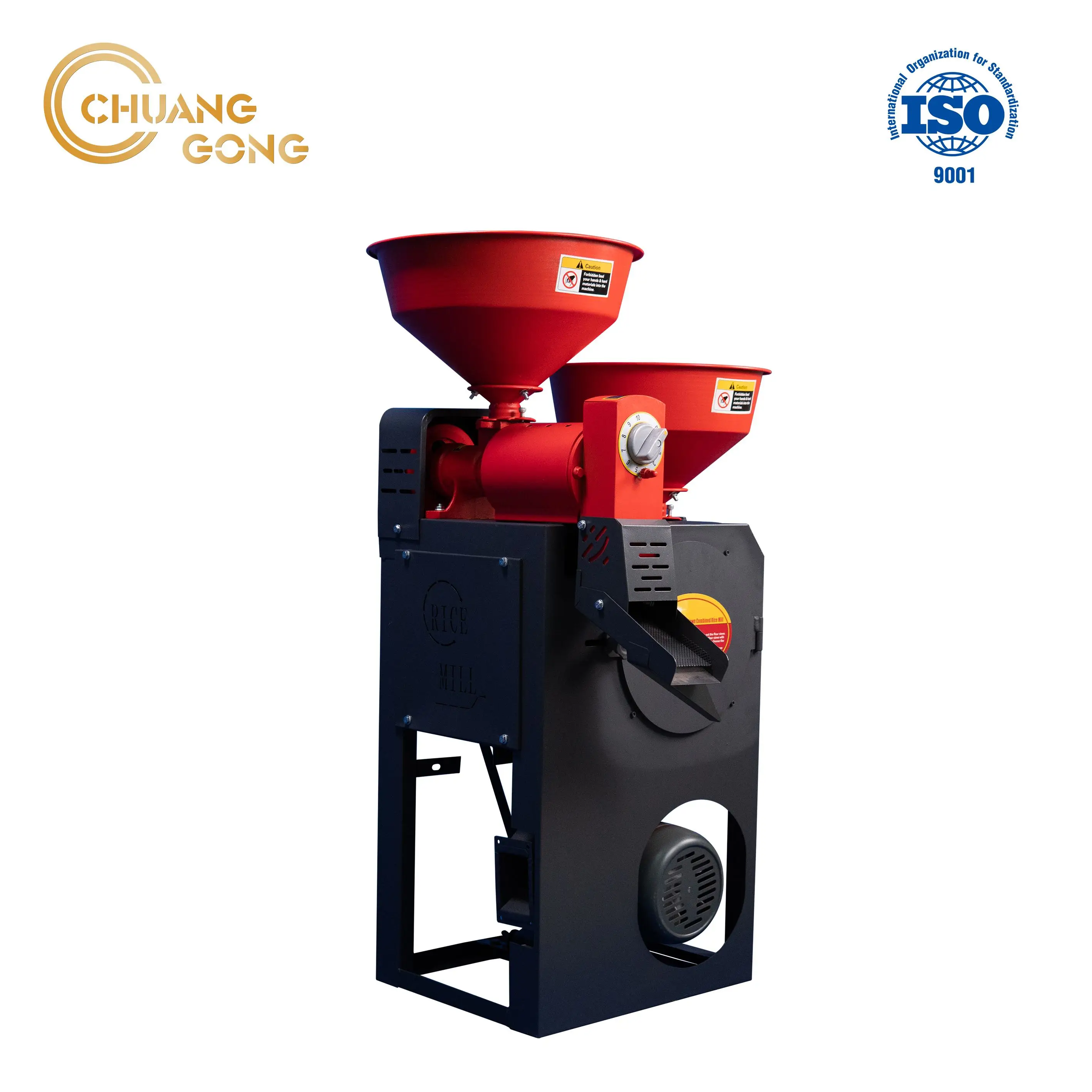

Automatic mini rice mill combined with home flour mill machine
6N40-9FC20 is combined with 6N40 rice milling machine and 9FC20 grain ginder.6N40 is used for making paddy into white rice,and separates rice,broken rice and bran automatically. 9FC20 is used to grind corns, wheat, maize,beans to power.
Main Technical Parameters
Rice miller
Grinding machine
Model No.
6N40
Model No.
9FC20
Rate Power(kw)
1.5-2.2
Rate Power(Kw)
1.5-2.2
Rate Voltage(V)
220
Rate Voltage(V)
220
Productivity(kg/h)
≥150
Productivity(Kg/h)
≥150
Power Consumption(kw.h/t)
≤15.0
Power Consumption(Kw.h/t)
≤9.0
Percentage Of Head Rice(%)
≥85.0
Temperature Rise
≤20.0
The Diameter Of Rice Roller(mm)
φ40
Diameter Of Sieve Circle (mm)
φ2
Speed Of Roller(r/min)
1400-1910
Diameter Of Spindle(mm)
φ200
Rate Motor Speed(r/min)
2800
Spindle Speed(r/min)
4850
Diameter Of Sieve Circle (mm)
φ48
Diameter Of Motor(mm)
φ170
Feature:
1.Adopts the patent collection bran products, the fine bran and fine powder without refined rice.
2.The Screen mesh can be customized. Different size of screen mesh control the size of power.
3.Tooth claw type grinder is better for granular grain.
4.Convenient to maintain and clean the cover. Easy to operate and exchange the broken parts.
5.Electric motor or diesel engine can be selected.
