alibaba gold supplier hydraulic hose crimping machine price for sale
- Category: >>>
- Supplier: Jiahao Technology Co. Ltd.
Share on (60776375819):
Product Overview
Description
Product Description

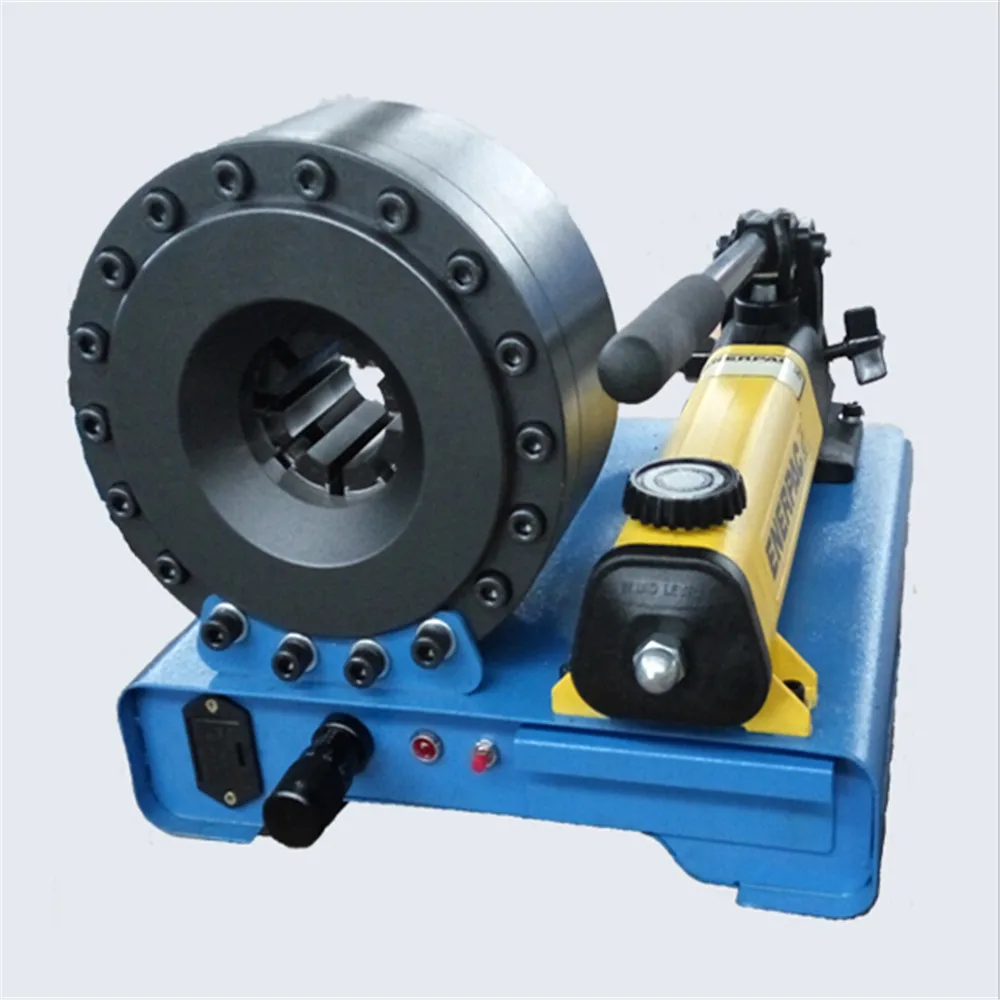

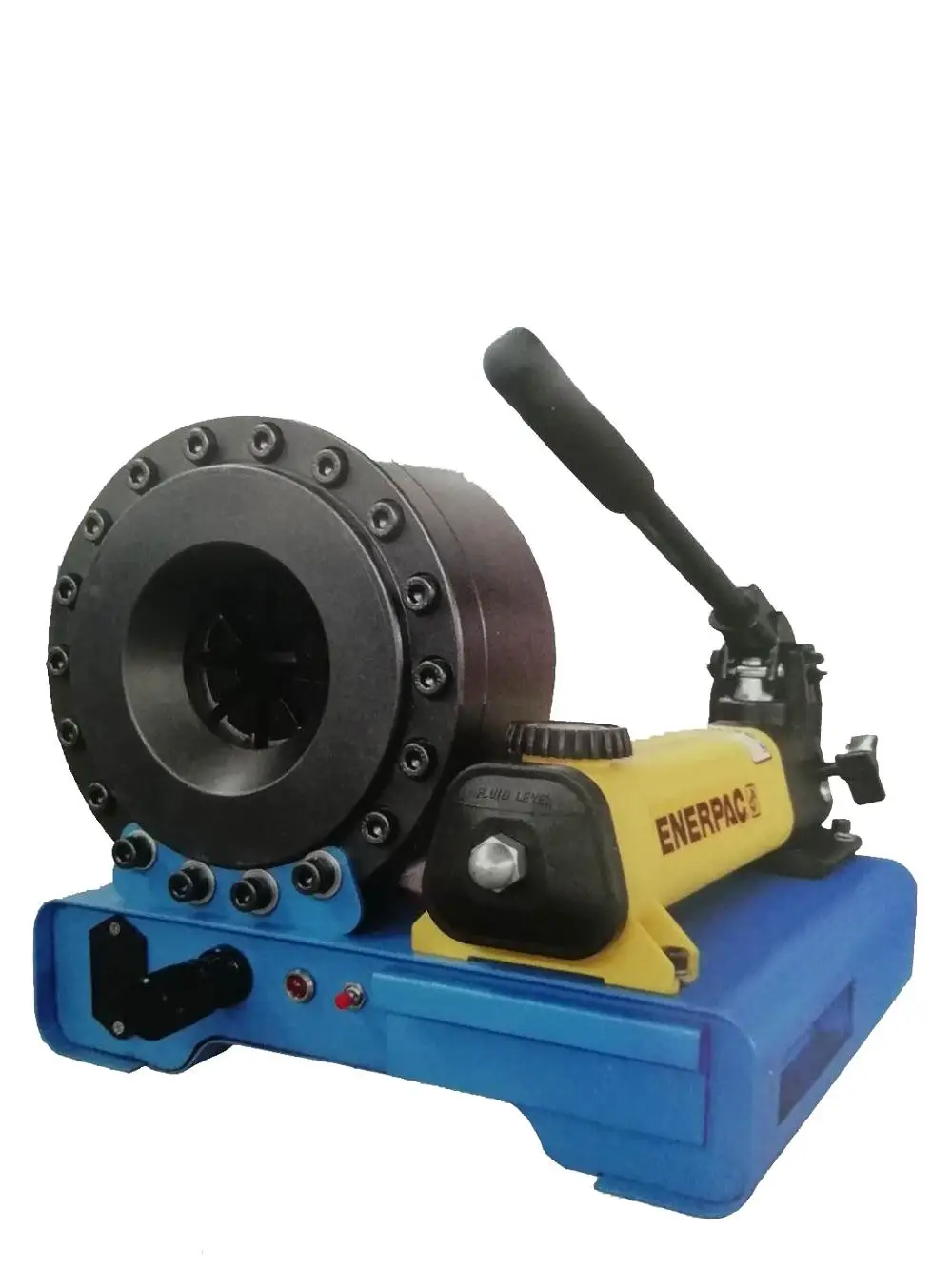

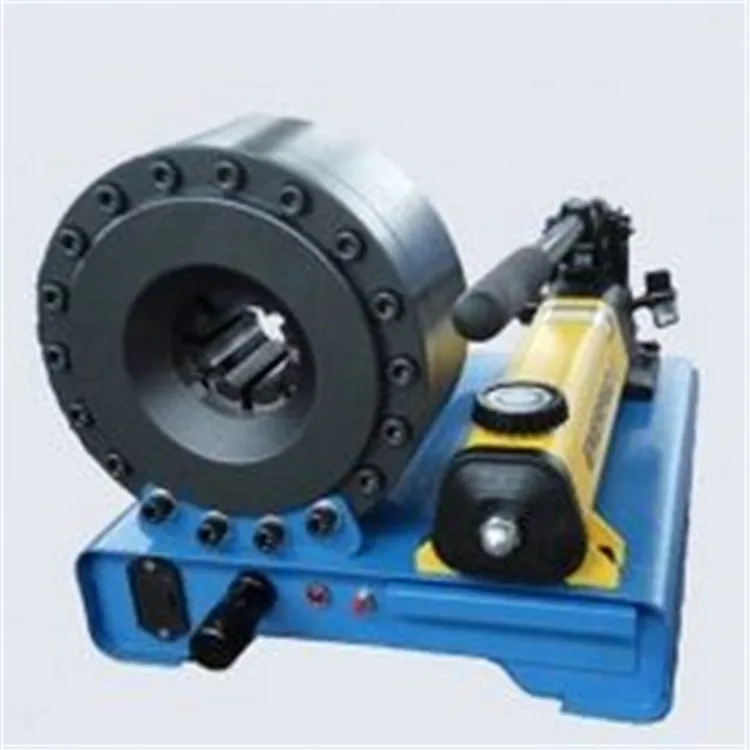

hydraulic hose crimping machine
Hydraulic Hose Crimper Specifications
Hydraulic Hose Crimper appliction:
*Hydraulic Hose Crimper Super light weight with stable performance.
*Hydraulic Hose Crimper Imported brand-name oil pump with excellent accessories.
*Hydraulic Hose Crimper The light is on when crimped to the pre-size.
*Hydraulic Hose Crimper The hardness of the die base and die sets is high,to ensure the long service life.
Hydraulic Hose Crimper techincal data:
Crimp range | 1/8"-1" |
For hydraulic hose | 1 inch 4SP |
Max opening without dies | 53mm |
Opening | ≥18mm |
Open | ------ |
Close | ------ |
Voltage & Power | ------ |
Optional voltage | ------ |
Noise level | ------ |
Dies sets | 7sets |
System pressure | 35MPa |
Machine size | 305*370*270mm |
Weight without oil | 26.5KG |
Hydraulic Hose Crimper just has two function: Hand &semi-auto.
Die information | ||||||
Hose I. D. | Die bore | Die length | Ferrule length | |||
1/4(6mm) | 15mm | 65mm | Less than 65mm 5/16(8mm) | |||
5/16"(8mm) | 18mm | 65mm | Less than 65mm | |||
3/8(10mm) | 20mm | 65mm | Less than 65mm 1/2(13mm) | |||
1/2"(13mm) | 23mm | 65mm | Less than 65mm | |||
5/8(16mm) | 26mm | 65mm | Less than 65mm 3/4(19mm) | |||
3/4"(19mm) | 29mm | 65mm | Less than 65mm | |||
1(25mm) | 37mm | 65mm | Less than 65mm 1 1/4(32mm) | |||
1 1/4"(32mm) | 46mm | 78mm | Less than 78mm | |||
1 1/2(38mm) | 51mm | 78mm | Less than 78mm 2(51mm) | |||
2"(51mm) | 63mm | 78mm | Less than 78mm | |||
NOTE: We can make speical dies as your HOSE AND FERRULE SIZE. | ||||||

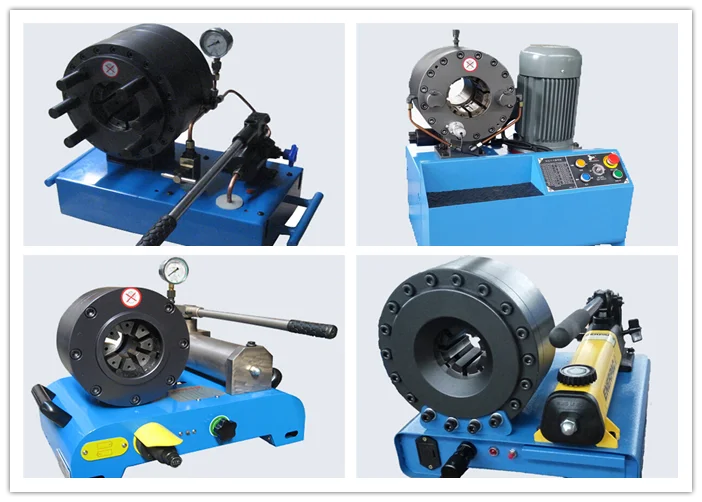

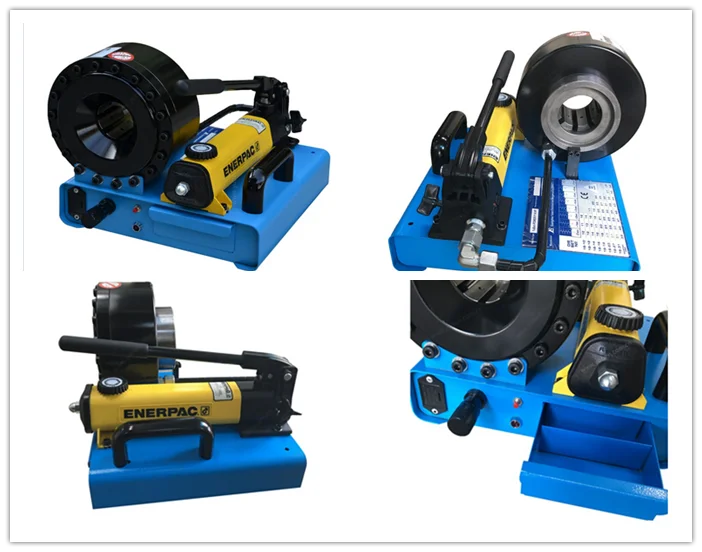

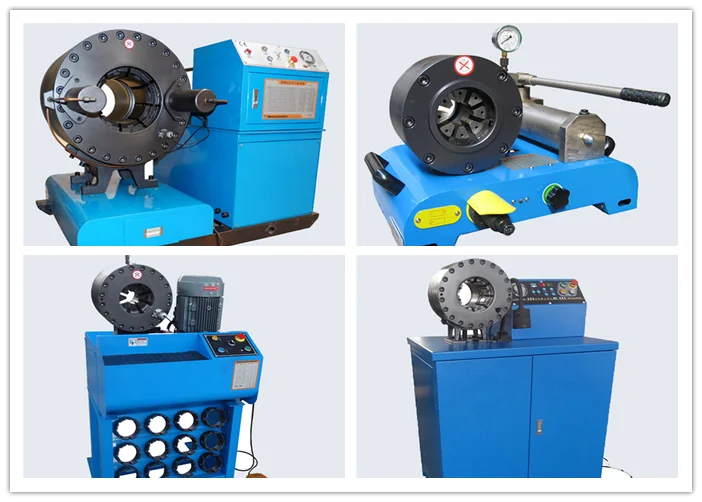

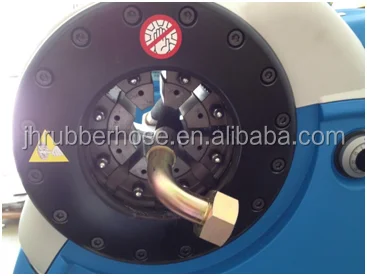

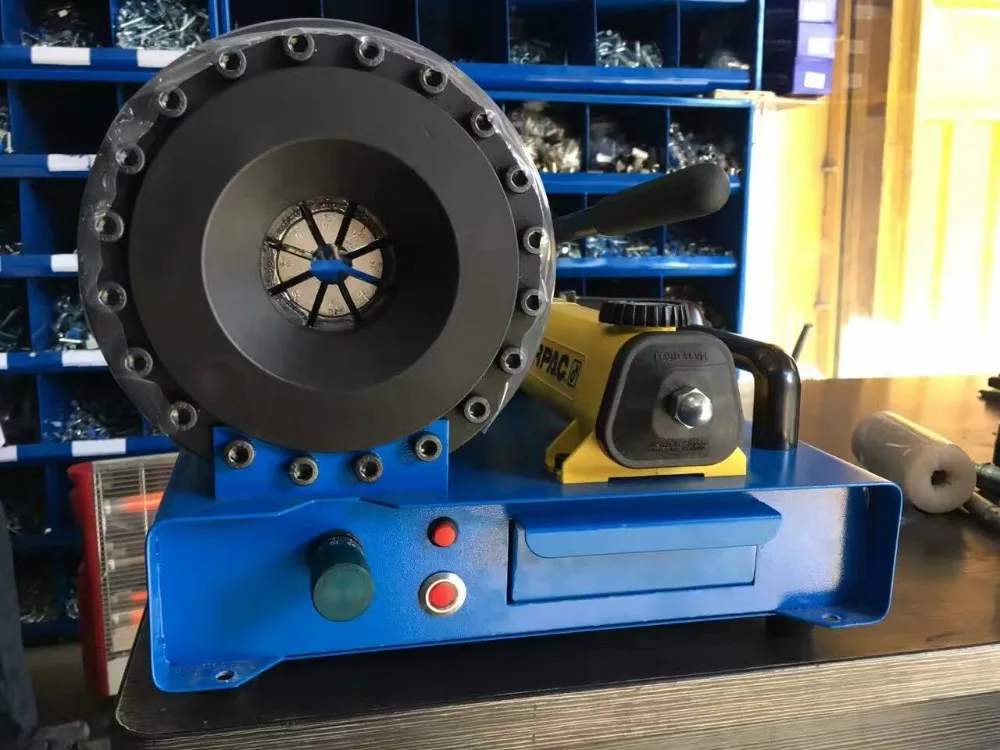

Detailed Images
Other Products
New style with discount price finn-power manual techmaflex hose crimping machine
En 856 4sp High Pressure Hydraulic Rubber Hose / Spiral Hose / Pump Hose
Wholesale price for Flexible high abrasive sandblasting hose / sandblasting rubber hose / rubber sand blast hose

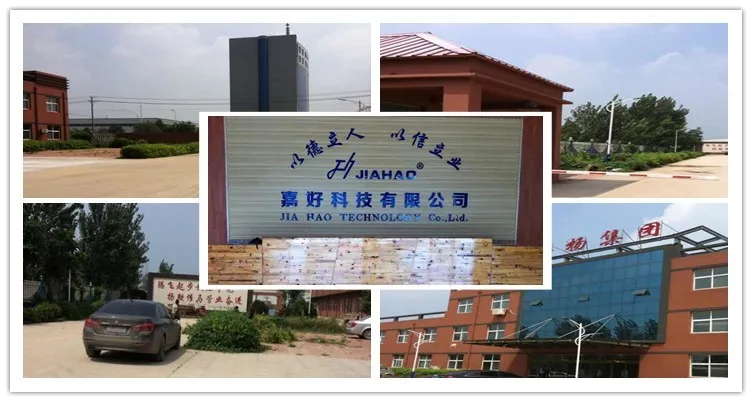

Our Company
JIAHAO TECHNOLOGY Co., Ltd. is located in Hengshui City,Hebei Province. We are a professional manufacturer of hydraulic series products.set design, development, manufacturing as a professional manufacturer.We focus on a series of Low cost and high quality products.
a wide range of diversity, reasonable price and on-time delivery.
Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
FAQ
Q1. How many usually testing for hose?
A: Aging resistant Test, Rubber Tensile Test, Curing Press, Pressure Test, Burst Test, Impulse Test.And as your request
Q2. How about your Main Raw Material?
A:Natural Rubber, Rutadiene Styrene Rubber(Styrene Butadiene Rubber), Neoprene Rubber, Nitrile Rubber, Ethylene Propylene Rubber, Butyl Rubber, Chlorosulfonated Polyethylene Rubber（chloroprene rubber）, Polyurethane Rubber, Acrylic Rubber, Fluorous Rubber, ect.( steel wire sulphur, carbon-black, accelerator, etc)
Q3.How about your Payment Term?
A: T/T 30% in advance as deposit, and 70% before shipment. We'll show you the photos of the products and packages
before you pay the balance.
Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q5. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q6. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q7. What is your sample policy?
A: We can supply the free sample if we have in stock, but the customers have to pay the courier cost.And after you place an order,we will refund the courier cost.
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q9: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
