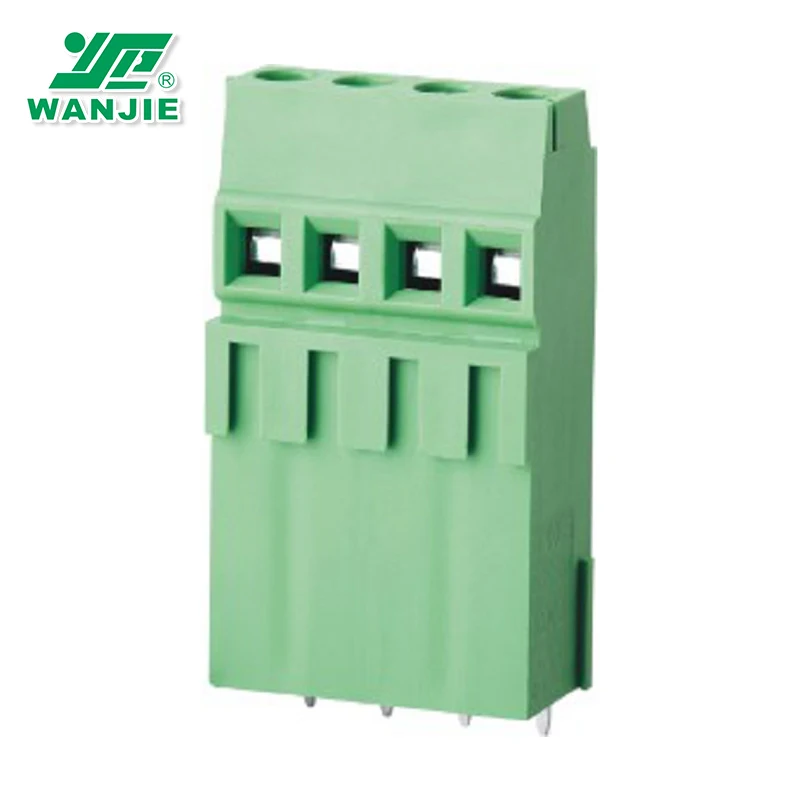

300V 15A Wanjie 5.0mm 5.08mm PCB Screw terminal block






Product Description


Material
























ScrewsM2.5 Steel Zn plated
CageBrass,Ni plated
Pin headerBrass,Sn plated
HousingPA66  UL94V-0




Electrical

































Standed            UL                             IEC
Rated voltage          300V                           250V
Rated current           15A                            18A
Wire range        30-14awg                     2.5mm2
Contact resistance                         20mΩ
Insulation resistance                   500MΩ,DC500V
Withstanding voltage                     AC2000V/1Min







Mechanical
























Temp.range-40℃-+105℃
Max.soldering+250℃ for 5 sec
Torque4.08kgf-cm/0.4Nm/3.54Lbin
Strip length6-7mm
