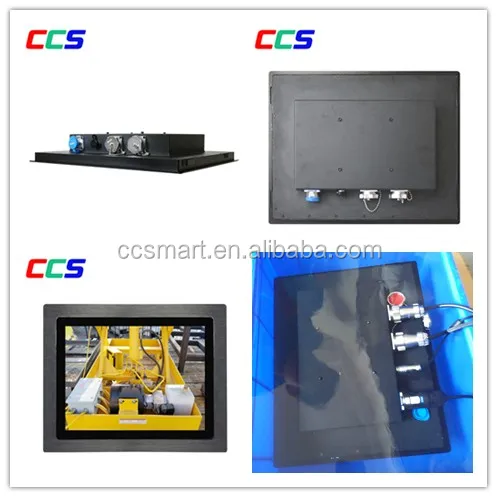

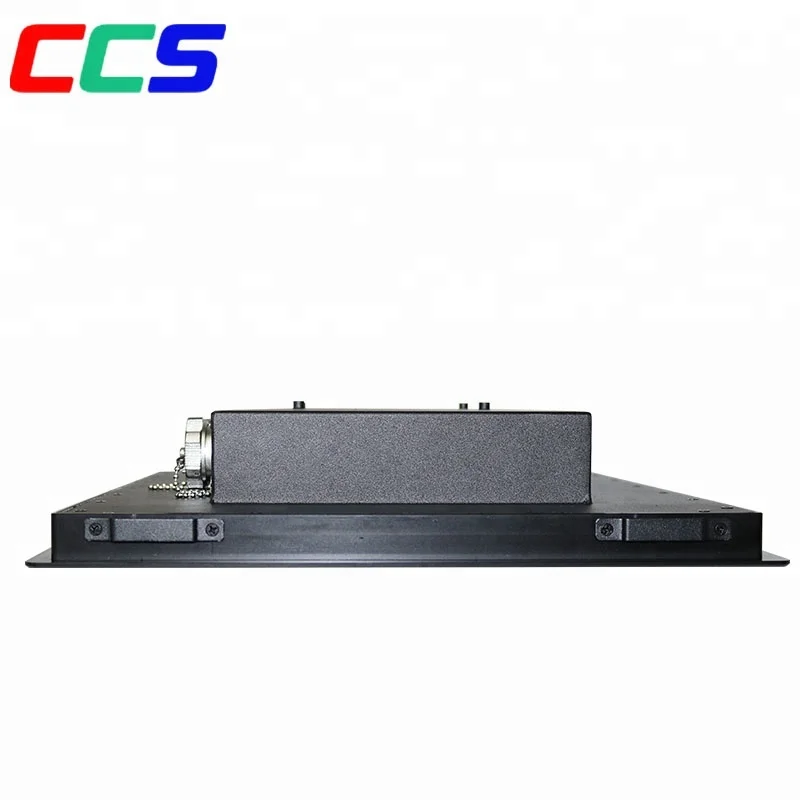

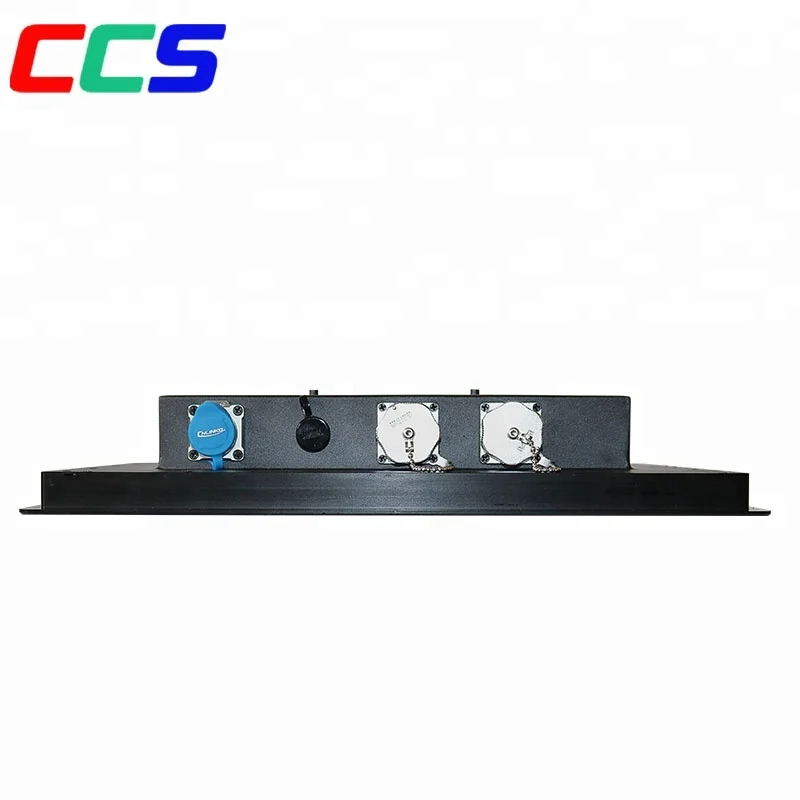

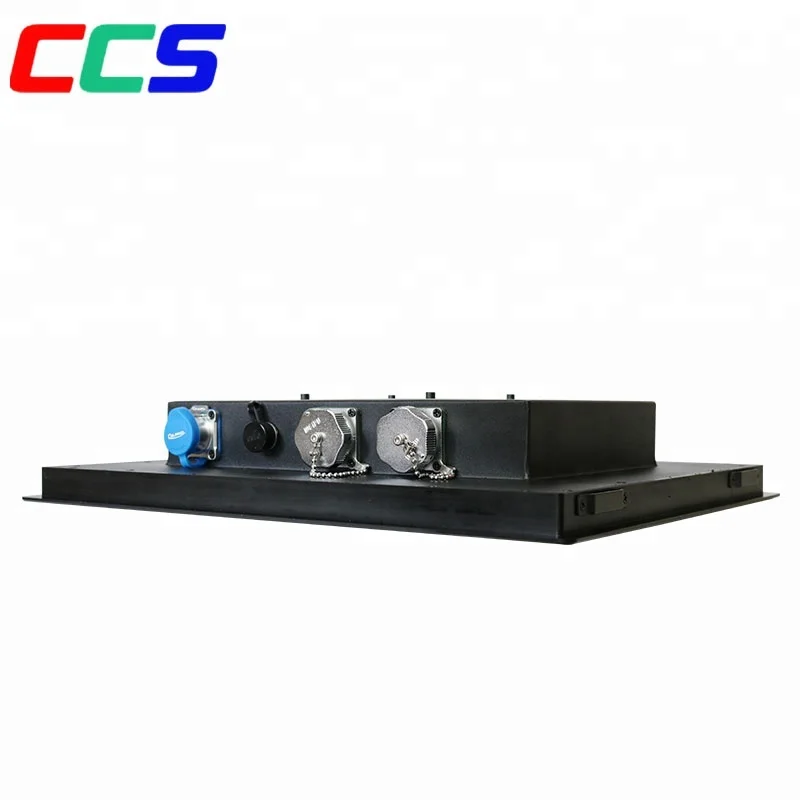

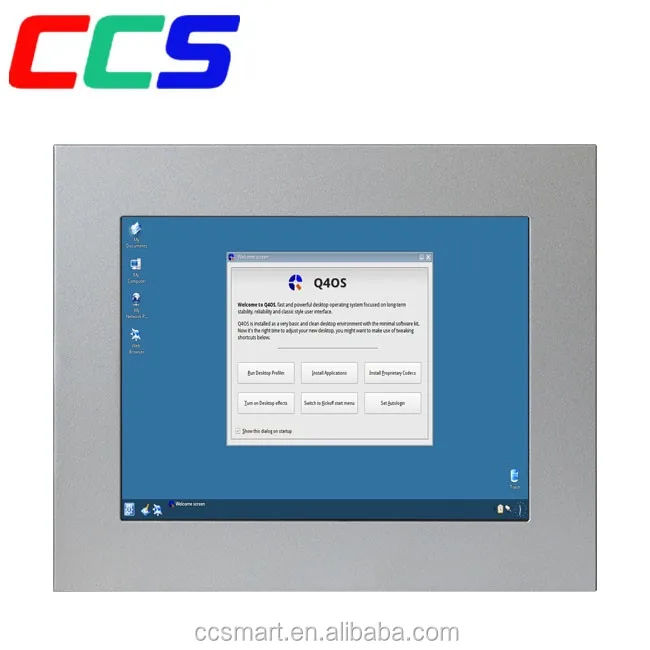

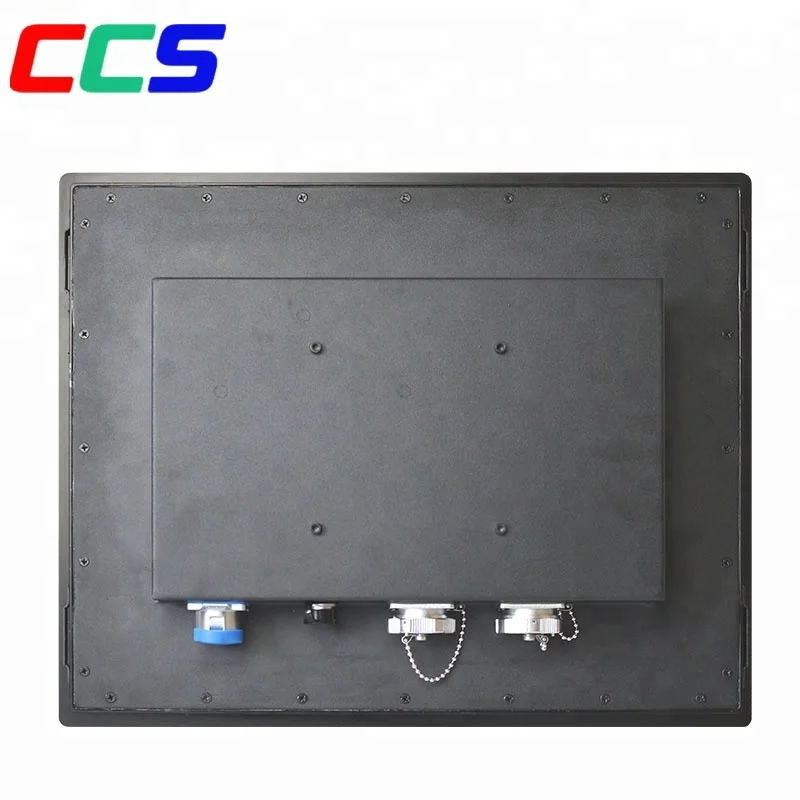

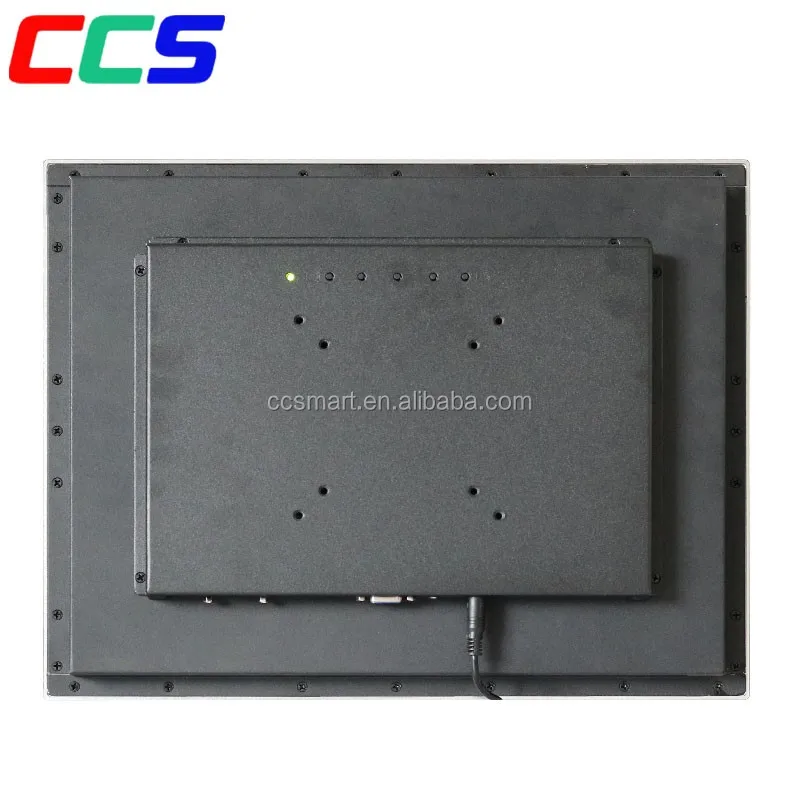

17 inch 1500 nit high brightness monitor with touch screen

CCS is an innovative and cutting-edge manufacturer in embedded panel computer and touch solutions technology. With excellent R&D team, leading design philosophy and cost-effective solutions, CCS enjoys a high reputation in domestic and oversea customers from Industry Process Automation, Outdoor Digital Signage,Transportation and Kiosk.

Our Vision
To be the better and smarter Panel Computer and Touch Display Manufacturer.
Our Mission
We strive for saving time for customers in offering:
Excellent Quality, Reasonable Price, Short Lead time and Fast Response

Product Details

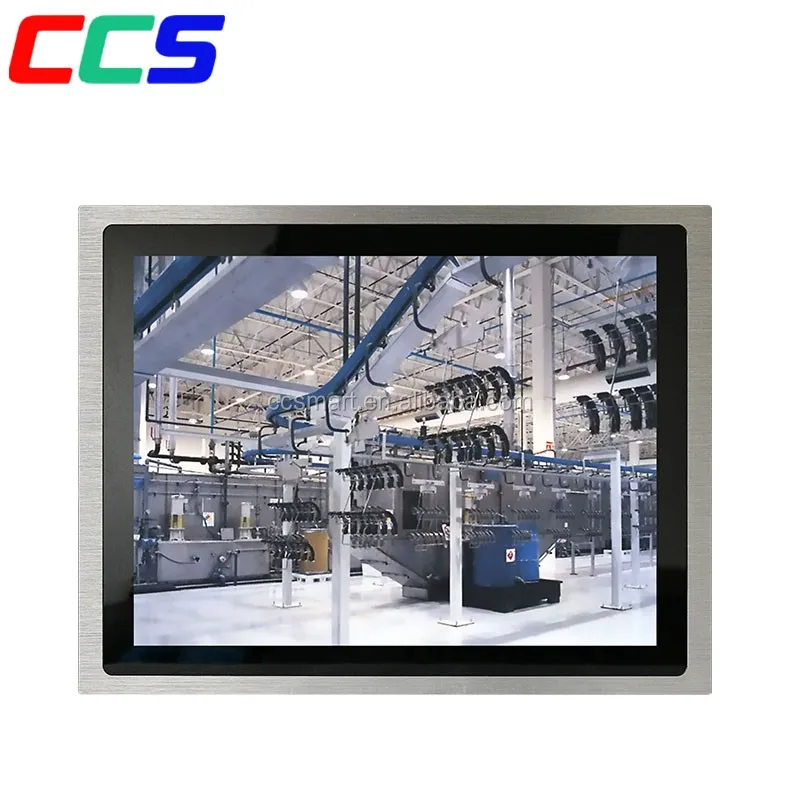

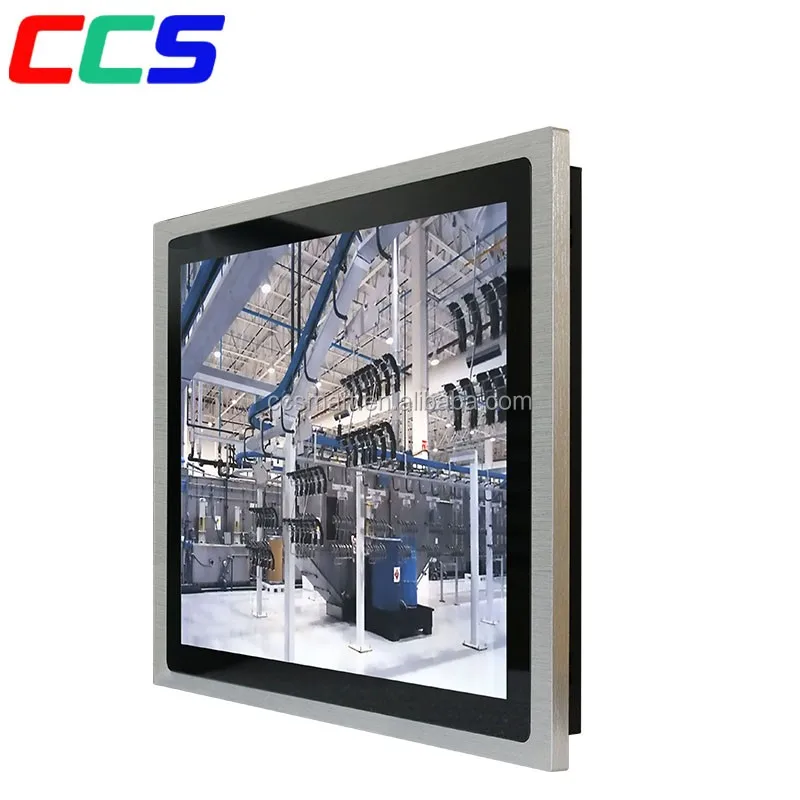

17 inch 1500 nit high brightness monitor with touch screen

Leading Touch Panel Computing Solutions
CCS leadership are experienced specialists on computer, touch and electromagnetism technology. The professional leadership always provide the most suitable solutions for tailor-made and standard product,CCS combined with best electronic and mechanical design for our customers.
Quality Control

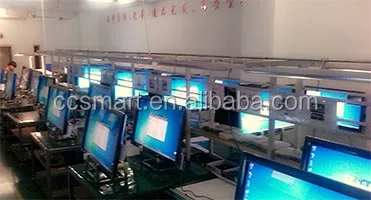

From components incoming quality control, assembly process,burn-in test and pre-shipment inspection.Our QC system throughout the whole leadtime and manage to let our customers enjoy the perfect operation.

Screen Size	12	15	17	19
Panel	TFT LCD A+ Grade with LED Backlight  industrial type
Resolution	800x600	1024x768	1280x1024	1280x1024
Aspect Ratio	4:3	4:3	4:3	5:4

Contrast	800:1	800:1	1000:1	1000:1
Brightness	1000nit	1500nit	1500nit	1500nit
Optional	1000~1500 nit High Brightness, Direct Sunlight Readable
View Angle	160/170	170/170	170/170	160/170

Active Area(mm)	246x184	304x228	337.9x270.3	396x324
Display Color	16.7M	16.7M	16.7M	16.7M
Touch Screen Technology	Projected Capacitive Multi Touch      Knock Times More Than 50 Million Times  USB Connector
Optional	5 Wire Resistive Touch Screen ; COM Connector

Signal	LVDS	LVDS	LVDS	LVDS

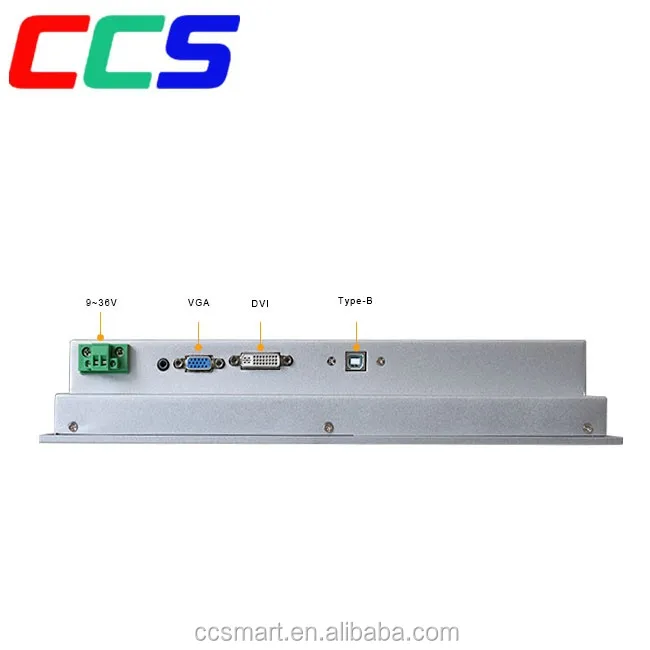

Video Interface	VGA+DVI	VGA+DVI	VGA+DVI	VGA+DVI

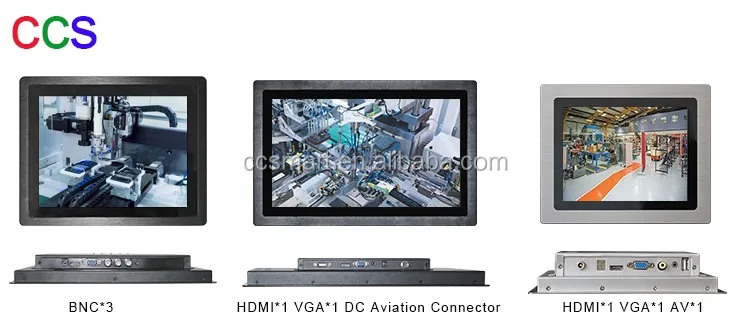

Optional	DP, HDVI, BNC, AV,SDI,DVB-T, Line in
Speakers	Optional

Voltage Input	100~240V 50-60Hz to DC12V4A by External Power Adapter
Optional	9~36V Input
Power Output	Less than 35W

Operating Temperature	-10°~ 60°	-10°~ 60°	-10°~ 60°	-10°~ 60°
Operating Humidity	10%~95%	10%~95%	10%~95%	10%~95%

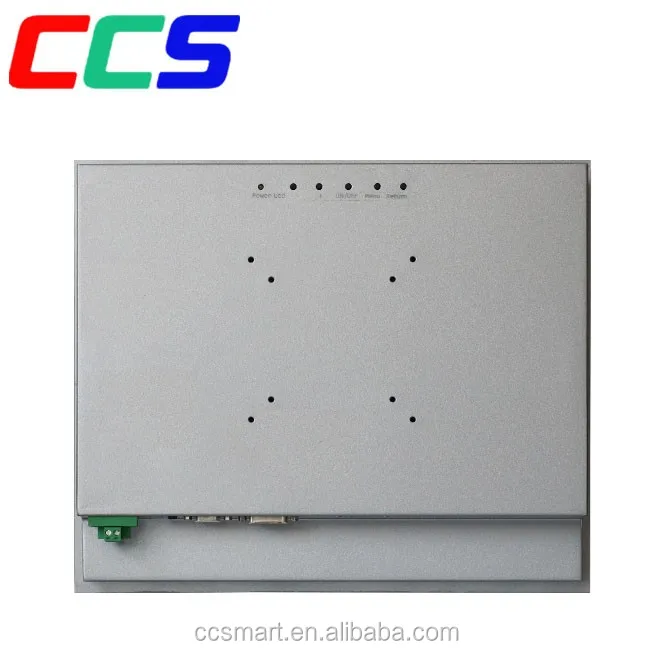

Mount Method	Flexible Mounting: VESA, Wall Mount, Panel Mount,Desktop, Arm
IP Grade	IP65 Front

Housing Material	Aluminum Alloy Front Bezel, Anodized & Brushed Process
Enclosure Material	High Strength Alu Sheet for Backplate

Accessory

AC Cable, Power Adapter, Wall Mount Bracket, Panel Mount Clips,USB Cable, VGA Cable

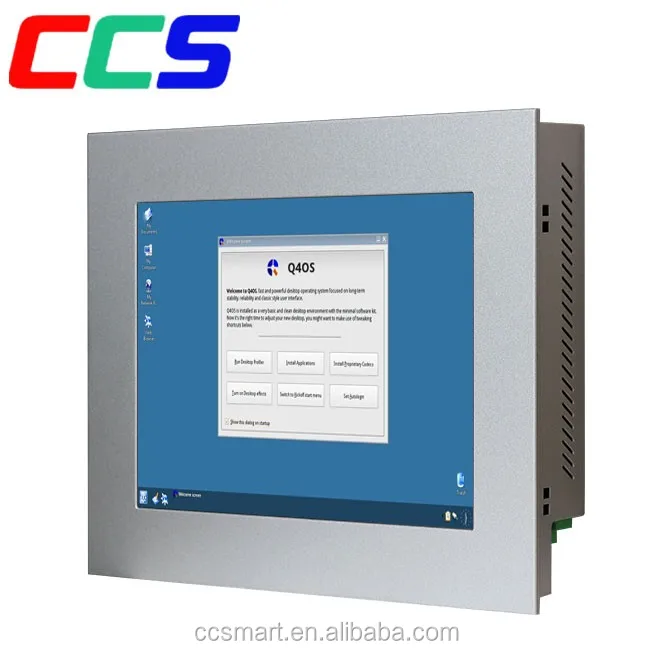

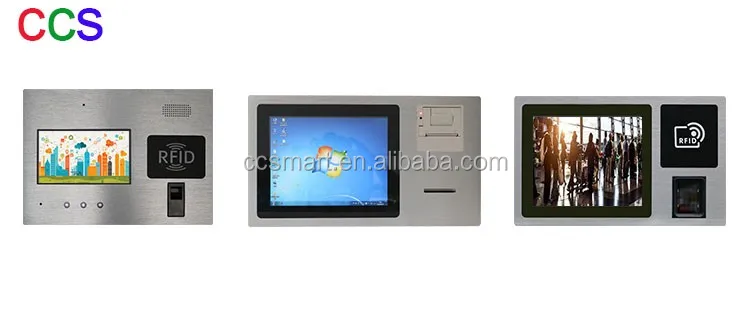

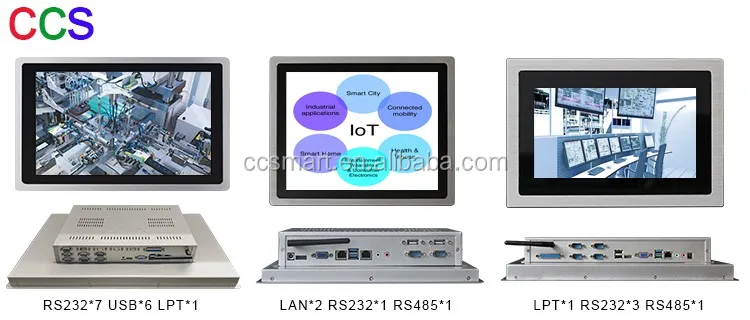

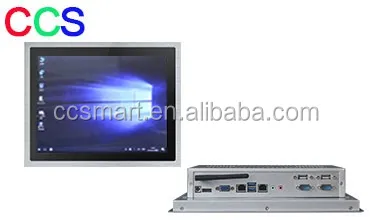

Industrial All in One Touch Screen Panel PC

Processor:
-Fanless- Intel Atom D2550 Intel Celeron J1900 Intel(R) Core(TM) i3
Intel(R) Core(TM) i3,i5 (Mobile Version)
Intel(R) Core(TM) i3,i5,i7 (Desktop Version)
Memory: 2gb~16gb SO-DIMM
Storage: 32gb~256gb SSD or 1TB HDD
OS:Windows 7/8/10,Linux
Options:Dual Lan, 8*USB,6*Com,3G/4G,9~36V Input,Full IP65

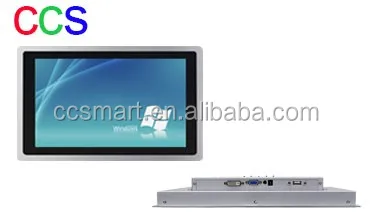

Industrial Touch Screen Monitor

Screen Size:
6.2" 16:9 800*480 7" 17:10 1024*600 8" 4:3 800*600
10.1" 16:10 1280*800 10.4" 4:3 1024*768
12" 4:3 1024*768 12W" 16:10 1280*800 13.3" 16:9 1920*1080
15" 4:3 1024*768 15.6" 16:9 1920*1080
17" 4:3 1280*1024 17.3" 16:9 1920*1080
18.5" 16:9 1366*768 19" 5:4 1280*1024 19" 16:10 1440*900
21.5" 16:9 1920*1080 23.6" 16:9 1920*1080

Material&Process

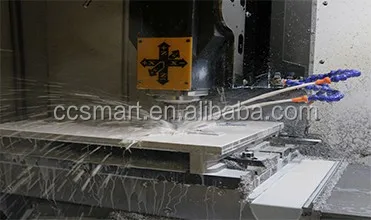

CNC Processing

All of our Panel PC and Touch Monitor Product is with CNC Aluminum Alloy Bezel. With the  precision to be sealed, to meet IP65 Grade.

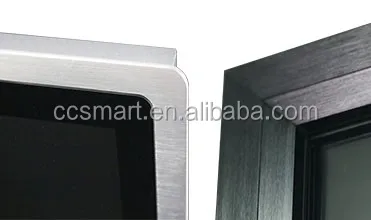

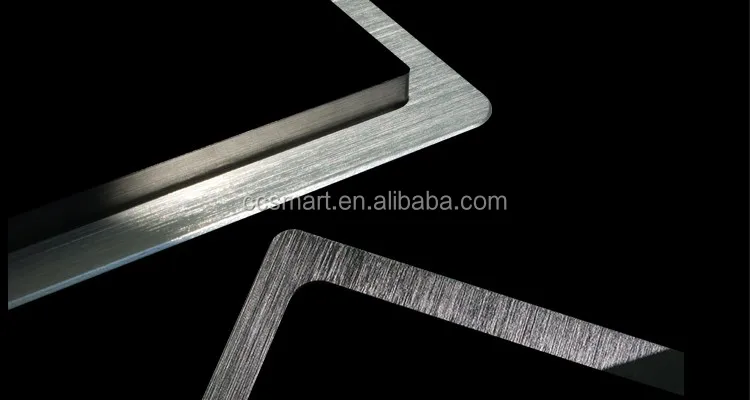

Metallic Lustre

The Metallic Lustre is perfectly showed by brushed wire and anodized process

Certifications

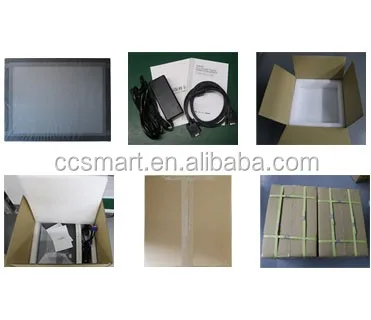

Packing & Delivery

Warranty

Fast Response on Service

CCS konw the anxious mood when computer in malfunction.Our professional engineer would take action once receiving complaint in 4 hours. It's our basic responsibility to keep customers and ownership enjoy the best service experience. Any questions welcome to contact with us today on: sales(at)cc-s.cn
