1. Work worldwide use (850/900/1800/1900MHz)
2. Can accurately position even if with weak signal--LBS location
3. High-sensitivity, latest technology and the most advanced GPS chip
4. Tracking on demands or SMS commands
5. Tracking by time intervals
6. Tracking on computer or cell phone or PDA
7. Real time tracking via SMS or GPRS (TCP/UDP)
8. Show location directly on mobile phone with HTTP link
9. Five authorized phone numbers to protect tracker information and assets
10. Easy switch for track or Monitor
11. SOS button for emergency
Feature:
1)Support ACC, Door and Shock sensor alarm
3)Reset inside GSM and GPS module by SMS and Reset button
4)"Arm" and "Disarm" by sending SMS
5)Support Silent Mode by SMS commands
6)SMS tracking on cell phone with Google maps link
7)Get accurate address including street name by SMS
8)Real time tracking
9)Free PC based software for live tracking
10)Web based online tracking server
11)Five mobile numbers can be authorized to device
12)Support GPS+LBS Positioning ways
Basic Functions:
1. ACC alarm, Door alarm and Shock sensor alarm at ARM state
2. Set up ARM and DISARM by Cell phone or remote controller
3. Anti-thief for 24 hours a day to protect the vehicle well
4. Emergency for help, SOS panic alarm
5. The internal GSM and GPS module can be reset by press reset button or SMS
6. Free PC Platform use free Google map, it is not necessary to pay any map charge
7. If enters places (underground park) without GPS, it will report the last position tracked
8. Send alert of over range/speed to the authorization phone when it go out the restricted area/exceeds the restricted speed
9. Power or Oil cut off and resume/restore alarm by SMS GPRS
10. Show location directly on mobile phone with HTTP Google map link
11. Web based online tracking at our server
12. View target current location on map on the cell phone and PDA with maps links in the message from tracker
13. 24 hours real-time SMS/GPRS tracking
14. Auto tracking continuously
15. Sending "address+password" to unit to get absolute street address
16. Support GPS+LBS double positioning ways
17. Set the local GPS time by SMS
18. Low battery alarm
19. Geo-fence
20. Movement alarm
21. Over speed alarm
Application Fields:
Vehicle monitoring
Car positioning
Logistic monitoring

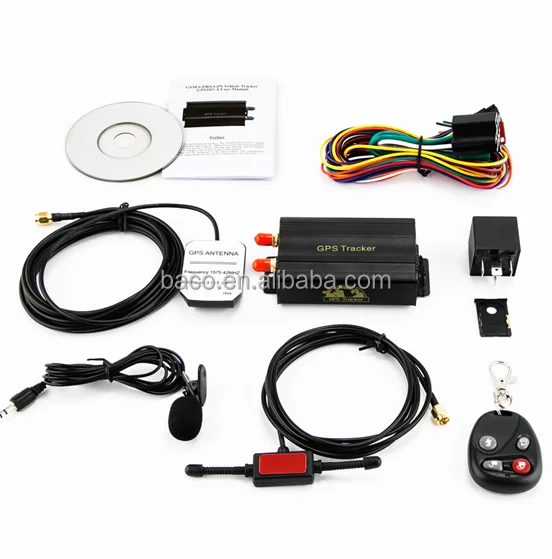

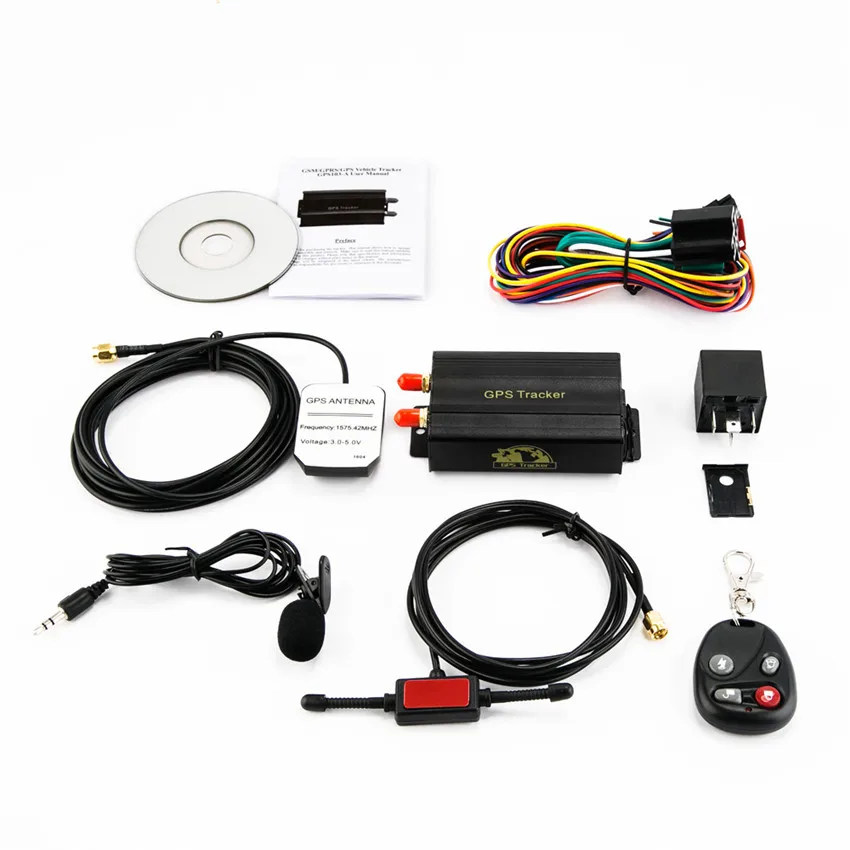

Optional accessories: TK103A TK103B
Shock sensor (optional for model A/B);
Alarm siren (optional for model A/B);

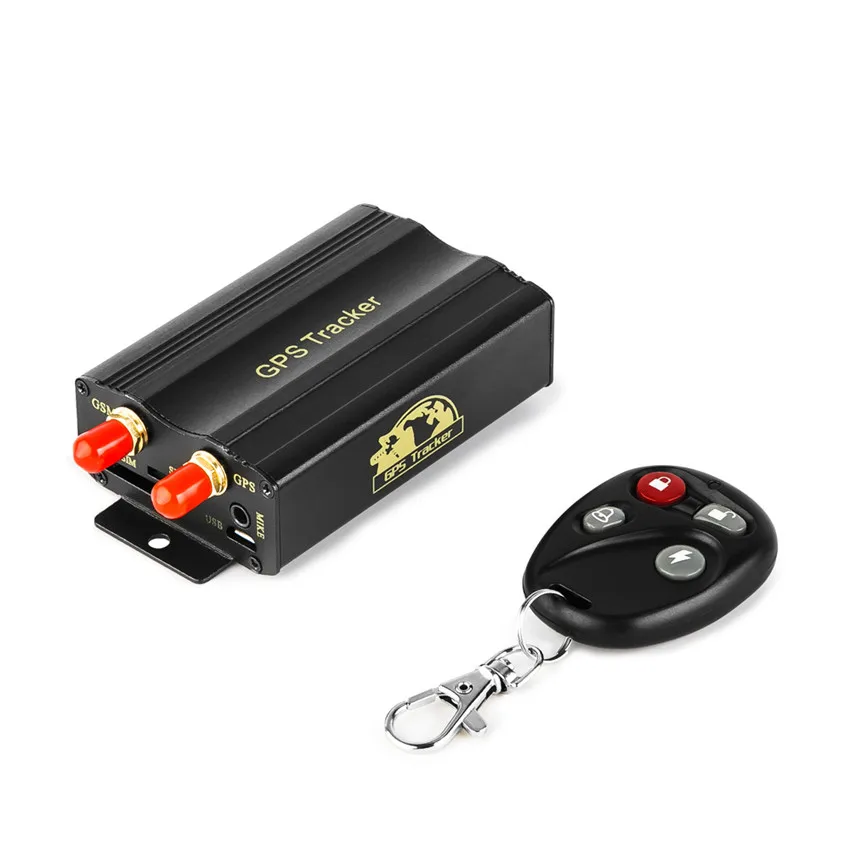

Remote controller (optional only for modelB)
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GSM/GPRS Module | SIM900B |
| GPS Module | UBX chip |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s Warm status 35s Hot status 1s |
| Voltage of car power system | 12 V -24V |
| Backup battery | Chargeable changeable 3.7V 800mAh Li-ion battery |
| Storage Temp. | -40° C to +85° C |
| Operation Temp. | -20° C to +65° C |
| Humidity | 5%--95% non-condensing |
