Chengjing 60tph Mobile Asphalt Mixing Plant
- Category: >>>
- Supplier: Henan Cheng Jing Mechanical Electrical Equipment Co. Ltd.
Share on (60776450153):
Product Overview
Description
Chengjing 60tph Mobile Asphalt Mixing Plant

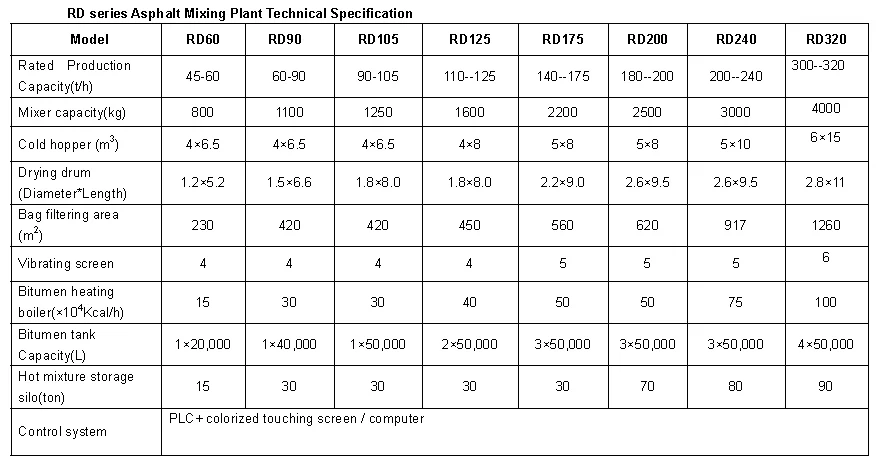

RD60 | |
Rated Production Capacity | 60t/h |
Oil Consumption | 6.5kg/t |
Figure Dimension | 36m×18m×13m |
Total Power | |
Operation | Manual, auto manual, auto |

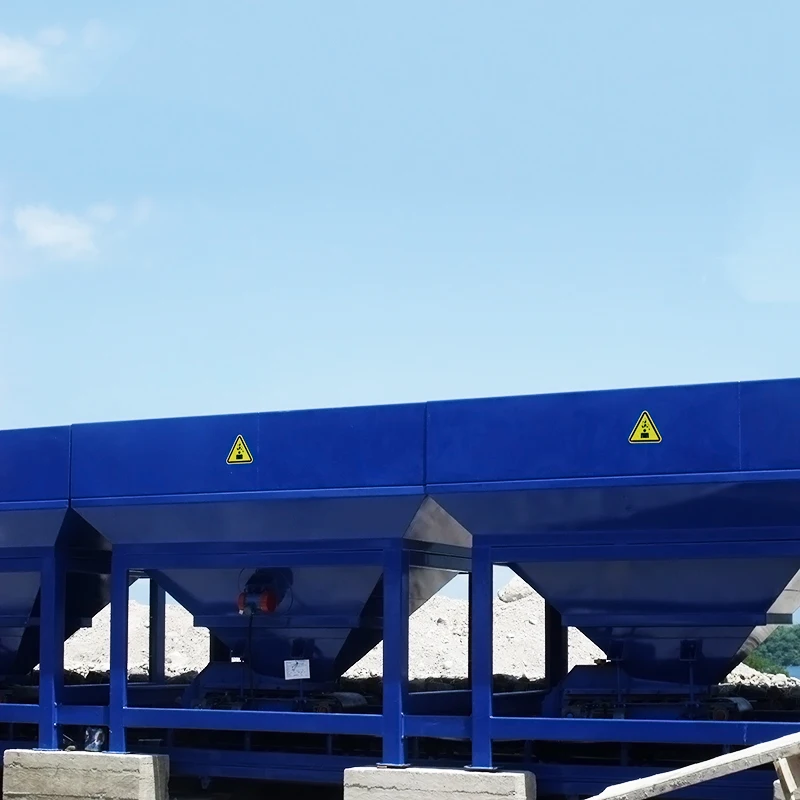

Cold Aggregates Supply System | Cold aggregate hopper:4×6.5m³ |
Conveyer belt width:500mm | |
Drying Drum | Φ1.2m×5.2m |
China Brand Light Oil Burner | Rated oil consumption:400kg/h |
Hoisting System | Hot aggregate elevator:1×5.5KW |
Filler elevator:1×2.2KW | |
Vibrating Screen | Four layers |
Weighing system | Hot aggregate weighing hopper:700kg; Weighing accuracy:±0.15% |
Filler weighing hopper:80kg; Weighing accuracy:±0.15% | |
Asphalt weighing hopper:50kg; Weighing accuracy:±0.1% | |
Mixer Capacity | 800kg/batch |
Dust Collecting System | Gravity dust catcher + Cyclone dust catcher + Water dust catcher |
Filler Supply System | Filler temporarily storage silo:1×0.4m³ |

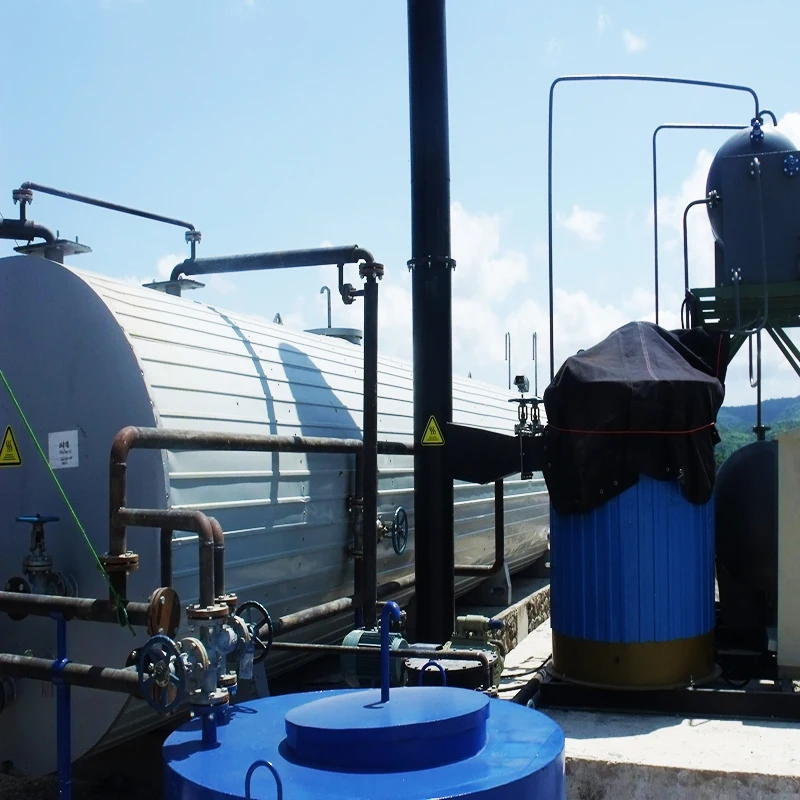

Oil burning heating asphalt Tank | 1×20m³ |
Electric Control System | Control room:3m×2.2m×2.5m |
Control system: PLC+touch screen |

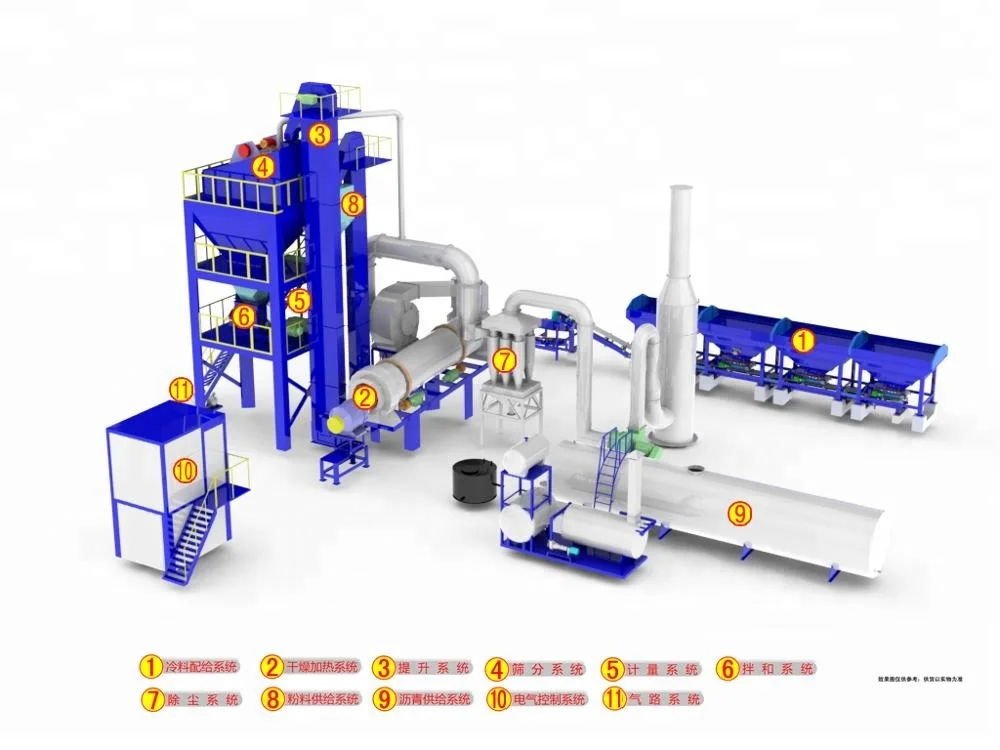

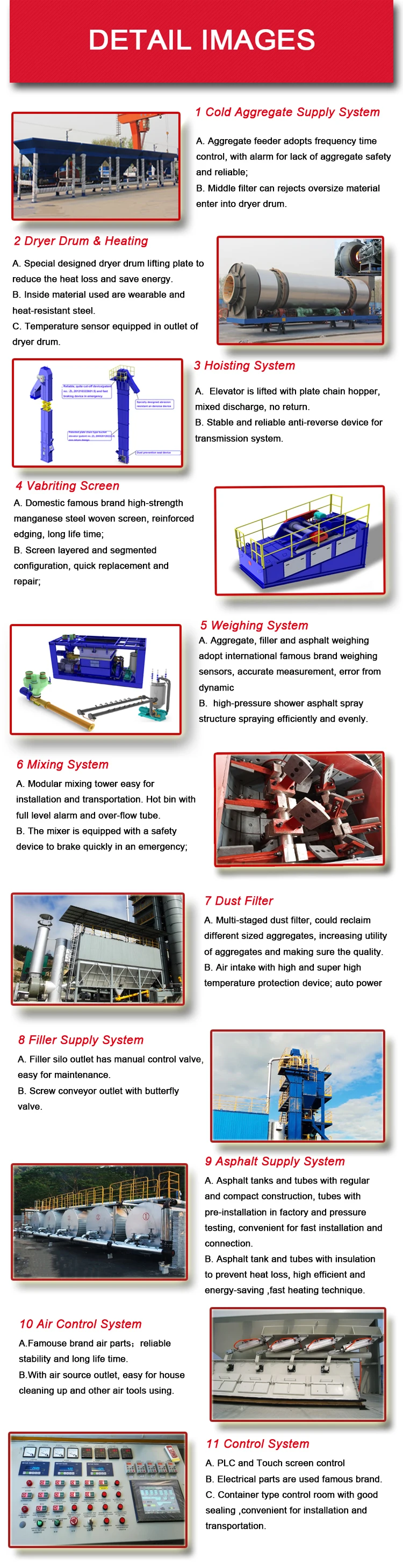

1.Modularized design, easy installation and transportation;
2.High performance, save energy drying drum system;
3.Strictly test vibrating screen system;
4.High accuracy weighing system;
5.High-efficiency mixing system adopt twin-shaft batch mixer;
6.Famous brand air compressor and high quality pneumatic system used;
7.Easy & stable control system.

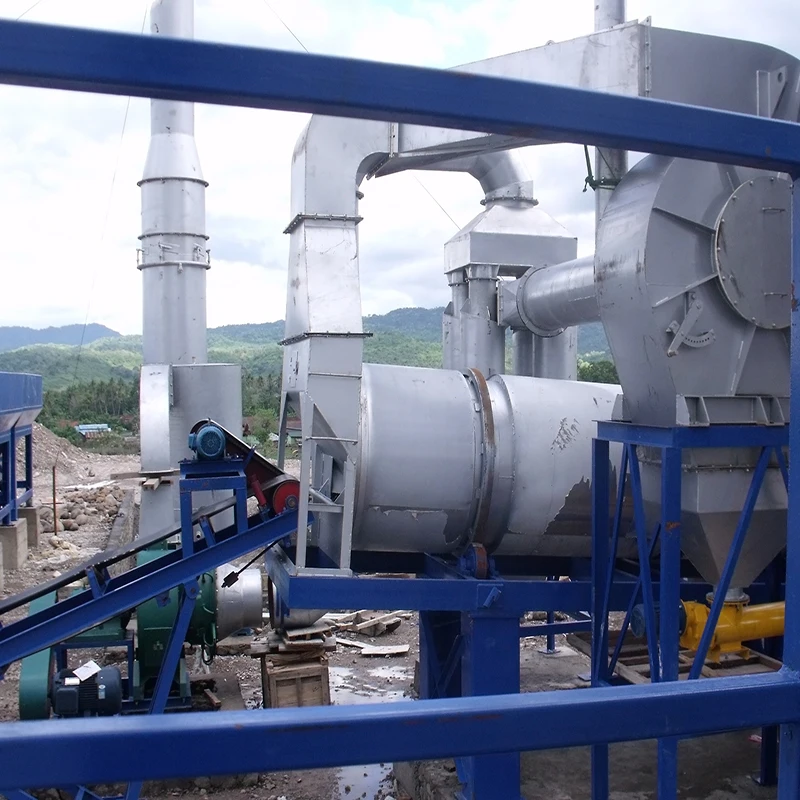

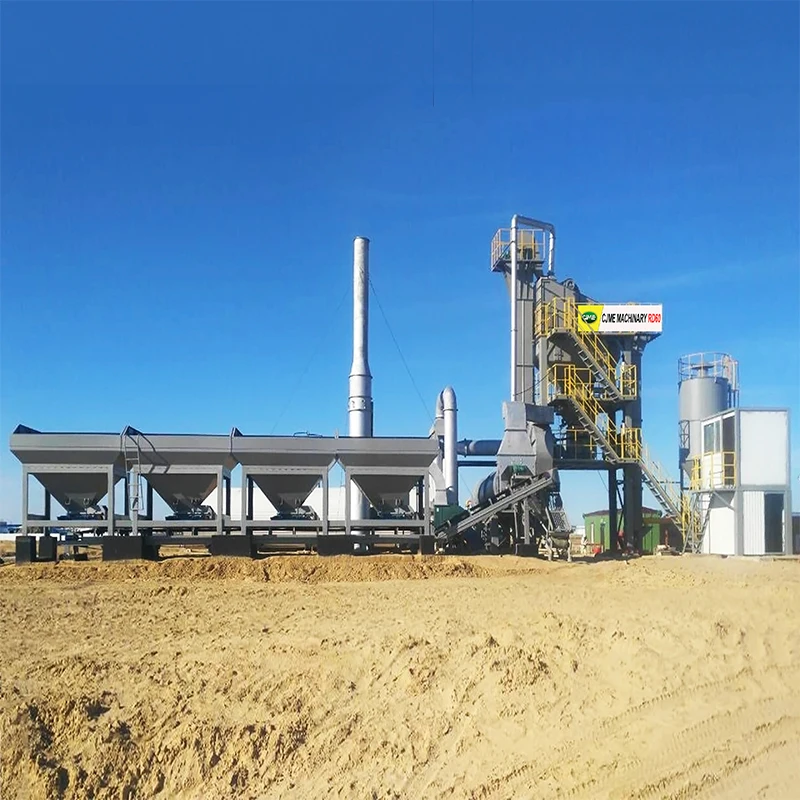

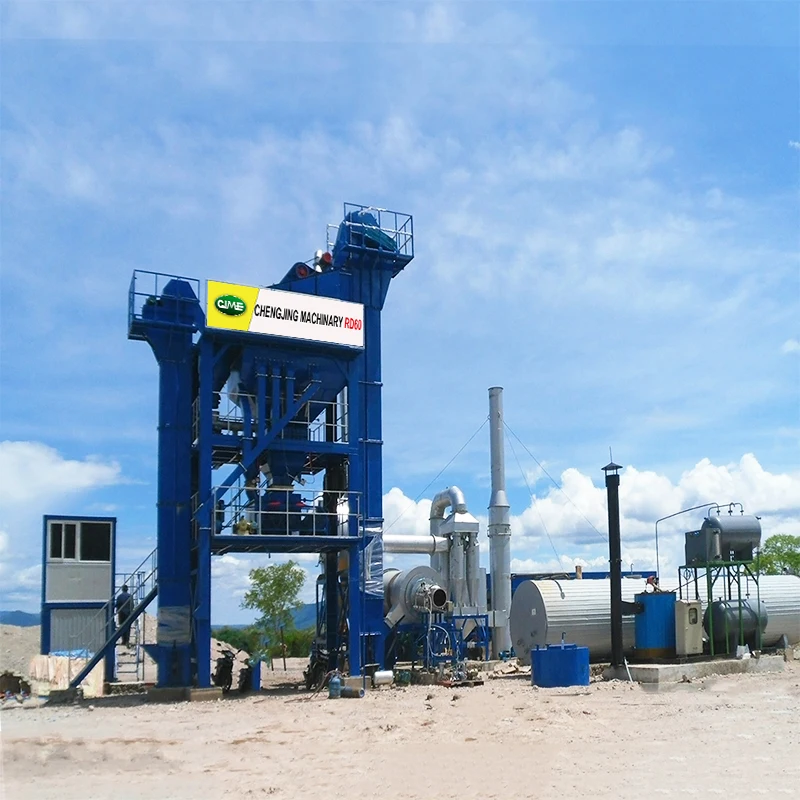

Chengjing 60tph Mobile Asphalt Mixing Plant
Chengjing 60tph Mobile Asphalt Mixing Plant
Packaging details: The spare and accessory parts are packaged by fuming wooden box,but the bulk cargo are packaged by nude packing,for example,the drying drum,bitumen tank,filler silo,control room and so on.
- Port: Shanghai,Qingdao,Tianjian,or other China port.
- Lead Time :25-30 days after payment.
