Product Description

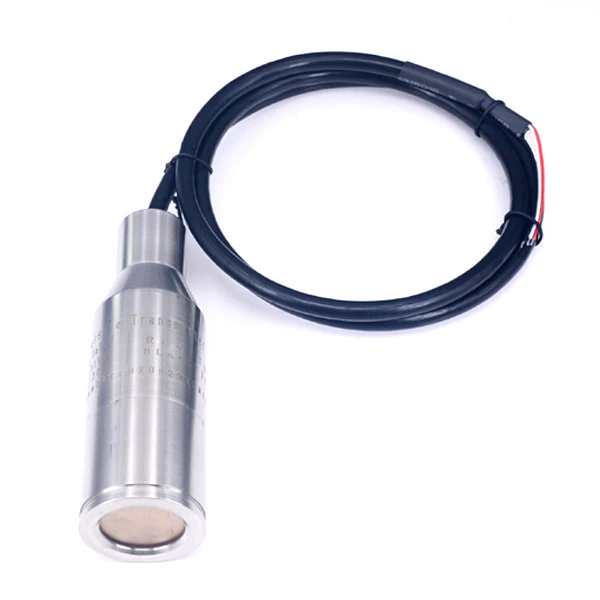

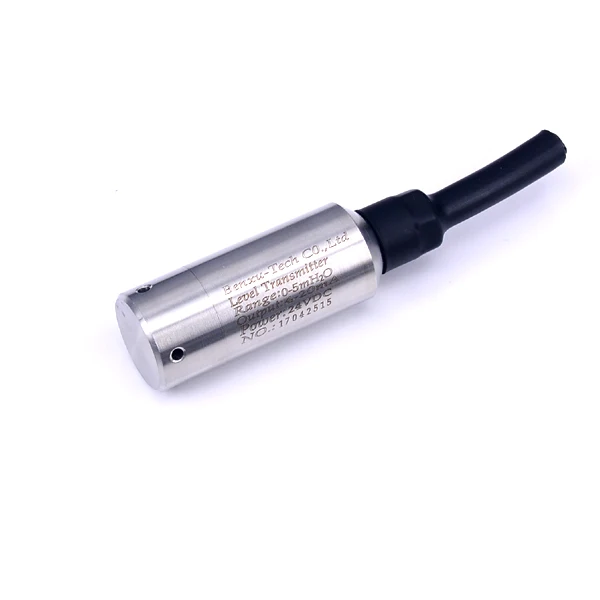

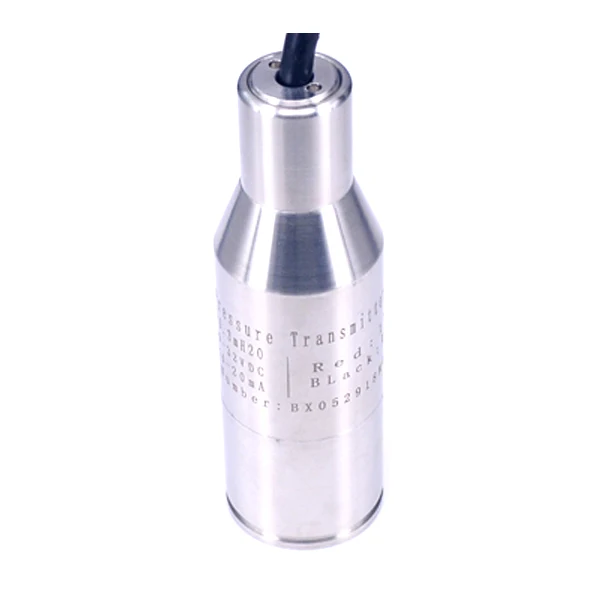

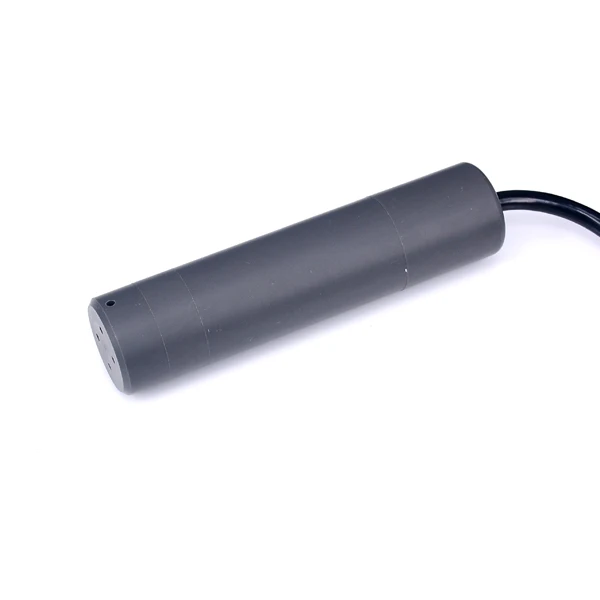

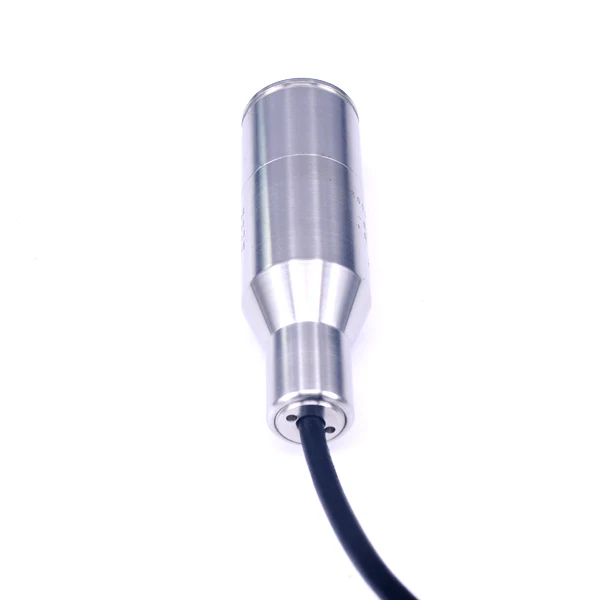

LS210 level transmitter applies to ceramic capacitive pressure sensor as the core component.
Depending on the size of the sensor used,it has two types of LS210 and LS210S,they adopt special technology,the inside has the function of triple protection,a thorough settlement of the problem for condensation of moisture,large measurement area is contacted between diaphragm and medium,easy to clean but not easy to clog up,ceramic pressure sensor with good corrosion resistance,applies to advanced digital circuit technology,with zero tracking function, linear compensation function and temperature compensation function,it’s optional function for display,HART or RS485 communication.Widely uses for deep water measurement or small range measurement,can work for corrosive liquid.
Applications:
Water Level Measurement of River,Lake and Reservoir; Municipal Water Supply
Hydrological Exploration; Underground Water; Well Water; Hydropower Station Detection Platform
Terrestrial Heat; Locomotive Tank; Petroleum; Tank Farm; Electric Power Plant; Chemical Plant
Sewage Disposal; Sea-going Freighter; Tanker Cabin; Fresh Water Tank; Ship and Marine System Testing
Water Conservancy; Ocean Experiment Project; Industrial Equipment; Military Weapon Equipment Test
Specifications:
1,Prevent from the surge voltage,over-voltage,over-current and the protection of reversed polarity;
2,Do the test to make sure the ability of overload resistance and shock resistance,precisely ensure the overload capacity;
3,Implement the electromagnetic interference resistance to avoid the problem taken place under the condition of complicated electromagnetism environment;
4,All sensitive chips are from the imported OEM parts,in order to keep the long-term stability.
Technical Parameters:
Measurement Range
0~2kPa/0.2m~500m
Accuracy
±0.25%FS;±0.5%FS
Output Signal
4-20mA;0-5V;1-5V;0.5-4.5V
Power Supply
5VDC;12VDC;24VDC
Installation Mode
Throw-in type;mounted type;DN flange connection
Electrical Connection
Direct lead or display function
Measurement Medium
Non-corrosive medium or corrosive medium
Overload Capacity
150%FS
Ultimate Overload
200%FS
Working Temperature
-40℃ to 85℃
Temperature Drift
0.02%FS/°C
Long-term Stability
±0.2%FS/year
Shell Material
316L or PTFE(polytetrafluoretyhylene)
Sensor Material
96% alumina ceramics
Waterproof Grade
IP68
Sealing Material
Fluorine rubber,PTFE
Vibration Effect
Arbitrary axis,0.01%FS for 200HZ/g
Explosion-proof Type
ExiaIICT6

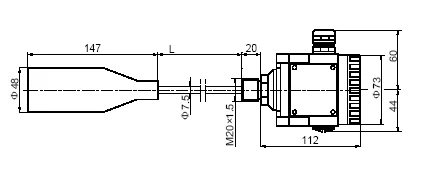

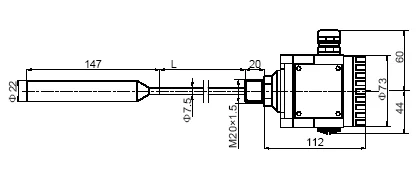

Dimensional Drawing(unit:mm):
Caution:
1,Don't connect the wires when the power is on,connect the power after checking the connection wires;
2,Shell and power should be connected with earth;don't change the welded parts and connected wires of the outgoing products when customer use it;
3,Sensor is related to the precision device,don't disassemble,and what's more,don't touch the diaphragmin case of break.
