small fully automated chicken meat processing plant

Product Overview

Description

200~300 Birds per Hour Slaughter & Cutting Line



I.	Slaugthering section
Item	Description	Qty	Unit	Remarks

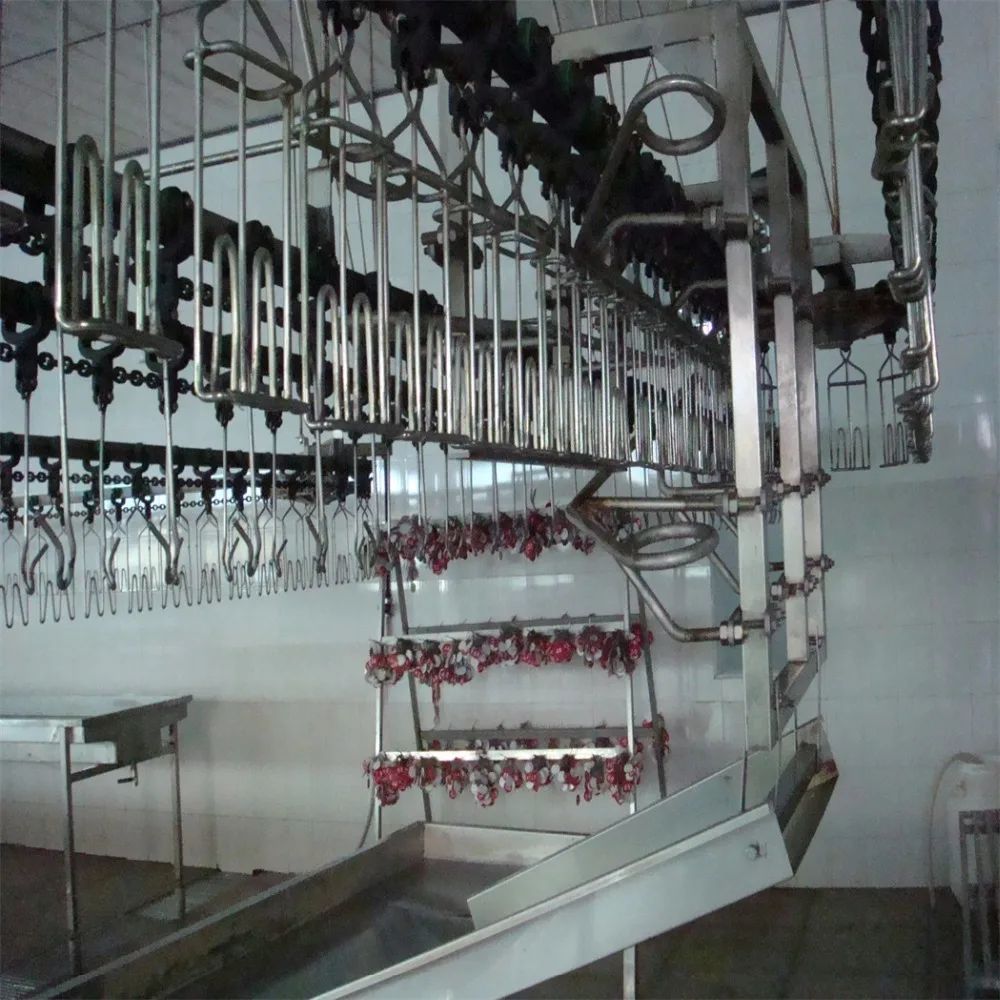

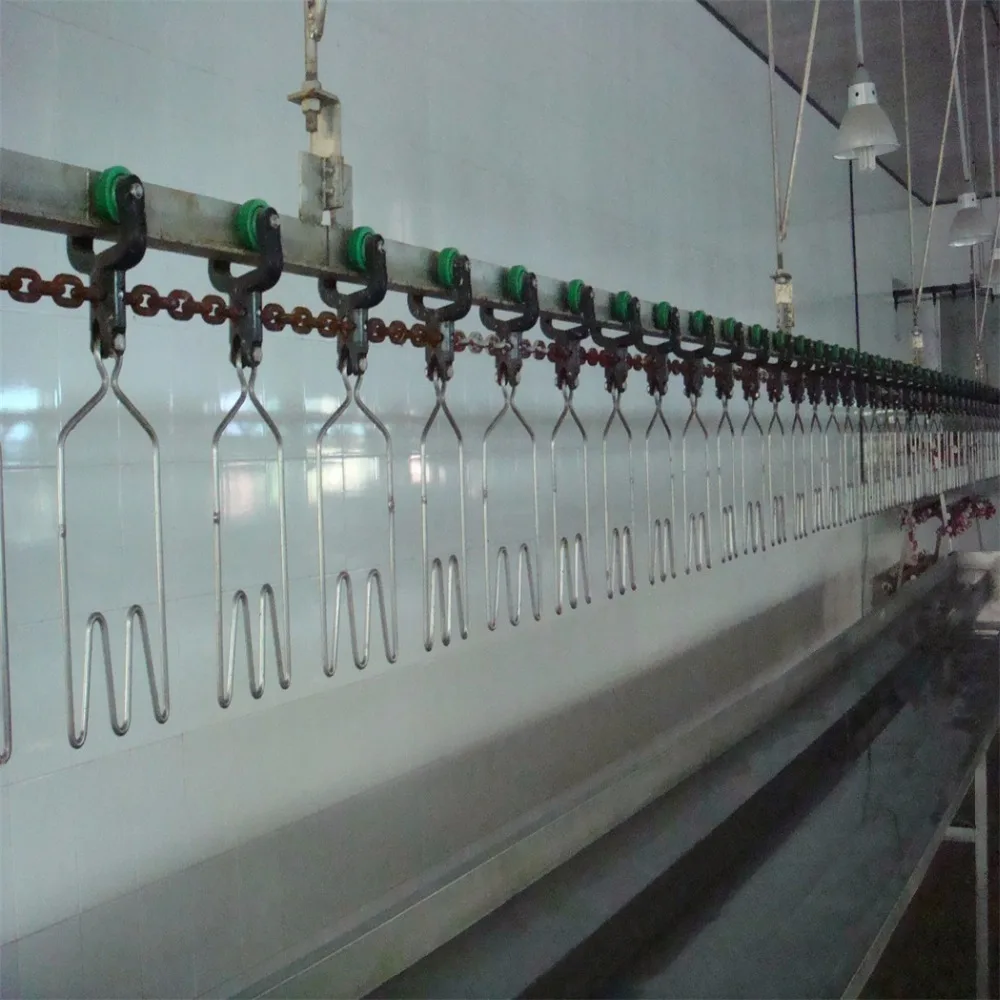

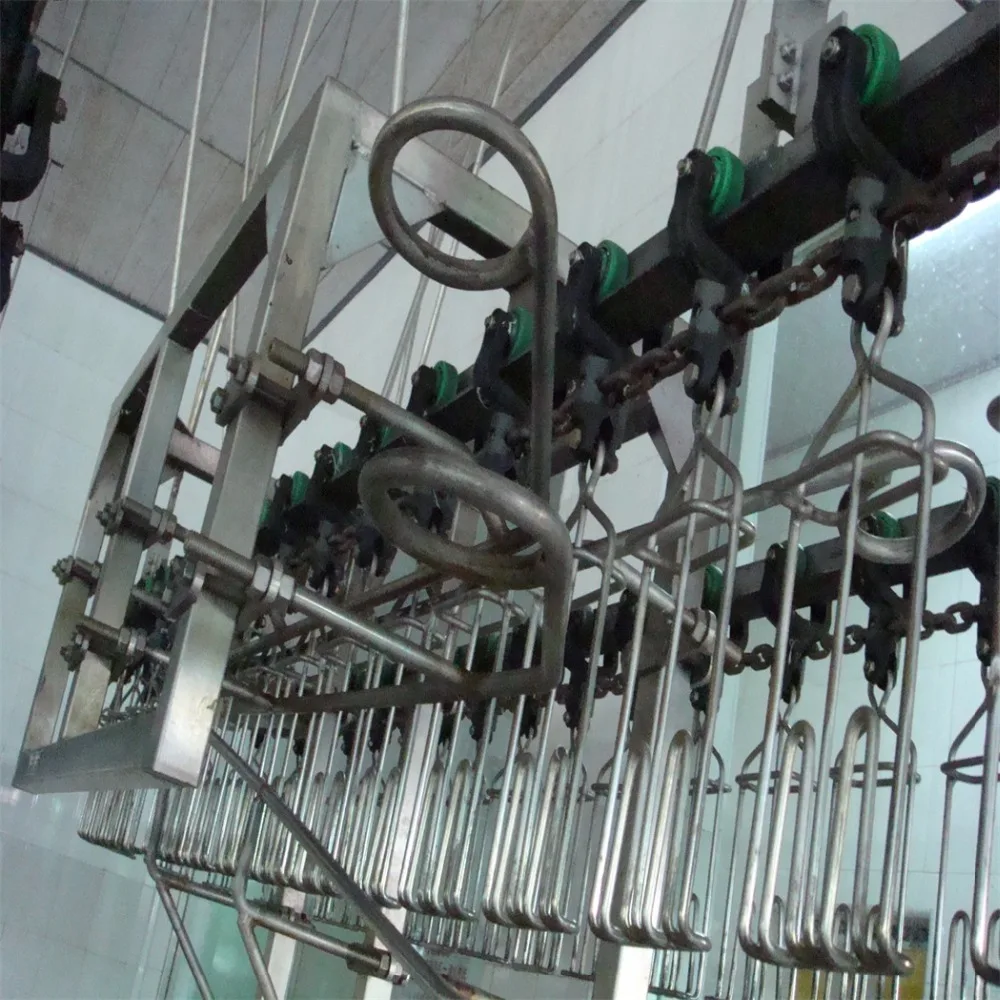

1	Hanging and Bleeding conveying line MXS152	40	M	This line is used to hang and convey the birds for killing and bleeding, mainly including stainless steel T rail, bent rail, anchor chain, hooks, and Nylon pulley yoke. Details as follows: 1)-Length :X M , Distance of hanging support :192mm 2)-Size of Chain : 8mmXt19.2 , Leading Chain size : D : 6inch  3)-Rating Voltage : 380/220VAC , Controlling Voltage : 24VDC 4)- Material : All are made of stainless steel except the casting and bought-in components. The electric motor with steel steel cover. 5)-The length of this line all depends on the target capacity of the slaughtering plant.
2	Bleeding Trough	1	PC	Size: 4000×1450×300mm. Civil works, built by self-construction
3	Waterbath type Electric Stunner	1	PC	1) The trough is made of glass fibre reinforced plastic, and the support is stainless steel. 2) Electric cabinet is included.
4	Spray Type Soaking&Scalding Machine	1	PC	Size: 4880×825×1998mm. Motor:380V, 50HZ, Power:4Kw. Except cast and outsourcing parts, all made of stainless steel.
5	Feather Shedder (12plates )	1	PC	1) Stainless steel frame. 2) Two parallel feather shedding cabinets, each has 3 rows. Each row have 12  spiral nylon shedding plates with 12 rubber whips each. 3) 12 sets of belt drive machines.12 high speed belts, feather baffled board, stainless steel spray pipe.
6	Feet Cutting Machine	1	pc	1) Size: 920X430X1400mm 2) Frame is stainless steel and others is hot galvanized steel.
7	Auto Hook Unloader	1	PC	This machine can automatically unload the hanging birds off the hooks of the conveying line. Details as follows: 1)-Out size : 1500X400X800mm 2)-Material : Stainless steel
8	Drive Device	2	PC	This is used to control the overhead convey line for slaughtering , visceration and cutting. Details as follows: 1)-Motor power : 2.2Kw (Slaughtering) , 1.5Kw (Evisceration and cutting section) 2)-Out size : 560X1100X600 mm (LXWXH) 3)-Material : All are made of stainless steel except the casting and bought-in components
9	Tightener	3	PC	All are made of stainless steel except the casting and bought-in components
10	Carcass receiving platform	2	PC	Size: 2500×800×700mm,Stainless steel

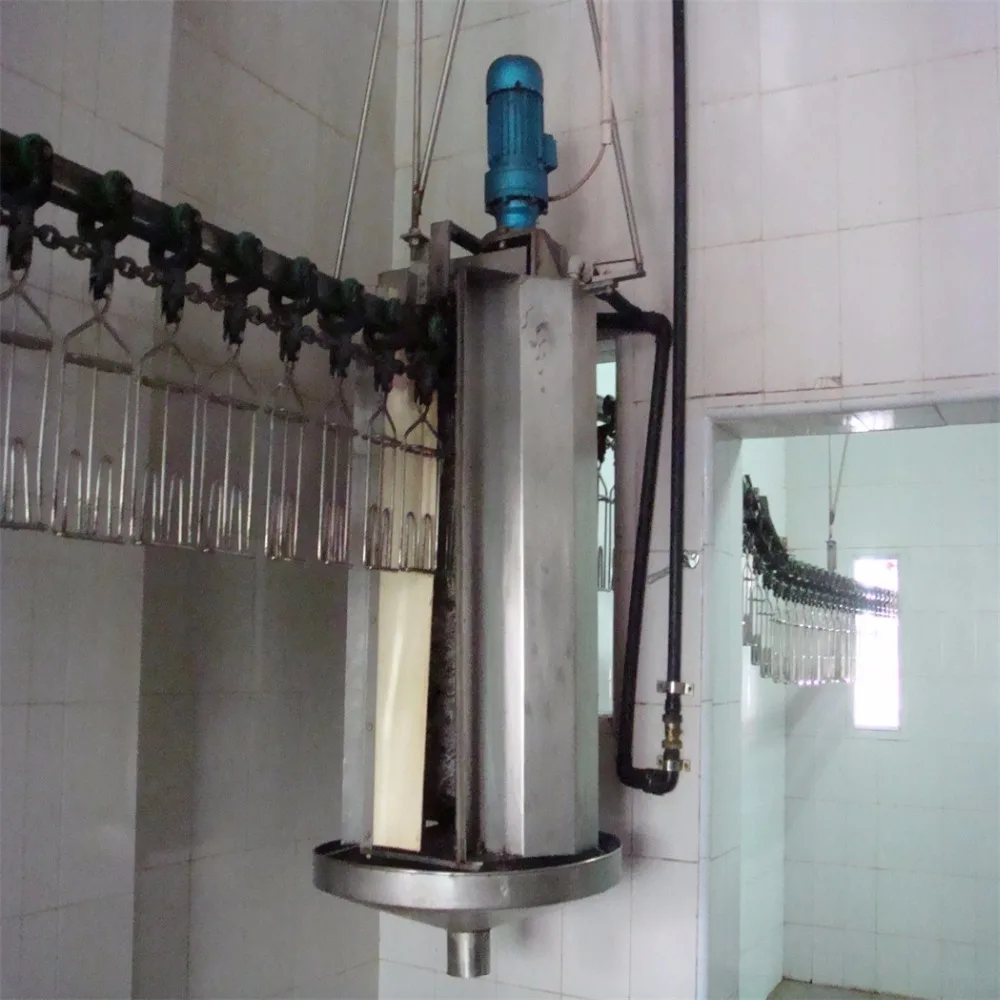

11	Hook washer	1	PC	It's used to wash and clean the hooks for bleeding, including straight and turning brushes, driving motor , cabinet and water supply device. Details as follows : 1)-Motor Power : 0.55Kw 2)-Out size : 1250*650*1387mm 3)- Rating Voltage :380/220VAC,  Controlling Voltage : 24VDC 4)-Material : All are made of stainless steel except the casting and bought-in components.
12	Electric control box (DK-1)	1	PC	This is used to controlling the electric slaughtering , feather removing ,scalding machine and so on ,the detail data as following : 1)- Out size : 1080×400×1800mm(L×W×H) 2)-Material : Hot galvanizing and stainless steel
13	Evisceration and Cutting conveying line MXS192-15	70	m	Used to hang the birds to remove the viscera and cut them into small pieces. Details as follows: 1)- Distance of hanging support :192mm 2)-Size of Chain : 8mmXt19.2 , Leading Chain size : D : 3mm  3)-Rating Voltage : 380/220VAC , Controlling Voltage : 24VDC  4)- Material : All are made of stainless steel except the casting and bought-in components 5) The length of the evisceration line is customized,  depending on y the customer's requirement on slaughter capacity.
14	Viscera trough	2	PC	Stainless steel
15	Viscera Receiving Table	2	PC	2000×800×800mm Stainless steel
16	Gizzard Cutter	1	pc	850*450*900mm
17	Feet Skin Removing Machine	1	PC	Stainless steel framework, stainless steel spiral tray and rubber stick, stainless steel spray tube. Installation power:2.2kw , Externality size 860×860×1205
18	Soaking&Scalding Pool	1	PC	All made of stainless steel,inclooding heat preservation material,Externality size 2000×1000×800
19	Control Box DK-4	3	PC	Which is used to controlling eviscerate viscera and cutting parties party , the detail data as following : 1)-Out size : 600×600×350mm(L×W×H) 2)-Material : hot galvanizing and stainless steel
20	Carcass Washer	1	PC	Which used to wash the carcass before sending to the pre-cooling machine , the detailed data as following : 1)-Spray Pipe : Diameter : 3mm , stainless steel 2)-Out size  : 1100*800*1300mm(L*W*H) 3)-Material : Stainless steel
21	Head Cutter	1	PC	Stainless steel. Size:1515*706*849mm
22	Work Table	6	PC	Stainless steel, Size: 2000×800×800mm
23	Barrel-shaped Trolley	3	PC	All made of stainless steel, 200L
24	Hand Wash Basin	6	PC	Stainless steel, with electric heating type sterilizer.





 ------------------------------------------------------------------------------------------------------------------------------------------------------------
