Product Overview

Description


Product Description

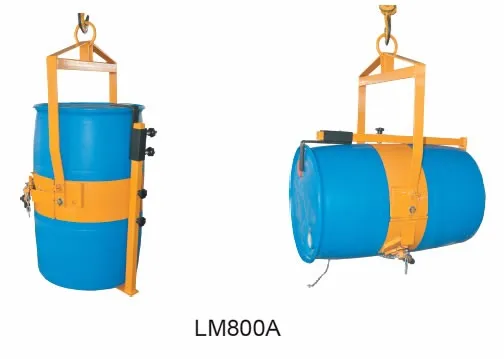

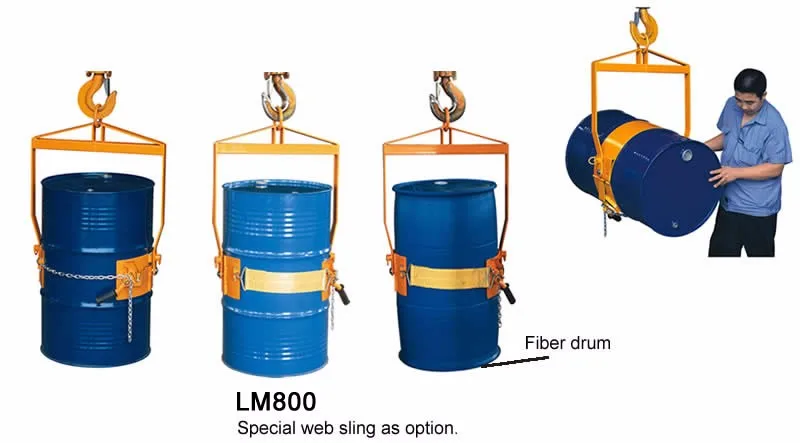

Manual Type LM800 / LM800A

▲ 800lbs, full drum, 500lbs. half-full drum capacity.
▲ For 55 gallon closed drums.
▲ Positive tilt lock on drum saddle to hold drum upright in transit.
▲ When released, the operator can manually tilt the drum to control
      Pouring an the drum can be rotated 360°in either direction.
▲ Locks also hold drum in horizontal position.
▲ Overall dimensions:39” H×281/2”W×8”D.

Detailed Images
Packing & Delivery
\t
Model
\t
\t
LM800
\t
LM800A
\t
Lifting Capacity
\t
(kg/lbs)
\t
364/800
\t
364/800
\t
Suitalbe for
\t
\t
Steel Drum Φ572～600mm,(55 gallon)
\t
Plastic Drum Φ580～600mm,(210 Liter)
\t
Operation
\t
\t
with Manual, 360°
\t
with Manual, 360°
\t
Overall Dimension
\t
(mm)
\t
340×690×850
\t
340×690×850
\t
Net Weight
\t
(kg)
\t
20
\t
22
